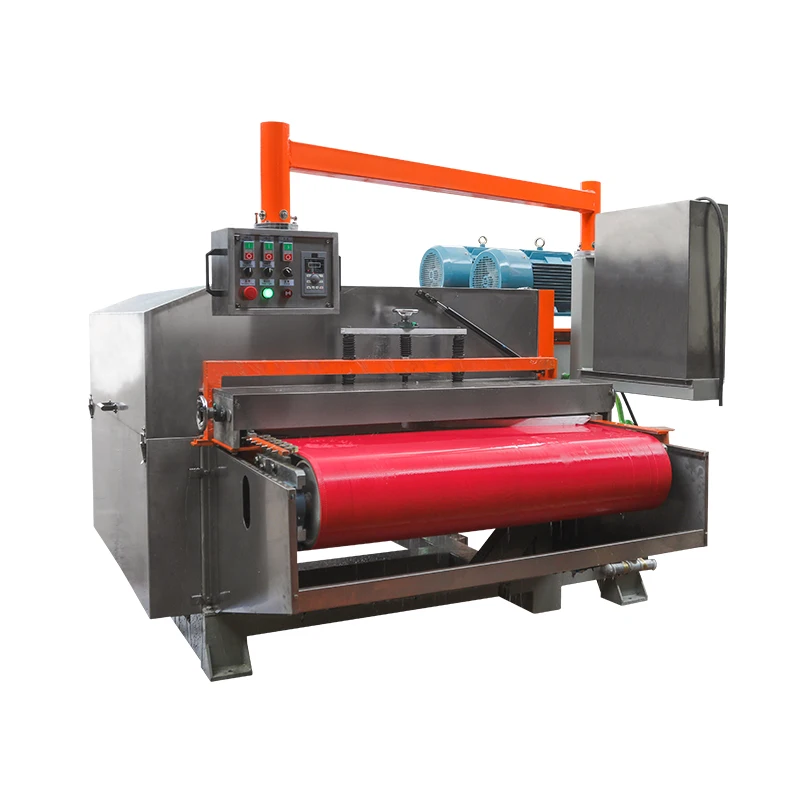

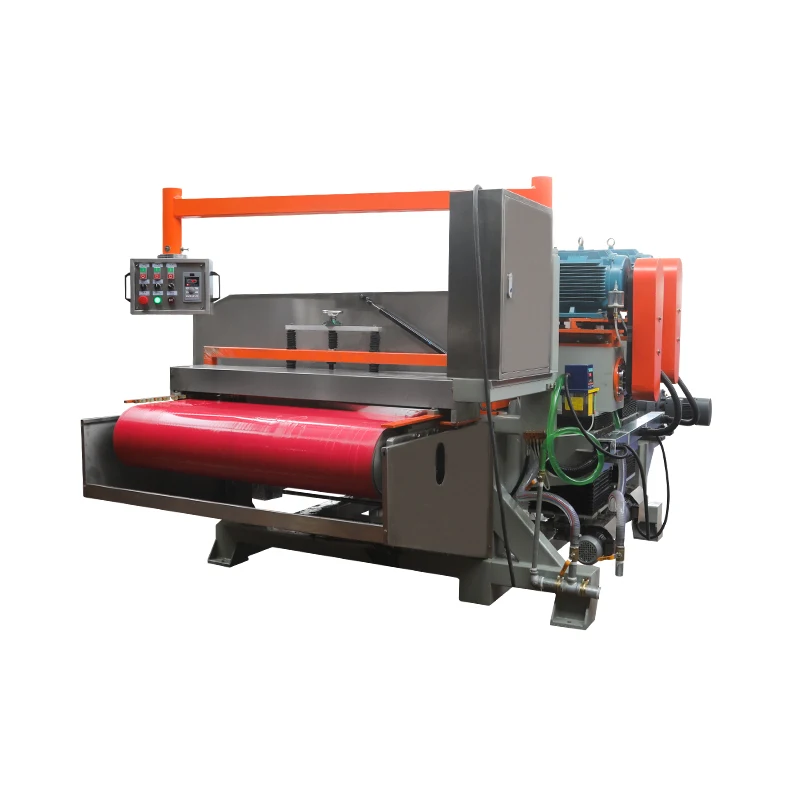

Double group multi knife tile stone red brick cutting machine factory processing cutting machine
- Category: >>>
- Supplier: Foshan Nanhai Hongyun Ceramic Machinery Co. Ltd.
Share on (1600909914654):
Product Overview
Description
Products Description
Machine introduction:

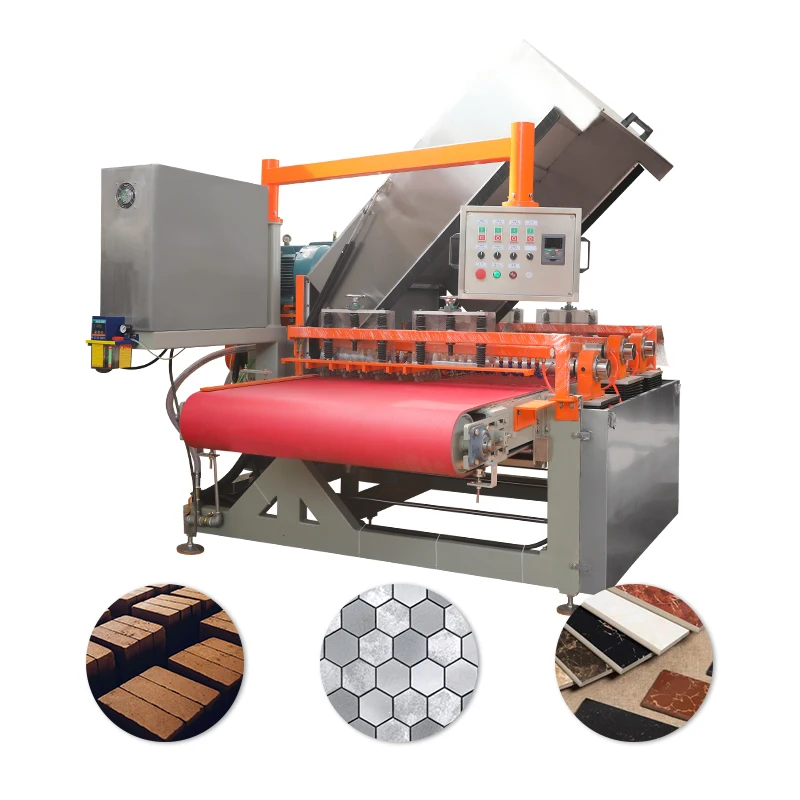

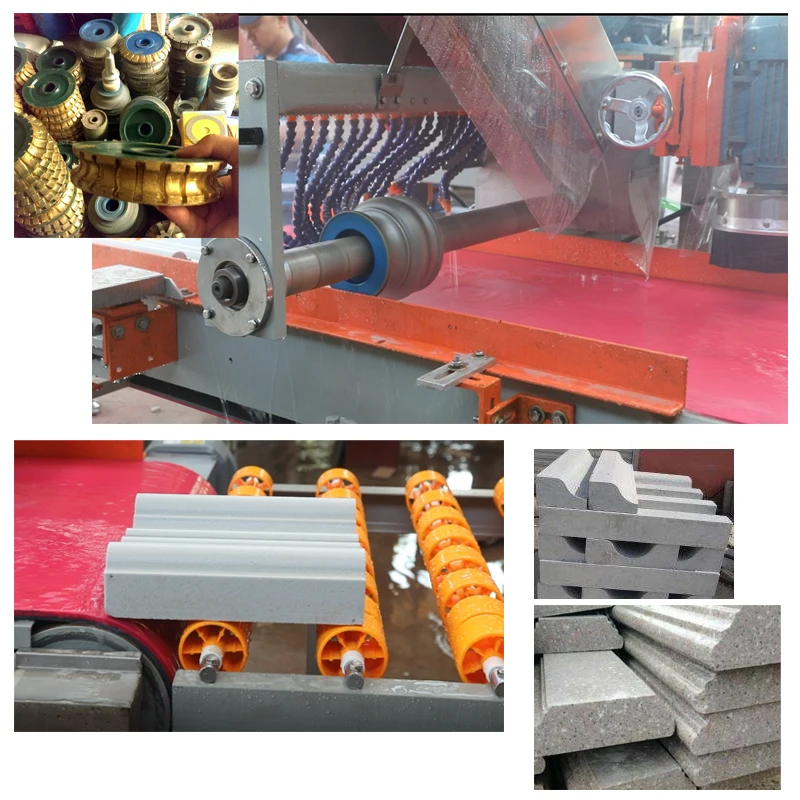

The three-group multi blades continuous cutting machine is a high-precision automatic cutting machine improved by our factory on the basis of the double-group multi blades continuous cutting machine. The main advantage of adopting the structure of three-group cutting blades cutting(the three groups/sets of cutting blades can be divided into: One set of cutting blades are for trimming + the other two sets of cutting blades are for cutting) are: This structure enables the equipment to achieve trimming while finishing fast cutting. The cut product does not require secondary processing,without cracking or chipping.The machine has been favored by customers once it was launched. Its main functions are: cutting mosaics,ceramic tiles, marbles, bricks,roof tiles, foamed ceramics and other building materials; and it can mount 2-12 pieces of cutting in one shaft at a time. In addition, our factory can customize the frequency conversion speed control function according to customer needs,through turn down the spindle speed and then installing a diamond concave-convex grinding wheel (according the shaping effects you want to customize the grinding wheel), it can have the function of stone shaping(stone profile). The machine has a variety of uses and is very suitable for large and small stone processing plants!
Configuration
Parameters of three group blades continuous cutting machine | ||||||||
Model | HY3-450 | HY3-600 | HY3-800 | HY3-1200 | ||||
Number of cutting shafts | 3 | 3 | 3 | 3 | ||||
Motor power of cutting shaft | 15/18.5KW | 15/18.5KW | 15/18.5KW | 15/18.5KW | ||||
Conveyor belt width | 470mm | 620mm | 820mm | 1220mm | ||||
Conveyor belt speed | 2.0-4m/min | 2.0-4m/min | 2.0-4m/min | 2.0-4m/min | ||||
Diameter of cutting blade | φ190-350mm | φ190-350mm | φ190-350mm | φ190-350mm | ||||
Cutting width | 20-450mm | 20-600mm | 20-800mm | 20-1200mm | ||||
Cutting thickness | 6-70（mm） | 6-70（mm） | 6-70（mm） | 6-70（mm） | ||||
Power of Cutting shaft lifting motor | 0.75kw | 0.75kw | 0.75kw | 0.75kw | ||||
Total power | 58.75kw | 58.75kw | 58.75kw | 58.75kw | ||||
Size | 3100*1380*1730mm | 3100*1580*1730mm | 3100*1780*1730mm | 3250*2280*1730mm | ||||
Weight | 2500kg | 2800kg | 3000kg | 3500kg | ||||
Features:

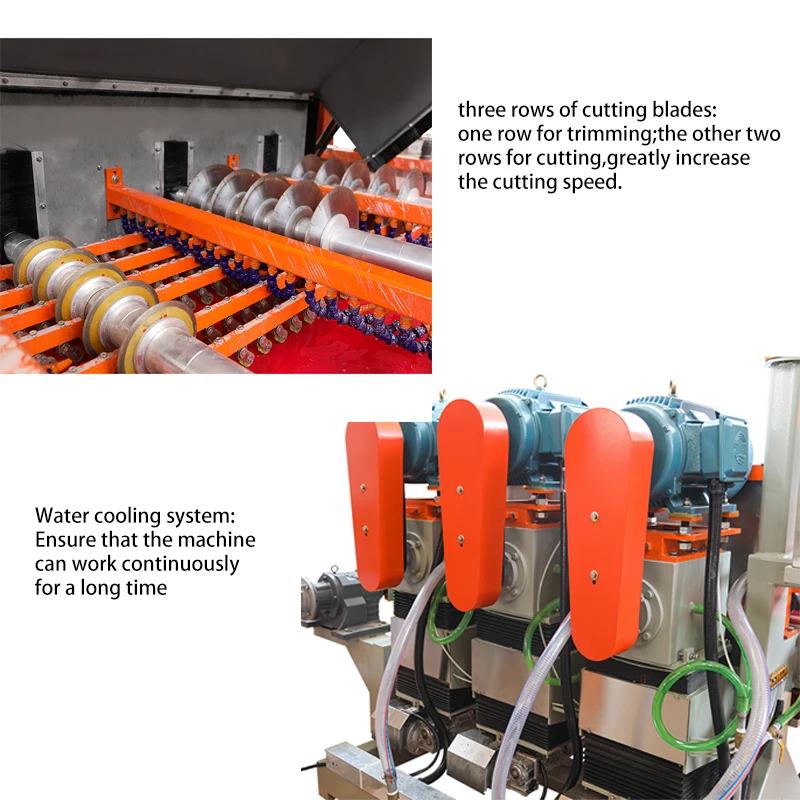

1. Three groups of cutting blades work together, take on different functions,which have better cutting effect.
2. This machine finish cutting and angle trimming at one time.

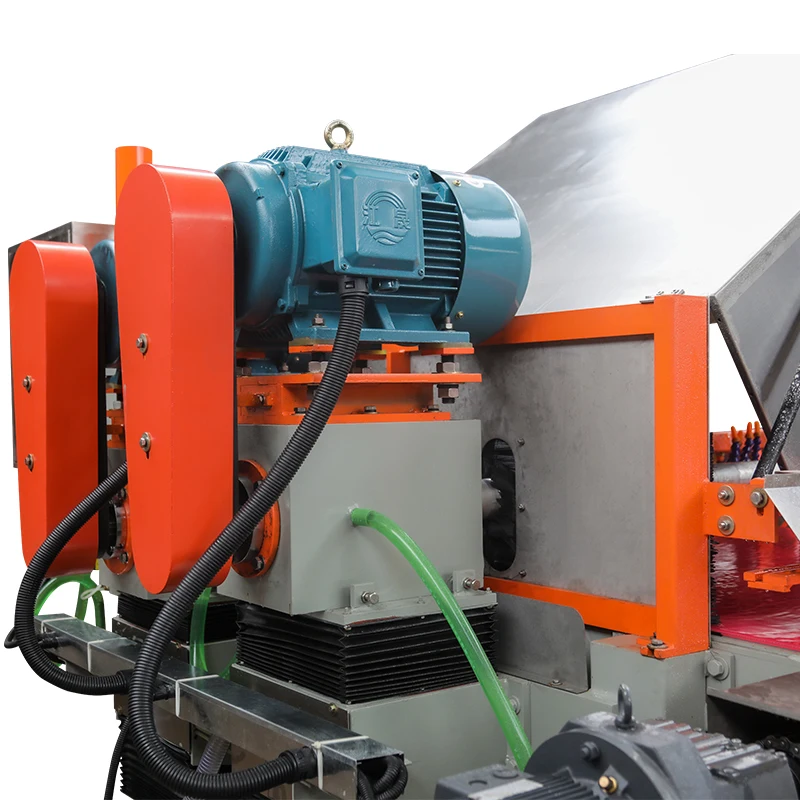

3. The main shaft box adopts water cooling method, which is easy to maintain and ensure the long-lasting bearing life.
4. A "V"-shaped guide rail is added under the conveyor belt to ensure that the conveyor belt is stable and does not deviate.

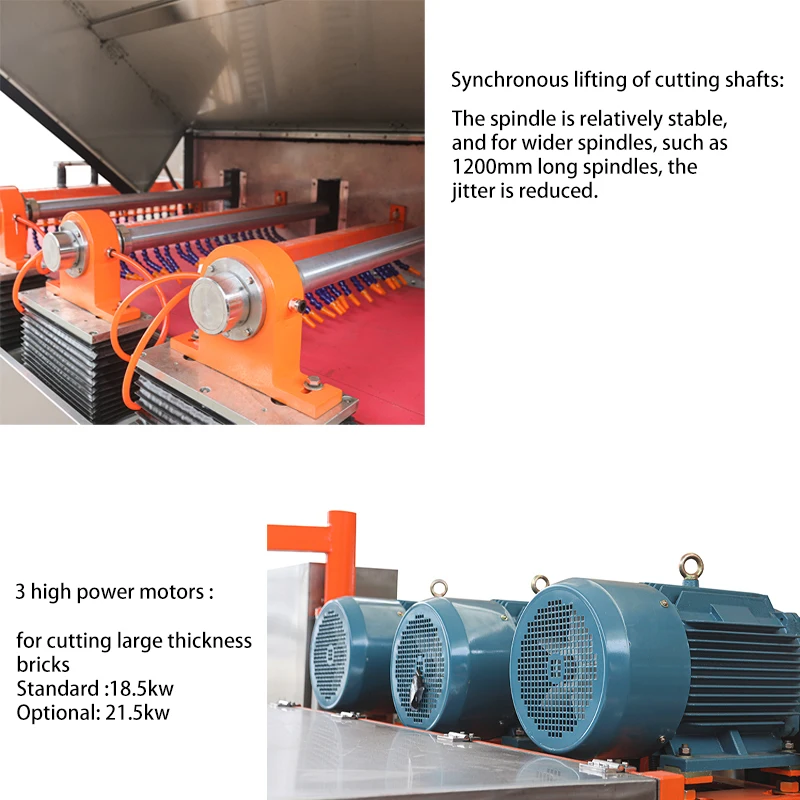

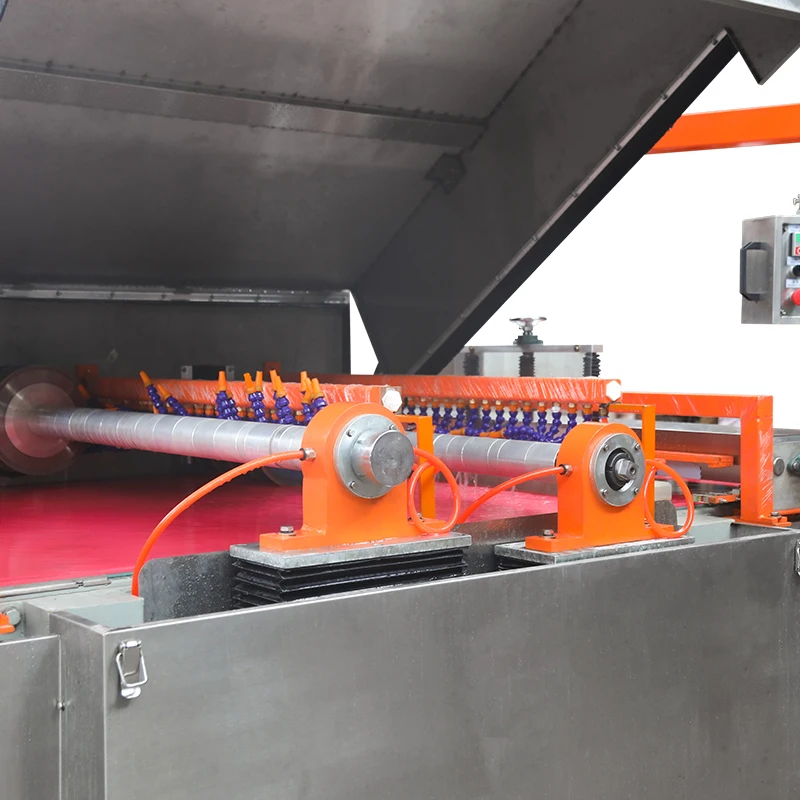

5. The cutting shafts lifting device adopts 4-axis fixed lifting method, which strengthens the stability of the spindle.
2. This machine finish cutting and angle trimming at one time.
3. The main shaft box adopts water cooling method, which is easy to maintain and ensure the long-lasting bearing life.
4. A "V"-shaped guide rail is added under the conveyor belt to ensure that the conveyor belt is stable and does not deviate.
5. The cutting shafts lifting device adopts 4-axis fixed lifting method, which strengthens the stability of the spindle.

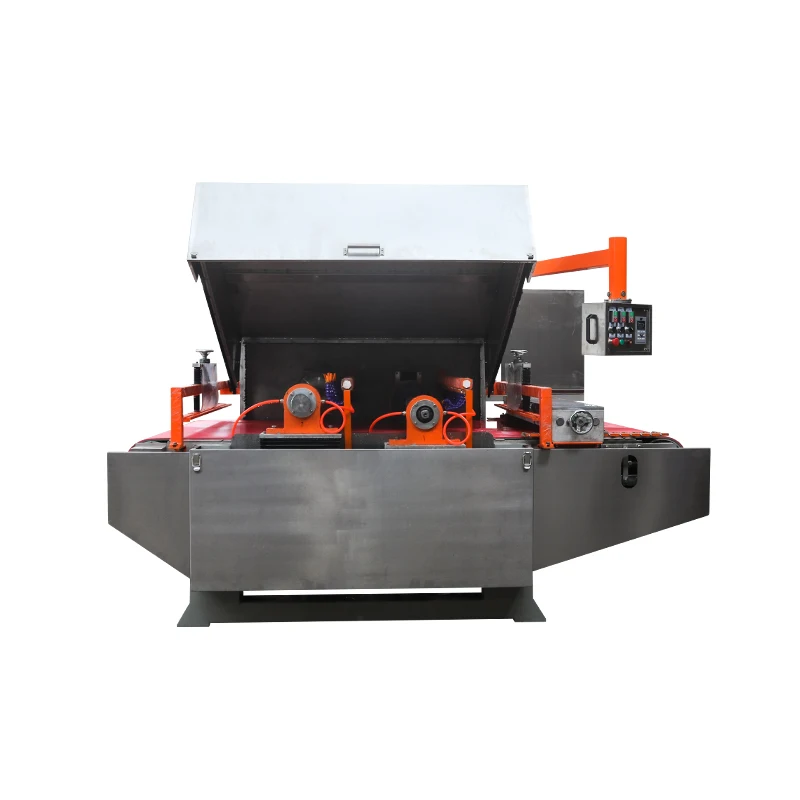

Details Images
Applications
Foshan Nanhai Hongyun Ceramic Machinery co.,ltd.
Was founded in 2008, with the location at the No. 1, Third Industrial Zone, Baishaqiao Village, Shishan Town,Nanhai District, Foshan City, Guangdong Province,China，Covering an area of 3000 square meters. Our company is a professional supplier of sintered stone porcelain&ceramic tile deep processing equipments,manufacturing in ceramic/porcelain tile cutting machine, 45 degree chamfering machine, arc polishing machine, CNC cutting machine, automatic cutting machine, CNC manual cutting machine, and multifunctional cutting machine and so on.
Before delivery
We would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
Q: What's your quality control system?
A: All our CNC machines are with CE certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.
Q: If I don't know how to use the machine, can you teach me?
A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
Q: Does the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: Delivery time
A: 1-3 days, if we have the machine in stock. 5-7 days, if change voltage or special made. 7-15 days, Large quanaitybig production line.
Q: Guarantee terms
A: MachineQuality guarantee term is for one year. Still Provide technical support forever for free. Also supplier the spare parts.
A: All our CNC machines are with CE certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.
Q: If I don't know how to use the machine, can you teach me?
A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
Q: Does the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: Delivery time
A: 1-3 days, if we have the machine in stock. 5-7 days, if change voltage or special made. 7-15 days, Large quanaitybig production line.
Q: Guarantee terms
A: MachineQuality guarantee term is for one year. Still Provide technical support forever for free. Also supplier the spare parts.
