HVS 18V Integrated 4K Full Automatic Focus Measuring Digital Microscope Camera with Measuring Software & Adjustable LED Light
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (1600910019317):
Product Overview
Description
 | Autofocus Function HDMI-compatible & LAN Outputs Long Work Distance 10cm ~ ∞ Large Field of View Photo, Video & Save Measurement without Calibration |
Product Description
HVS-18V Autofocus large field of view measurement microscope has the characteristics of fast transmission rate, and take pictures, videos and other picture processing functions.
Suitable for medical and health, agriculture and forestry geology, electronic precision machinery and other industries and departments, especially suitable for LED, PCB inspection, stamping electroplating inspection, electronic components inspection and so on.
It is also suitable for biological anatomy and macroscopic observation of insects. Language mode: Simplified Chinese, English, traditional Chinese and Japanese.
Features
---Large working distance, 10cm ~ ∞
---Auto Focus, large field of view (Max 450mm*240mm)
---HDMI-compatible & LAN Outputs, supporting 1080P@60Hz or 1080P@50Hz display
---Magnification displayed on the monitor in real time for easy comparison
---Providing directly measurement without calibration, photo, video and other images processing functions, save to TF Card
Specification
Specification for HVS-18V | |
|---|---|
Sensor | Color CMOS |
Real Resolution | 8MP |
Sensor Size | 1/2.8" CMOS |
Menu | Full Digital UI Design |
Control | Mouse Action |
Power Supply | DC12V |
Output interface | HDMI/LAN interface |
Rate of Frame | HDMI: 4K@30fps/1080P@60fps |
LAN interface 4K@30fps/1080P@30fps | |
Scanning Mode | Progressive scanning |
White Balance | Manual / Auto / One-button |
Exposure | Manual / Auto |
Electronic shutter speed | 1/30s~1/10000s |
Work Distance | 10cm~∞ |
Optical Magnification | 1~28X |
Digital Magnification | 1~3X |
Save Function | Support U-Disk & PC Save |
F.O.V & Magnification & W.D. | ||
|---|---|---|
Mag. | Visible Range (Wide*Length) when W.D.100mm | Visible Range (Wide*Length) when W.D.300mm |
1X | 178*96mm | 455*240mm |
2X | 100*58mm | 231*110mm |
3X | 75*42mm | 162*90mm |
4X | 63*35mm | 128*71mm |
5X | 54*30mm | 107*60mm |
14X | 24.4*13.6mm | 47*26mm |
28X | 12*6.5mm | 23*13mm |
Product Details
 |

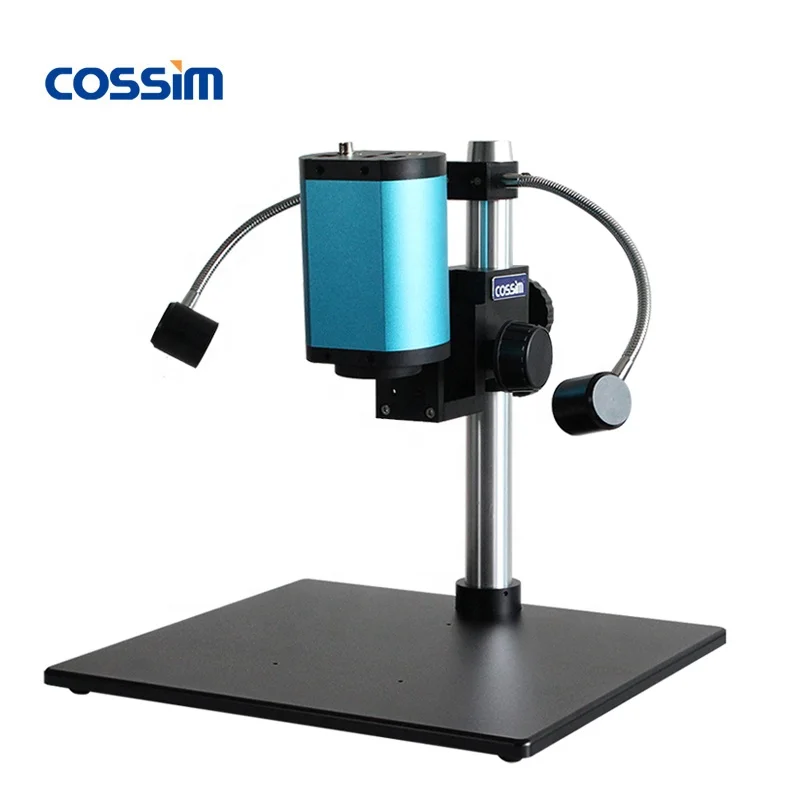

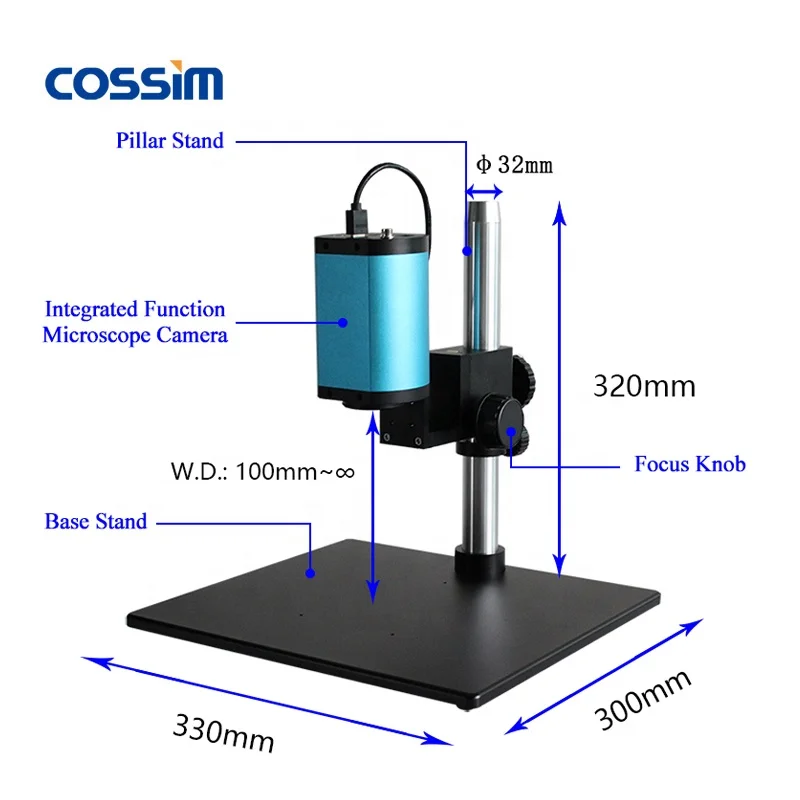

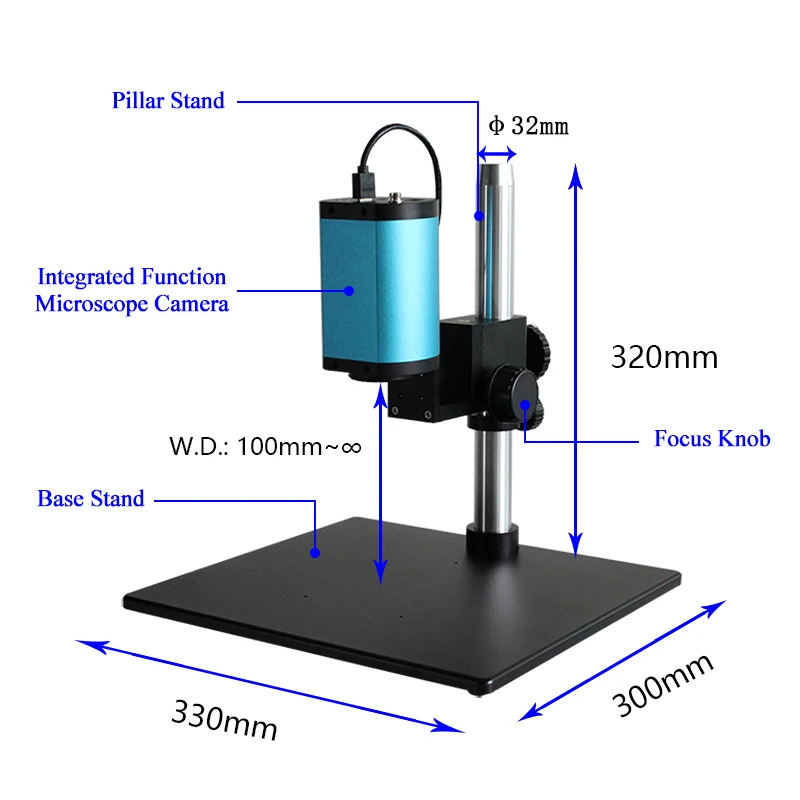

| Structure of HVS-18V Video Stereo Microscope |
 |

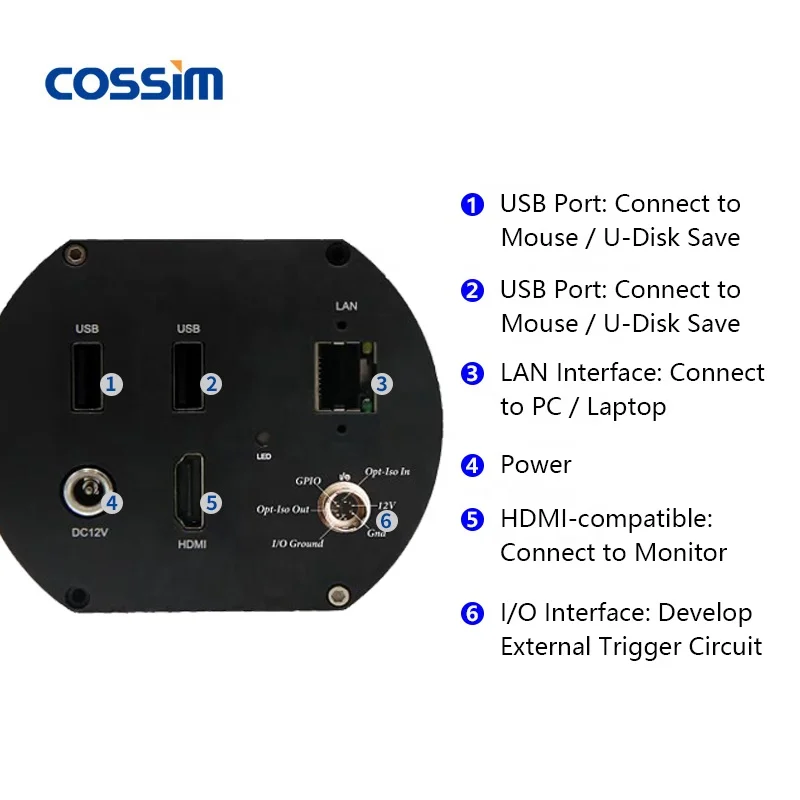

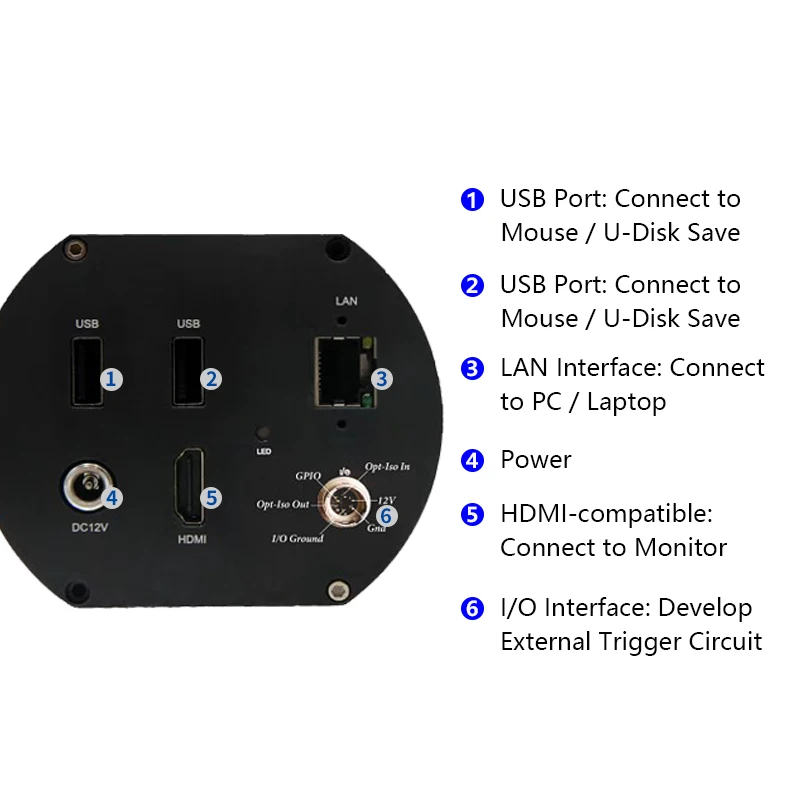

| Buttons of HVS-18V Video Stereo Microscope |

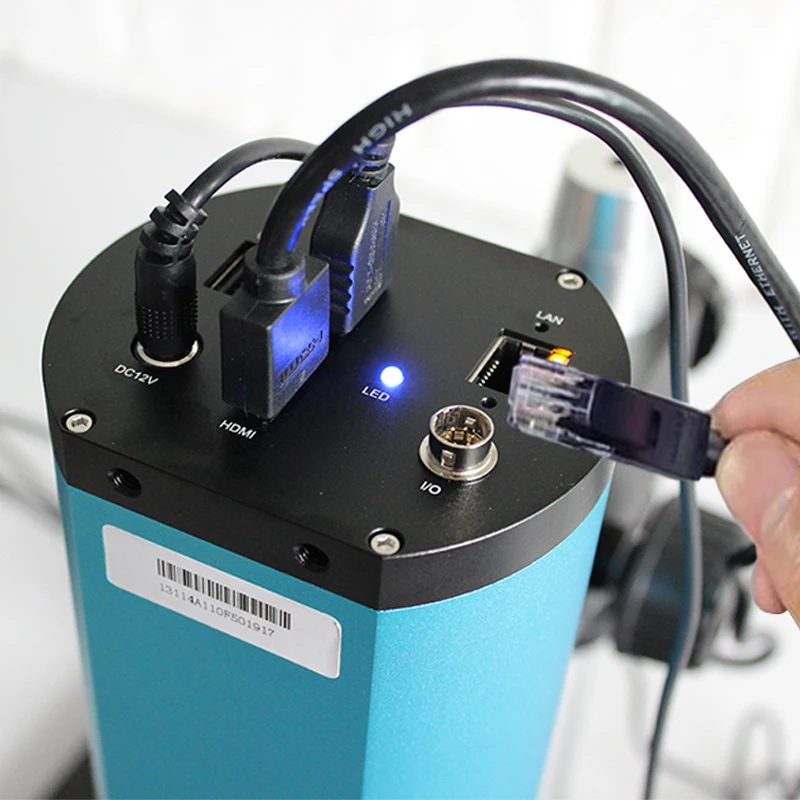

 | LAN Interface Support connected to PC, providing professional image processing software, for photo, viedo, measurement, save, etc. |

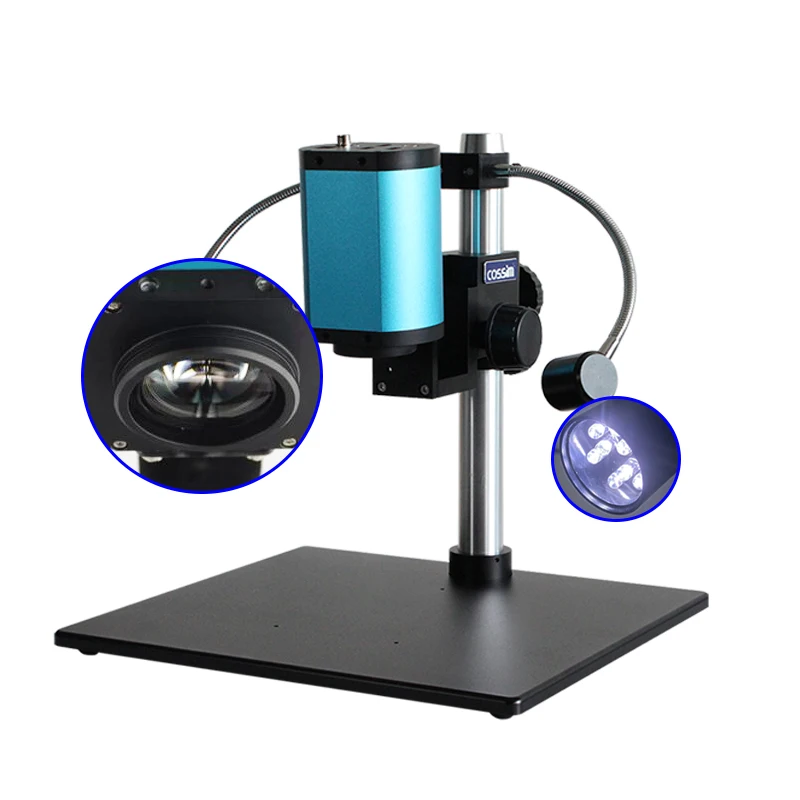

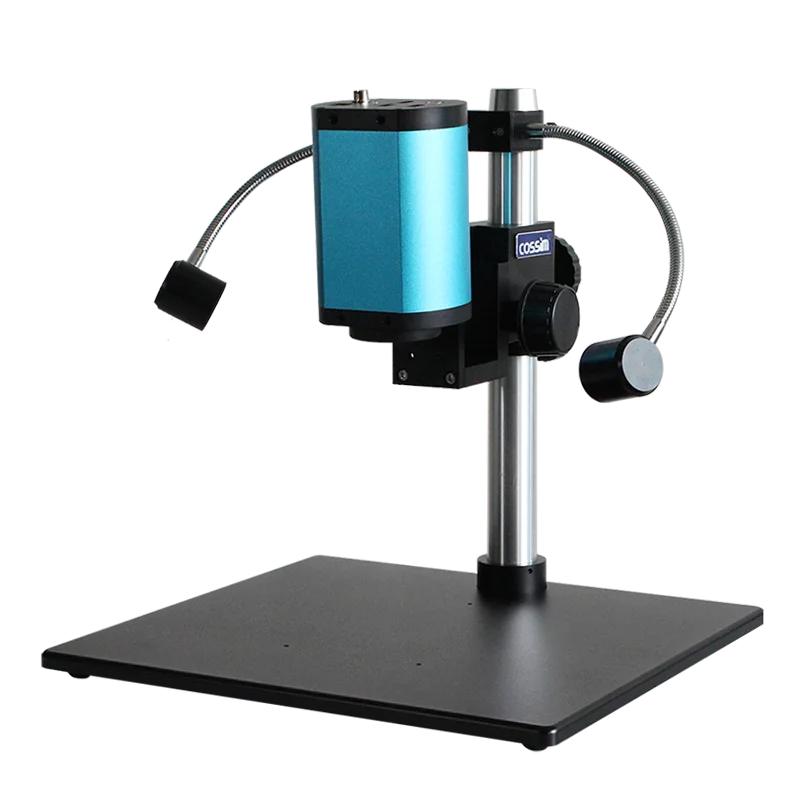

Large View & External LED Light High bright LED light source, brightness adjustable. |  |

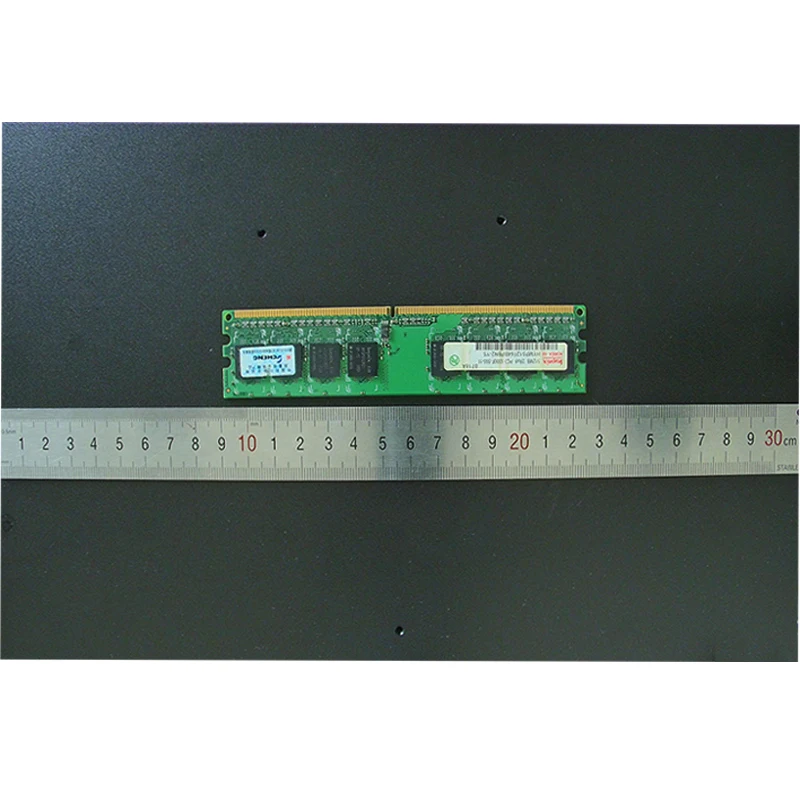

 | Superior View Field Super wide field, the max could be 455mm*240mm observe field. |

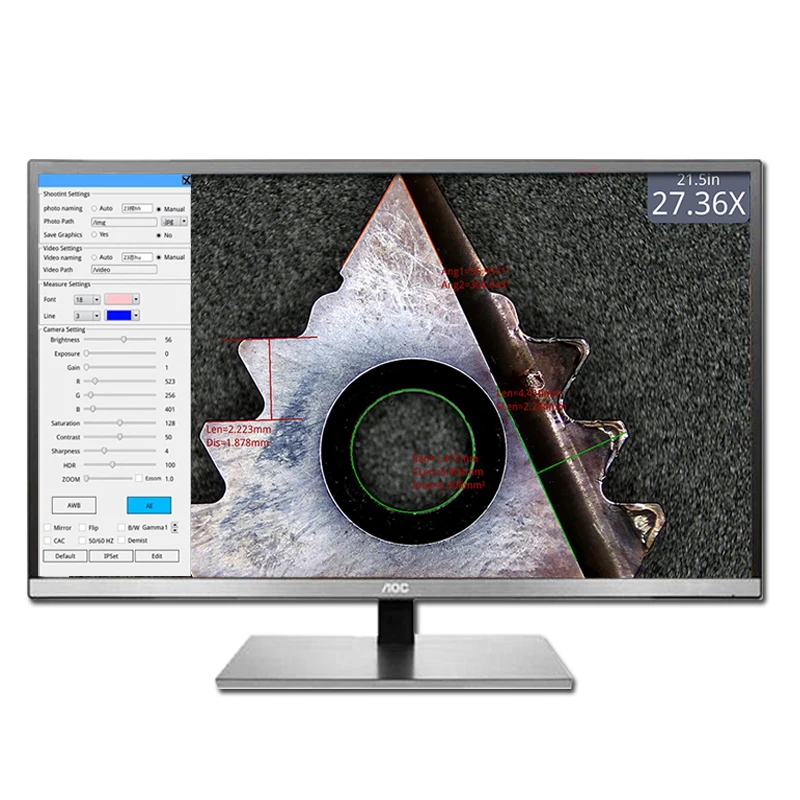

Measuring Function HDMI-compatible connected to monitor, providing auto focus, photo, video, measurement, save etc. |  |
 |
 |

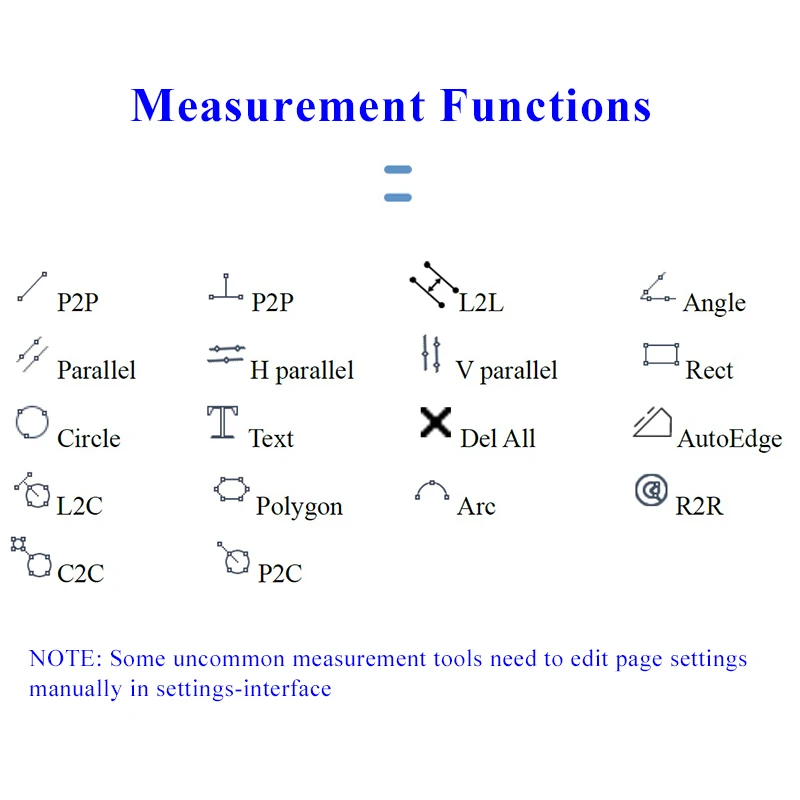

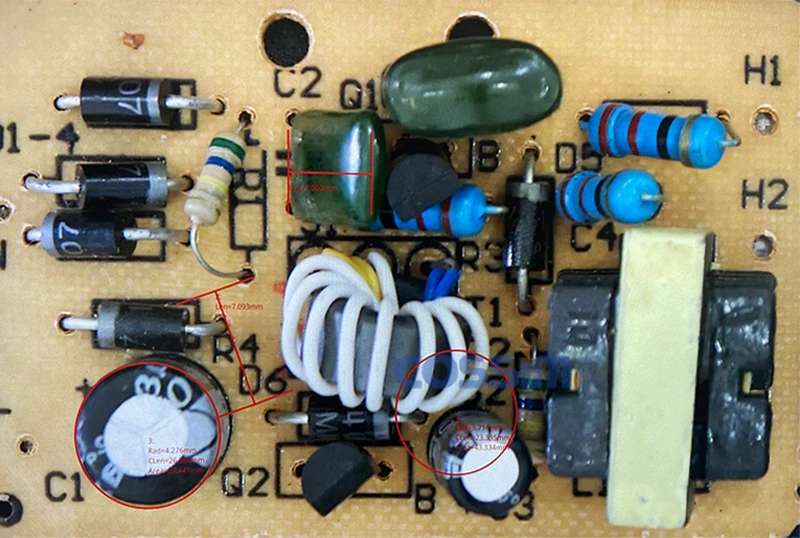

| Measurement Function of HVS-18V Video Stereo Microscope |
Dimension
 |

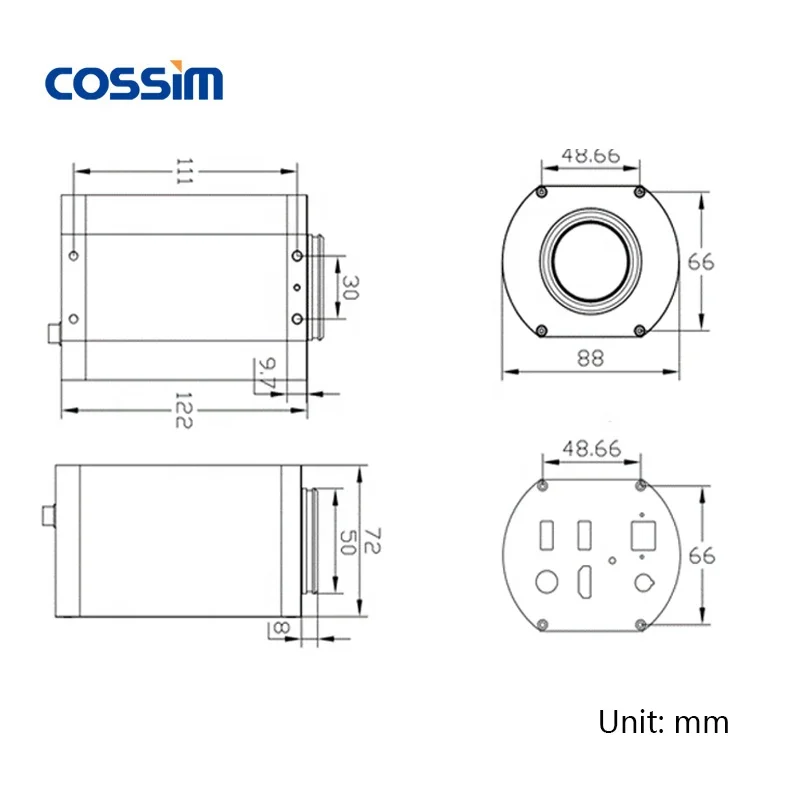

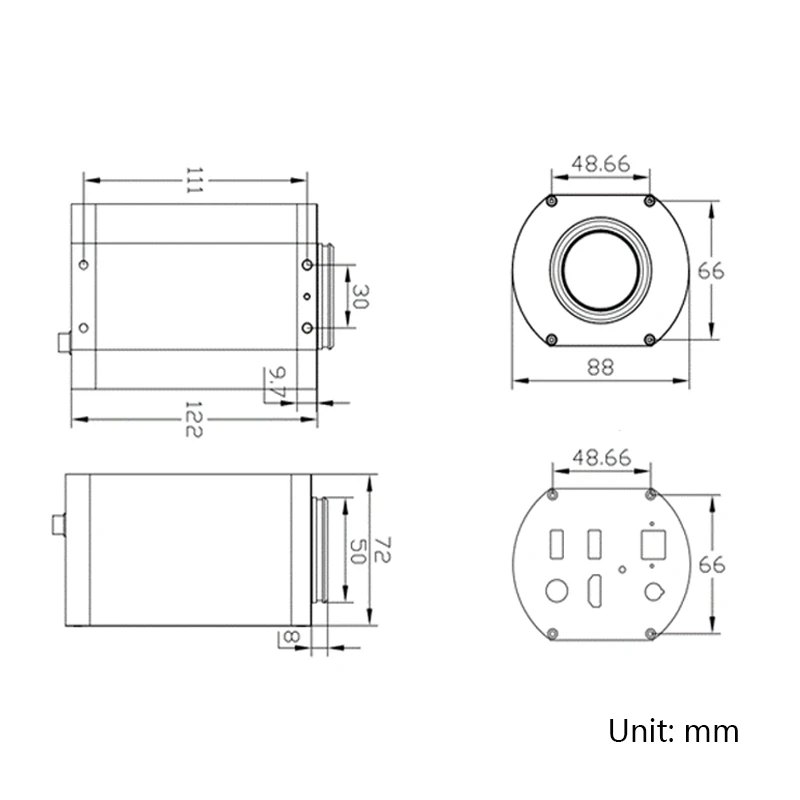

| Dimension of HVS-18V Video Stereo Microscope |
Samples
 |
 |
Application
 |

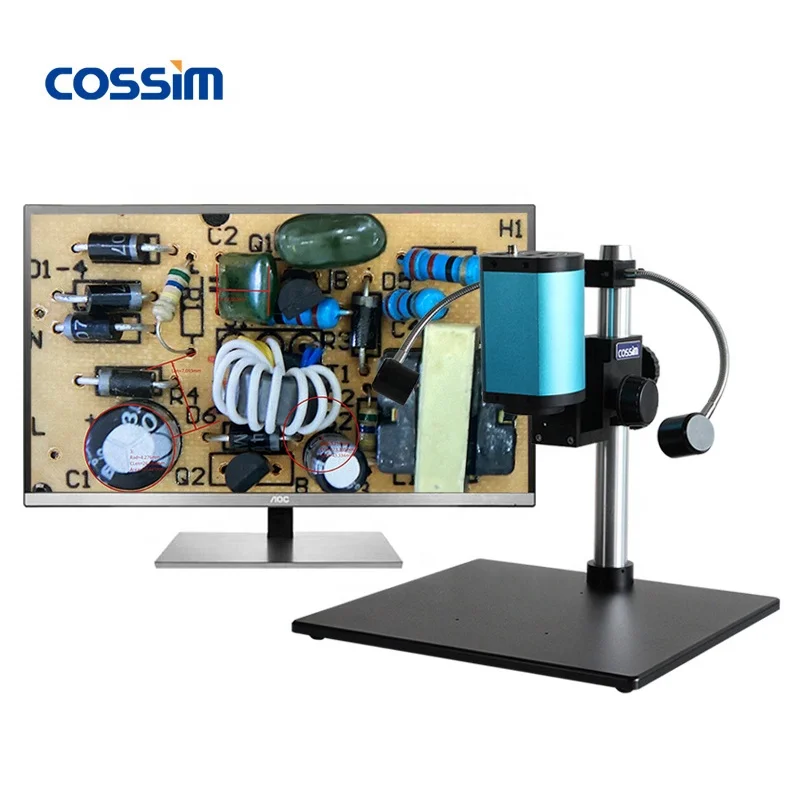

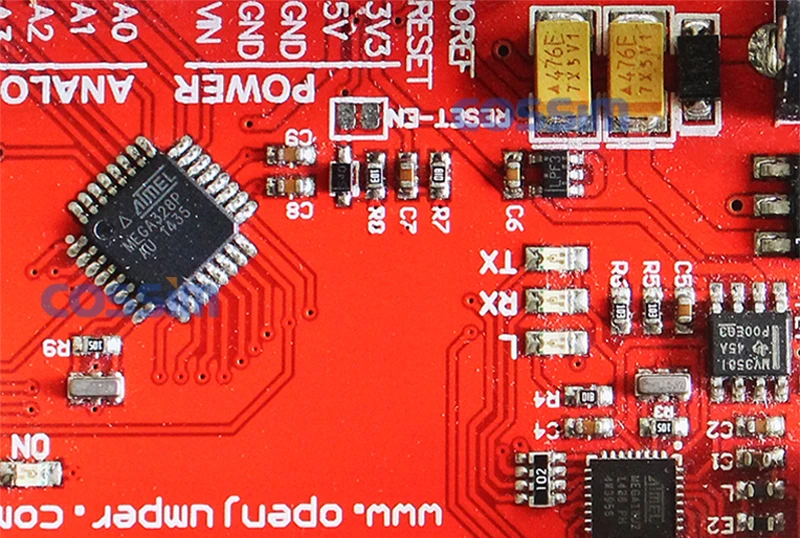

| Application of HVS-18V Video Stereo Microscope |
