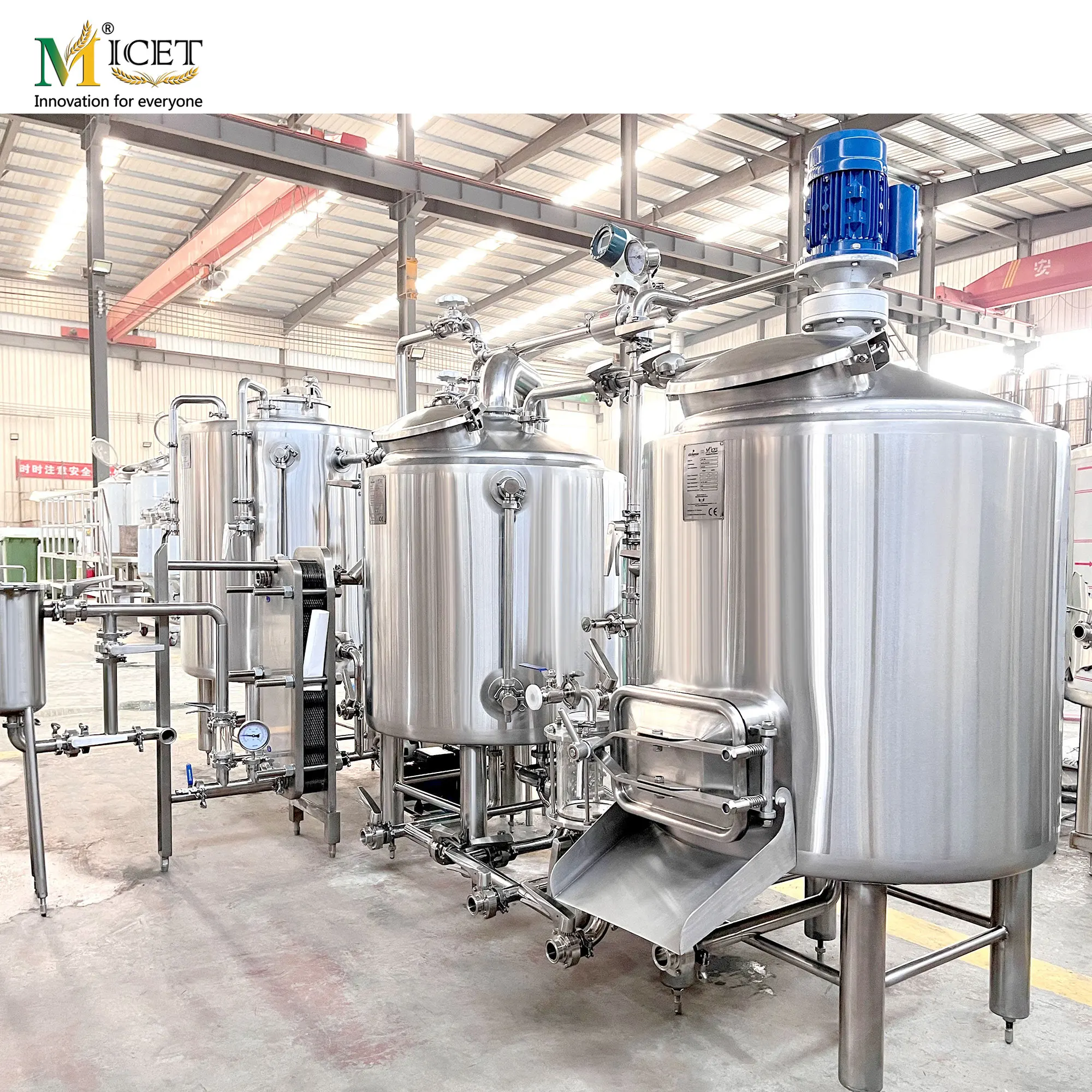

stainless steel two vessel brewhouse mash tank 200l beer crafting equipment
- Category: >>>
- Supplier: Shandong Innovative & Craft Brewing Equipment Co. Ltd.
Share on (1600910020701):
Product Overview
Description

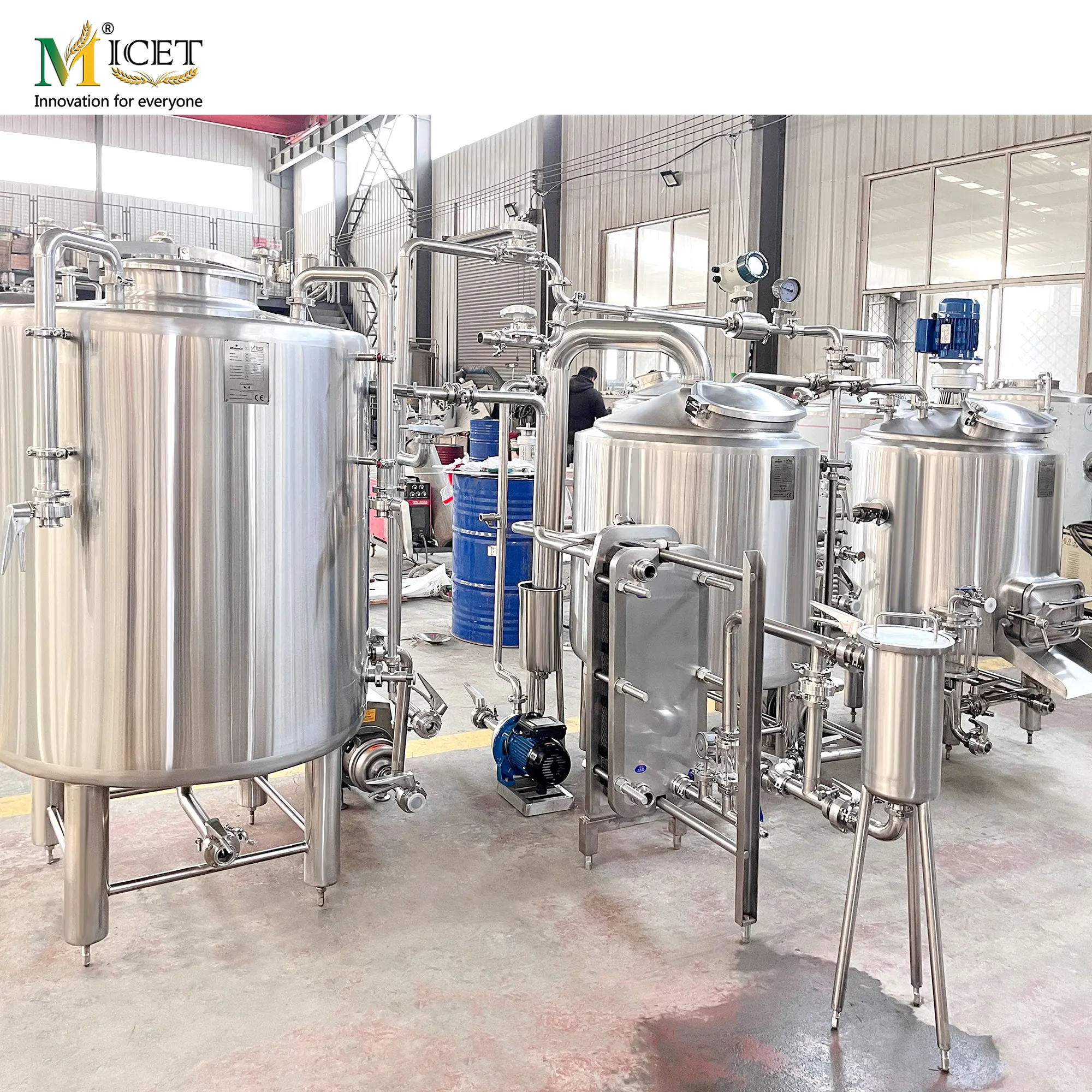

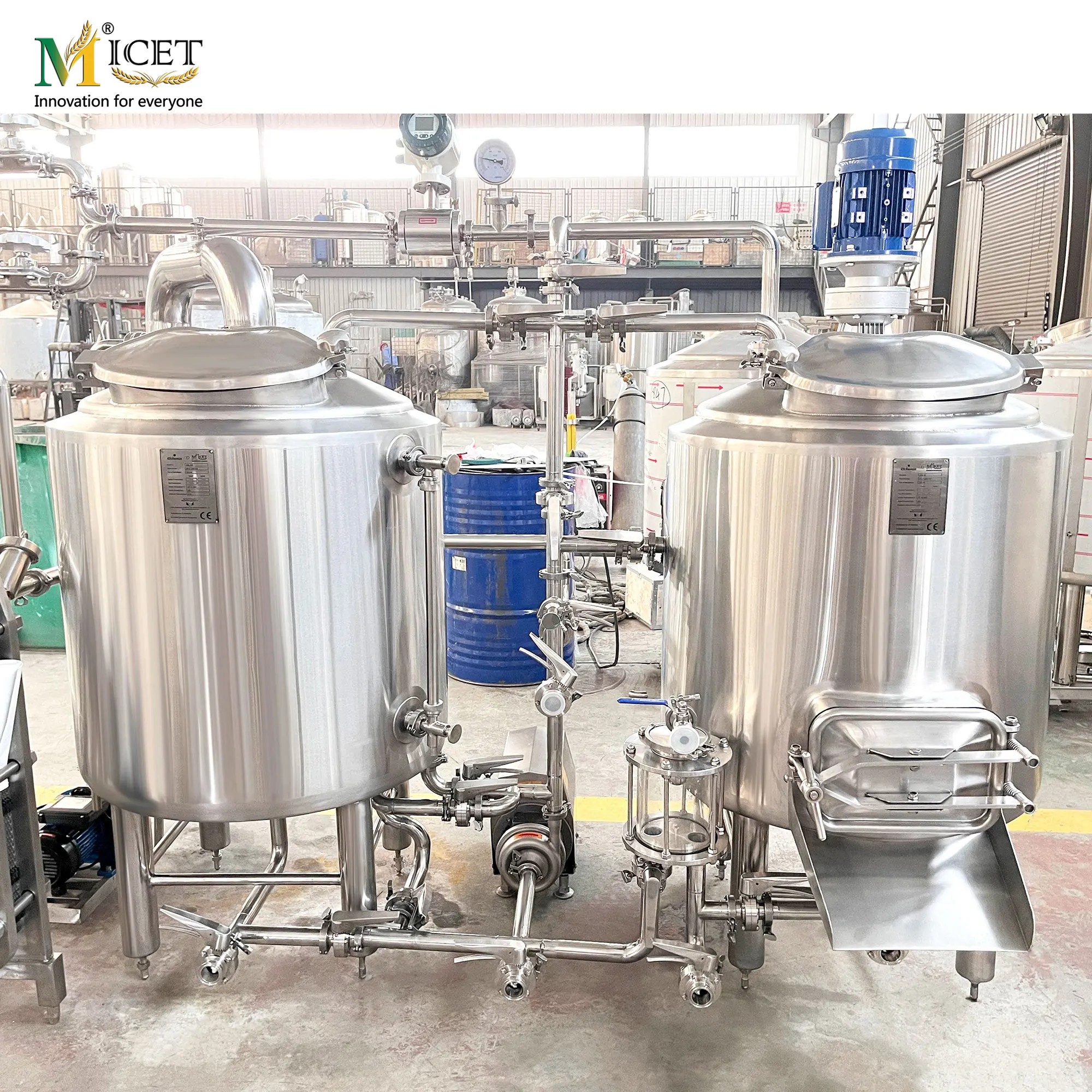

stainless steel two vessel brewhouse mash tank 200l beer crafting equipment
200L beer brewing equipment is usually used in microbreweries, brewpubs, bars, homes, restaurants, etc. And we can design and manufacture professional containers and systems for breweries, cellar equipment, and other complex breweries. Micet has decades of experience in beer brewing, manufacturing sanitary stainless steel systems, and integrated automation and control systems.
Output/ Brew | 200L | 800L | 1000L | 1500L | 2000L | 2500L | 3000L | 5000L | |||||||
Brew/Week | 2~6 | ||||||||||||||
Output/Week | 4~12HL | 16~48HL | 20~60HL | 30~90HL | 40~120HL | 150~300HL | 180~360HL | 240~360HL | |||||||
Area Request | >15㎡ | >60㎡ | >70㎡ | >90㎡ | >120㎡ | >140㎡ | >150㎡ | >180㎡ | |||||||
Brew master | 1 | 1 | 1~2 | 1~2 | 2~3 | 2~3 | 3~5 | 3~5 | |||||||
Material | Interior Shell: SUS304 TH=3mm; Exterior Shell:SUS304 TH=2mm /red copper | ||||||||||||||
Heating | Electric/Steam/Direct fire for optional | ||||||||||||||
Voltage | 3 phase/380(220, 415,440...)v/50 (60)Hz | ||||||||||||||

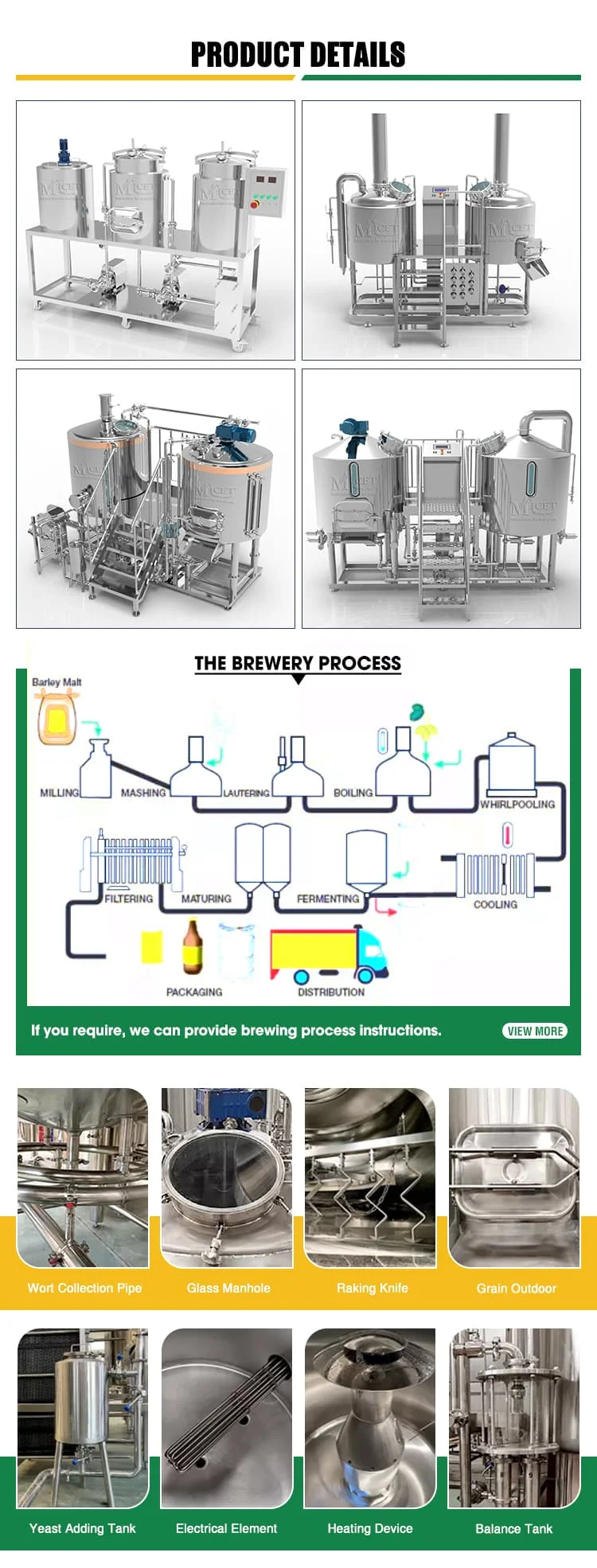

Product advantages
1. Equipment design as per customer brewing method, feeding amount and brewing beer types can make beer highest to 33 Plato.
2. Milling sieve plate,wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.

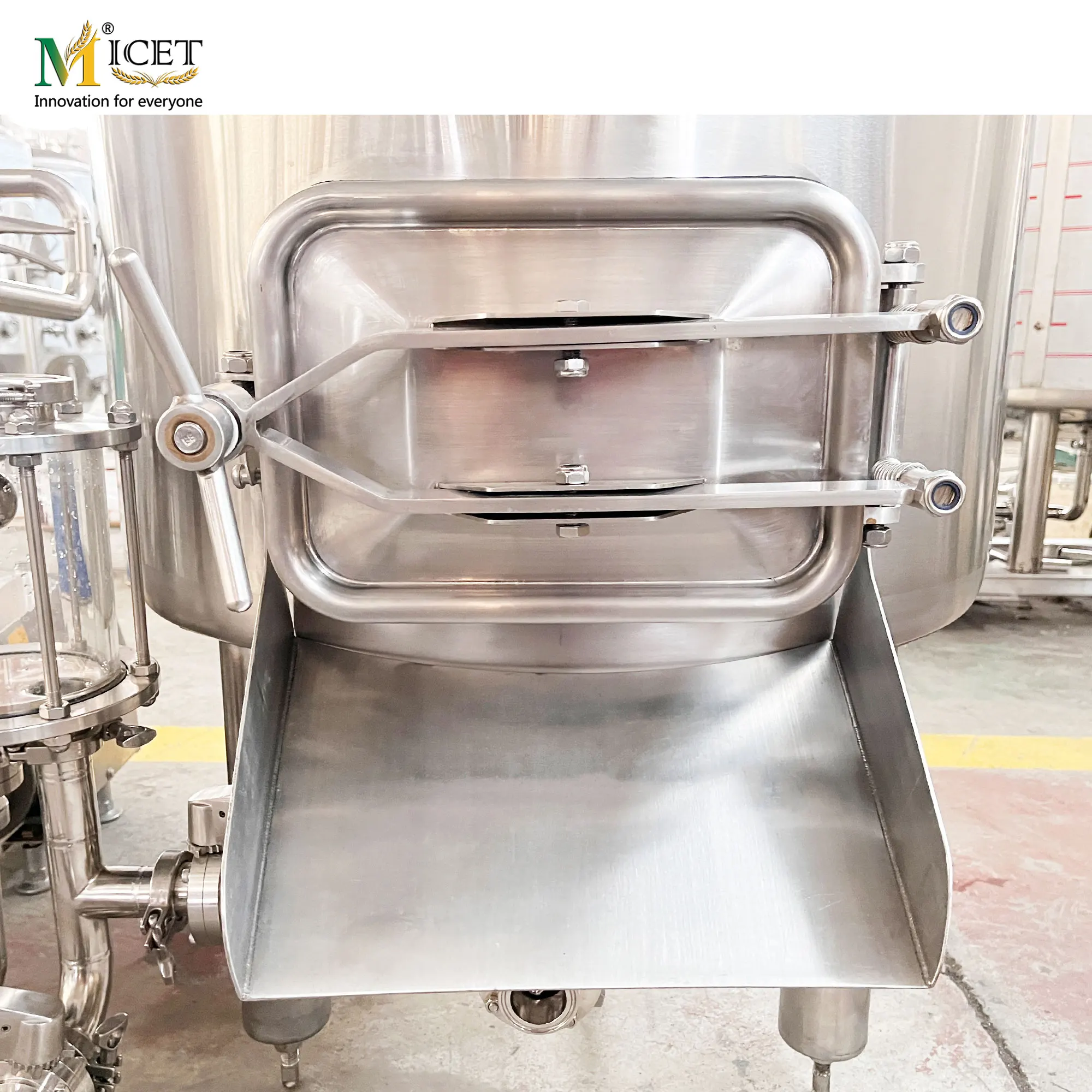

3. Lauter tun is equipped with dustpan, which is convenient for grains out and cleaning.
4. Lauter tun stirring motor is equipped with frequency converter, which can adjust the speed, rake can be lifted up and down.
5. Brew kettle is equipped with an indoor steam condenseror outdoor exhaust chimney depends on customer
6. Equipping with a special inline hop filter to make the wort clearer before fermenting.
7. The pumpand motor use ABB or JLEM American brand, long service life, and low sound.

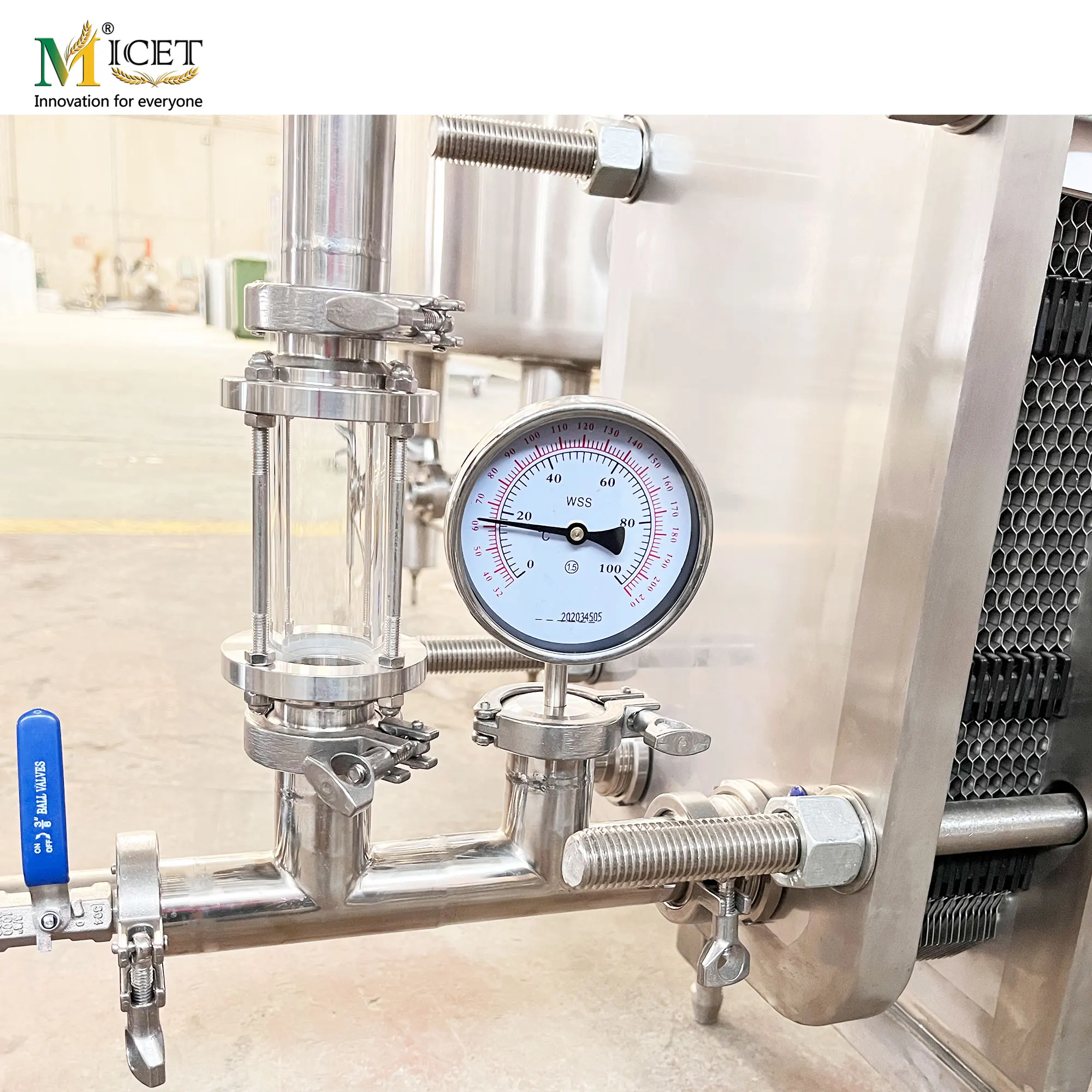

8. Brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
9. The bottom of lauter tun is equipped with wort collection loop and under-the-flush device.
10. Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
11. Equipping with sparge arm and double CIP cleaning loop on top of the tank.
12. The HLT was designed with return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
13. The working platform adopts water leakage and a non-slip design.
14. Brewhouse manways always use full glass manway.
2. Milling sieve plate,wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
3. Lauter tun is equipped with dustpan, which is convenient for grains out and cleaning.
4. Lauter tun stirring motor is equipped with frequency converter, which can adjust the speed, rake can be lifted up and down.
5. Brew kettle is equipped with an indoor steam condenseror outdoor exhaust chimney depends on customer
6. Equipping with a special inline hop filter to make the wort clearer before fermenting.
7. The pumpand motor use ABB or JLEM American brand, long service life, and low sound.
8. Brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
9. The bottom of lauter tun is equipped with wort collection loop and under-the-flush device.
10. Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
11. Equipping with sparge arm and double CIP cleaning loop on top of the tank.
12. The HLT was designed with return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
13. The working platform adopts water leakage and a non-slip design.
14. Brewhouse manways always use full glass manway.
FCL shipping
1. All piping mark numbers before shipping. Meanwhile, In order to help customers to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
2. All the accessorizes for brewhouse and fermenting will be counted and packed separately.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
our service
1. Micet provides a turnkey solution from project consulting, benefit analysis, space layout design, 3D rendering, production site, equipment design, manufacturing, installation, commissioning, training, and other one-stop services.
2. Micet provides installation and debugging service at a service fee (100usd) per day.
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technicians will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service.
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
3. Micet factory marks all piping with numbers, solve any questions during your installation.
4. Micet technicians will train the brewer to produce qualified craft beer.
5. Micet provides installation and maintenance manual book, piping installing layout.
6. Sales&engineers could be keeping 24 hours online for service.
7. Micet provides a 3-year warranty on tanks sold with manufacturing defects from the factory. Micet provides a 1-year warranty on tank accessories, pumps, electronic components.
8. Any extra spare parts required, send and deliver immediately.
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping. 2. Paypal or trade assurance is available.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping. 2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
