ELP 1MP CMOS OV9712 HD 720p Mini USB Camera With Fixed Focus 3.6mm Lens for ATM, Kiosk, automatic vending Machine





Key Features:

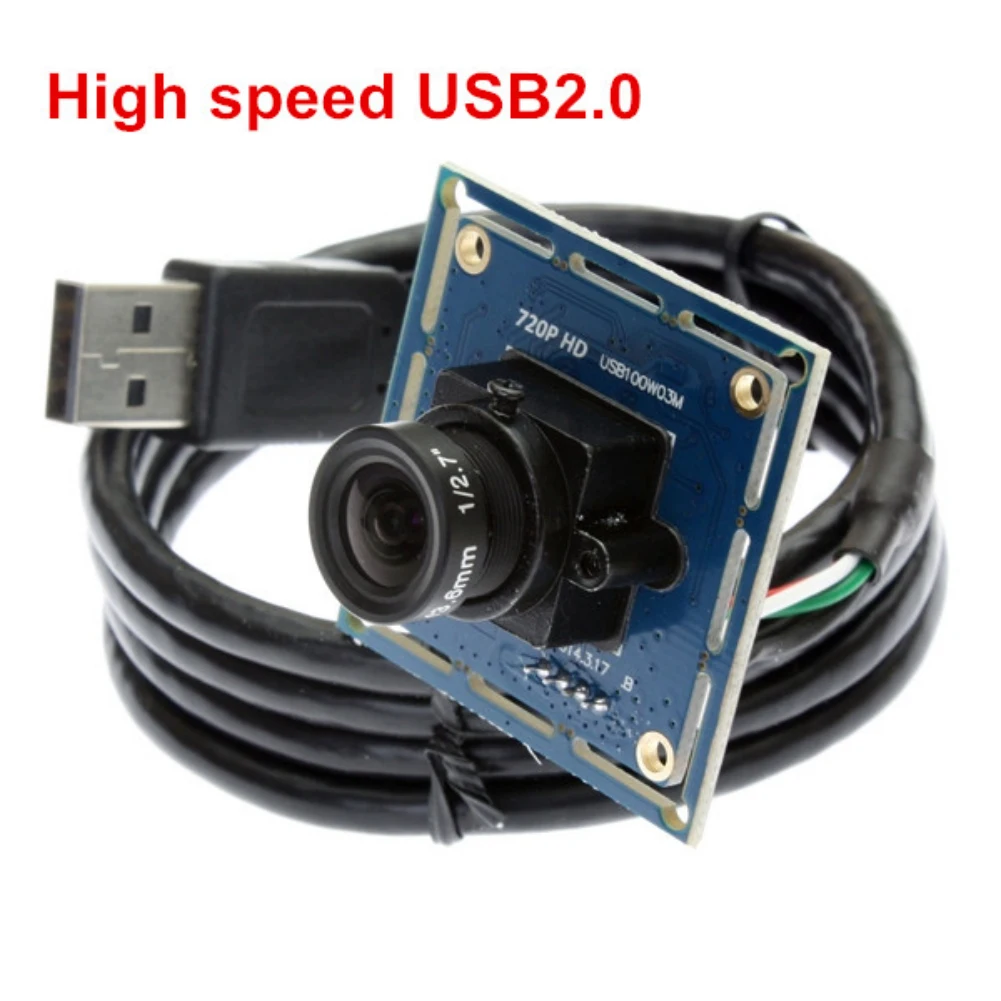

* 1MP 720P USB 2.0 Camera module
* 1/4” OV9712 Color CMOS sensor for high quality image
* High frame rate - support 720P 1280x720 @30fps MJPEG video stream
* With HD 3.6mm M12 lens
* Mini size 38x38/32x32mm for embedded application
* Low power consumption - ideal for portable equipment.
* MJPEG/YUY2 dual video format optional

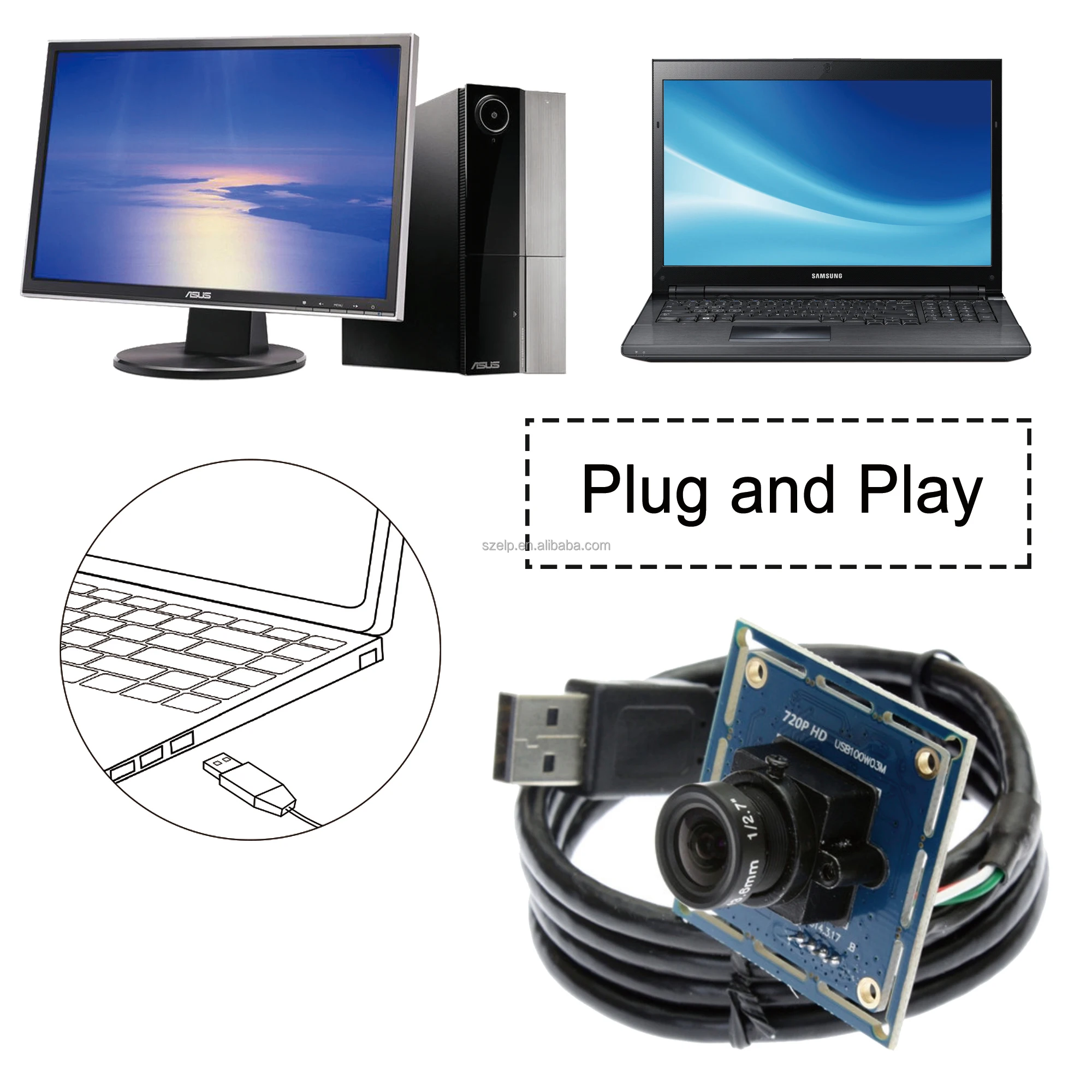

* High speed USB 2.0 plug&play port- suitable for any PC with USB 2.0 interface

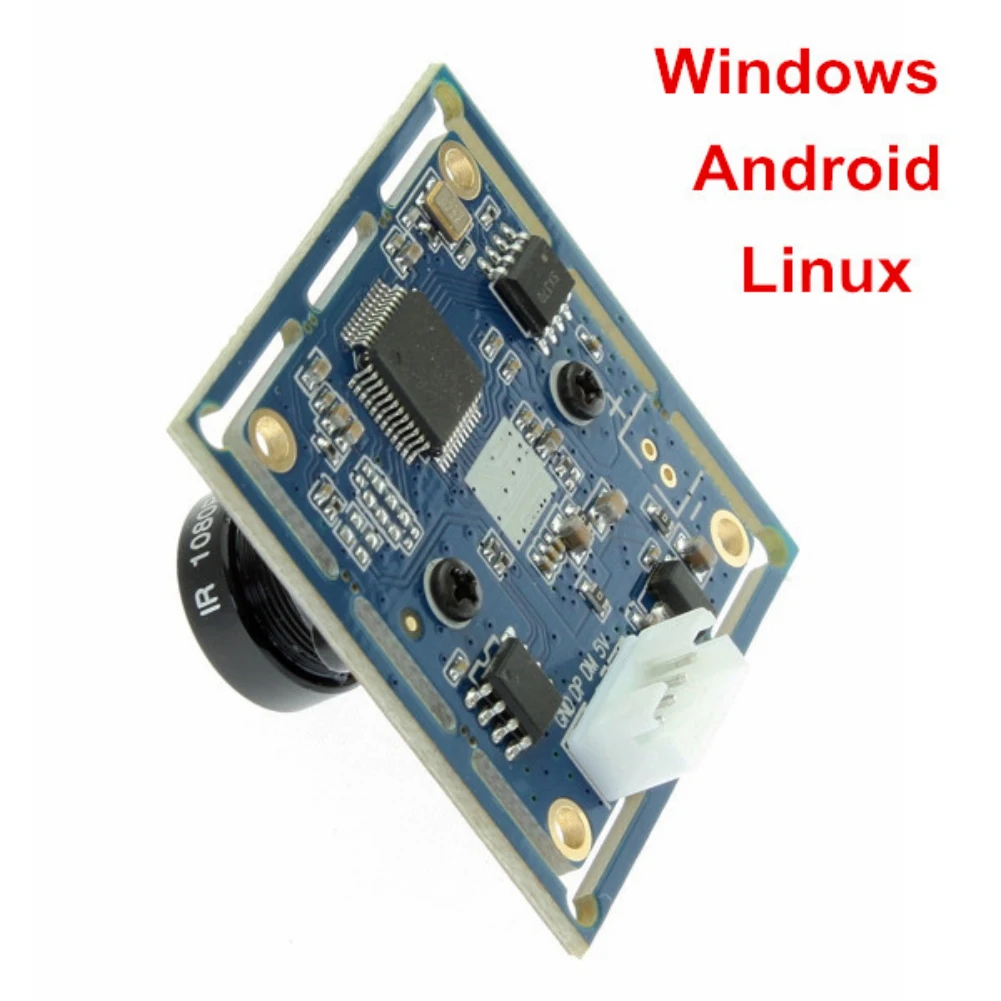

* UVC compliant - support Windows, Linux, Android system with UVC

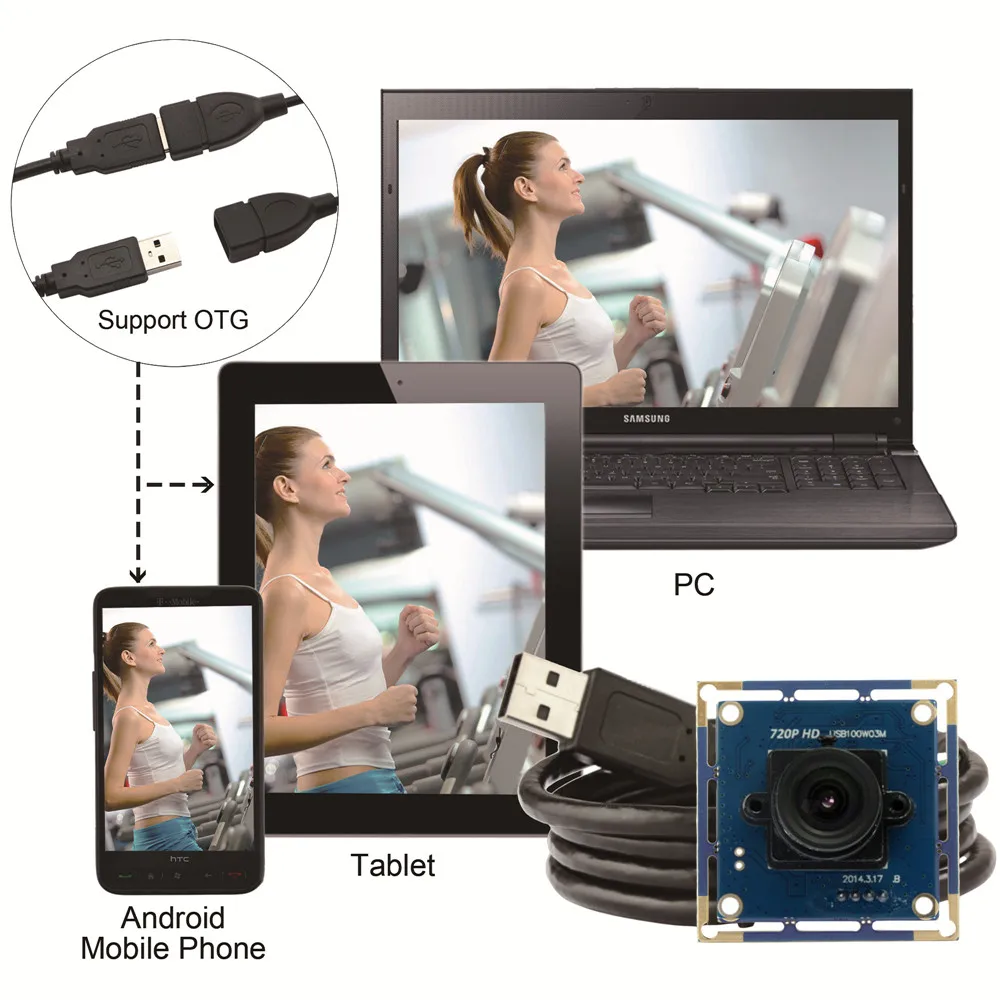

* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG


Specification


Model
ELP-USB100W03M-L36
Optional models
ELP-USB100W03M-L21(2.1mm lens)
ELP-USB100W03M-L28(2.8mm lens)
ELP-USB100W03M-L60(6mm lens)
ELP-USB100W03M-L80(8mm lens)
ELP-USB100W03M-L12(12mm lens)
Sensor
NT99141
Sensor Size
1/4 inch
Pixel Size
3.0um X 3.0um
Image area
3888 µm x 2430 µm
Max. Resolution
1280(H)X720(V)
Compression format
MJPEG / YUY2（YUYV）
Resolution & frame rate
1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps
800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps
352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps
176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps
S/N Ratio
40dB
Dynamic Range
69dB
Sensitivity
3.7V/lux-sec@550nm
Min illumination
0. 1lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
USB protocol
USB2.0 HS/FS
OTG protocol
USB2.0 OTG
Free Drive Protocol
USB Video Class（UVC）
AEC
Support
AWB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure
Lens Parameter

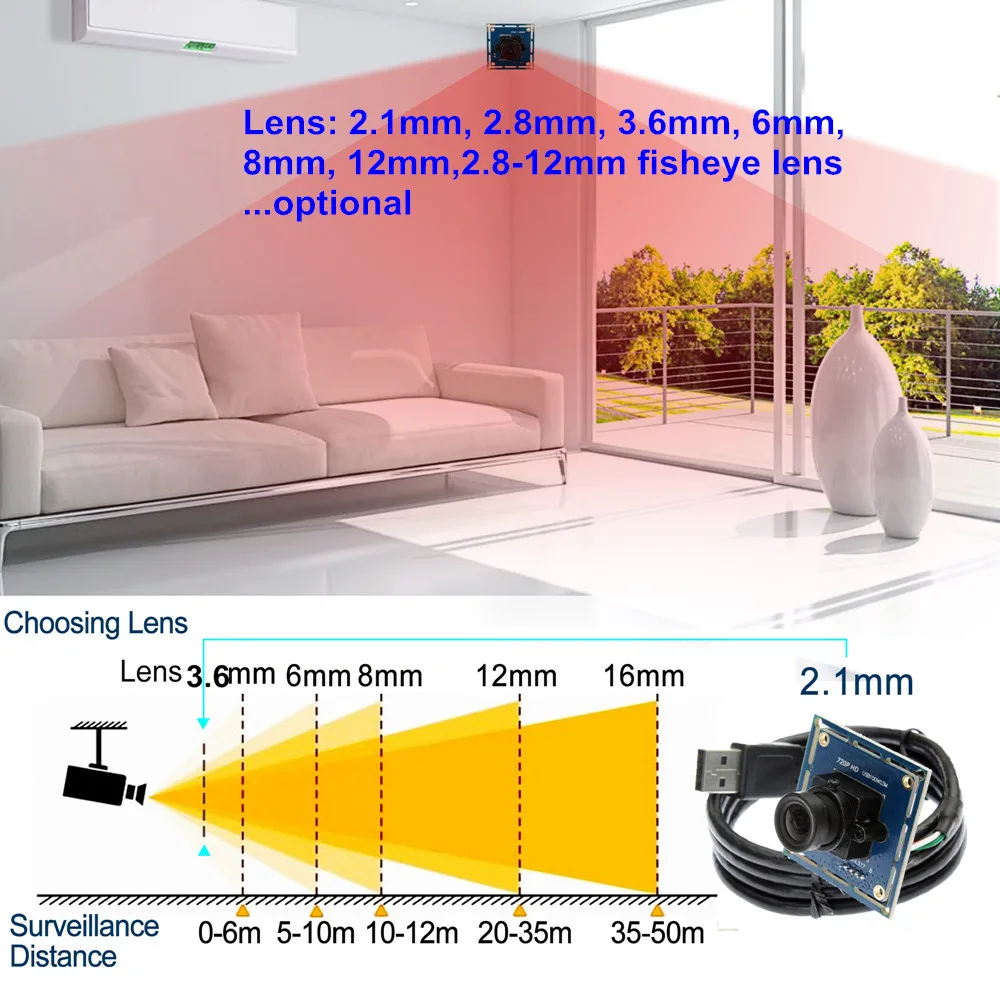

Standard 3.6mm, optional 2.1/2.8/6/8/12mm lens/ fisheye lens/ no distortion lens
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Operating Voltage
DC5V
Working Current
100mA~160mA
Working temperature
-10～70℃
Storage temperature
-20～85℃
Board size /Weight
38X38mm（Compatible 32X32mm）/ about 30g
Cable
Standard 1M / optional 2M,3M,5M
Operating system request
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

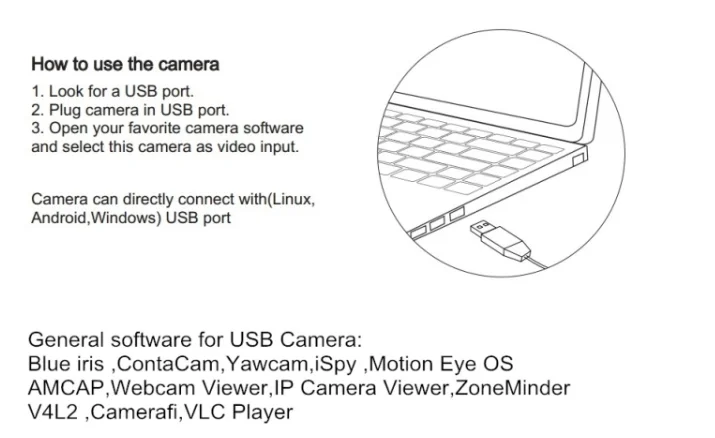

Working Mode:

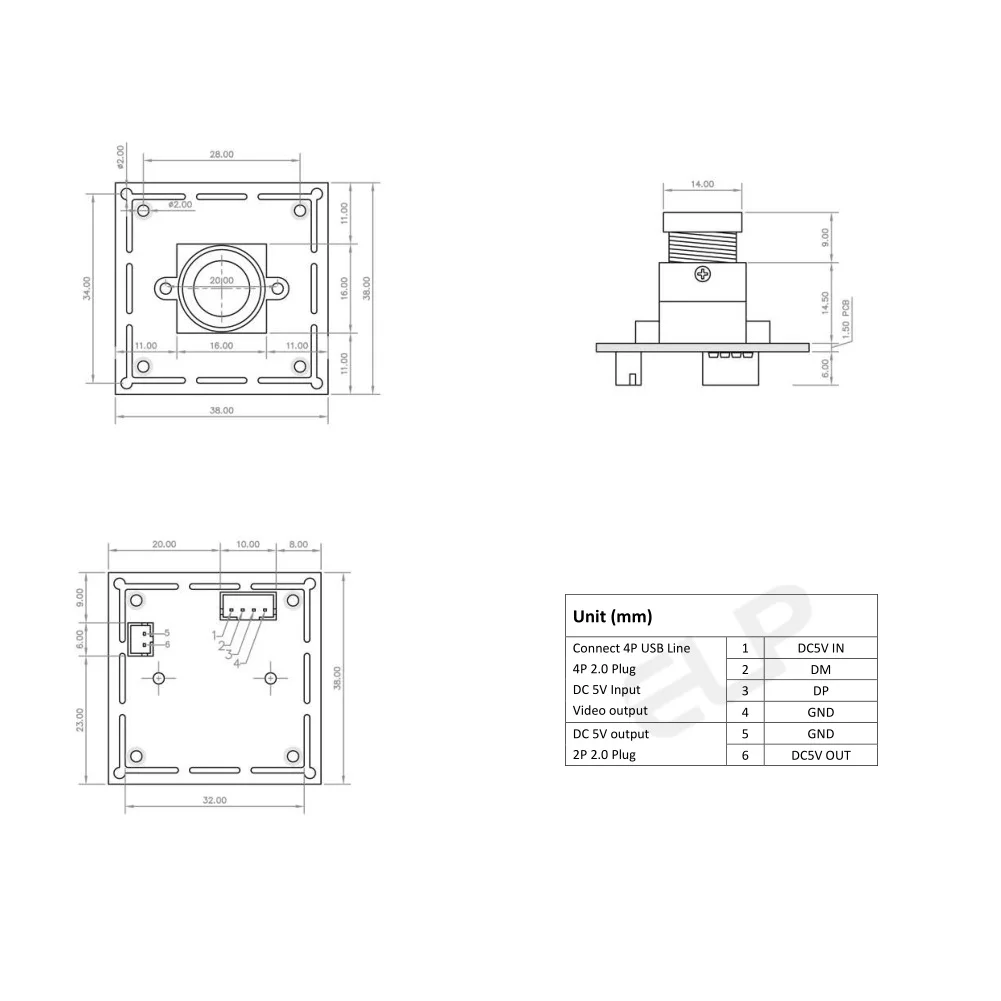

Size:




Applications


ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.




Recommend Products




Company Profile






FAQ



1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.

2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.

3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.

4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module

5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens

6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac

7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
