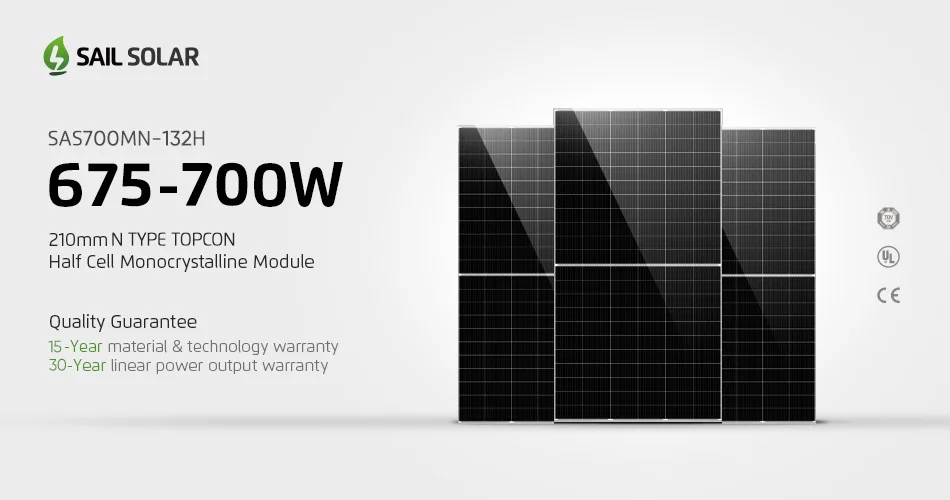

Cell Orientation: 132 (6x22) | Operational Temperature: -40°C~+85°C |
Junction Box: IP68, three diodes | Power Output Tolerance: 0~+5W |
Output Cable: 4mm2, 300mm in length, can be customized | Voc & Isc Tolerance: ±3% |
Glass: Single glass, 3.2mm coated tempered glass | Max. System Voltage: DC1500V(IEC/UL) |
Frame: Anodized aluminum alloy frame | Max. Series Fuse Ratin: 30A |
Weight: 33.6kg±3% | NOCT: 45±2°C |

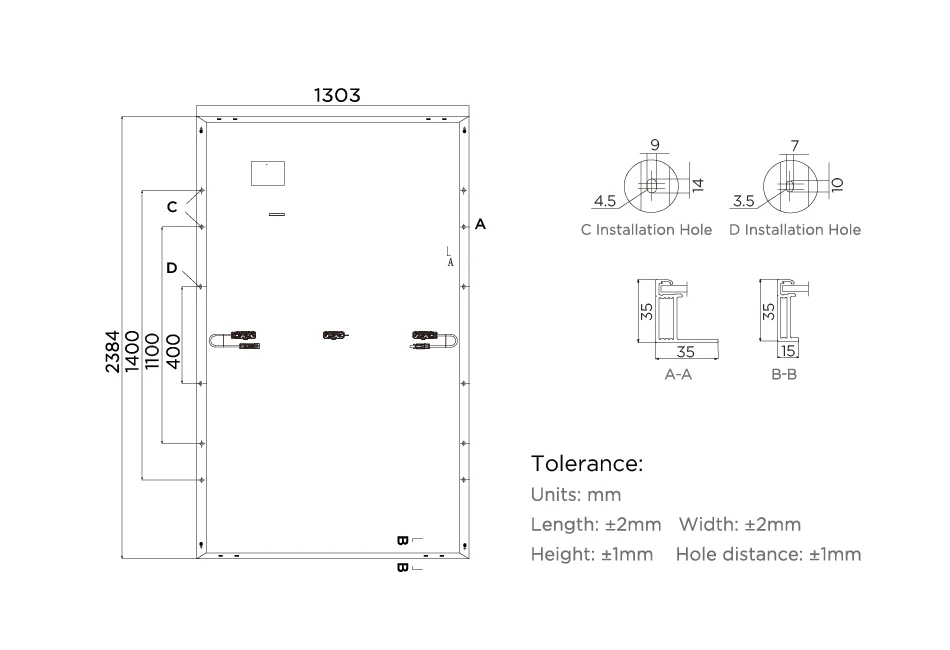

Dimension: 2384×1303×35mm | Safety Class: II |

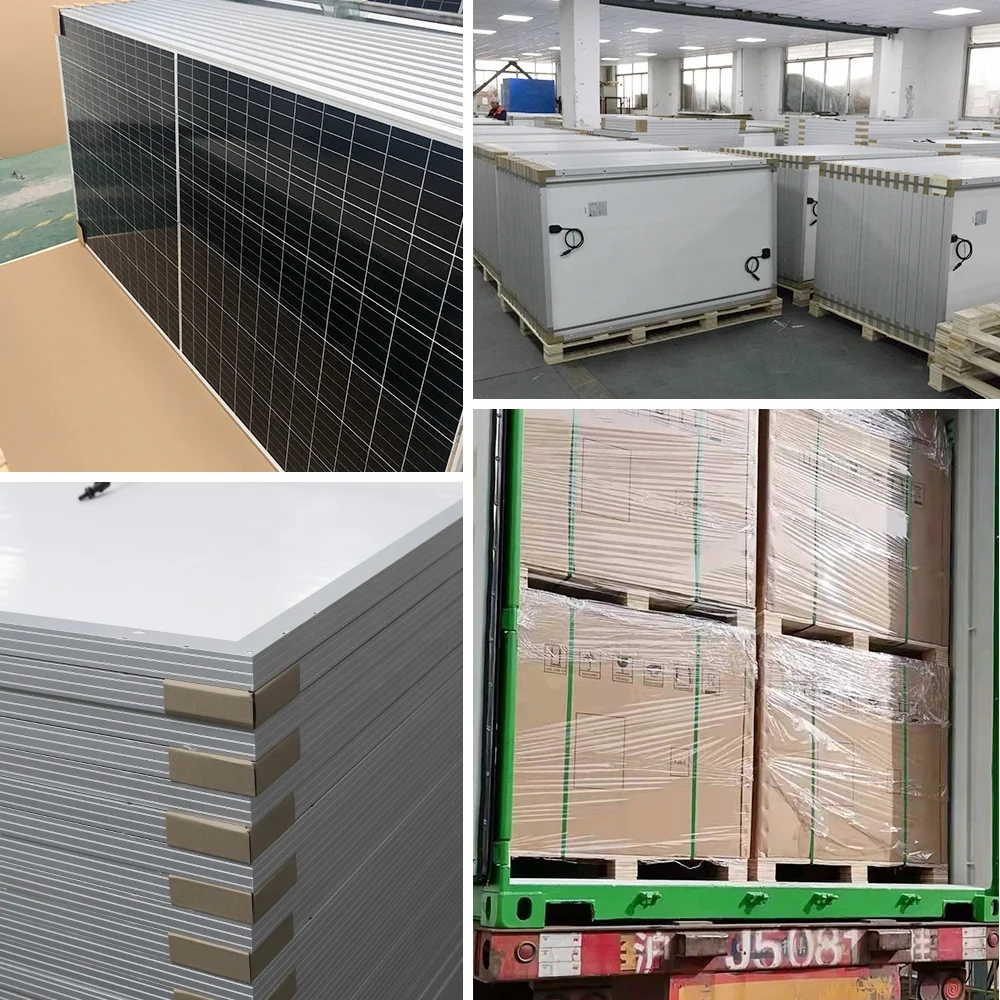

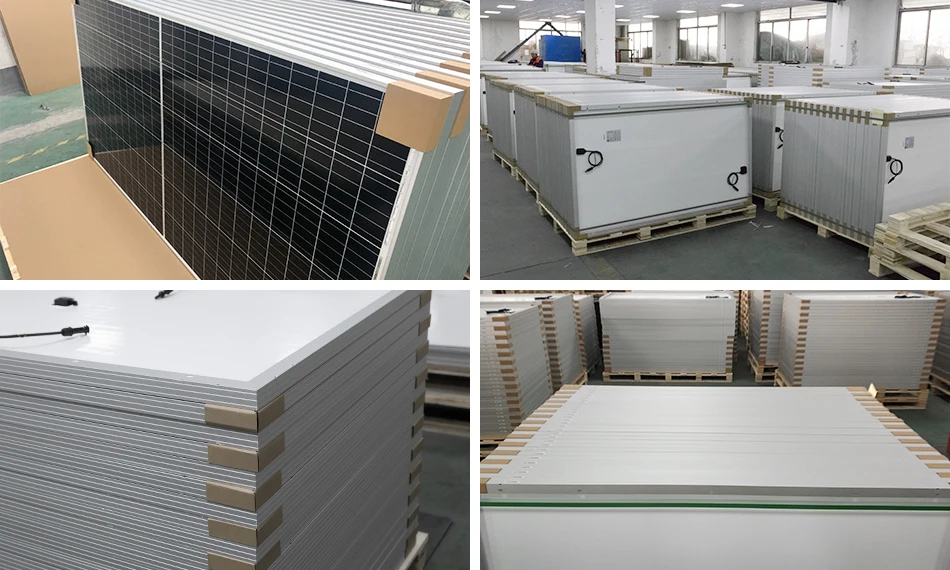

Packaging: 33pcs per pallet, 594pcs per 40'ft Container | Max. Static Load(Front):5400Pa |
Fire Rating: UL type 1 or 2 | Max. Static Load(Back): 2400Pa |
Testing Condition | STC: Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5 | ||||||||||
Maximum Power (Pmax/W) | 675W | 680W | 685W | 690W | 695W | 700W | |||||
Open Circuit Voltage (Voc/V) | 46.3 | 46.5 | 46.7 | 46.9 | 47.1 | 47.3 | |||||
Short Circuit Current (Isc/A) | 18.67 | 18.72 | 18.77 | 18.82 | 18.87 | 18.92 | |||||
Voltage at Maximum Power (Vmp/V) | 38.4 | 38.6 | 38.8 | 39.0 | 39.2 | 39.4 | |||||
Current at Maximum Power (Imp/A) | 17.59 | 17.63 | 17.67 | 17.71 | 17.75 | 17.79 | |||||
Module Efficiency(%) | 21.8 | 22.0 | 22.2 | 22.4 | 22.6 | 22.8 |
Testing Condition | NOCT: Irradiance 800W/m2, Ambient Temperature 20°C, Spectra at AM1.5, Wind at 1m/S | |||||||||
Maximum Power (Pmax/W) | 512W | 516W | 520W | 524W | 528W | 532W | ||||
Open Circuit Voltage (Voc/V) | 43.6 | 43.8 | 44.0 | 44.2 | 44.4 | 44.6 | ||||
Short Circuit Current (Isc/A) | 15.06 | 15.11 | 15.16 | 15.21 | 15.26 | 15.31 | ||||
Voltage at Maximum Power (Vmp/V) | 35.8 | 36.0 | 36.2 | 36.4 | 36.6 | 36.8 | ||||
Current at Maximum Power (Imp/A) | 14.3 | 14.34 | 14.38 | 14.42 | 14.46 | 14.50 |
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
FOB | ||||||
CFR(CNF) | 30% T/T in advance, paid the balance against copy of B/L | |||||
CIF | ||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||
Western Union | Amount Lower than 5000usd |
