000 Capsule Counting Machine
- Category: >>>
- Supplier: Sinoped Technology (shenyang) Co. Ltd.
Share on (1600910030088):
Product Overview
Description
Product Description

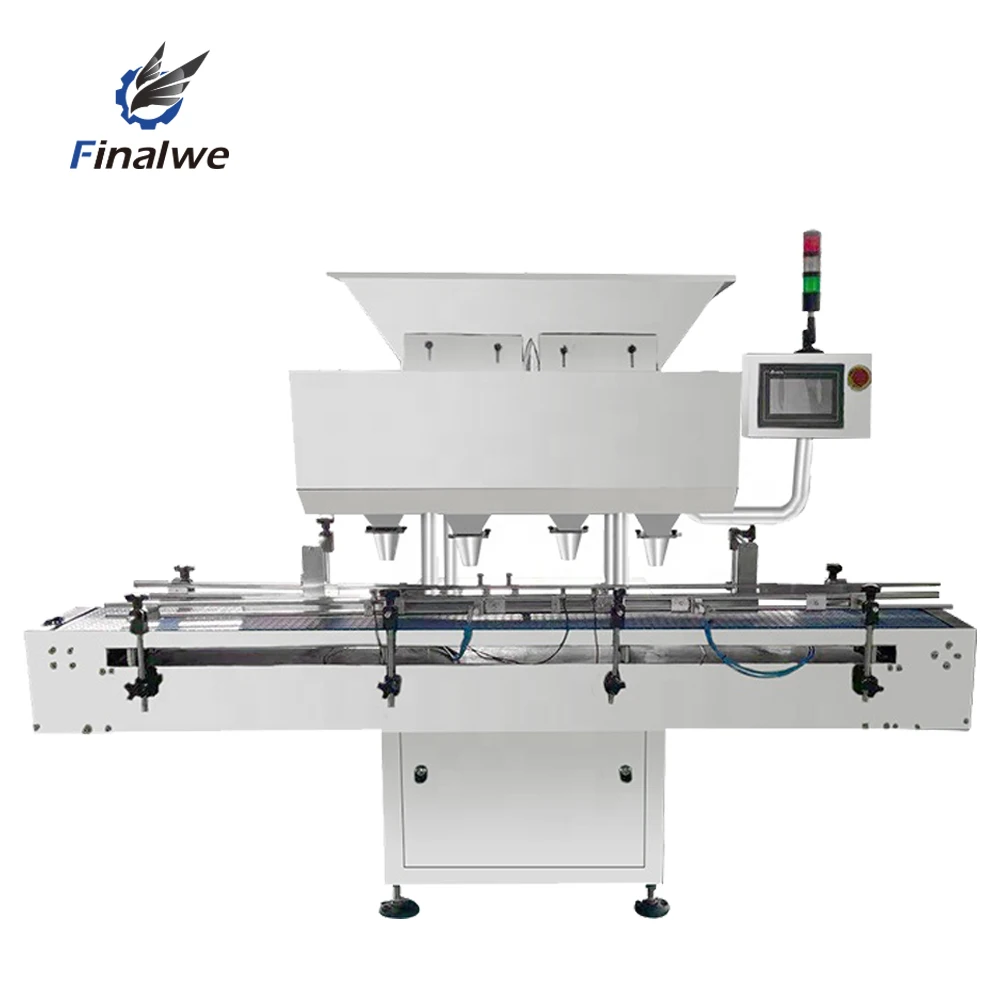

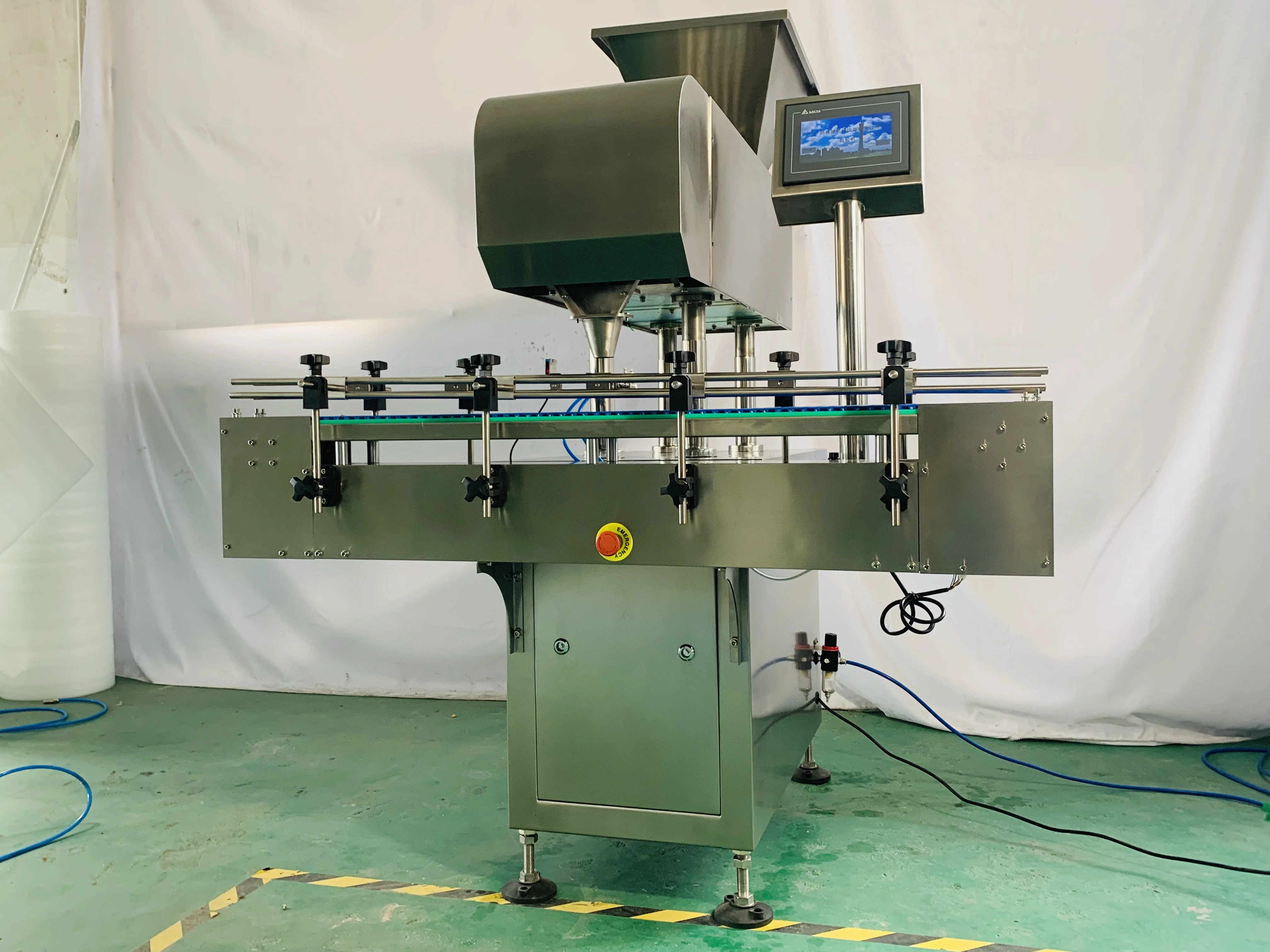

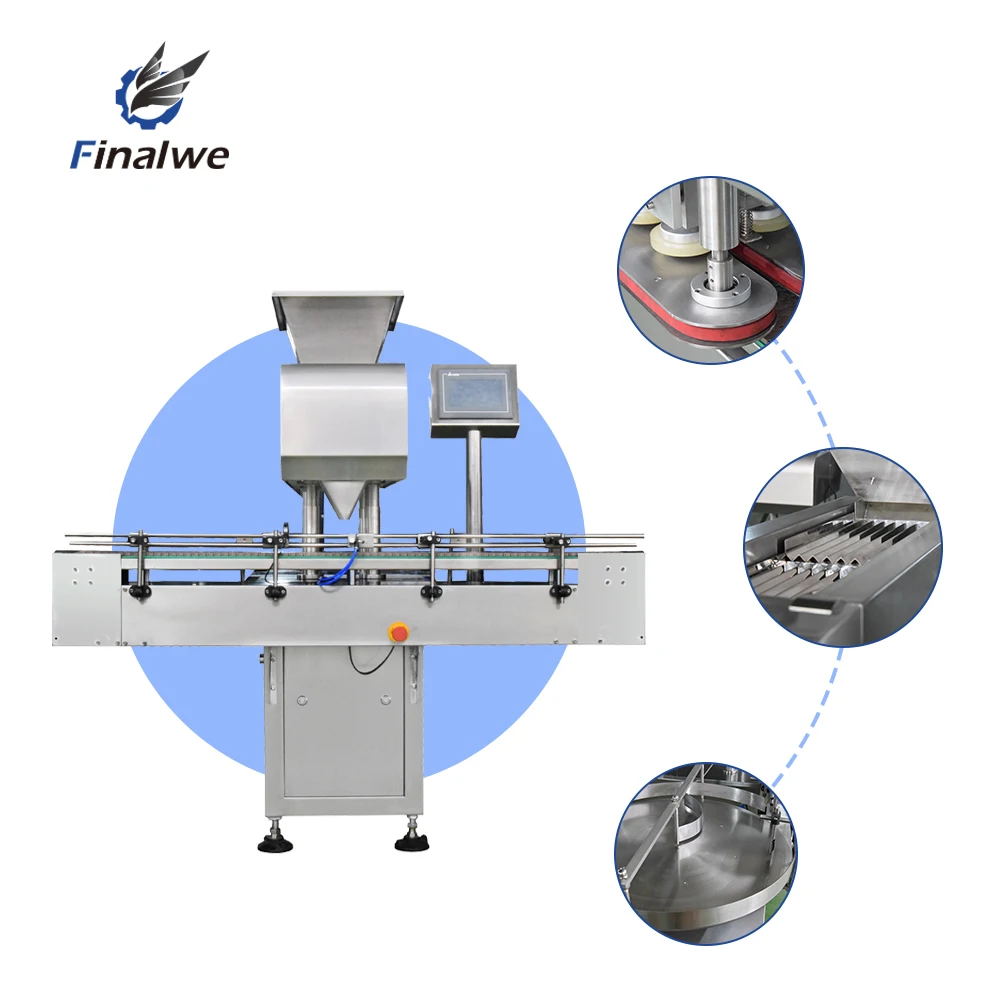

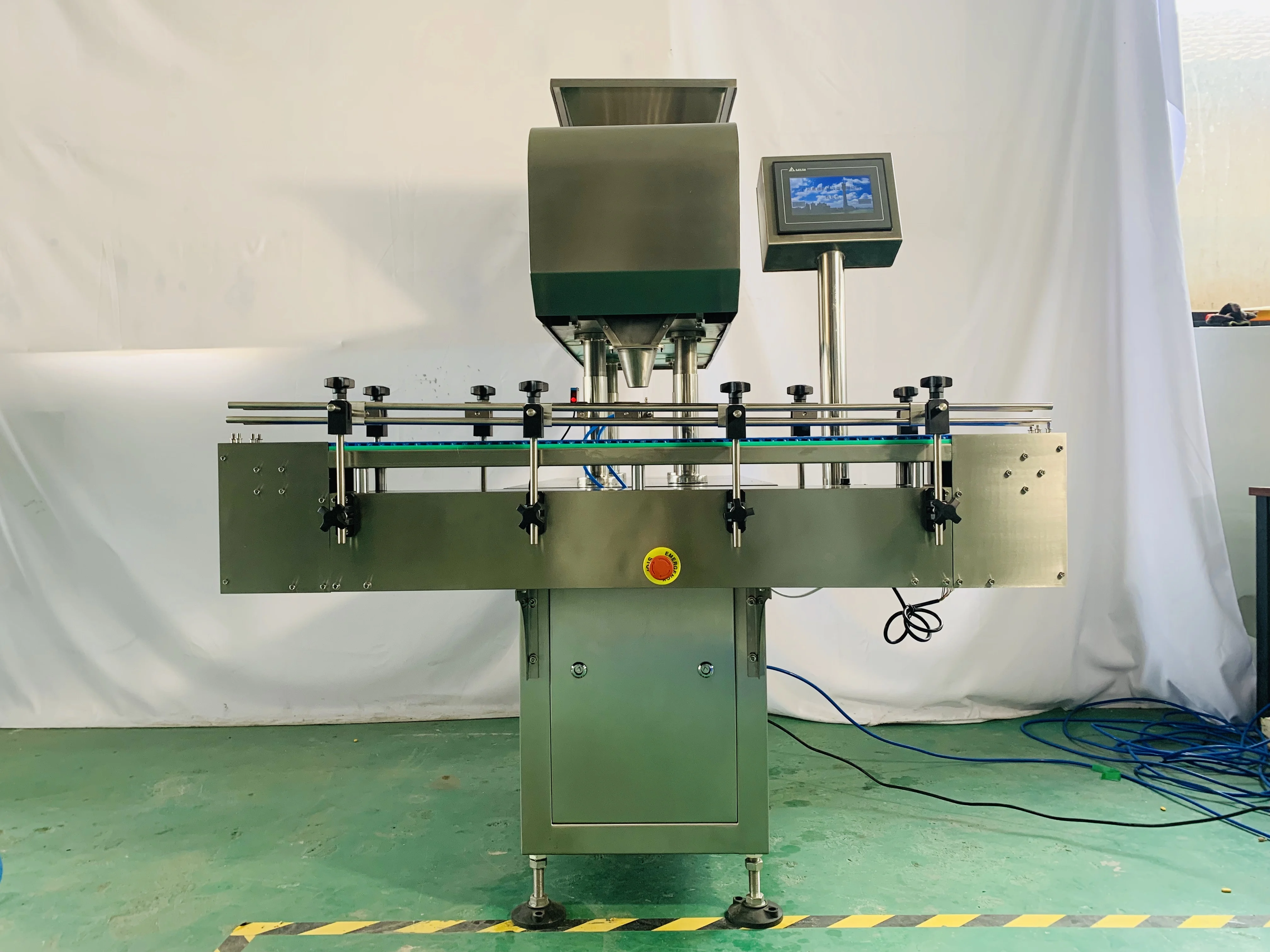

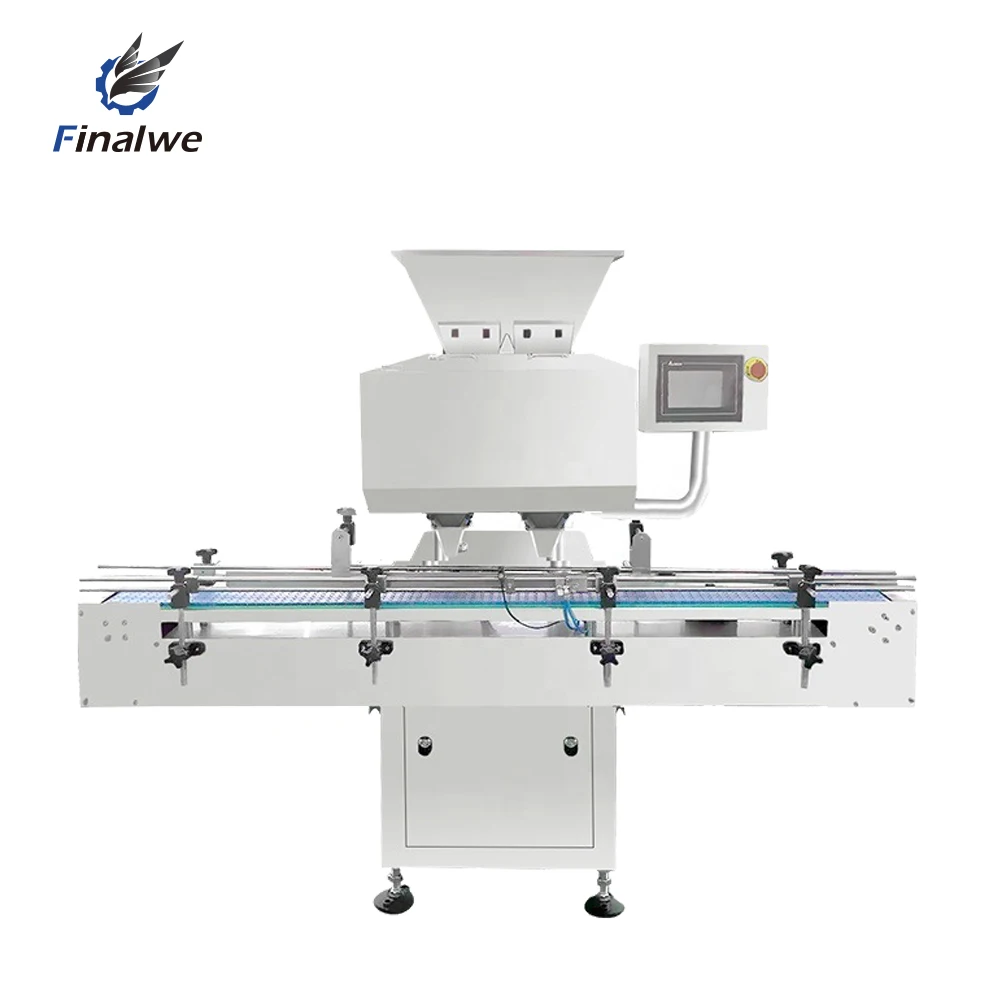

Automatic Electronic Counting Machine
The automatic counting and bottling machine adopts the most advanced image scanning system (CCD technology). The machine consists of 3-stage vibration, 12-channel feeder, computer control, dynamic camera scanning and counting system, and automatic bottle transfer.
The machine is designed to meet GMP standards. Integrating light and electricity, it is suitable for candy, chewing gum, and other products. It is widely used in food and other industries.
The machine is designed to meet GMP standards. Integrating light and electricity, it is suitable for candy, chewing gum, and other products. It is widely used in food and other industries.
Features:
1) CCD technology with high speed digital camera.
2) Highly anti-dusty design.
3) Suitable for various capsule with different transparency.
4) Speeds up to 40 cpm based on 100-count bottles with vibration system.
5) Counter discrepancies is less than 1‰.
6) Operation stable and lower noise.
7) Bottle convey smoothly.
8) Touch screen Control System which is easy to control.
9) Simple Straight Forward Operator Controls.
10) Stainless Frame.
2) Highly anti-dusty design.
3) Suitable for various capsule with different transparency.
4) Speeds up to 40 cpm based on 100-count bottles with vibration system.
5) Counter discrepancies is less than 1‰.
6) Operation stable and lower noise.
7) Bottle convey smoothly.
8) Touch screen Control System which is easy to control.
9) Simple Straight Forward Operator Controls.
10) Stainless Frame.
Specification
Machine Model | FW-8S | FW-16S | FW-24S | FW-32S | |||
Vloltage | 110V/220V/380V 50-60Hz | ||||||
Power | 600W | 1200W | 1500W | 2200W | |||
Size Range | bleow 20mm , #0 to #5; 5.5mm to 22mm diamater (Candy, Bottom, Food, Steel parts and so on.) | ||||||
Production | 10-50bottles/min | 20-80bottles/min | 20-100bottles/min | 40-120bottles/min | |||
Bottle Application | Round, Square, Irregular Bottle | ||||||
Air Supply | 0.6Mpa 3.5L/min | ||||||
Weight | 260Kg | 380Kg | 480Kg | 520Kg | |||
Dimensions | 1400x1400x1560mm | 2100x1450x1560mm | |||||
