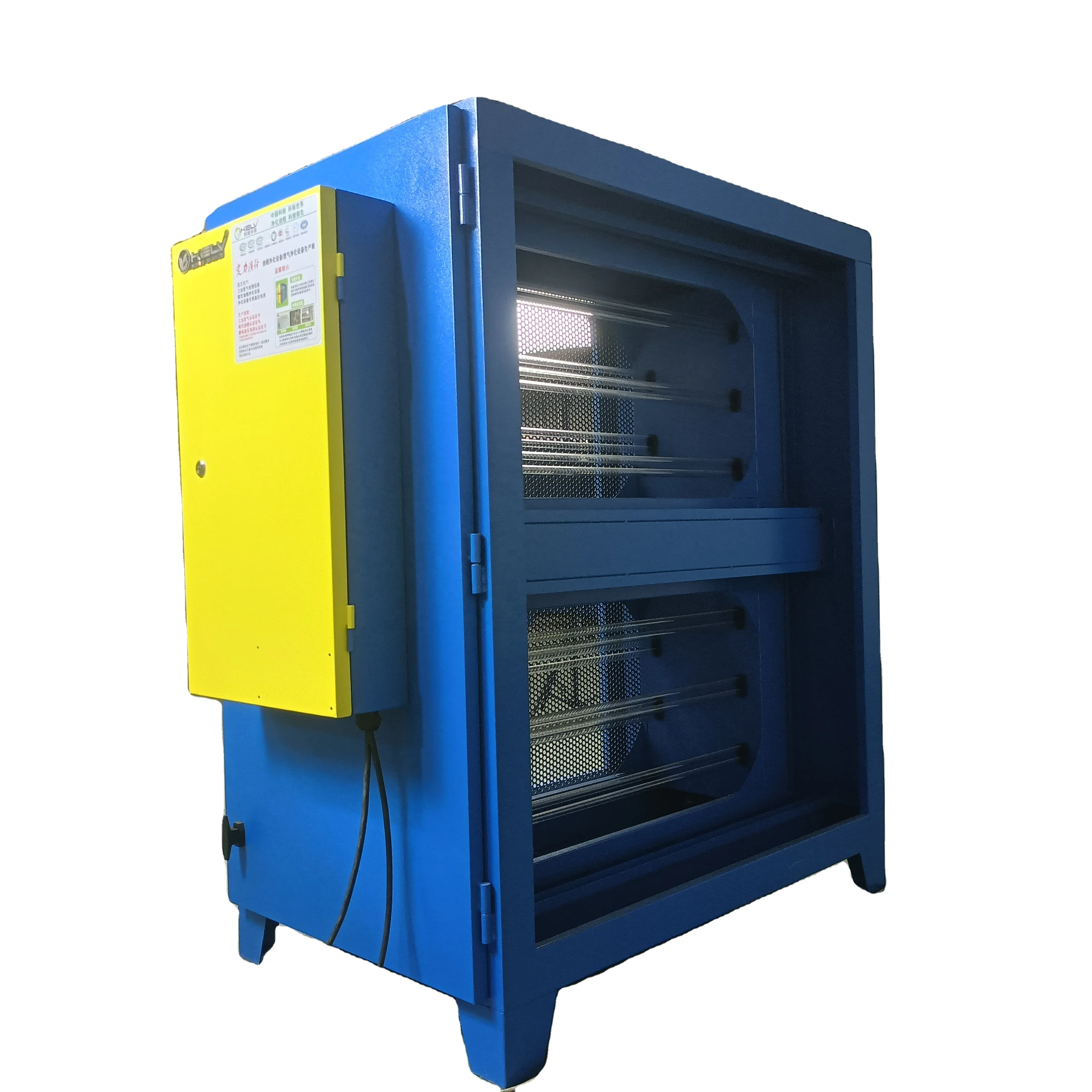

KELV ESP L Series Industrial and commercial Grade Electrostatic Precipitator With 25000M3/H For gas and smoke collector
- Category: >>>
- Supplier: Guangxi Kelv Environment Technology Co. Ltd.
Share on (1600910048356):
Product Overview
Description
Products Description
Commercial & Industry Kitchen ESP
Our electrostatic precipitatic is used to purify the commercial kitchen cooking fume with advanced technology.After using it,the fume can be effectively eliminate over 85% purification efficiency.No smoke can be seen at the outlet.Most of odor can also be eliminate.It is widely used in the kitchens of hotel,restaurant,factory and so on.
Details Images

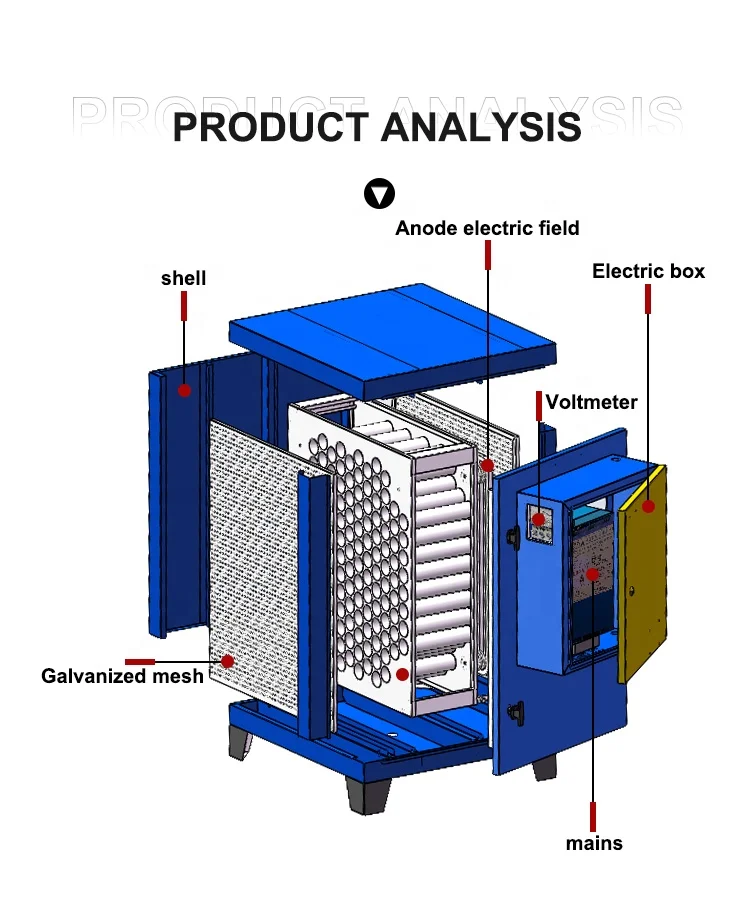

HONEYCOMB STRUCTURE FIELD
Not only makes the oil fume purification efficiency higher, more energy saving and environmental protection, but also has the characteristics of small wind resistance, easy to clean, etc., which greatly prolongs the cleaning cycle of the electric field and reduces the cost of manual maintenance. The advantage of the honeycomb electric field is that distance between the pointer and the inner wall of the hole remains unchanged, while the spacing between the grid-type partitions is easy to change due to deformation.
INTELLIGENT CONTROL SYSTEM
CORE TECHNOLOGY
High frequency and high voltage intelligent power supply: 1. wide voltage input design, output high voltage constant current, continuously adjustable, strong adapt ability. 2. It has 21 protection functions such as arcing, ignition, high voltage short circuit. 3. cellular electric field in compact structure, good rigidity, not easy to deform, and long service life.

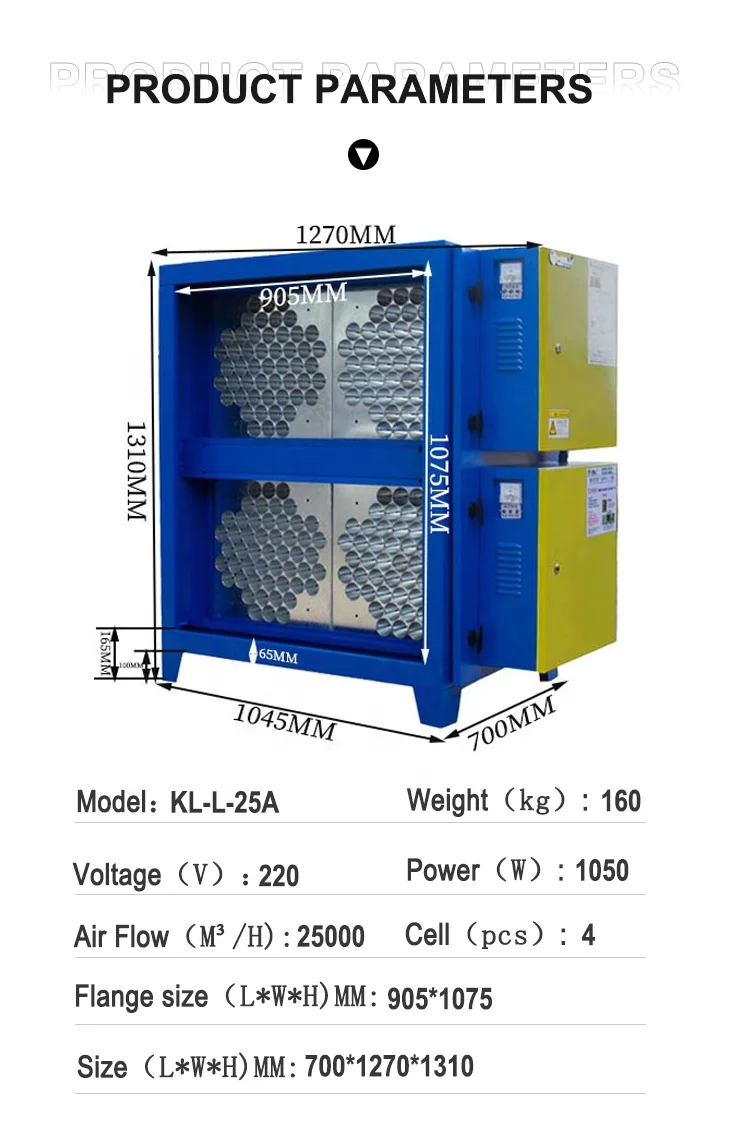

NO. | Model | Air Flow(M3/Hr) | Volume | Flanged | Power(w) | Net Weight(kg) |
1 | KL-L-4A | 4000 | 770*780*725 | 415*490 | 350 | 80 |
2 | KL-L-6A | 6000 | 770*890*820 | 525*585 | 450 | 110 |
3 | KL-L-8A | 8000 | 770*945*880 | 580*645 | 550 | 120 |
4 | KL-L-10A | 10000 | 770*965*1060 | 600*825 | 750 | 140 |
5 | KL-L-12A | 12000 | 770*1490*820 | 1125*585 | 850 | 150 |
6 | KL-L-16A | 16000 | 770*1605*880 | 1240*645 | 900 | 160 |
7 | KL-L-20A | 20000 | 770*1270*1310 | 905*1075 | 1000 | 180 |
8 | KL-L-25A | 25000 | 770*1270*1310 | 905*1075 | 1050 | 210 |
9 | KL-L-30A | 30000 | 770*1490*1500 | 1125*1265 | 1200 | 280 |
10 | KL-L-36A | 36000 | 770*1490*1500 | 1125*1265 | 1300 | 310 |
11 | KL-L-42A | 42000 | 770*1605*1620 | 1240*1385 | 1350 | 330 |
12 | KL-L-56A | 56000 | 770*2090*1500 | 1725*1265 | 1500 | 370 |
Our Advantages
Working Principle
Installation Instructions
Certifications
FAQ
Quality is priority.Our company has strict technical staff control the quality,please don't worry the quality about the equipment.
2.How can I trust your company to get goods if I order?
Our company have many regular customers in domestic,and we use the payment such as L/C,T/T and so on,ensure safety of your business.
3.Are you a factory or trading company?
We are the professional and reliable manufacturer in China,and our team has committed to the electrostatic fume purifier business for more than 5 years.
4.What should I know before installation?

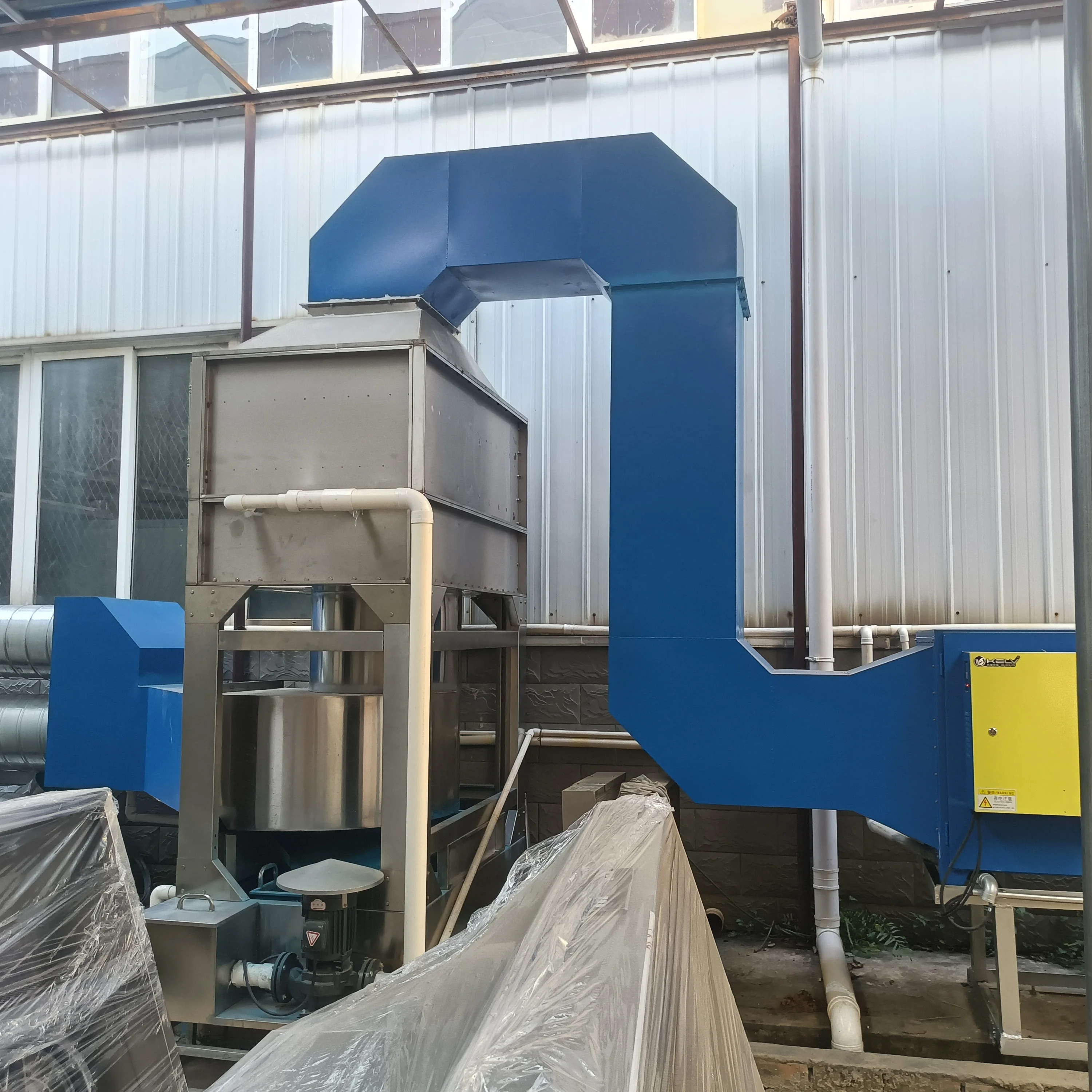

You can install our product inside your kitchen,shown in the attached image.For installation,you can some kind of ventilation engineering company who is specialized in ventilation installation and knows well the local law about kitchen air filter's installation.You can get answers or advice from this ventilation engineering company about how to install our product with permission of the law.
5.What is the washing cycle?
Washing period depends on your setting as well as the washing time.Generally the ESP has to be washed every three to four weeks by auto-clean device.If your fume is heavy,you can shorten the washing period.
6.What is your minimum order quantity?
One unit , but the cost will be higher. we usually minimum order more than 5 pieces.
