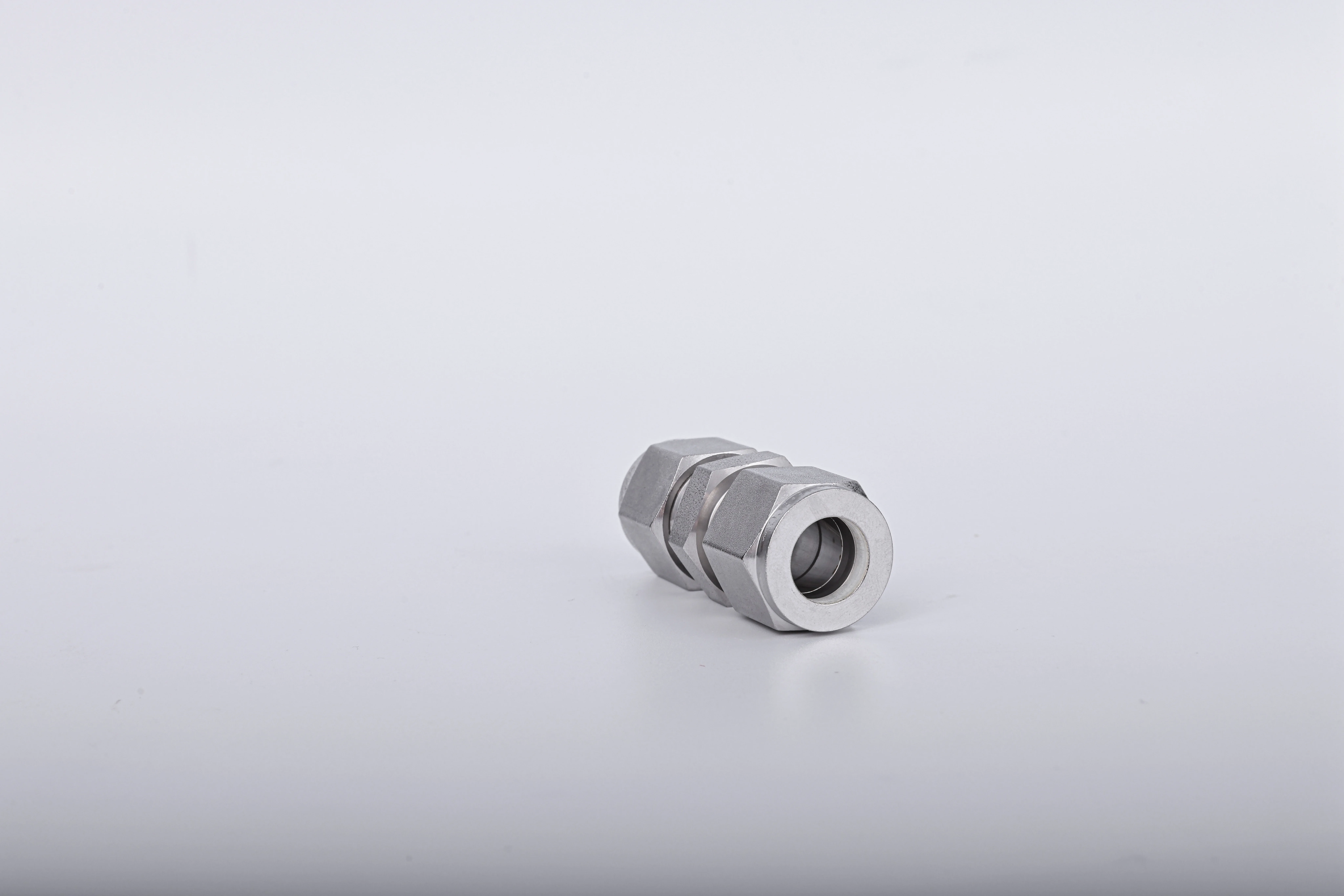

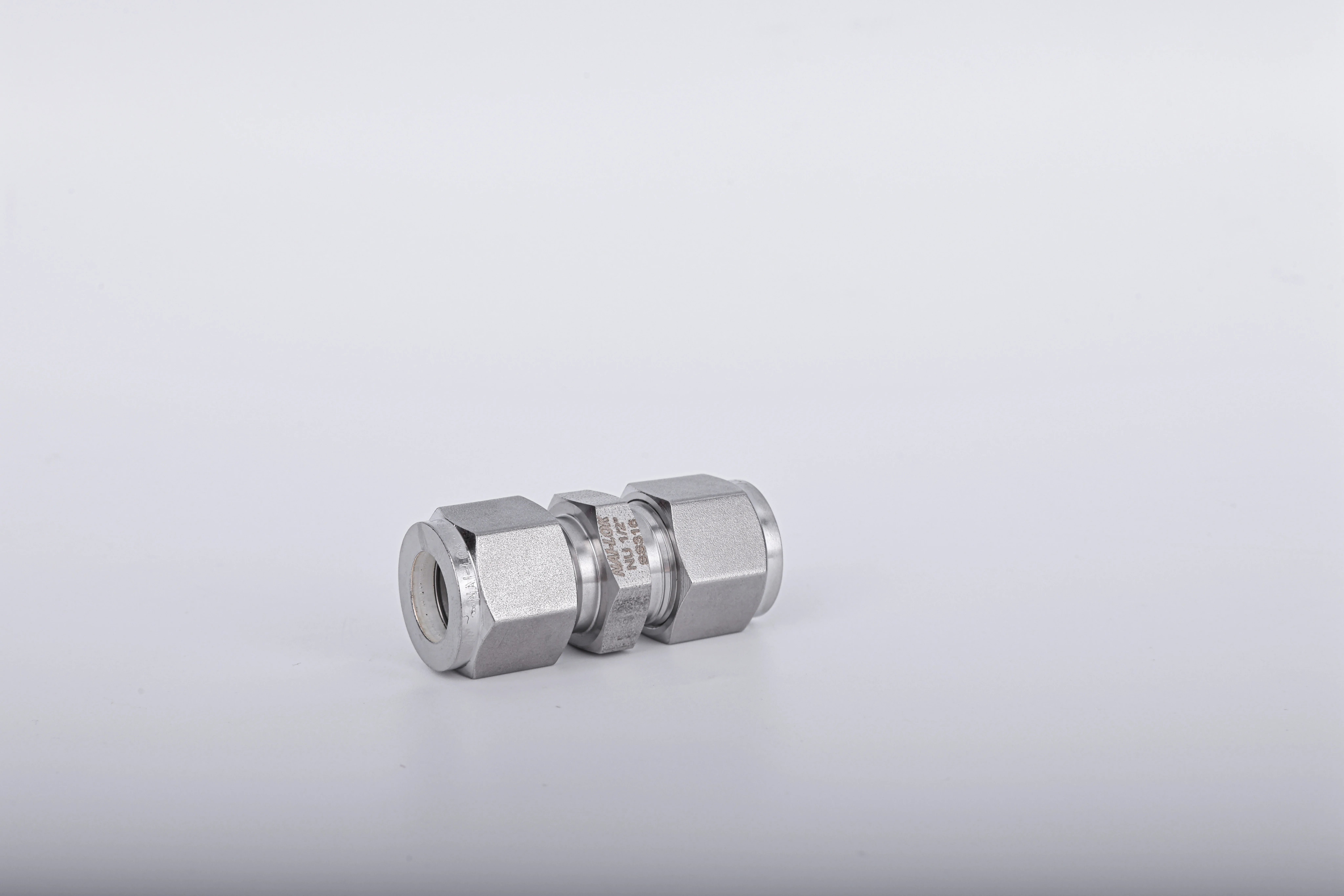

Nai lok SS316 double Ferrule coupling Compression tube fittings BSPP BSP BSPT thread metric adapter
- Category: >>>
- Supplier: Shanghai Yiwei Flow Control Technology Co. Ltd.
Share on (1600910050616):
Product Overview
Description
Product Description

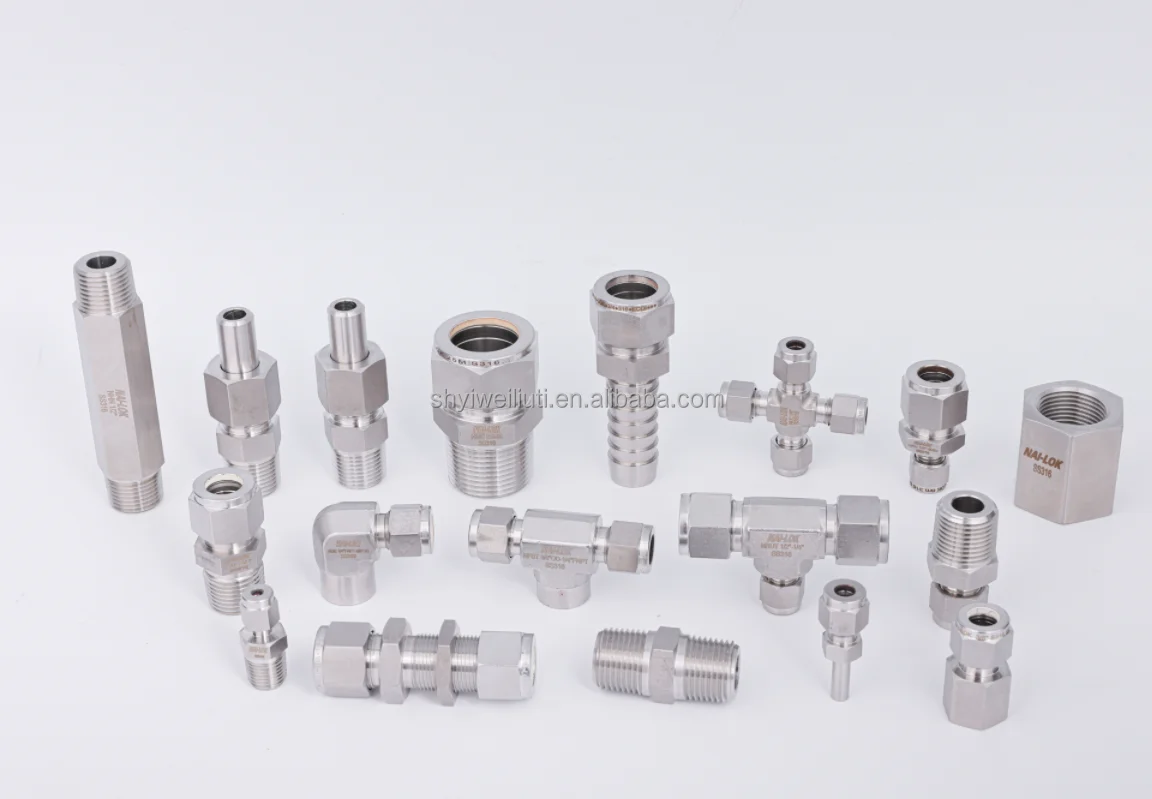

Features of NAI-LOK Tube Fittings
NAI-LOK tube fittings is produced by a strict material management, a high precision design and the best processing technology.
NAI-LOK tube fitting secures the leakage prevention and sufficient with less forces in all the tubing connections and reduces thecost and potential leakage risk in a course of tubing assembly and process.
All of our product specifications are equivalent to DK-LOK,HY-LOK,SWGAELOK.
NAI-LOK tube fitting secures the leakage prevention and sufficient with less forces in all the tubing connections and reduces thecost and potential leakage risk in a course of tubing assembly and process.
All of our product specifications are equivalent to DK-LOK,HY-LOK,SWGAELOK.
1.Available in size: 1/16" to 1", and 2mm to 25mm. | ||||||
2.Working temperature:-325℉~800℉ (-198℃~426℃). | ||||||
3.Material grades: SS 304, SS 316, Brass, Special Alloys. | ||||||
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc. | ||||||
5.Zero leakage even under tough working conditions. | ||||||
6.High quality silver plated threads on nuts to ensure no galling on the body threads. | ||||||
7.Simple to operate and save time and cost because of the usage of elastic seal. | ||||||
8.Available in wide variety of configurations. | ||||||
9.It can be reused. | ||||||
Installation Instructions
Step 1
Insert the tubing into NAI-LOK tube fitting's inside.At this moment,make sure that the tubing is completely contact with the
shoulder of fittings and then finger tighten the nut.
shoulder of fittings and then finger tighten the nut.
Step 2
Before tightening the NAI-LOK nut,make the starting point of turning at the 6 o'clock position.
Step 3
Hold the fitting body safely with a backup wrench and tighten the nut 1-1/4 turns.
