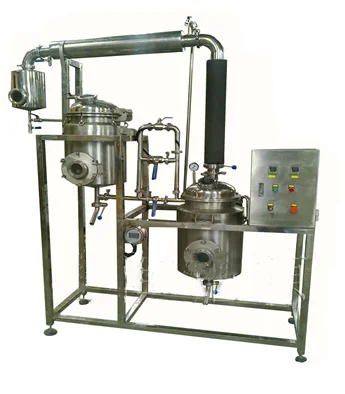

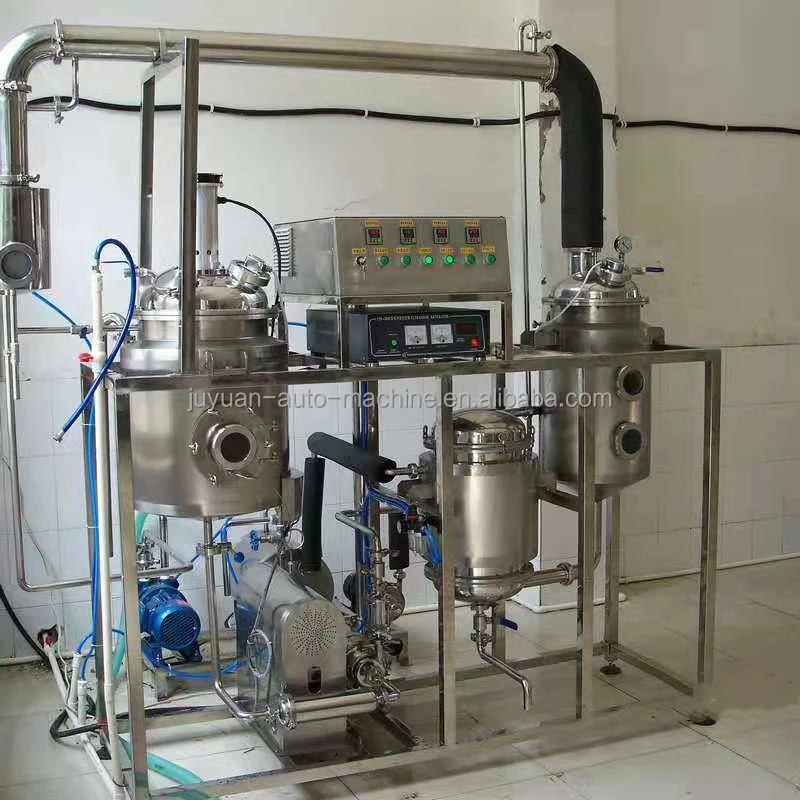

50L 100L Stainless steel soxhlet extractor Ultrasonic assisted soxhlet extraction and concentration machine

Product Overview

Description

50L 100L 500L Stainless steel soxhlet extractor Ultrasonic assisted  soxhlet  extraction and  concentration  machine



Brief introduction of Equipment Features:

1. High efficiency of the equipment: This equipment is the latest small Soxhlet extraction unit jointly developed by our company and the Murad Modern Research Center of Traditional Chinese Medicine of the University of Chinese Medicine. This equipment organically combines Soxhlet extraction with Soxhlet hot reflux extraction. The working efficiency is twice that of the ordinary Soxhlet heat reflux extraction unit.



2. Strong equipment durability: Soxhlet extraction process is a classic process for the preparation of traditional Chinese medicine. This equipment combines years of experience in the use of ordinary glass Soxhlet extractors from the Murad Modern Research Center of Traditional Chinese Medicine, Shanghai University of Traditional Chinese Medicine, and combines our factory's exquisite production technology to develop an all-stainless steel (SUS304 2B) high-efficiency automatic Soxhlet Extract the unit. Each part of the equipment is durable, easy to clean, and easy to operate.



3. The extracted liquid medicine is of high quality: the Soxhlet extraction unit in this equipment can be vacuum extracted, effectively reducing the loss of heat-sensitive active ingredients. At the same time, avoid the dissolution of vegetable protein from the material into the liquid medicine due to high temperature extraction, which will affect the quality of the liquid medicine. At the same time, the Soxhlet extraction unit is equipped with a stirrer, so that the Chinese medicinal materials can fully contact the solvent, and accelerate the precipitation of the active ingredients in the raw material medicine.



4. Taking into account the convenience of taking medicine slag, the extraction part of the equipment is equipped with a large-diameter manhole or hand hole, and is equipped with a double filter system to prevent fine slag from flowing into the material storage tank. The connecting pipeline is equipped with a glass sight glass, which can observe the appearance of the extraction liquid at any time.



5. The structure of the equipment is compact and firm: because the concentration tank is an independent unit, the tank structure is compact, the tank body is a three-layer insulation belt heated arc structure, and the internal interlayer is supported by a high-strength Miller board. It can work at a lower temperature under negative pressure vacuum, so that the thermally sensitive active ingredients in the material can be retained to the greatest extent. This can better ensure the concentrated quality of the liquid medicine.



6. High conversion rate of raw materials: Because the evaporation chamber works at a lower temperature during the concentration process, the heat-sensitive active ingredients in the materials are retained to the greatest extent. This can better ensure the concentration effect of the material.



7. The equipment temperature control is sensitive: the equipment temperature adjustment is very sensitive (accuracy ±1°), the heater can quickly reflect the operation instructions, such as the use of touch screen PLC control, you can also set the Soxhlet display level, stirring speed, heating Process parameter information such as the temperature of the device and the temperature of the material in the tank.



8. The equipment has a compact structure and a small site area. The actual area is about 5M2. It can be equipped with movable casters for easy operation.



 Main Equipment Composition

1. Cooler 2. Soxhlet extraction tank 3. Explosion-proof stirring motor 4. Water ring vacuum pump

5. Hot water generator 6. Tube condenser 7. Coil cooler 8. Filter

9. Stainless steel frame platform,

10. Matching connecting pipeline, lighted sight glass, sanitary valve, Fuji digital display temperature sensor, Schneider Electric.





a.     Configuration list

No.	Part Name	Model or Specification	Remark
1	Soxhlex Extraction Tank	100L	SUS304
2	Vacuum Concentration Tank	100L	SUS304
3	Condenser	1.5M2	Tubular type
4	Cooler	0.65M2	Coil pipe
5	Vacuum Pump	4.55KW	Water circulation type
6	Tube filter	SUS 304	60mesh~200mesh for choice
7	Miniature Superhot Water Generator	Stainless steel Heater	Jacket type heating
8	Temperature Control System	Digital temperature controller
9	Manual Valves	Butterfly valve, and ball valves
10	Temperature Control Modular	Fiji temperature control
11	Electric control box	Stainless steel material
