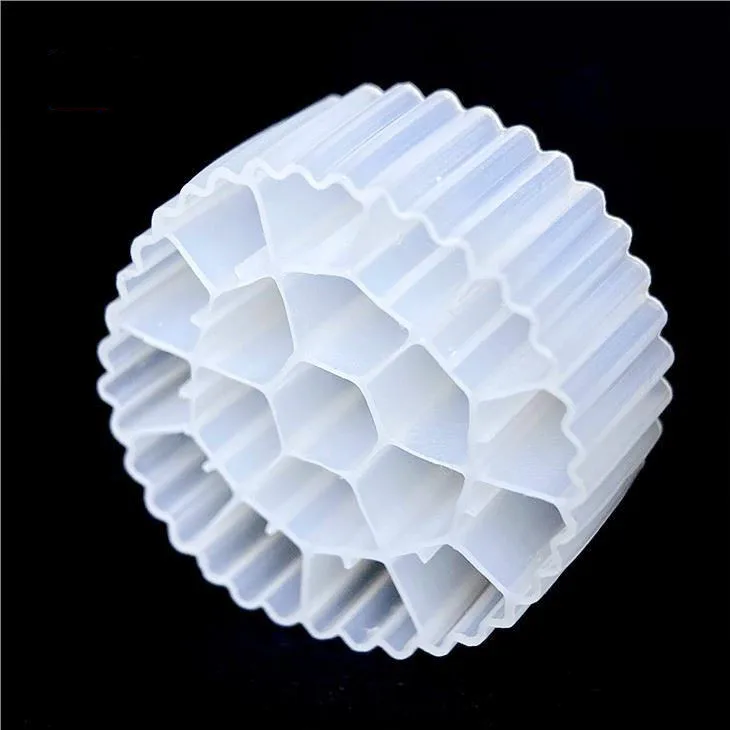

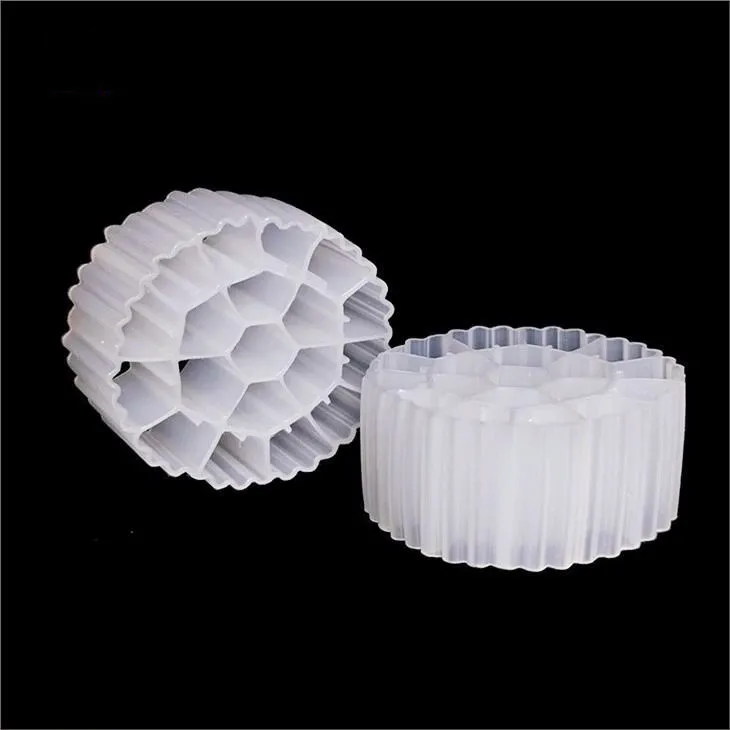

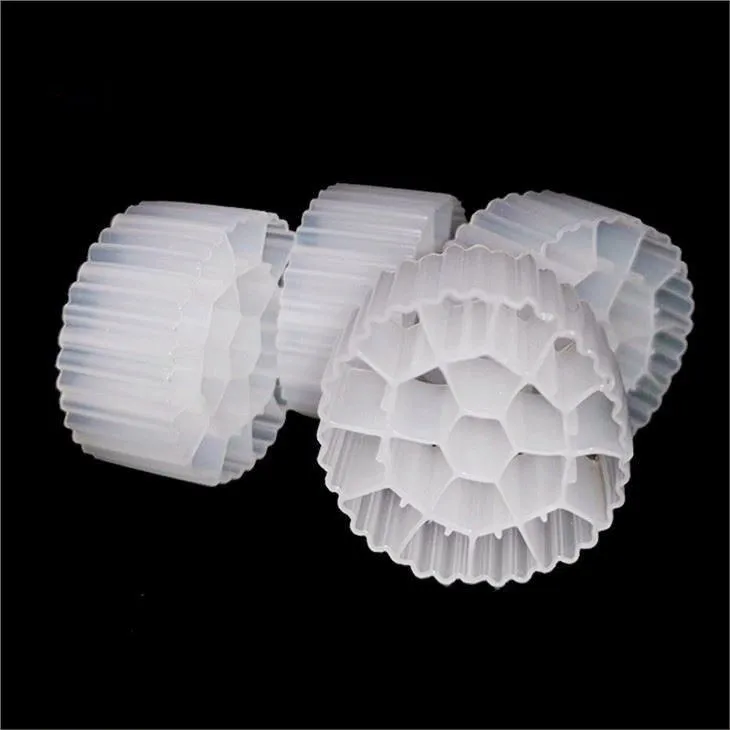

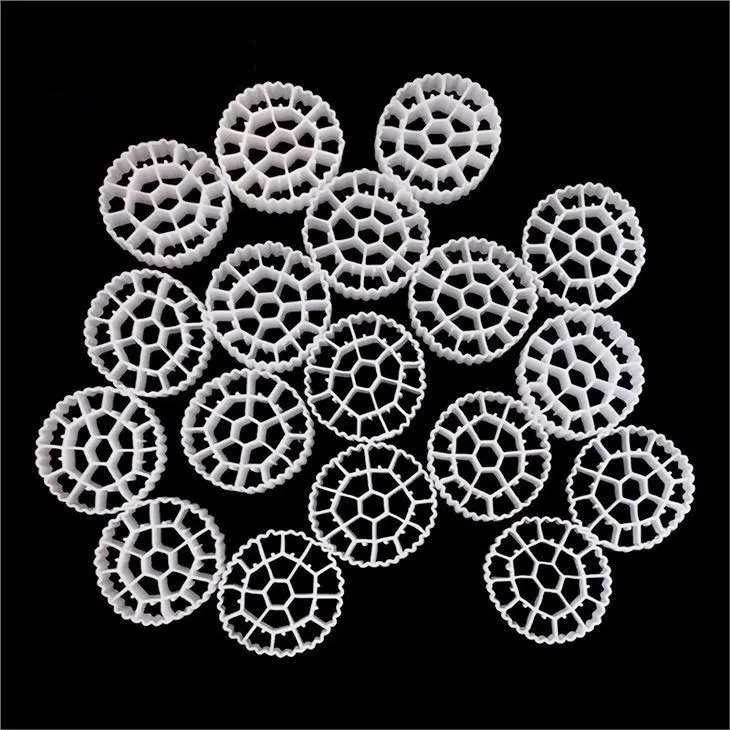

K3 (PE05) Moving Bed Biofilm Reactor MBBR Floating Filter Media Shrimp Plastic Carriers Novel Biologically Active Carrier
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (1600910067792):
Product Overview
Description
Product Vedio
Products Description
* Massive surface area. Great for use in Aquaponics, Aquaculture, Hydroponics, Aquariums, Ponds and DIY Pond Filters.
* 100% PREMIUM QUALITY Brand New Virgin High Density Polyethylene. Expected material lifespan for more than 15 years. Beware of sellers offering Recycled Material which can be TOXIC!!
* The MBBR Bio Media is designed to be self-cleaning and to constantly move freely within your filter, requiring little to no
maintenance.
* Reduces ammonia and nitrate much quicker than static media.
* K3 Size: 25mm dia. x 10mm approx. each piece - with a surface area of >600 m2/m3 (approx.), support about 35 pounds of fish per 2 cubic feet (approx.). Fill Qty: >118000 pcs/m3. Density: 0.96 - 0.98 g/cm3. Nitrification efficiency: 400 - 1200 gNH4 - N/m3.d
* New sewage treatment project of MBBR and Biological Aerated Filter process.
* Biochemical treatment of reclaimed water.
* River regulation denitrification and phosphorus removal.
* Aquaculture in addition to ammonia nitrogen, water purification.
* Biological filter media is used for biological deodorization tower.
* 100% PREMIUM QUALITY Brand New Virgin High Density Polyethylene. Expected material lifespan for more than 15 years. Beware of sellers offering Recycled Material which can be TOXIC!!
* The MBBR Bio Media is designed to be self-cleaning and to constantly move freely within your filter, requiring little to no
maintenance.
* Reduces ammonia and nitrate much quicker than static media.
* K3 Size: 25mm dia. x 10mm approx. each piece - with a surface area of >600 m2/m3 (approx.), support about 35 pounds of fish per 2 cubic feet (approx.). Fill Qty: >118000 pcs/m3. Density: 0.96 - 0.98 g/cm3. Nitrification efficiency: 400 - 1200 gNH4 - N/m3.d

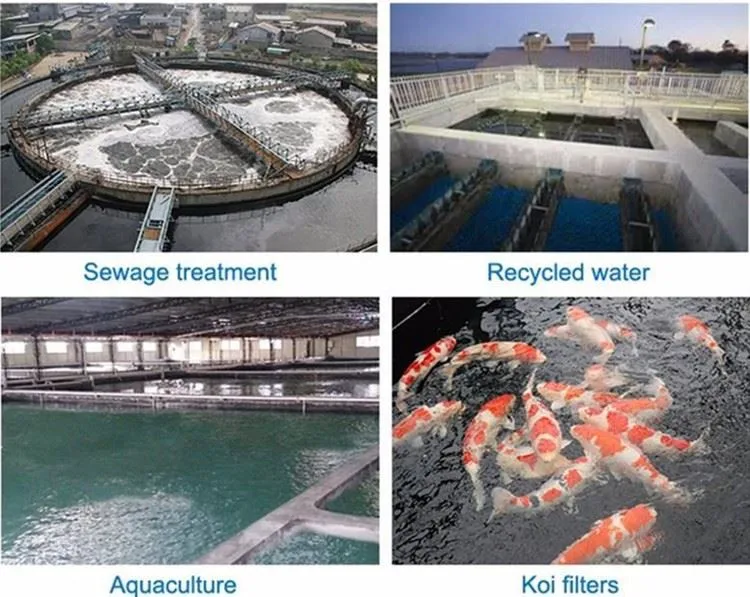

Applications：
* The Sewage plant upgrade project , improve the standard and quantity.
* The Sewage plant upgrade project , improve the standard and quantity.
* New sewage treatment project of MBBR and Biological Aerated Filter process.
* Biochemical treatment of reclaimed water.
* River regulation denitrification and phosphorus removal.
* Aquaculture in addition to ammonia nitrogen, water purification.
* Biological filter media is used for biological deodorization tower.
Technical core of MBBR Bio Filter Media
1.Special design of surface, stronger bio-film growth capacity;2.Large specific surface area, high voidage, the more periphyton biomass;
3.Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics
in the water;
4.Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
5.Excellent impact strength, strong gas shear capacity;
6.Without any holder, easy to cure, save energy and space.
Advantages of MBBR Bio Filter Media
1.Strictly selected materials and special modification: Use virgin HDPE as the raw material with additive of special formula including UV and hydrophilic genes, FDA food grade.
2.More than 100 high speed production lines which can exceed 150,000 cubic meter MBBR media per year. We can complete large order in short time.
3.High-tech enterprises integrating formula, tooling design, production and logistics, then we can perfectly meet special requirement of customers.
4.Various of MBBR media are designed for aerobic and anaerobic tank.
2.More than 100 high speed production lines which can exceed 150,000 cubic meter MBBR media per year. We can complete large order in short time.
3.High-tech enterprises integrating formula, tooling design, production and logistics, then we can perfectly meet special requirement of customers.
4.Various of MBBR media are designed for aerobic and anaerobic tank.

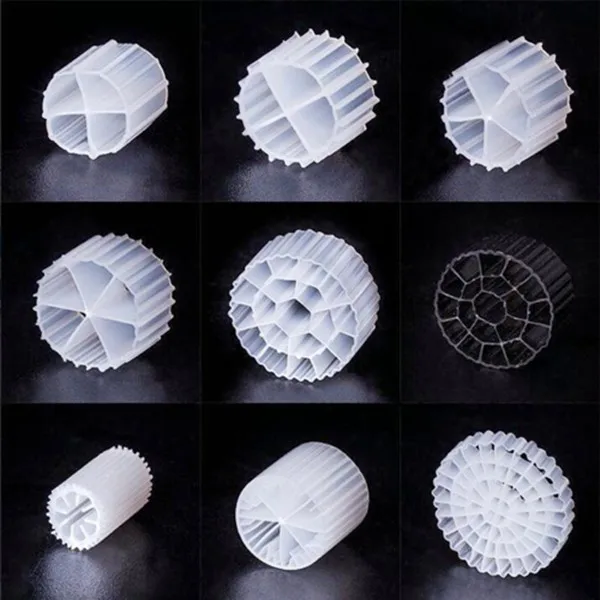

Model | Density | Diameter*Height | Surface Area | Hole | Packing numbers |
PE01 | 0.96-0.98g/cm3 | 12mm*9mm | >800㎡m³ | 4 rooms | >930000 pcs/m³ |
PE02 | 11mm*7mm | >900㎡/m³ | 4 rooms | >930000 pcs/m³ | |
PE03 | 10mm*7mm | >1000㎡/m³ | 5 rooms | >990000 pcs/m³ | |
PE04 | 16mm*10mm | >800㎡/m³ | 6 rooms | >260000 pcs/m³ | |
PE05 | 25mm*10mm | >600㎡/m³ | 19 rooms | >118000 pcs/m³ | |
PE06 | 25mm*10mm | >500㎡/m³ | 19 rooms | >118000 pcs/m³ | |
PE08 | 1.02-1.05g/cm3 | 5mm*10mm | >3500㎡/m³ | 7 rooms | >1540000 pcs/m³ |
PE09 | 0.96-0.98g/cm3 | 15mm*15mm | >900㎡/m³ | 40 rooms | >230000 pcs/m³ |
PE37 | 0.94-0.97g/cm³ | 25mm*10mm | >800㎡/m³ | 37 rooms | >118000 pcs/m³ |
PE38 | 0.94-0.97g/cm³ | 25*10mm | >800㎡/m³ | 38 rooms | >118000 pcs/m³ |
PE64 | 0.96-0.98g/cm3 | 25*4mm | >1200㎡/m³ | 64 rooms | >210000 pcs/m³ |
PE75S | 0.96-0.98g/cm3 | 25*4mm | >1600㎡/m³ | 75 rooms | >210000 pcs/m³ |
BioChip | / | 30*1.1mm | >5500㎡/m³ | / | >340000 pcs/m³ |
Process description

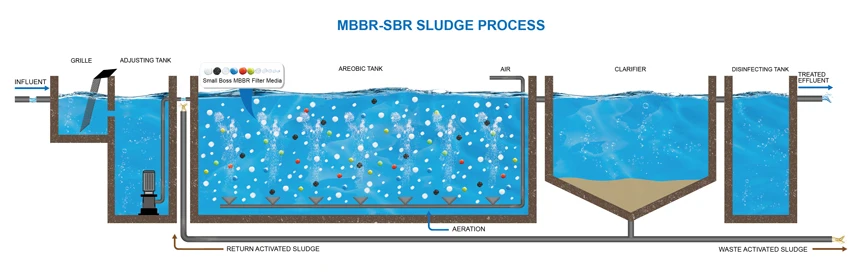

MBBR-SBR SLUDGE PROCESS

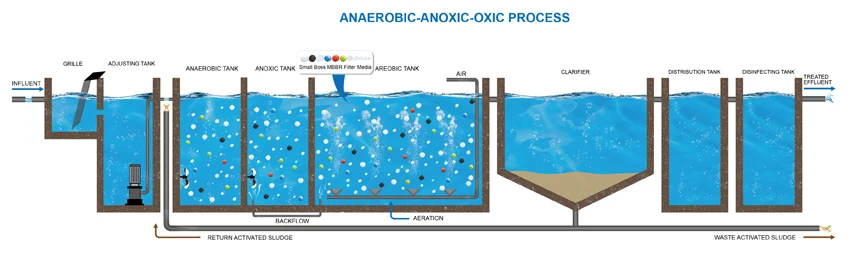

ANAEROBIC-ANOXIC-OXIC PROCESS

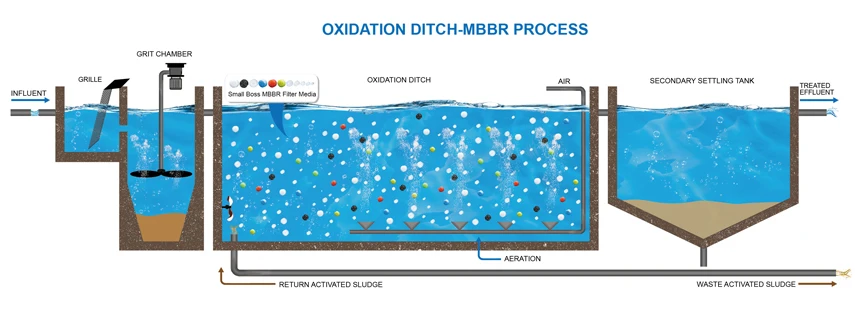

OXIDATION DITCH-MBBR PROCESS
Details Images

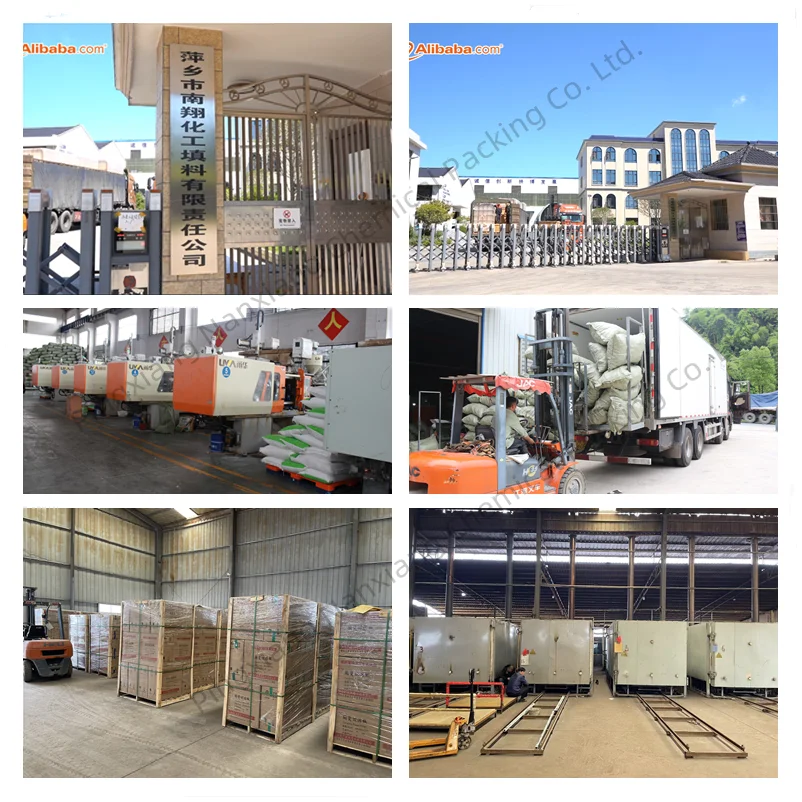

Our Factory&Workshop
