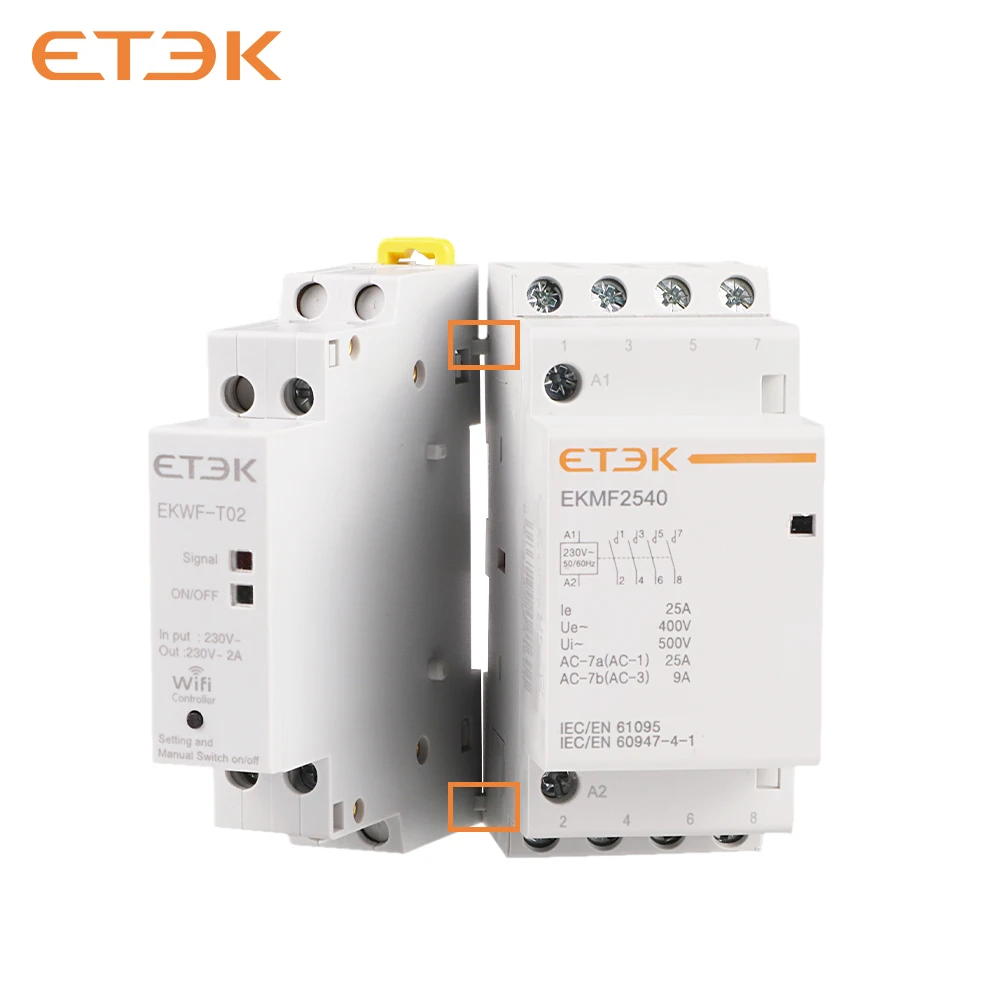

ETEK Bluetooth connection modular contactor AC 220v 2 pole Control by TUYA APP wifi magnetic 2P 40A smart electric contactors
- Category: >>>
- Supplier: Wenzhou Etek Import And Export Co. Ltd.
Share on (1600910070072):
Product Overview
Description
Recommend Products
Products Description

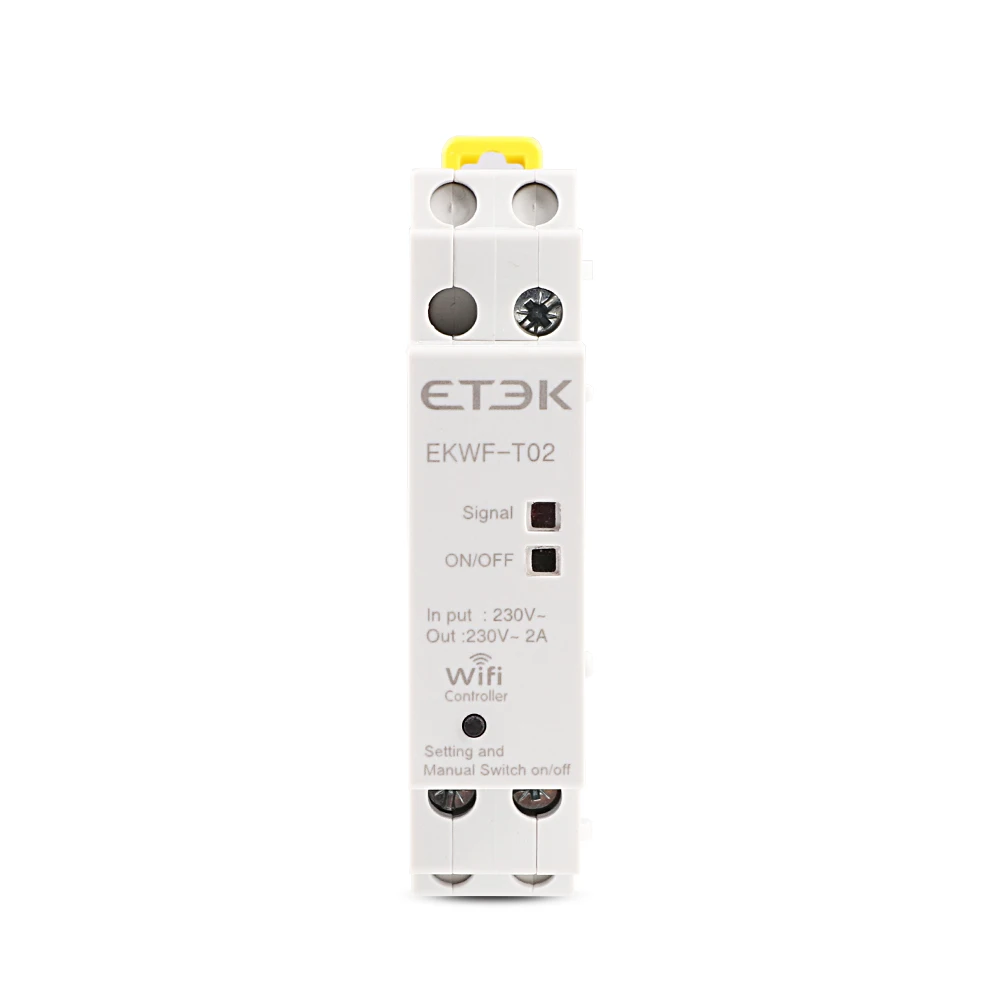

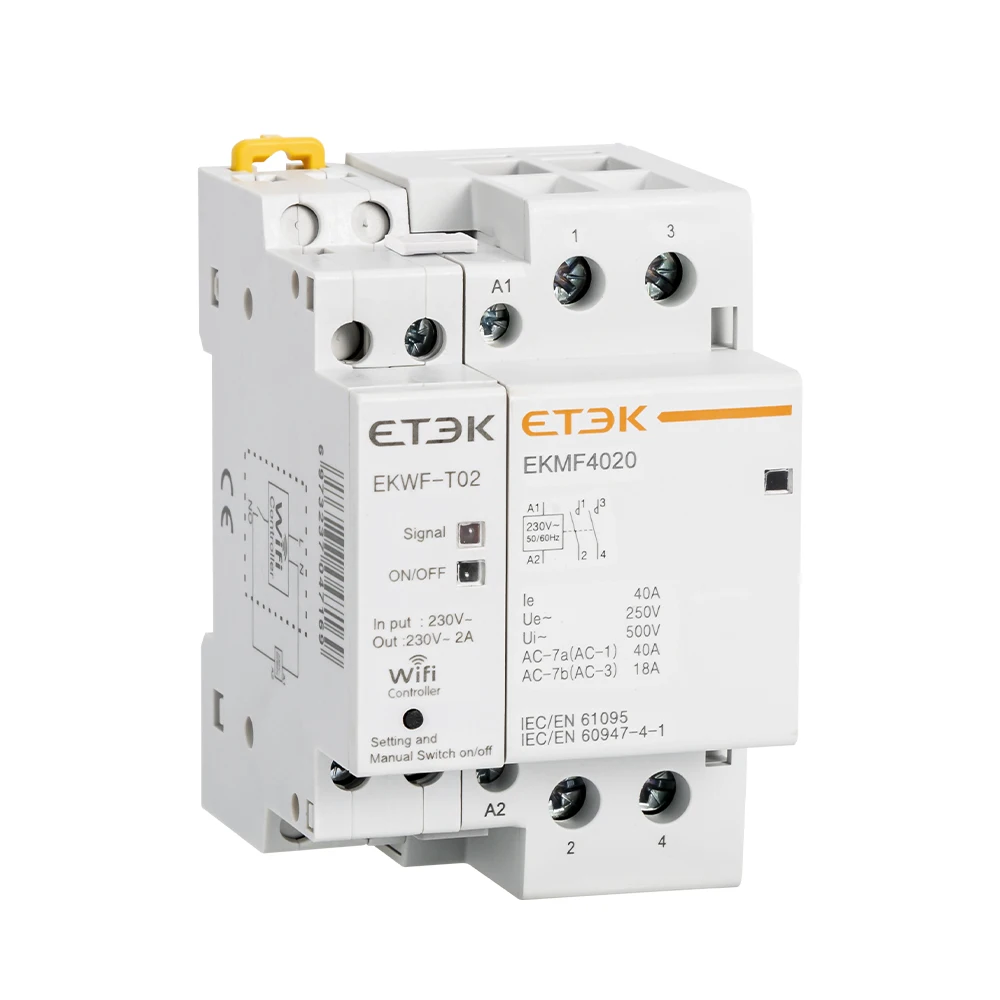

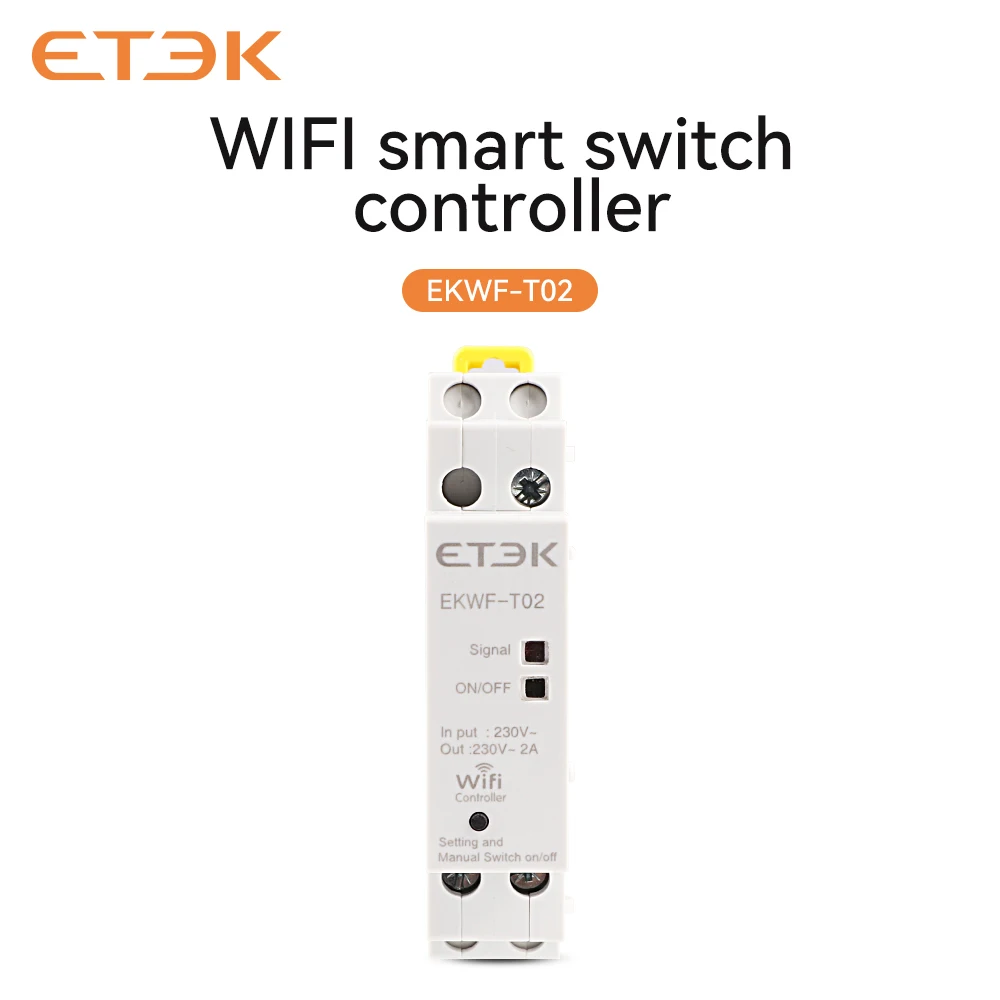

EKWF-T02+EKMF4020
A magnetic contactor is a device that is powered by magnetism. Used to open and close the contacts in the motor control circuit,
it may also be called a magnetic switch or a contactor.
A magnetic contactor is a device that is very often used in industry. Commercial, large industries are very much dependent on this
device. Through it, we can easily control heavy loads such as high-capacity motors.
ETEK Electric offers Magnetic Contactors, Mini Contactors, Capacitive Contactors and Contactor Accessories for different
applications.
it may also be called a magnetic switch or a contactor.
A magnetic contactor is a device that is very often used in industry. Commercial, large industries are very much dependent on this
device. Through it, we can easily control heavy loads such as high-capacity motors.
ETEK Electric offers Magnetic Contactors, Mini Contactors, Capacitive Contactors and Contactor Accessories for different
applications.
Technical Data
Voltage rating(Ue） | 1P, 2P | 250V AC | ||
3P, 4P | 400V AC | |||
Frequency | 50/60Hz | |||
Endueance (O-C) | ||||
Electrical life | 100000 | |||
Maximum number of switching operation a day | 100 | |||
Addition characteristics | ||||
Insulation vwltage(Ui) | 500V ac | |||
Pollution Degree | 2 | |||
Rated impulse withstand voltage(Uimp) | 2.5kV(4kV@12/24/48VAC) | |||
Degree of protection(IEC 60529) | IP20 | |||
IP40 | ||||
Storage temperature | -40℃~+70℃（1） | |||
Tropicalization (IEC 60068-1) | Treatment 2(relative humidity 95% at 55℃） | |||
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 VAC versions | ||||
The product control conforms to the SELV (safety extra low volatge) requirements | ||||
Operating temperature | -5℃~+60℃（1） | |||
No. of Poles | Model | Rating (ln) | Rated Voltage Ue (V AC)(50Hz) | Circuit Diagram | ||
AC-7a | AC-7b | |||||
2P | EKMF-1620 | 16A | 6A | 24 110 230 | 2NC | |
EKMF-2020 | 20A | 7A | ||||
EKMF-2520 | 25A | 9A | ||||
EKMF-1611 | 16A | 6A | 1NC/1NO | |||
EKMF-2011 | 20A | 7A | ||||
EKMF-2511 | 25A | 9A | ||||
EKMF12520 | 100A | 50A | ||||
EKMF-10011 | 100A | 40A | ||||
EKMF-1602 | 16A | 6A | 2NO | |||
EKMF-10020 | 80A | 40A | ||||
EKMF-2002 | 20A | 7A | ||||
EKMF-2502 | 25A | 9A | ||||
EKMF-3220 | 32A | 12A | 2NC | |||
EKMF-4020 | 40A | 18A | ||||
EKMF-6320 | 63A | 25A | ||||
EKMF-8011 | 125A | 32A | ||||
EKMF-3211 | 32A | 12A | 1NO/1NC | |||
EKMF-3202 | 40A | 18A | ||||
EKMF6302 | 63A | 25A | ||||

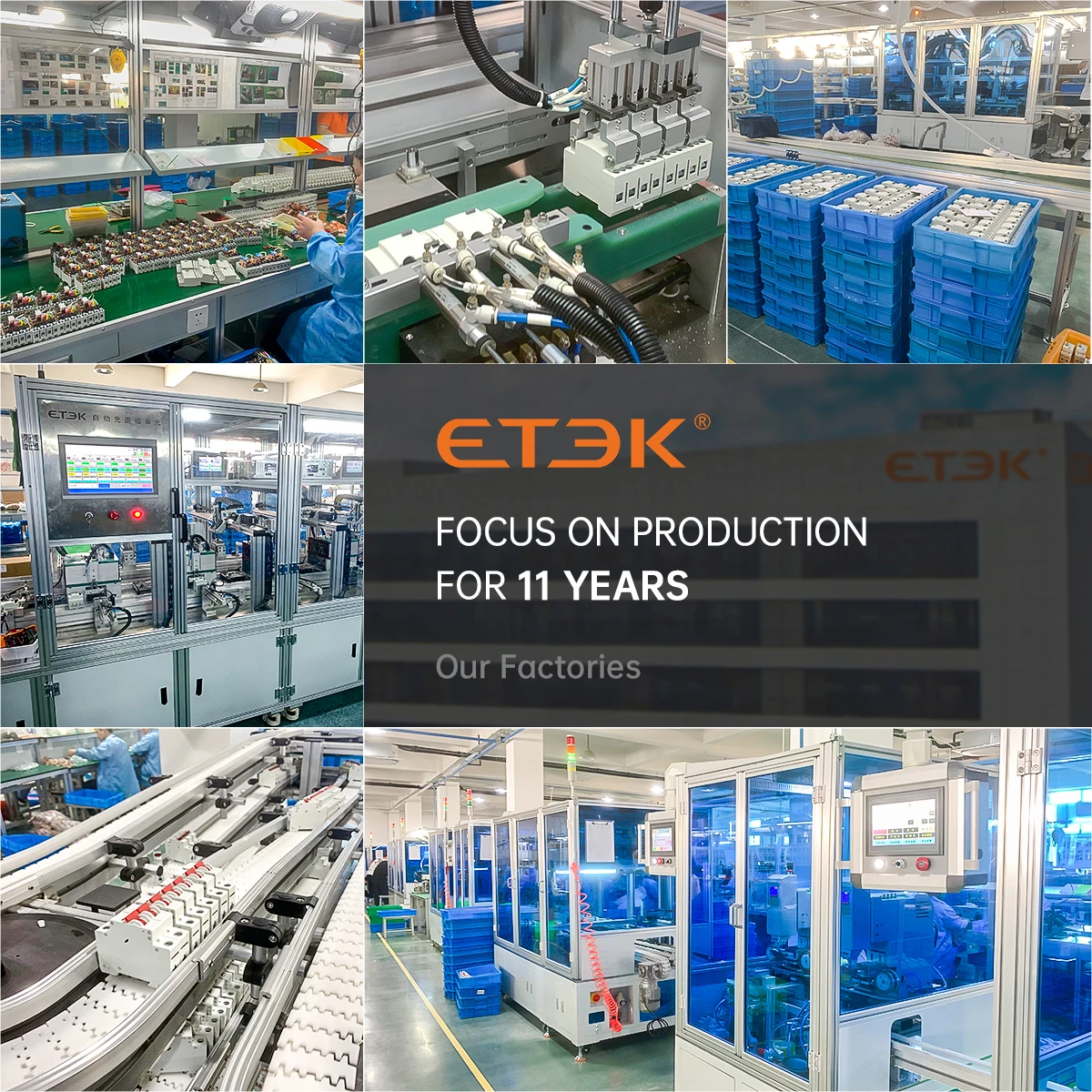

Company Profile
