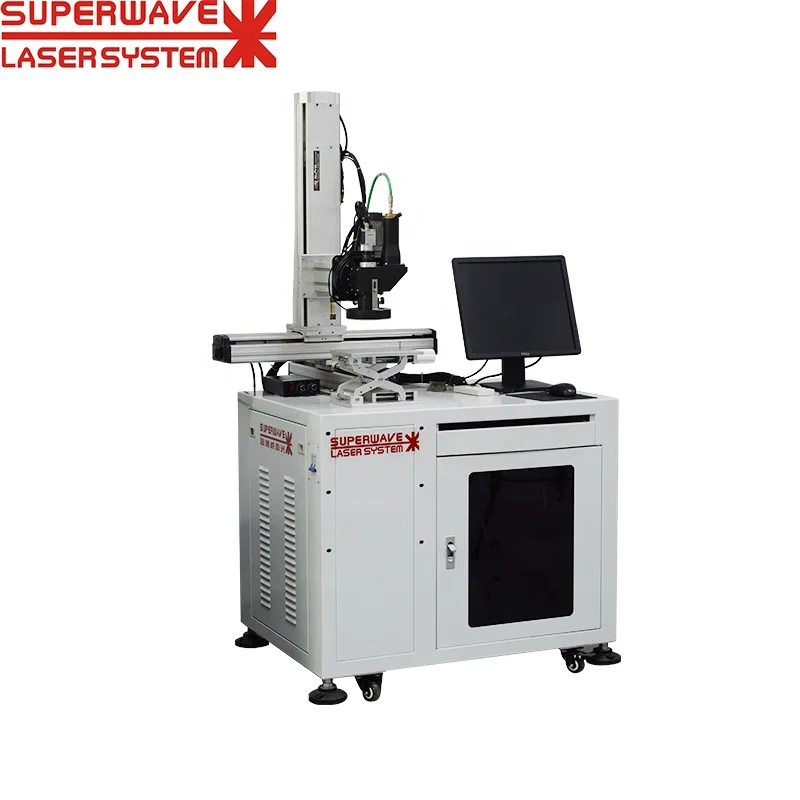

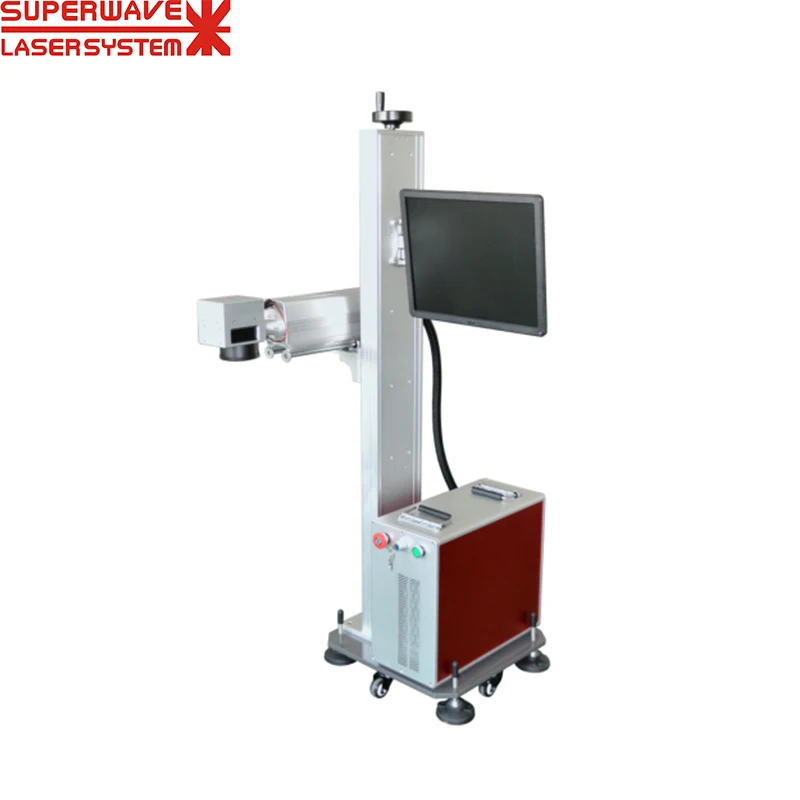

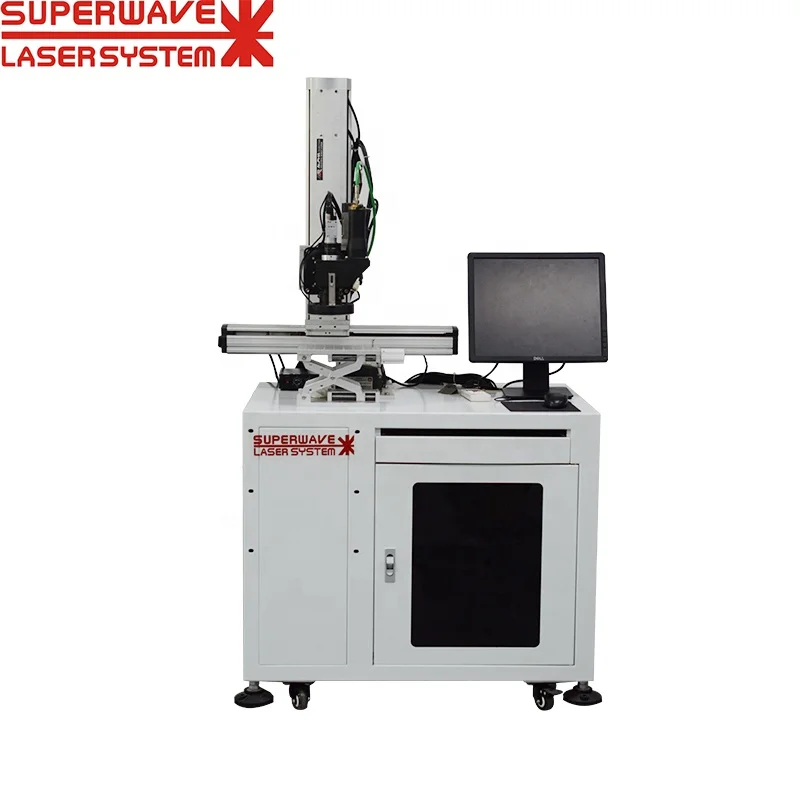

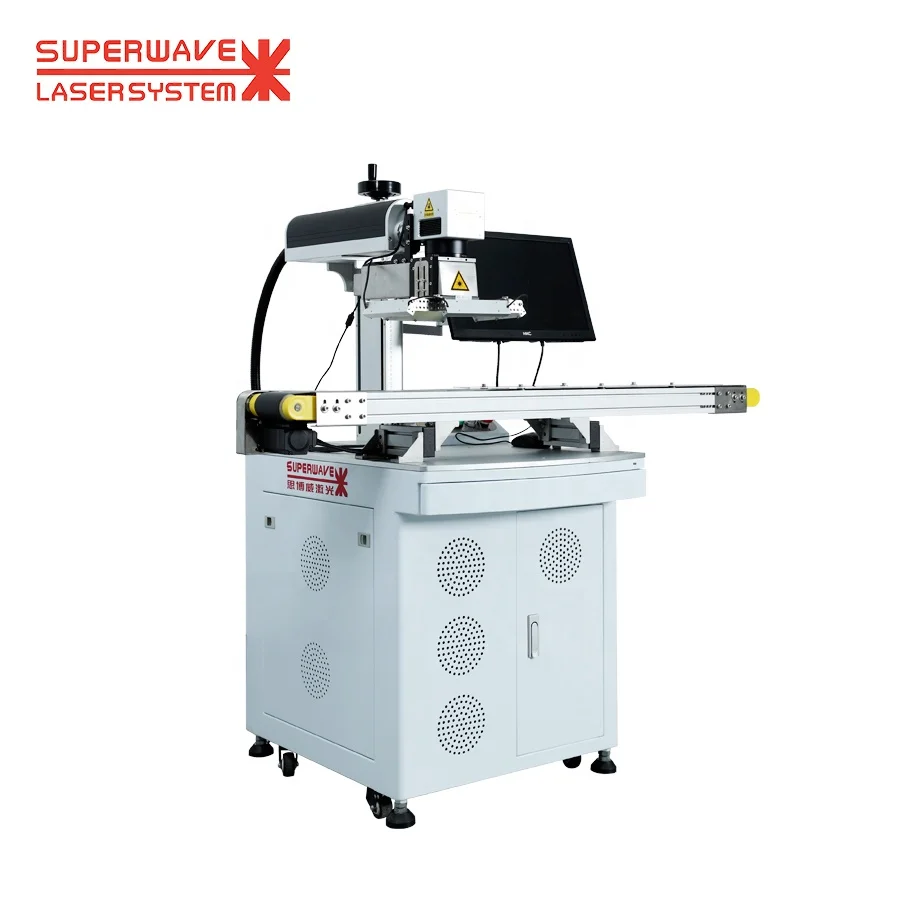

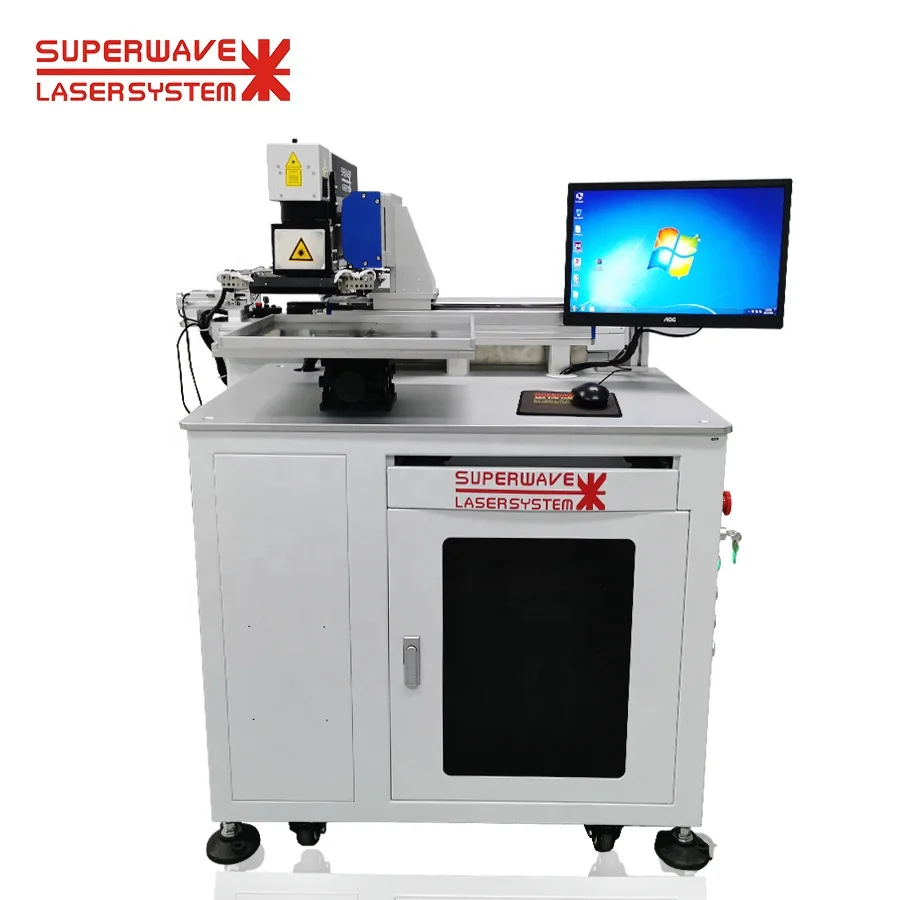

MAX RAYCUS Fiber Laser Marker Machine With Assembly Line For Marking Engraving Jewelry Time Piece IC Silicon Wafer
- Category: >>>
- Supplier: Shenzhen Superwave Laser Technology Co. Ltd.
Share on (1600910074039):
Product Overview
Description
Description
Factory Equipment Laser Engraving Machine Metal Manufacturer Laser Marking Machine
Technical Data
Laser model | SW-FLM20 | SW-FLM30 | SW-FLM50 | SW-FLM70 |
Laser power | 20W | 30W | 50W | 70W |
Laser wavelength | 1070nm |
| ||
Beam quality | M2<1.3 | M2<1.3 | M2<1.5 | M2<2.0 |
Laser repetition frequency | 20kHz≤F≤100kHz | |||
Line speed | 7000mm/s |
| ||
Min character size |
| <0.5mm |
|
|
Marking size | 100x100mm (50x50mm - 300x300mm options) |
| ||
Peak power | ≤0.5KW | ≤0.5KW | ≤0.8KW | ≤1KW |
Power supply | AC220V/50Hz | |||
Control system | computer |
| ||
Cooling system | air cooling | |||
Description
The optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed. The whole system is small in size, with high beam output quality, high reliability, super long service life, and saving energy.The markers are used for fields with higher requirements in depth, smoothness and precision, and they are used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons, etc. The markers are able to engrave beautiful images on metallic and plastic surfaces.
Feature
1. Small size with less power consumption;
2. High speed scanner head;
3. Stable property;
4. Long lifetime: life expectancy is 100,000 hours;
5. No maintenance;
6. Red light preview: show the marking position before marking.
Samples
Company Information
FAQ
1. Which incoterm can support?
All the incoterms can support, we will select suitable freight as your request.
2.What is the warranty?
General is 1 year, it can extend by discussion, we will free take charge of any problem within warranty (except man-made damage). After the warranty, we will still do our best to help to keep the machine running well.
3. How to use the machine?
There are Engiliash manual and guide videos, also we will provide support at any time. If any problems, we can send pictures and video to guide, also we can remote to solve problems.
4.How pay?
T/T, Paypal, Western Union. Other payment need confirm with us.
We promise:
1. Any questions with prompt reply.
2. Welcome to send samples for test, we will freight free to send it back.
Please let us know what materials will be processed? What about size and thickness?
