SZGH 36J Manual horizontal used heavy duty lathe machine with trade assurance large chuck lathe
- Category: >>>
- Supplier: Shenzhen Guanhong Technology Co. Ltd.
Share on (1600910091307):
Product Overview
Description
Product Description
Product Overview
SZGH-36J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.It is widely used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.
SZGH-36J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.It is widely used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.
UNIFIED ELECTRONIC CONTROL SYSTEM
Adopt SZGH electric control package to make electro-mechanical cooperation play the best efficiency.
HIGH QUALITY
The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced.
Project | Unit | Standard value | Max value | ||
Processing capacity | Max. diameter of bar bore/ bar capacity | mm | 35 | - | |
Max. particle diameter (disk type) | mm | 250 | 300 | ||
Max. length of workpiece | mm | 210 | 230 | ||
Cutting amount of stainless steel on one side | mm | 2 | 3 | ||
Machining accuracy of the workpiece | mm | ±0.01 | - | ||
Surface roughness | Ra | 1.6 | - | ||
the height of center tool holder | mm | 40 | - | ||
Turning Diameter | mm | 350 | - | ||
Square Knife Specifications | mm | 16 | - | ||
Travels | X-axis effective travel (diameter) | mm | 600 | - | |
Z-axis effective travel | mm | 230 | - | ||
Feed | X-axis rapid traverse | m/min | 25 | 30 | |
Z-axis rapid traverse | m/min | 25 | 30 | ||
X-axis servo-motor power | kW | 1.3 | - | ||
Z-axis servo-motor power | kW | 1.3 | - | ||
Spindle | Max.Spindle Speed | rpm | 3500 | 4000 | |
Spindle Motor Power | kW | 3 | - | ||
Spindle nose taper | - | A2-4 | - | ||
Support hydraulic chuck size | inch | 6 | 8 | ||
Dimensions | Dimensions | mm | 1750*1400*1800 | - | |
Total Weight | kg | 1800 | - | ||
Machine tool specifications and component items | Specification | Standard | Optional | ||
Part Specifications | Screw | 25mm | Taiwan ball grinding precision grade | - | |
Guide rail | 25mm | Taiwan H-class linear guide rail | - | ||
Bearing | - | Wuxi two-axis Harbin high-speed angular joint fusion bearing | |||
Spindle motor | 3kW | Variable frequency drive type | 3.7kW servo spindle | ||
Feed servo | 1.3kW | SZGH Speed Servo | - | ||
CNC Control | - | SZGH | SZGH | ||
Machine specifications | Bed Type | 30° | Slant Bed | - | |
- | Heavy-duty anti-deformation patented base | - | |||
Clamping method | - | Hydraulic clamping | - | ||
The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.

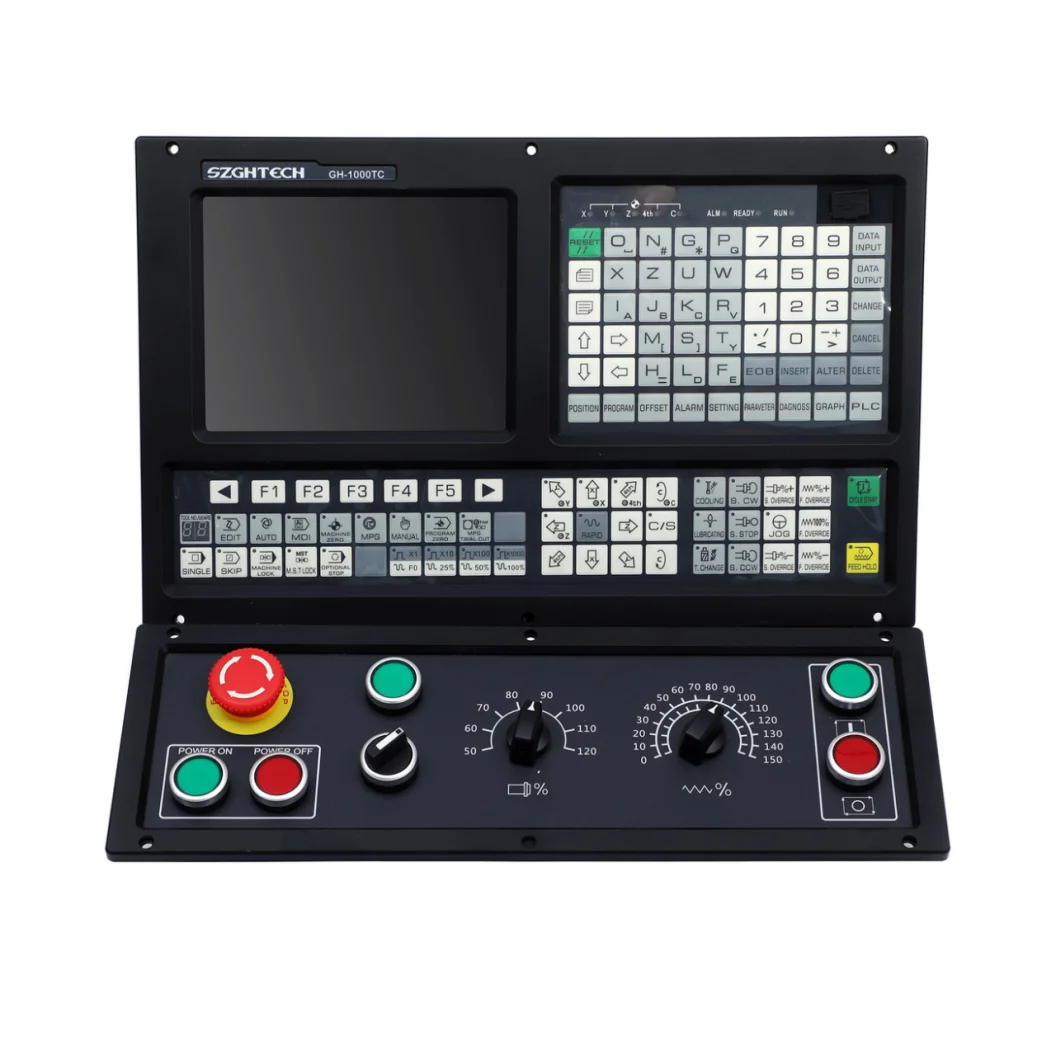

Features of Matched CNC Controller
1)2-5 Axis Fully English Type CNC lathe controller;
2) 800x600 8.4 inch real color LCD displayer;
3) Electric Turret & Binary code turret,Max: 99 pcs tools;
4) Support ATC , Macro function and PLC function;
5) Max speed is 60m/min, feeding speed is 24m/min;
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;
7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC);
8) 64MB Memory , 56M user store room;
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade;
10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V;
11) 32 bits ARM microprocessor+FPGA Technology;
12) Basic I/O: 36X36, can be edited freely;
13) Cutter offset :
2) 800x600 8.4 inch real color LCD displayer;
3) Electric Turret & Binary code turret,Max: 99 pcs tools;
4) Support ATC , Macro function and PLC function;
5) Max speed is 60m/min, feeding speed is 24m/min;
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;
7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC);
8) 64MB Memory , 56M user store room;
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade;
10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V;
11) 32 bits ARM microprocessor+FPGA Technology;
12) Basic I/O: 36X36, can be edited freely;
13) Cutter offset :

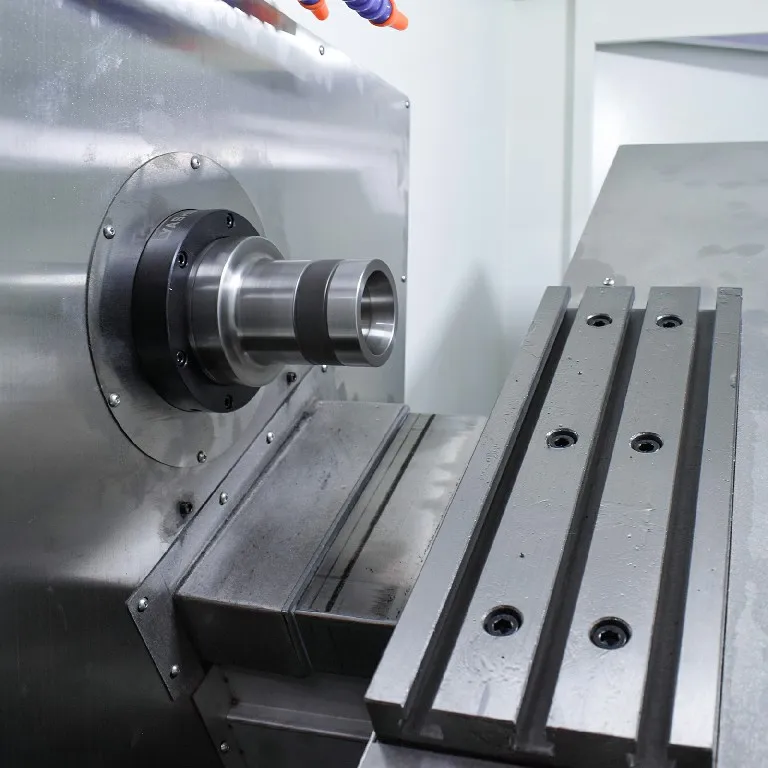

Spindle
The self-made high-speed paired bearing unit spindle adopts angular contact high-speed bearings, and the normal speed is 3500/min, which is suitable for large-scale machining. The clamping method can be changed from hydraulic to pneumatic clamping according to different usage occasions of customers. If high-speed and high-gloss requirements are required, a 6000-rpm high-speed electric spindle can be selected.
Rotary Cylinder
The standard configuration adopts a hydraulic rotary cylinder to make the clamping force stronger, more stable and have a longer
service life. It can be replaced with pneumatic clamping according to the actual situation.
service life. It can be replaced with pneumatic clamping according to the actual situation.
Machining of long shaft workpieces
It can realize the processing of 120mm long workpiece with the nozzle holder.
ball screw
Taiwan brand 25 mm ball grinding precision grade screw rod
Linear Guides
Taiwan brand 25mm Linear Guides precision grade
