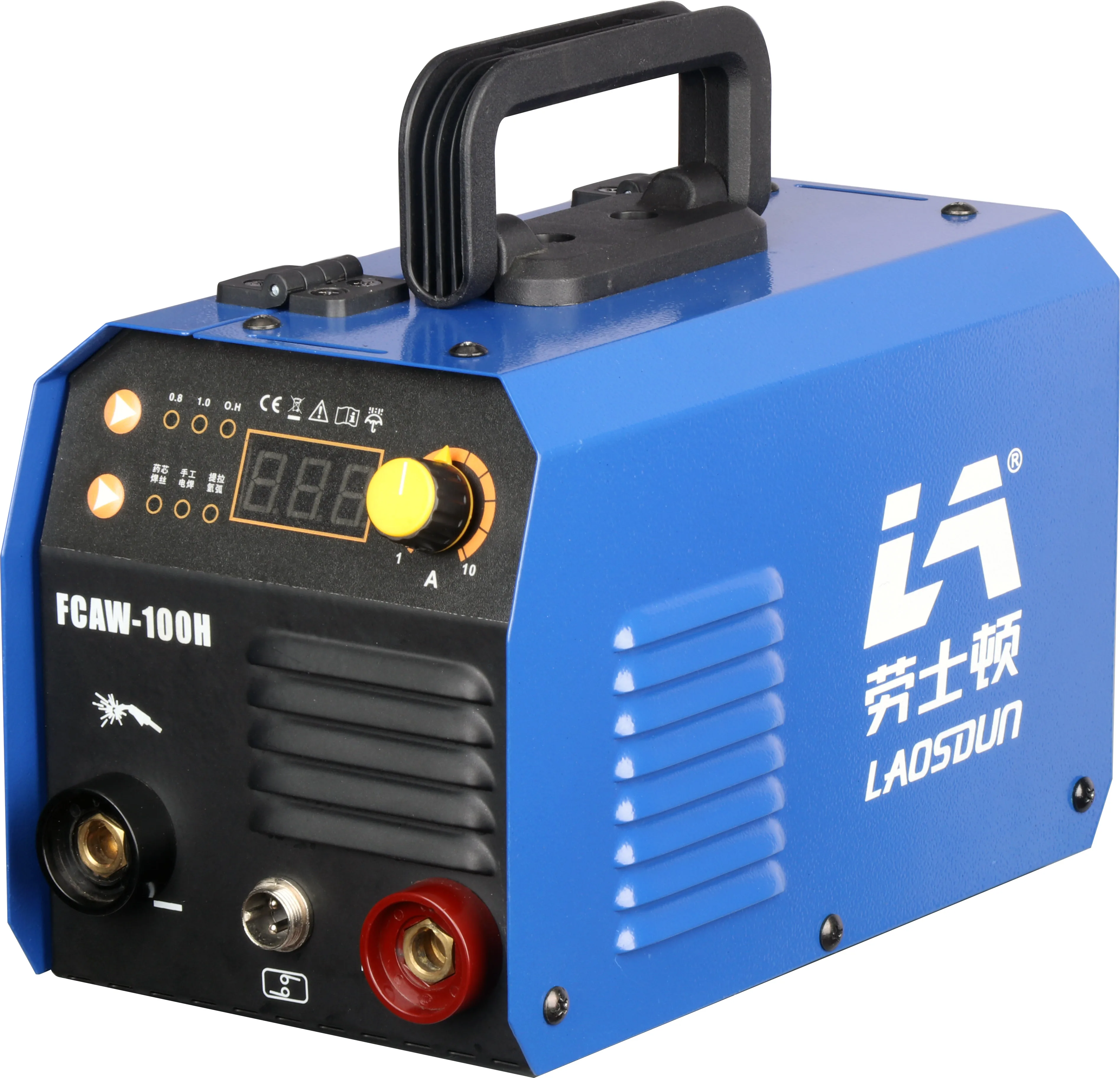

LASTON CHEAPER MIG FCAW WELDING MACHINE
- Category: >>>
- Supplier: Zhejiang Laoshidun Technology Co. Ltd.
Share on (1600910096800):
Product Overview
Description
Product Introduction

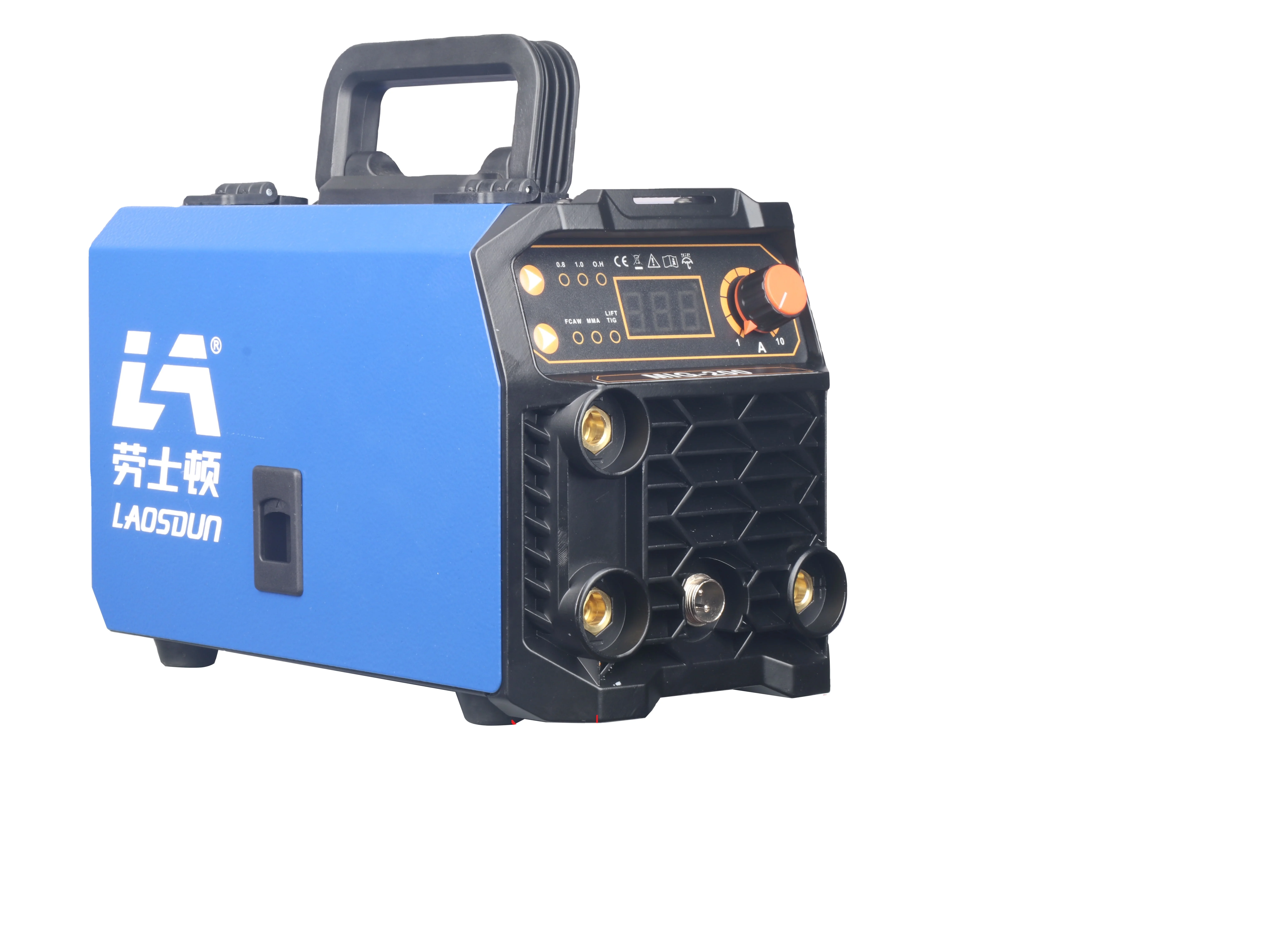

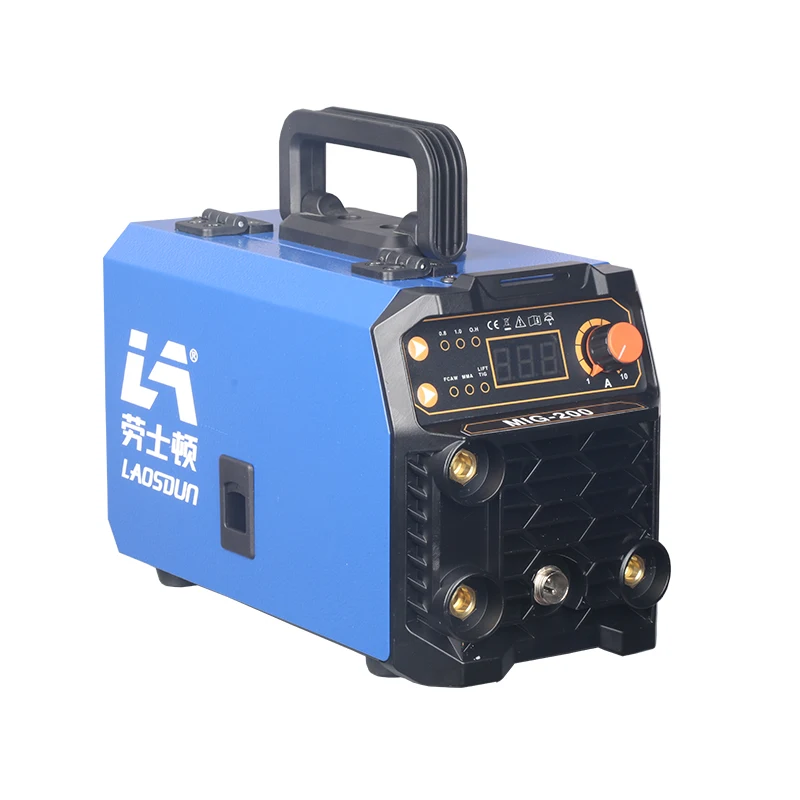

portable no gas mig mag welding machine 3 in 1 use

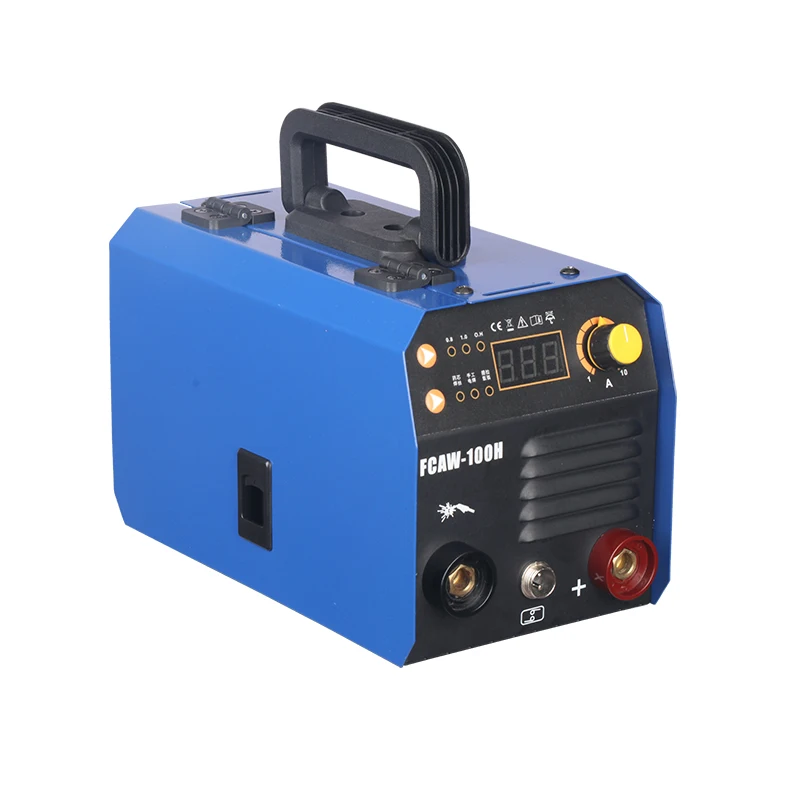

FCAW-120H is a 3 functions machine with flux-cored wire welding, arc welding and lift Tig arc welding; that is inverter DC dual voltage welding machine, working voltage is 220V-50HZ, using single tube IGBT half bridge inverter, switching frequency is 45KHz, has the characteristics of high efficiency and energy saving.

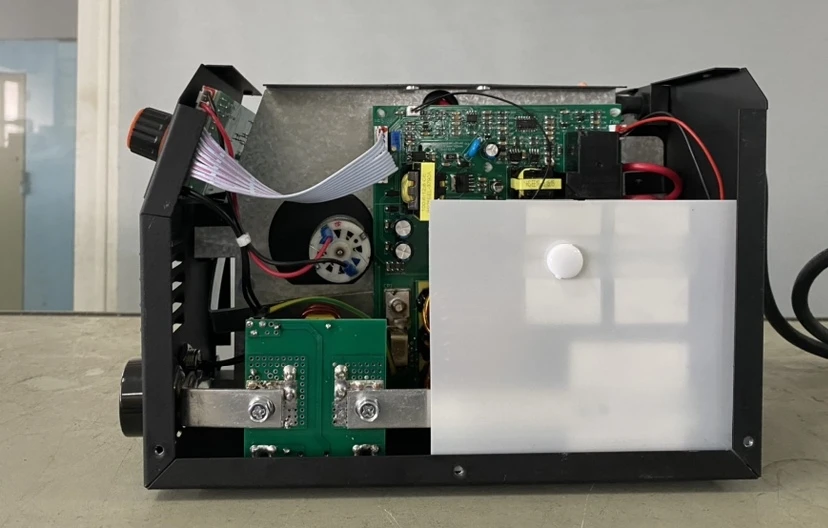

The circuit board is controlled by single chip microcomputer, single board structure, reduce the plug line, improve the
stability of the machine; The control circuit adopts patch components to make the machine smaller and suitable for all-around
welding; With overheating protection function, greatly improve the reliability of the machine.
Flux-cored wire welding is a unified adjustment, the use of 0.8, 1.0 cored wire automatically match welding parameters, according to the size of the plate only need to adjust a potentiometer.
Arc welding has anti-stick, thermal arc, thrust.
Product Parameters
FCAW-120H is about 220V and output power :120A/20V (FLUX cored welding), 120A/24.8V(ARC welding), 120A/14.8V(LIFT-TIG).and the duty cycle is about 20% (25℃)
MODEL | FCAW-120H |
Power voltage (V) | AC220V |
Rated input capacity(KVA)FCAW | 4.1KVA |
Rated input capacity(KVA)MMA | 5.1KVA |
Rated input capacity(KVA)LIFT-TIG | 3.0KVA |
Rated intput current(A)FCAW | 18.7AMP |
Rated intput current(A)MMA | 23.2AMP |
Rated intput current(A)LIFT-TIG | 13.8AMP |
Load voltage range DC (V)FCAW | 16-20V |
Load voltage range DC (V) MMA | 21.2-24.8V |
Load voltage range DC (V)LIFT-TIG | 11.2-14.8V |
Range of welding current DC (A) FCAW | 40-120AMP |
Range of welding current DC (A) MMA | 20-120AMP |
Range of welding current DC (A) LIFT-TIG | 20-120AMP |
no-load voltage (V) | 59V |
Duty cycle(%) | X=20%（25℃） |
Efficiency(%) | 80% |
power factor | 0.73 |
Insolation class | F |
Protect class | IP21S |
Usable wire(mm) | 0.8/1.0 |
N.W.(KG) | 3.62 KGS |
Dimension(mm) | 260*150*190mm |

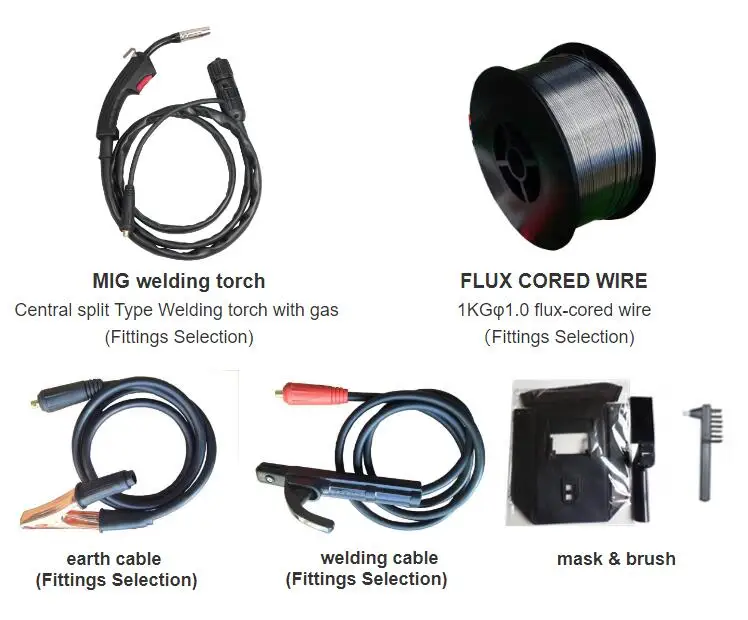

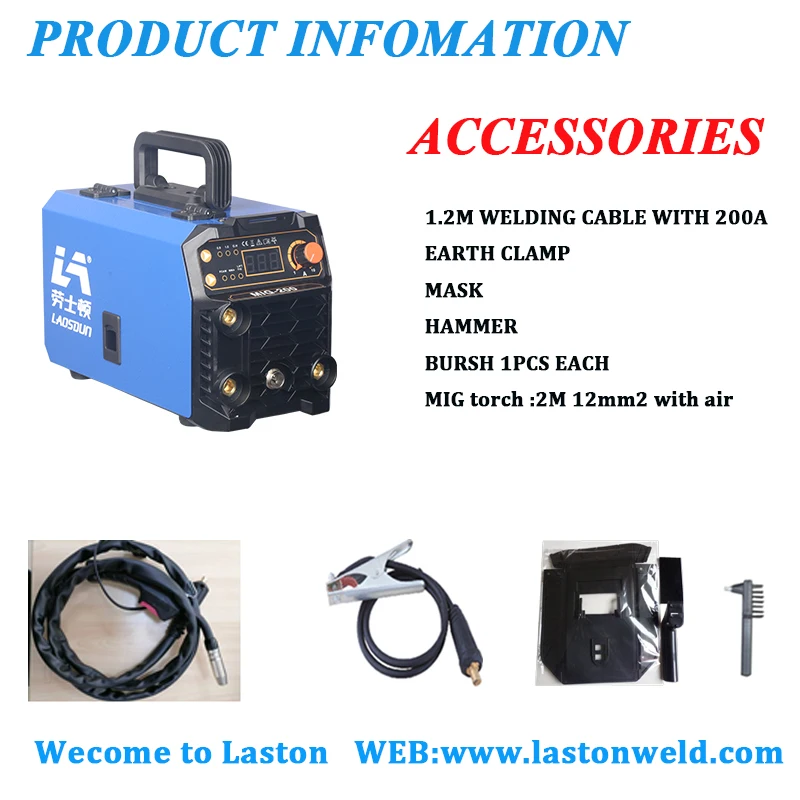

Product Details Show
MIG welding torch
Central split Type Welding torch with gas (Fittings Selection)
FLUX CORED WIRE
1KGφ1.0 flux-cored wire
（Fittings Selection)
earth cable
(Fittings Selection)
welding cable (Fittings Selection)
mask & brush
Product Packing
you can choice the kraft box,the kraft box will be with the left and right foams.
you can choice the colour box,and also this box will with the left and right foams.
you can choice the honeycomb,this package is very strong so this honeycomb without the foams.
Main Products
Payment&Deilvery
Payment
1.Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
2.LC AT SIGHT
Delivery time
Generally it is 25-30days after confirm the design and deposit.and also it's according to the quantity.
About LASTON
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:How many people in your factory?
A:About 300 people.
Q:Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,Wenling City, Zhejiang Province, China.
Q: How can i visit your company?
A:You can fly to Taizhou airport, Ningbo airport or Shanghai air port. Or you can take train to Wenling Station. Then inform us, we'll come to pick you up!
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How do you control the quality?
A:Before we produce the machine,we have the IQC to check the materials first and when we produce,the QC will check the machine which in the product line,and when we finished the QC will check it again and also before we send the goods to you,you can come to our factory checking.
