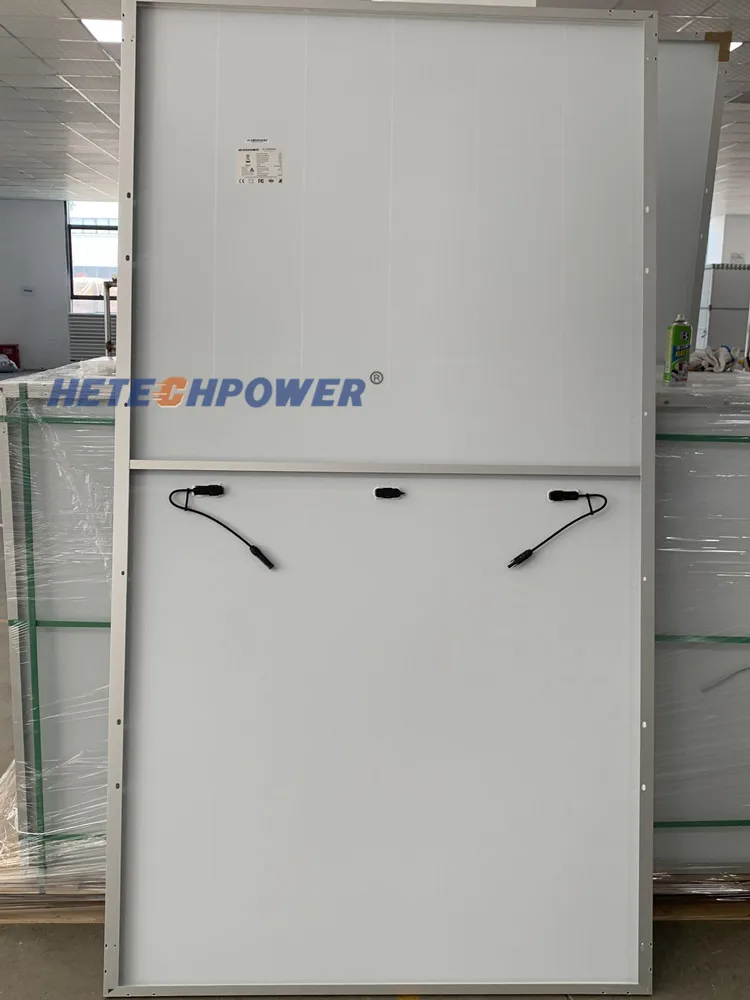

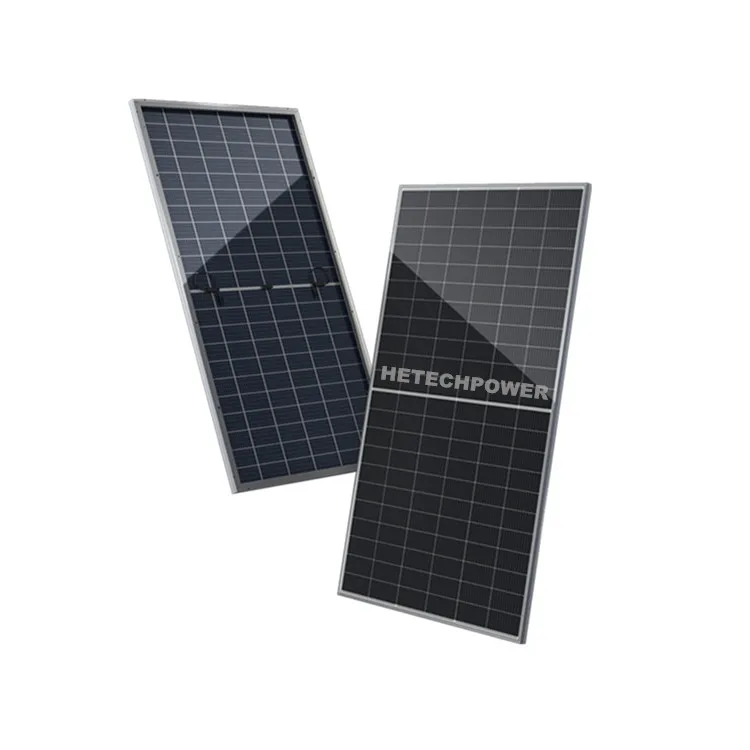

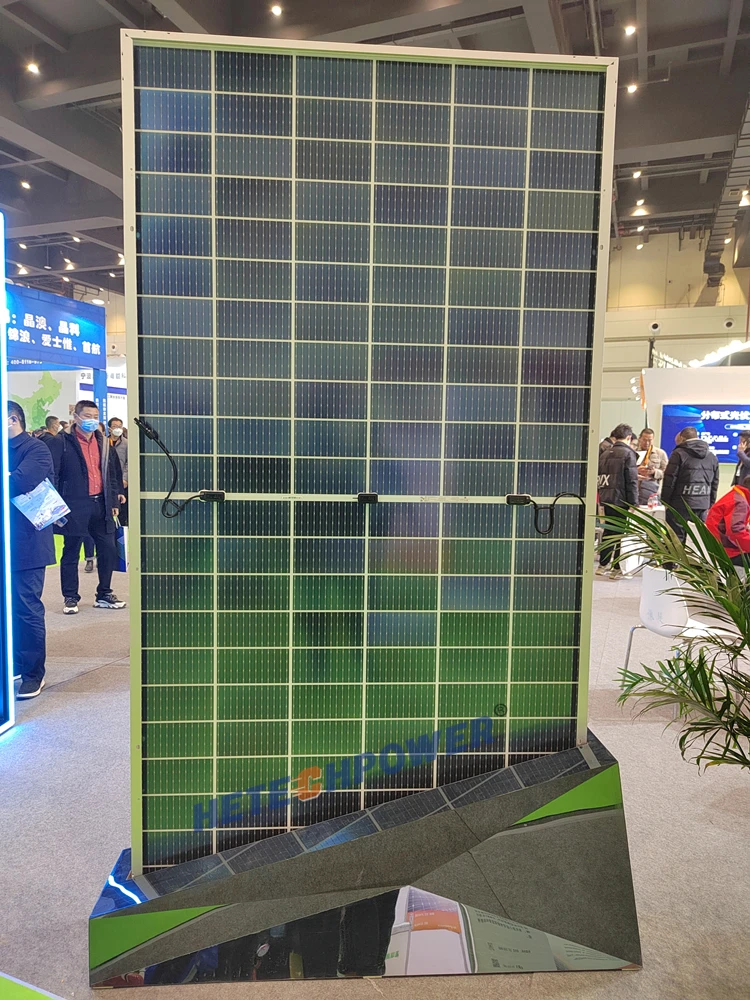

670W Bifacial Double Glass Mono Module solar panel 660w P type with Additional Power Generation

Share on (1600910113065):


Price:$0.08 - $0.11

Quantity:


Product Overview

Description











Product Description


Maximum Power (Pmax/W)
650
655
660
665
670
Maximum Power Voltage (Vmp/V)
37.7
37.9
38.1
38.3
38.5
Maximum Power Current (Imp/A)
17.27
17.31
17.35
17.39
17.41
Open Circuit Voltage (Voc/V)
45.5
45.7
45.9
46.1
46.3
Short Circuit Current (Isc/A)
18.35
18.40
18.45
18.50
18.53
Module Efficiency (%)
20.9
21.1
21.2
21.4
21.6
Power Output Tolerance (W)
0~+5W
Bifaciality
80%±5%
Size
2384*1303*35mm
Weight
38.7Kg

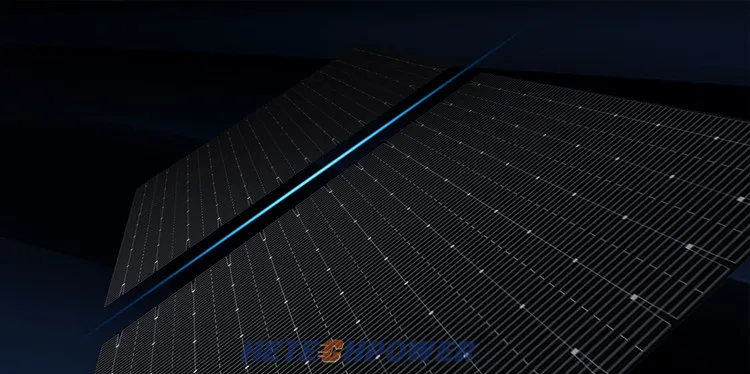

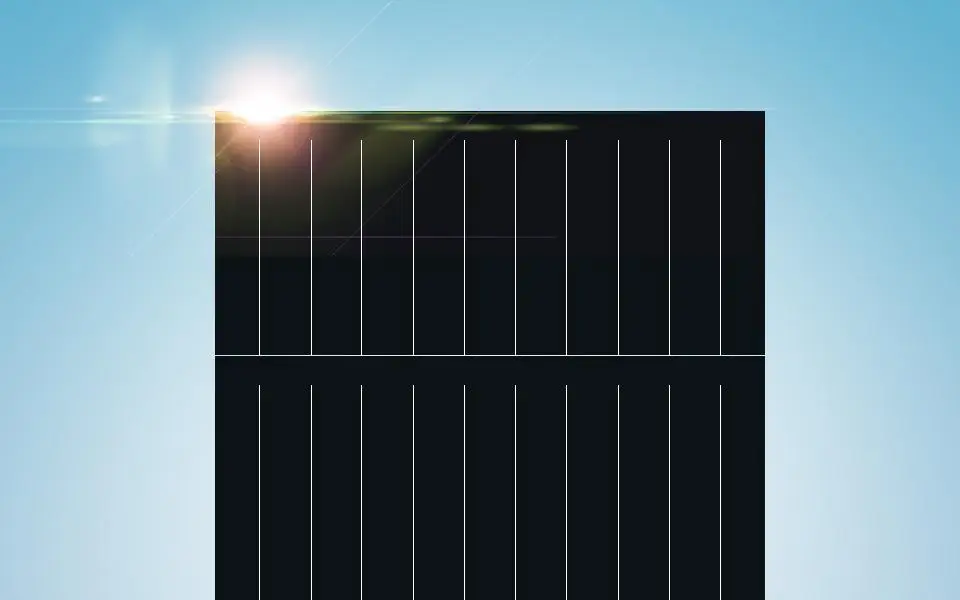

670W Ultra-high Power with 21.6% High Efficiency
Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the Vertex comes with several innovative design
features allowing high power output up to 670W. Excellent temperature coefficient and low irradiation performance brings the
greater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of Vertex can
reach up to 21.6%.


Low-voltage, Higher Module String Power Output, Improvement in Power Output of a Single Module String by More Than 34%
Module String by More Than 34% Based on the aim of improving the system efficiency and reducing the balance-of-system costs, Trina Solar's research and
development team has introduced an innovative design of low-voltage and higher module string power output. Typicallly, Trina can
interconnect 28 Vertex modules into a string. Compared with other reference module, a single module string can achieve up to a 34%
power increase, 0.012-0.014 BOS reduction, 1.2%-1.5% LCOE reduction, indicating an innovative technological breakthrough and
ushering in a new era of 600W+.


Products Detail

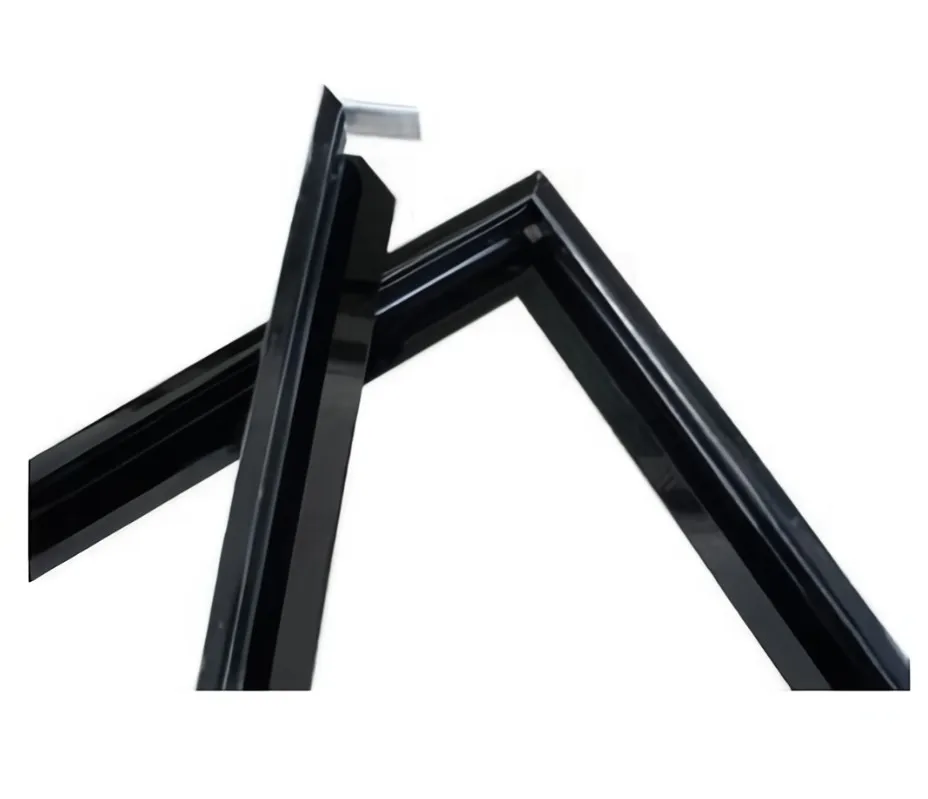

2.Frame

1)High quality, strictly quality inspection during production and whole inspection before package
2)Hundreds of standard designs can be available and supplied
3)Simple and easy installation
4)High brightness and hardness
5)Strong coated adhesion
6)Anti-scratch, smoothness





Title goes here.

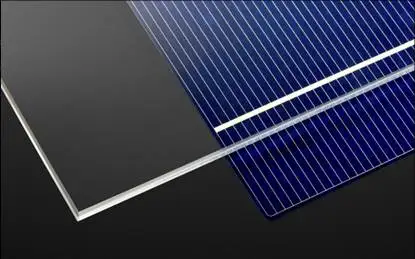

1)High luminousness, high stability, low reflectivity, waterproof and high safety
2)High transparent AR coating ultra clear low iron glass

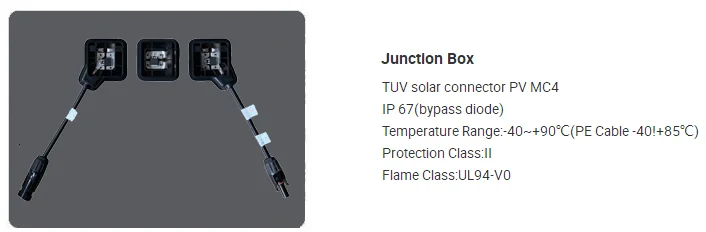

5.MC4 Connector

1)Highly robustness, UV-Resistance
2)Connector adopts touch and insertion of reed with inner-knob type
3)Auto-lock equipment of male and female points enable connection more easy and reliable
4)Popular figure suits most of field installation
5)Accommodates PV cable with deferent insulation diameters
6)The maximal working current will be changed when fixed with different types of diode

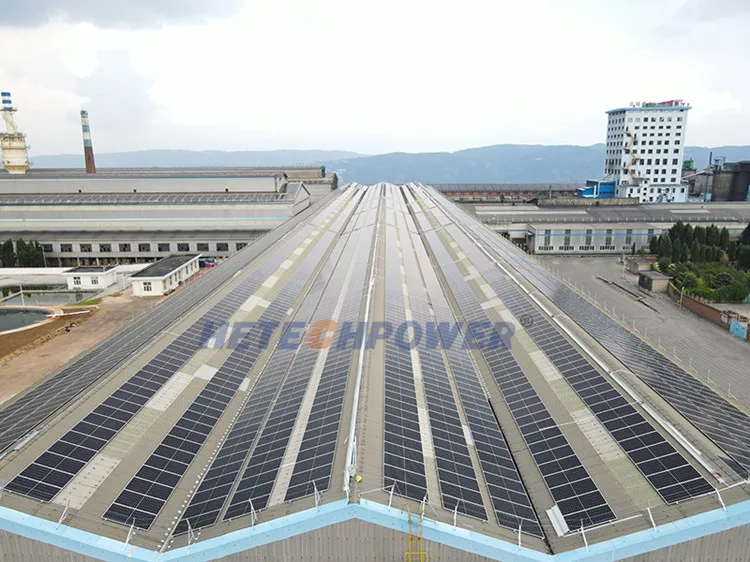

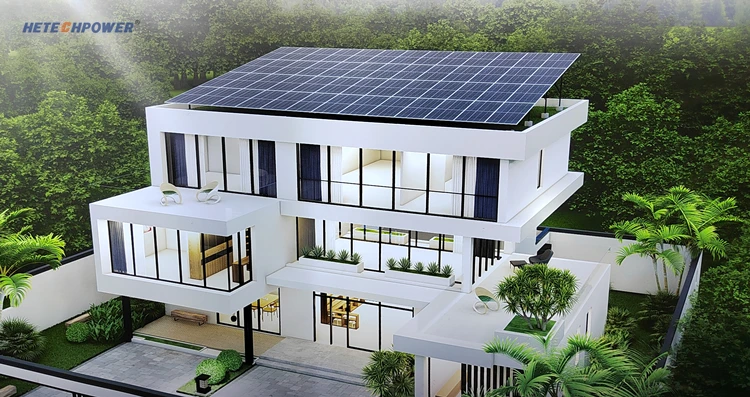

Applications






Company Information

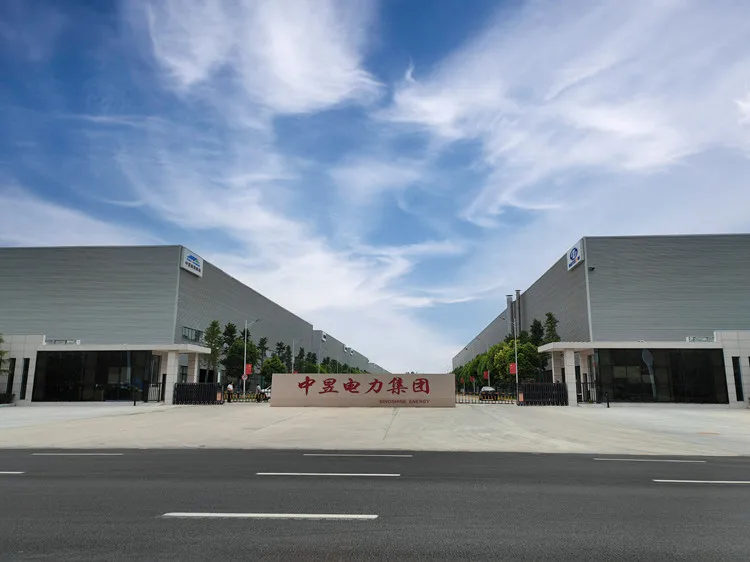

About us:

HETECH GROUP, established in 2009, 10 years' experience in solar energy industry, as a professional manufacturer and supplier of PV solar module with great experience in solar industry field which mainly engaged in crystalline silicon solar cells, modules manufacturing, photovoltaic systems engineering and supplying of PV application products.

In the past decades, HETECH built a wide sales network in global market which covers more than 68 countries, our overseas projects evolves State grid solar power plant, household solar system, outside portable solar system,etc.

HETECH aiming to become "The specialist of solar power industry", our R&D team always concentrating on new product development, production technology update to ensure stable product performance. We adhere to the management concept of "Quality of survival" and marketing policy of "customers first,service first". Relying on the "marketing and customers oriented" enterprise value, we are dedicated to providing excellent solar products with reasonable price, good reputation, excellent service for customers all over the world.





Certifications






Are you finding high quality solar panel with CE, ROHS,TUV, ISO, ?
Are you finding a professional manufacturer can offer you high quality after-sales service?
Are you looking for a one-stop solutions for Solar Energy Systems?
What about a person can help you solve with everything and make you sit down and relax?
If so ,do not hesitate to contact us.


Packing & Delivery

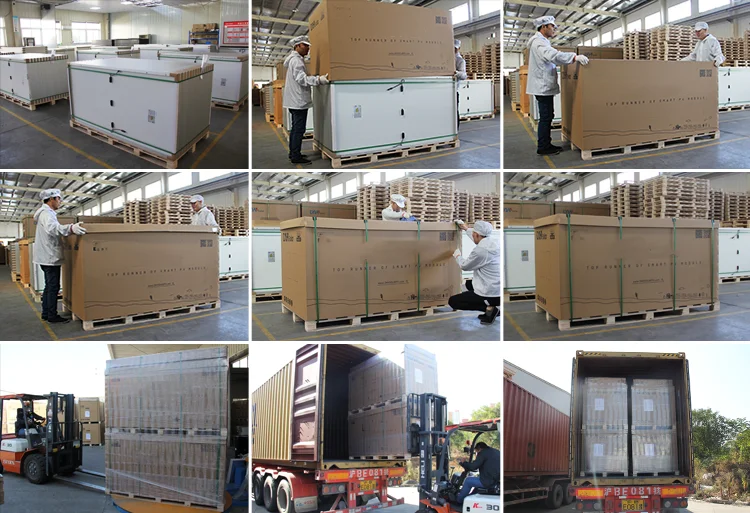

Packing

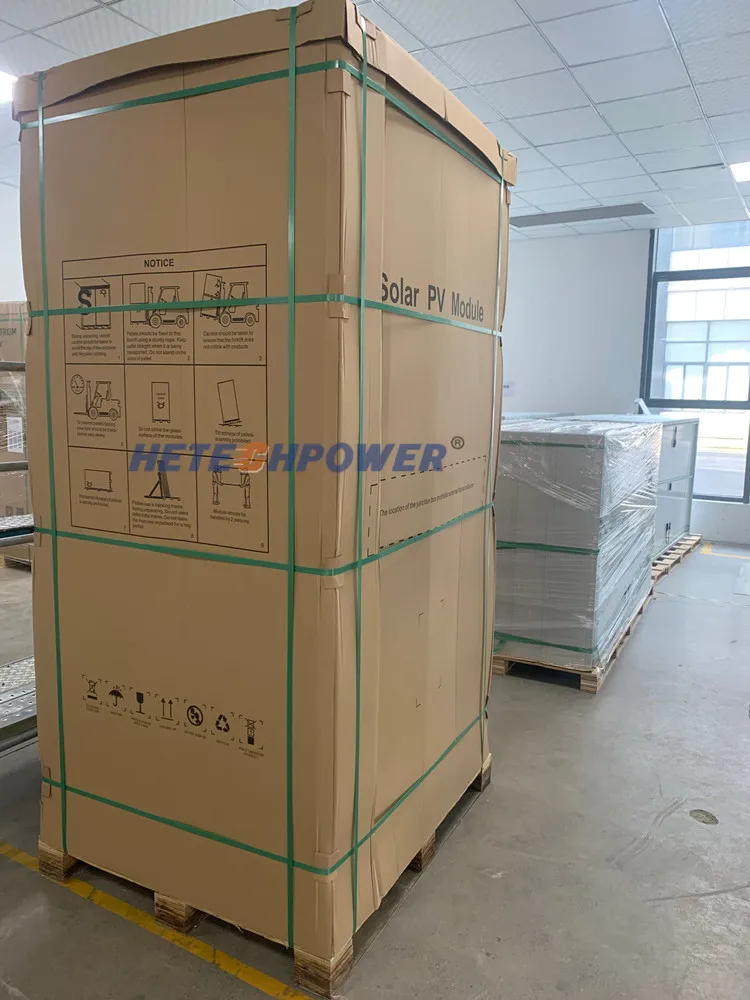

Normally packing: 1pc/2pcs/3pcs/10pcs/25pcs per carton
Individual packing requirement is acceptable.



Shipping

Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.


Shipping Methods
Arrive AT
Delivery From
By Sea
Sea Port You Want
Any port in China
By Air
Air Port You want
Any port in China
By Railway
Your Door
Any station in China
By Express
Your Door
Zhengzhou


Payment

T/T , L/C, Western Union, Money Gram Paypal.
