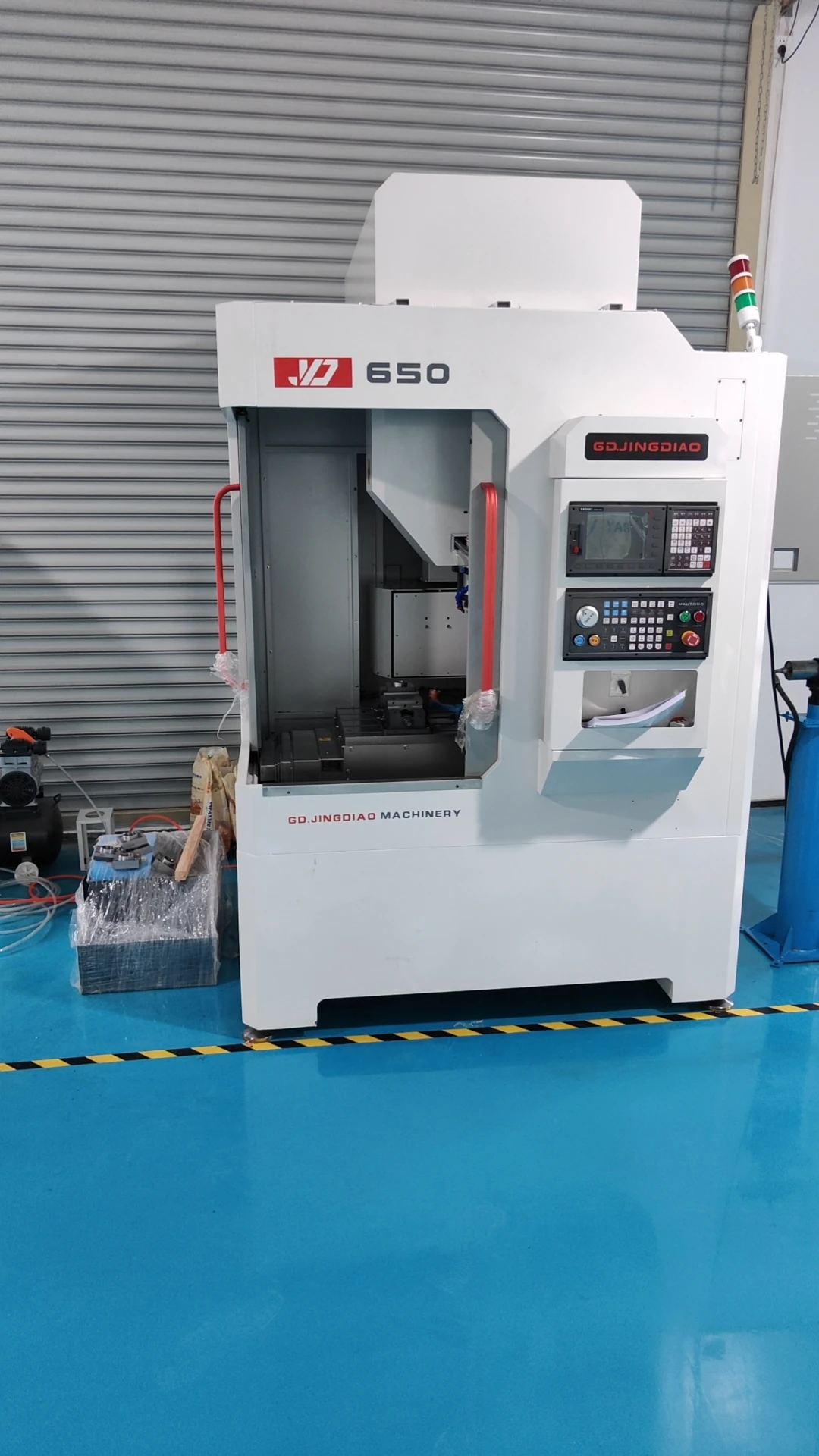

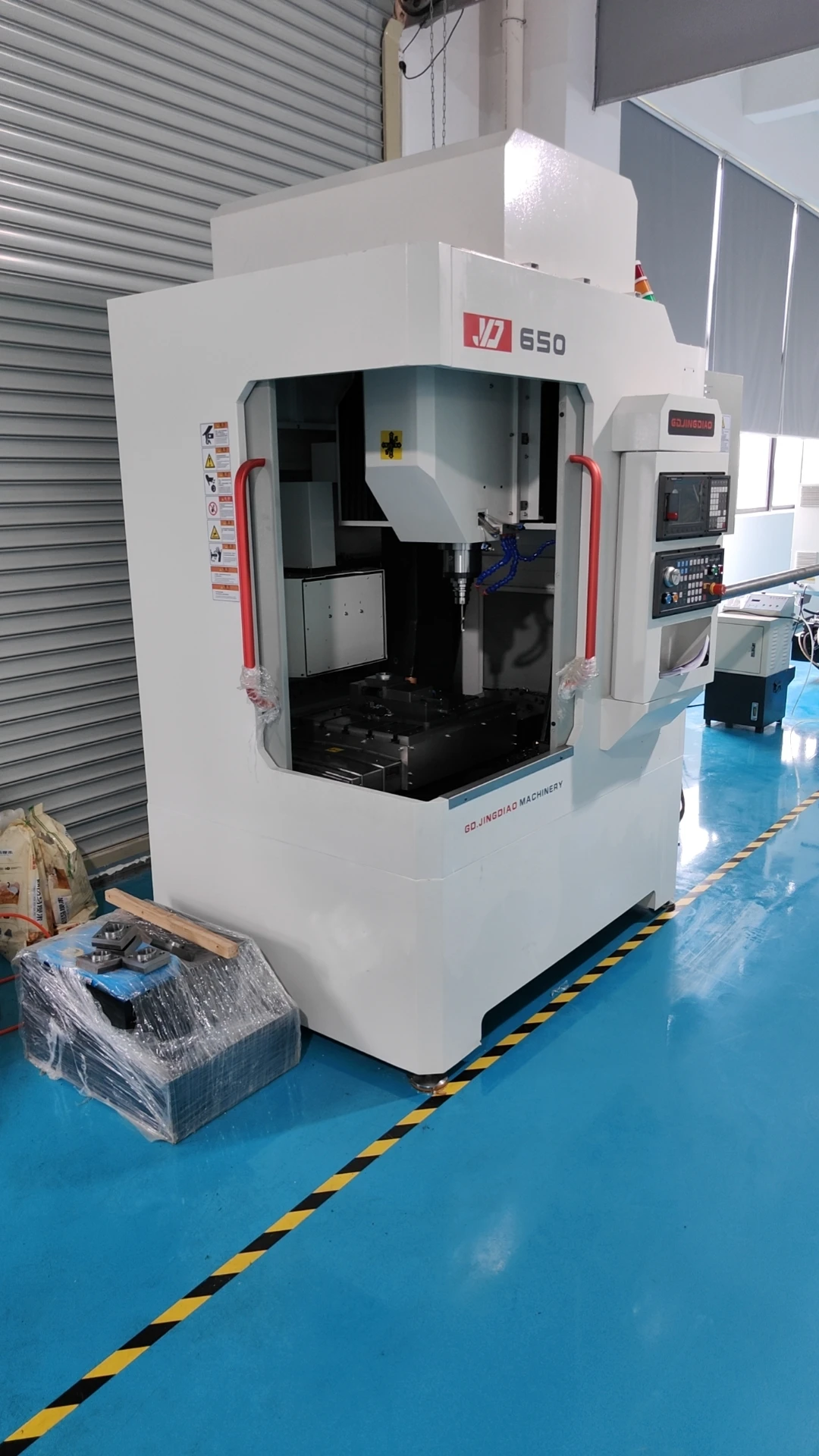

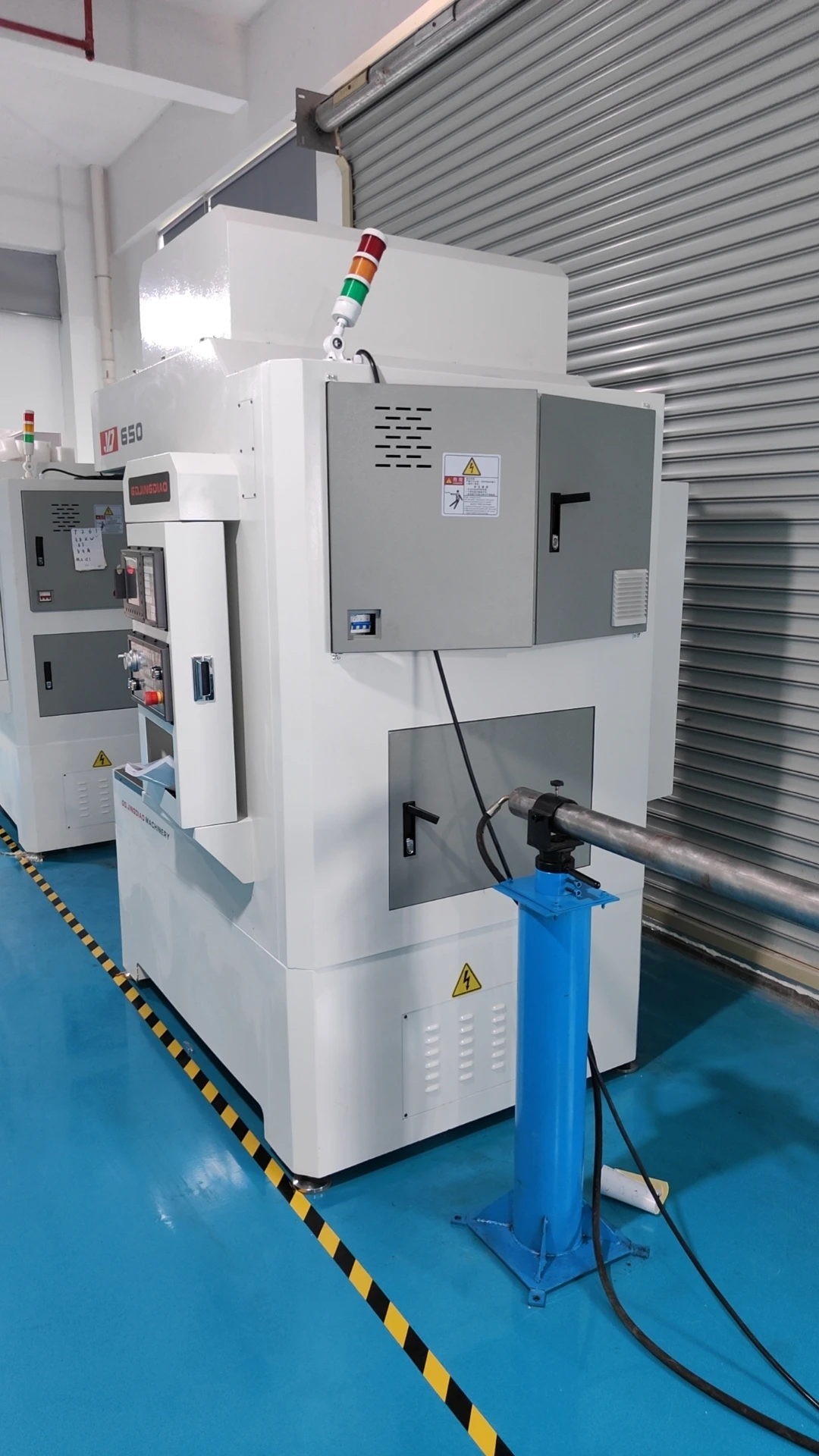

SZGH 650 Cnc Milling Machines 3 Axis CNC Vertical Machining Center DMTG VMC650 CNC Milling Machine For Metal
- Category: >>>
- Supplier: Shenzhen Guanhong Technology Co. Ltd.
Share on (1600910116680):
Product Overview
Description
SZGH-650 is suitable for processing copper, iron, aluminum and stainless steel workpieces within 600mmX500mm.The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 30mm and drilling within 20mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improving per capita output efficiency and reducing processing costs.
Standard Configuration
Project | Unit | Standard value | Max value | ||
Processing capacity | Maximum drilling diameter | mm | Aluminum φ35/ Steel φ30 | Aluminum φ40/ Steel 35 | |
Max. Tapping Diameter | mm | Aluminum m25/ Steel m18 | Aluminum m25/ Steel m20 | ||
Max. milling cutter diameter | mm | φ60 | φ100 | ||
Max. Spindle speed | rpm | 6000 | Optional 24,000-rpm motorized spindle | ||
Handle Type | - | BT40 | Optional BT30 | ||
Magazine capacity | - | 10-station servo tool magazine | 12 station tool magazine | ||
Repeatability | mm | 0.01 | - | ||
Surface engraving accuracy | mm | ±0.02 | optional ±0.01 | ||
workbench | Distance from table surface to spindle end | mm | Minimum 150 Maximum 450 | - | |
Effective stroke of working surface | mm | 600*500 | - | ||
Travels | X-axis effective travel | mm | 500 | - | |
Y-axis effective travel | mm | 600 | - | ||
Z-axis effective travel | mm | 300 | - | ||
Feed | X-axis rapid traverse | m/min | 25 | 30 | |
Y-axis rapid traverse | m/min | 25 | 30 | ||
Z-axis rapid traverse | m/min | 20 | 25 | ||
Various cutting suggested speeds | m/min | 1000 | - | ||
Spindle | Max.Spindle Speed | rpm | 6000 | Optional 24000electric spindle | |
Spindle Motor Power | kW | 3.7 | Optional 5.5kw | ||
Spindle type | - | mechanical spindle | Optional electric spindle | ||
Spindle taper | - | BT40 | Optional BT30 | ||
Dimensions | Dimensions | mm | 1650*1800*2450 | - | |
Total Weight | kg | 2900 | - | ||
Machine tool specifications and component items | Specification | Standard | Optional | ||
Screw | 32mm | Taiwan precision p grade | - | ||
Guide rail | 30mm | Taiwan Precision C3 Grade | - | ||
Spindle | BT40 | SZGH self-made | other | ||
CNC Control | - | SZGH self-made | Optional Huazhong | ||
Feed servo | X.Y1.2kw&1.5kW | SZGH self-made | Optional Huazhong | ||
Spindle servo motor | 3.7kW | SZGH self-made | Optional Huazhong | ||
Machine specifications | Tool magazine | 10/12 handle | SZGH self-made | - | |
Base form | 1200kg | Heavy-duty anti-deformation patented base | - | ||
The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Product Features
Equips with auto lubrication system to ensure transmission system smoothly and long-term running.

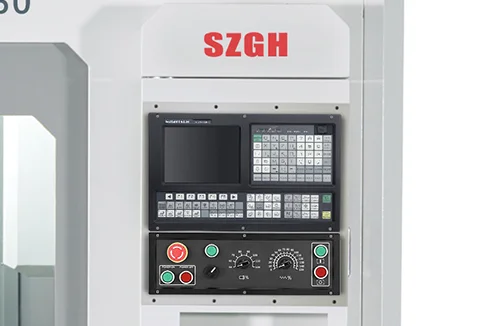

Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency
The high rigidity cast base and gantry provide confidence of perfect stability and high precision when the operation.

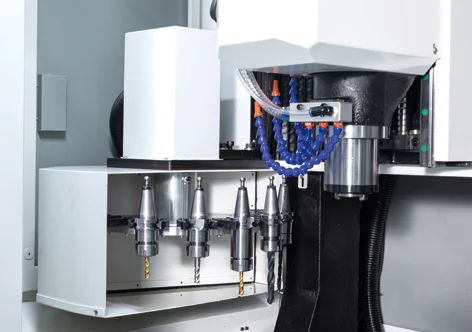

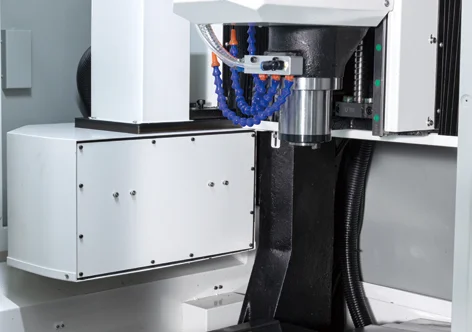

3.7 kW, 6000 RPM spindle motor with BT40 shank, equipped with 10-station linear pneumatic tool changer, which can change tools more efficiently.
Application
10-STATION PROCESSING | Copper, iron, aluminum and stainless steel workpieces within 600mm X 500mm. |
DRILLING | Stainless steel parts within 30mm |
TAPPING | Stainless steel parts within 18mm |
Related Products
FAQ
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independent technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
6.What is the warranty period?
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
7.How can I choose the most suitable machines?
7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
8.Does your cnc support booting logo exchange?
You can also send us the products drawing ,we will choose the most suitable machines for you.
8.Does your cnc support booting logo exchange?
Yes, no problem.

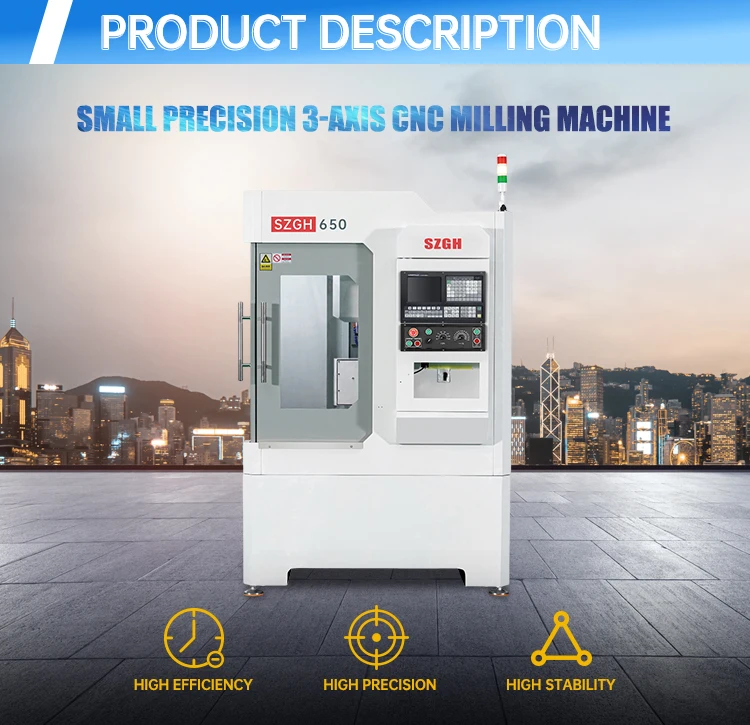

Product Description
