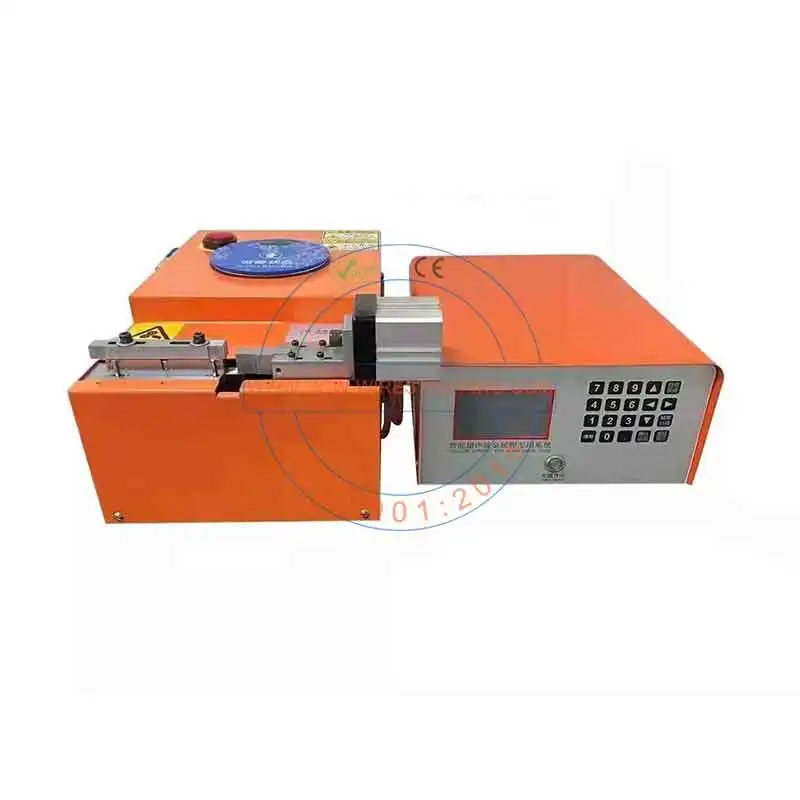

JCW TS204 Semi automatic usb cable soldering machine solder wire manufacturing machine
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1600910181263):
Product Overview
Description
Model | JCW-TS204 Ultrasonic Welder for Wire丨Ultrasonic Wire Splicer |
Work frequency | 20 kHz |
Rated power | 2000 - 3000 W |
Cross section area | 0.5 ~ 30 mm², copper & aluminum |
HMI | 4.3" color touchscreen |
Cycle time | approx 0.6 seconds, depending on wire sizes |
Welder lifetime | 100,000 times welding |
Power supply | AC 220V ± 10%, 50 / 60 Hz |
Air supply | 0.3 - 0.6 MPa ( clean and dry air ) |
Dimensions | L 573 x W 220 x H 190 mm,L 345 x W 475 x H 155 mm |
Weight | 25 + 10 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
High-quality imported ultrasonic transducer, powerful and stable
Fast welding, high energy efficiency, single cycle within 0.6 seconds
Easy to operate, no need to add auxiliary materials
Support multiple welding modes
Prevent empty welding and effectively prevent damage to the welding head
High-definition LED display, intuitive data, real-time monitoring
Fast welding, high energy efficiency, single cycle within 0.6 seconds
Easy to operate, no need to add auxiliary materials
Support multiple welding modes
Prevent empty welding and effectively prevent damage to the welding head
High-definition LED display, intuitive data, real-time monitoring

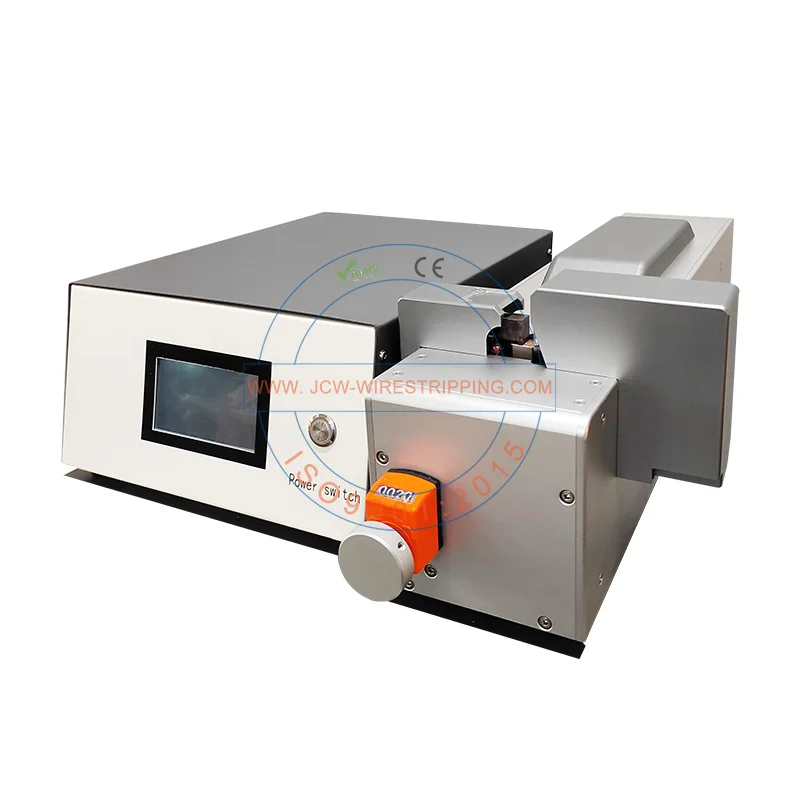

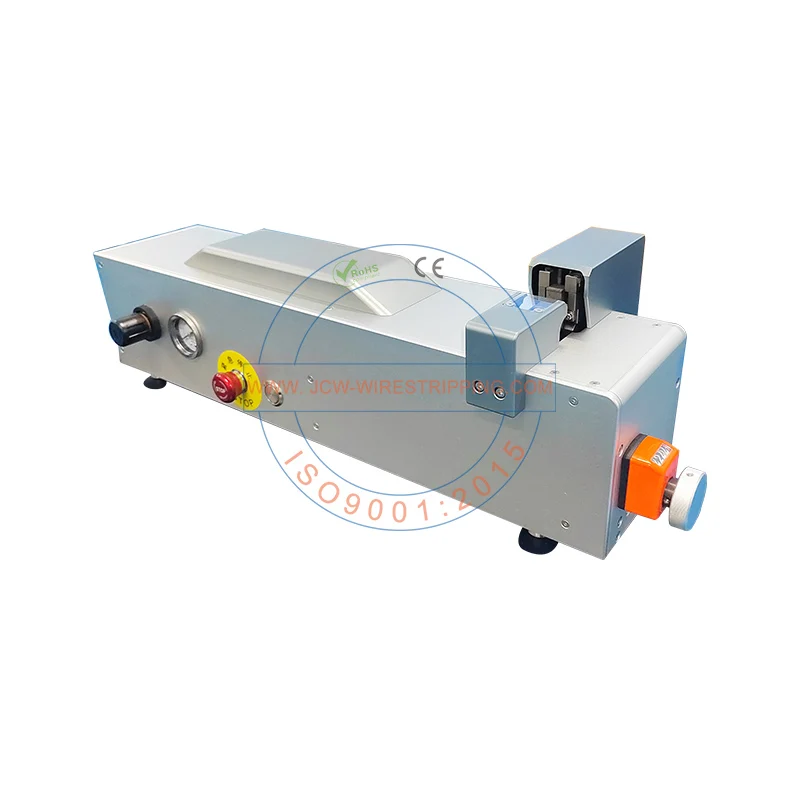

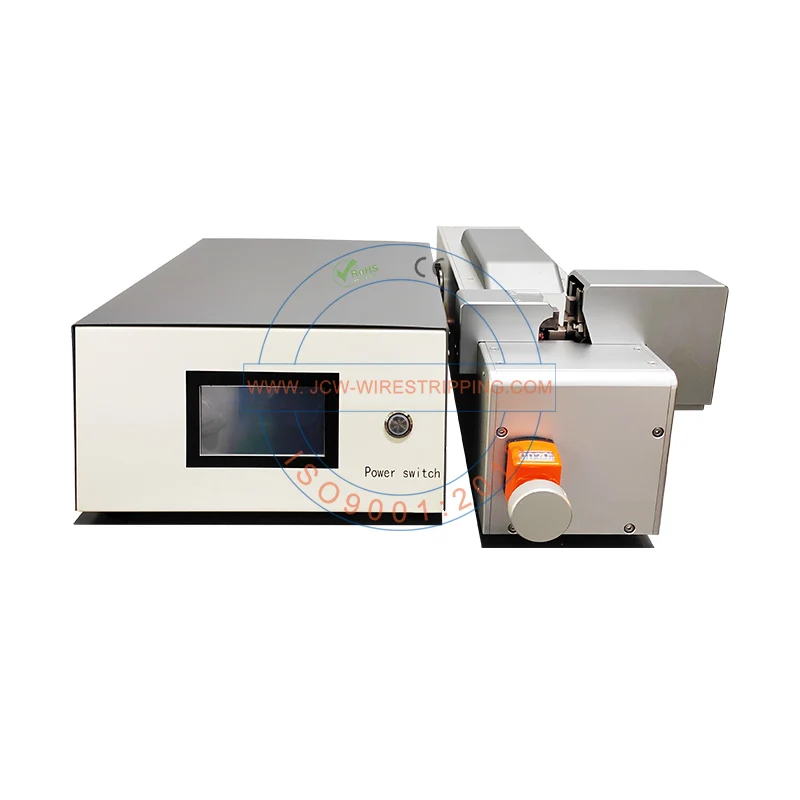

The JCW-TS204 is a portable ultrasonic soldering machine with an integrated design.
The JCW-TS204 ultrasonic welding machine can provide enterprises with efficient welding methods and reduce production costs.
It has an exquisite appearance, lightweight,
compact structure, safe and simple operation, and low maintenance cost.
compact structure, safe and simple operation, and low maintenance cost.
The JCW-TS204 ultrasonic welding machine can provide enterprises with efficient welding methods and reduce production costs.

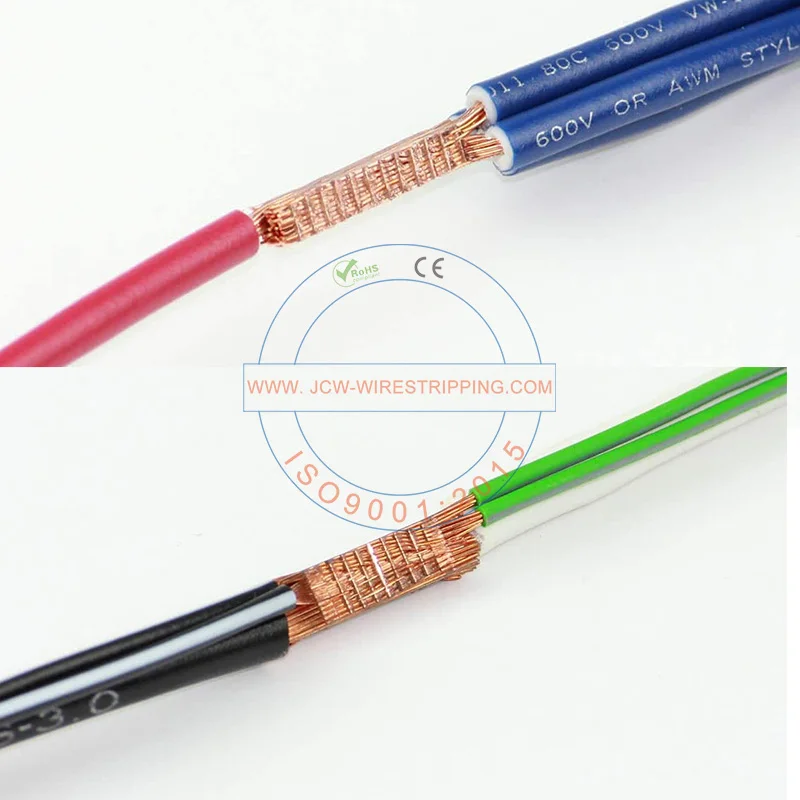

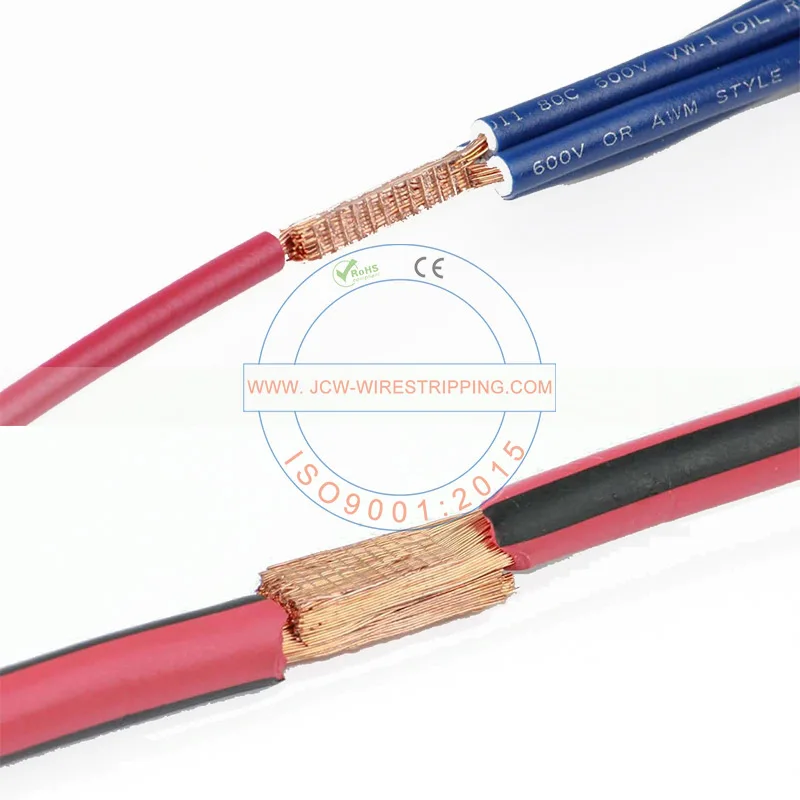

It is suitable for wire harness welding ranging from 0.5mm² to 30mm² copper wire/aluminum wire and is widely used in many fields such as automobiles, instrumentation, communication equipment, home appliances, etc.
