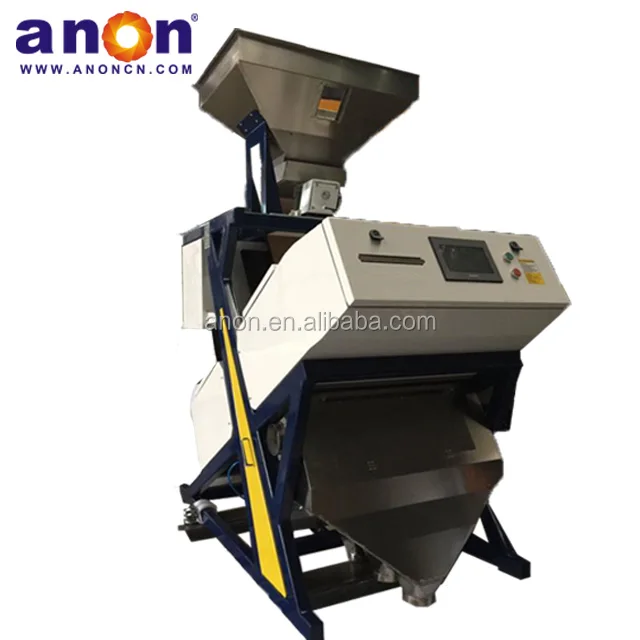

ANON Multi functional Sorting Machine small mini rice color sorter machine
- Category: >>>
- Supplier: Wuhan Anon Tech Trade Co. Ltd.
Share on (1600910214549):
Product Overview
Description
ANON Multi-functional Sorting Machine small mini rice color sorter machine

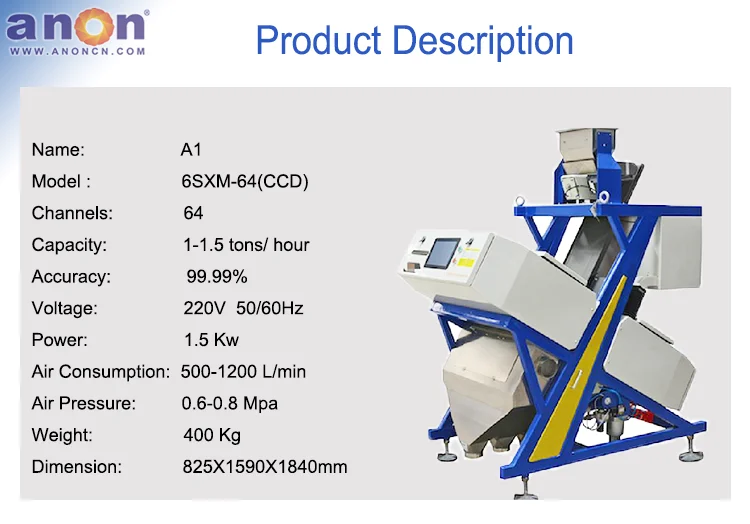

Product Description
ANON Multi-functional Sorting Machine small mini rice color sorter machine
Parameters

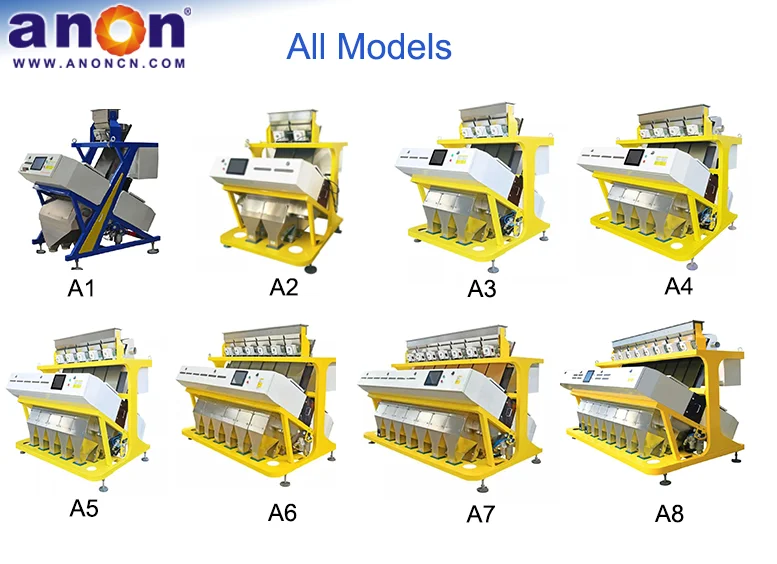

| Name | A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 |
| Model | ANON64 | ANON128 | ANON192 | ANON256 | ANON320 | ANON384 | ANON448 | ANON512 |
| Channels | 64 | 128 | 128 | 256 | 320 | 384 | 448 | 512 |
| 1st:2nd Sorting | / | 64:64 | 64:64 | 192:64 | 192:128 | 256:128 | 320:128 | 384:128/320:192 |
| Capacity(Ton/hour) | 1-1.5 | 1-3 | 1-4 | 4-6 | 3-7.5 | 4-12 | 5-10.5 | 5-16 |
| Sorting Acuracy | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% | 99.99% |
| Carry out(bad:good) | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 |
| Voltage | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz |
| Power(Kw) | 1.5 | 2 | 2 | 2.5 | 2.8 | 3.1 | 3.4 | 4 |
| Air Consumption(L/min) | 500-1200 | 800-1800 | 800-1800 | 1500-2800 | 1600-3500 | 2000-4200 | 2000-4200 | 2000-4200 |
| Air Pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Machine Weight(Kg) | 400 | 700 | 800 | 900 | 1100 | 1300 | 1500 | 1700 |
| Packing Weight(Kg) | 520 | 760 | 900 | 1020 | 1250 | 1480 | 1700 | 1900 |
Highlights:
1.High brightness,low temperature,LED light source rising every corner,improving the recognition accuracy efficiently and ensuring the light be used intensity to prolong life.
2.Promise dimming function breaking the traditional mechanical mode and implementing background light fast response.
3.4th generation FPGA processor technology greatly improved ultra-fast response festival massive data processing speed and efficiency,Greatly increased production while adding rich form selection.
4.Automatic check function cutting more uniform,color selection more consistency.
5.Wide channel design it can be used in production line from 1 to 16 tons.
6.Super clear 2048 CCD sensor and lens fully meet fine imaging needs,identifying sports,fresh yellow,yellow choose less ability with whit world class.
7.New type spray valve system spray value life can reach more than 80 million times.Operating frequency>1KHZ,improve carryover.
8.New integrated large screen operation with remote control,remote diagnostic interface,implement color sorter mobile operation,with a "a key intelligence" function,the operation be more convenient.

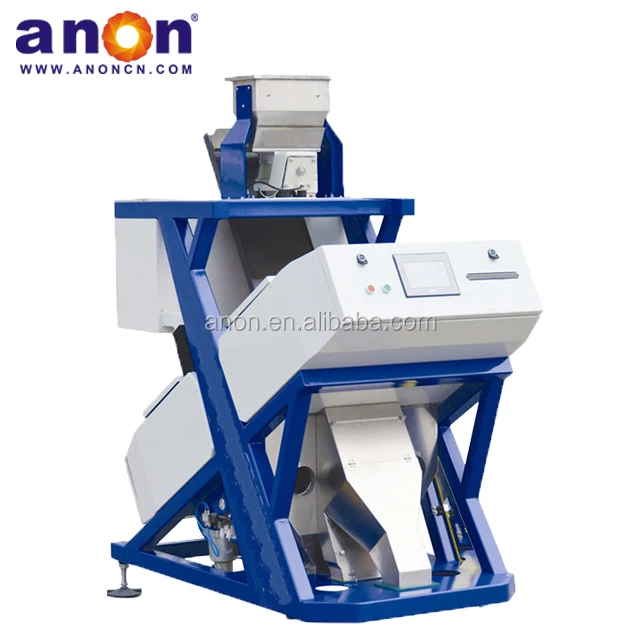

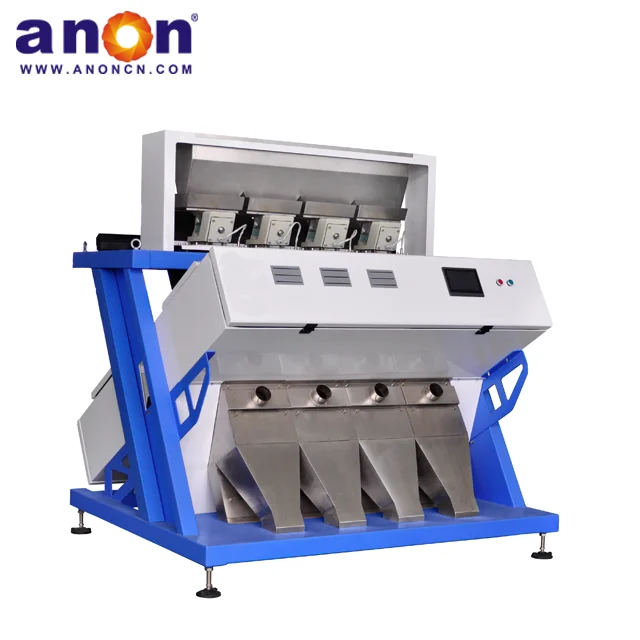

Detailed Pictures

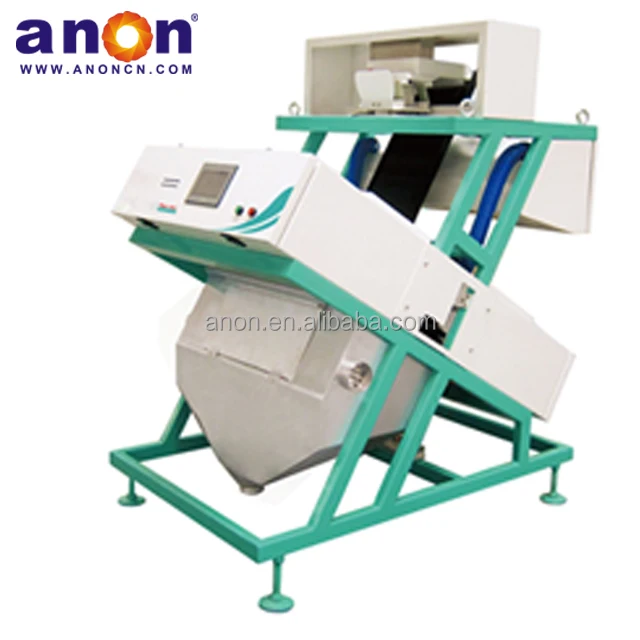

ANON Multi-functional Sorting Machine small mini rice color sorter machine
Packaging & Shipping

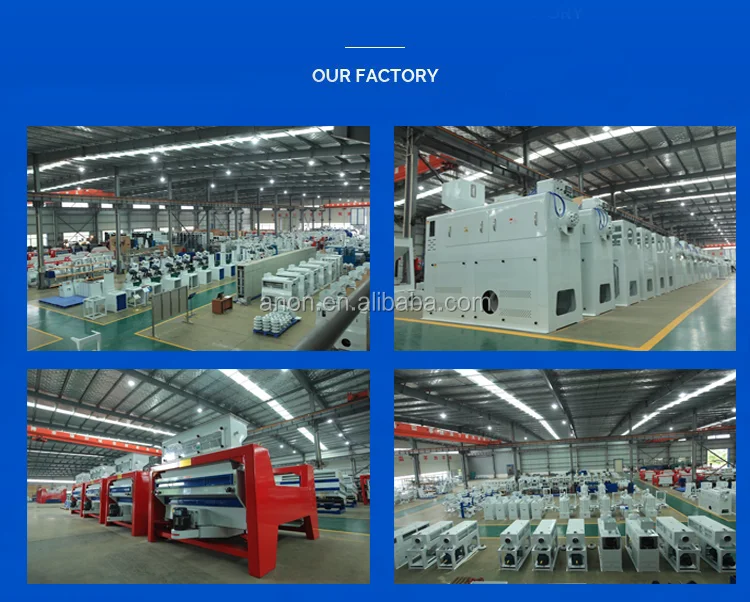

Company Information
