Competitive Price High Pressure Co2 Compressor Nitrogen Oxygen Helium Gas Diaphragm Compressors
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1600910247077):
Product Overview
Description
Product Description
Competitive Price High Pressure Co2 Compressor Nitrogen Oxygen Helium Gas Diaphragm Compressors
Our company specialize in making various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirements.
Process principle
Diaphragm compressor nitrogen compressor/ diaphragm compressor /co2 high pressure gas diaphragm compressors according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.

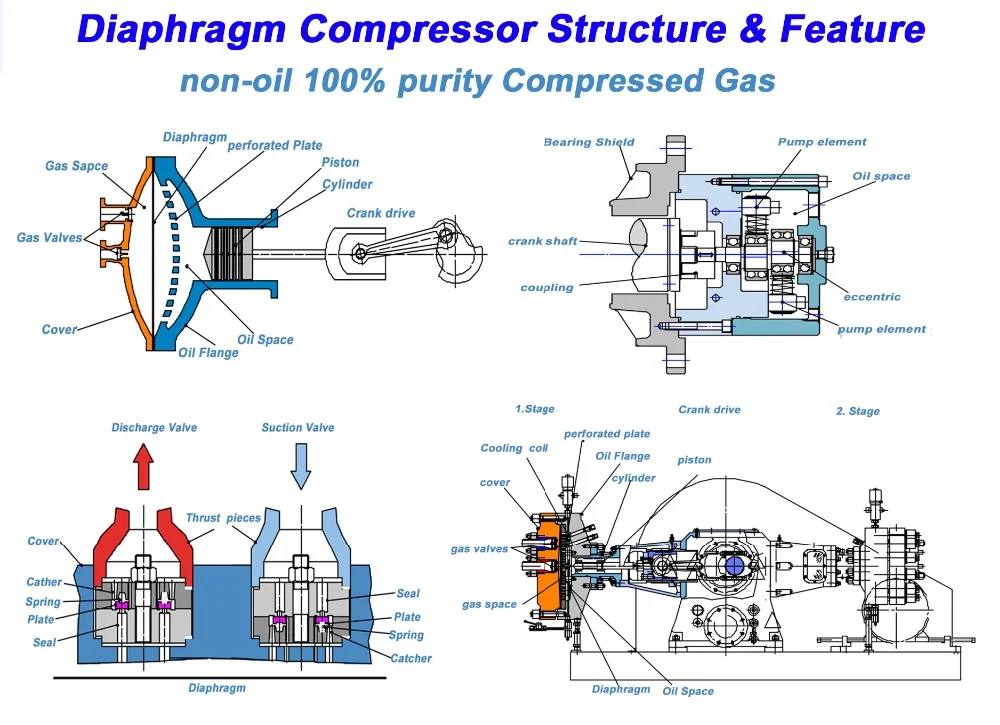

Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media type
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)
GD Model Simple Description
GV diaphragm compressor is a special structure of the volumetric compressor, is the highest level of compression in the field of gas compression, this compression method Without secondary pollution, it can ensure the purity of gas is more than 5, and it has very good protection against compressed gas. It has the characteristics of large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic, harmful, corrosive and high-pressure gases. The compression method is generally specified in the world for compressing high-purity gas, flammable and explosive gas, toxic gas and oxygen. Etc. (such as nitrogen diaphragm compressor, oxygen diaphragm GD series diaphragm compressor :
Structure type : D type
Piston Travel : 130-210mm
Max Piston force : 40KN-160KN
Max discharge Pressure : 100MPa
Flow Rate Range :30-2000Nm3/h
Motor Power : 22KW-200KW ompressor, hydrogen sulfide diaphragm compressor, argon diaphragm compressor, etc.).
Process principle
Diaphragm compressor nitrogen compressor/ diaphragm compressor /co2 high pressure gas diaphragm compressors according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media type
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)
GD Model Simple Description
GV diaphragm compressor is a special structure of the volumetric compressor, is the highest level of compression in the field of gas compression, this compression method Without secondary pollution, it can ensure the purity of gas is more than 5, and it has very good protection against compressed gas. It has the characteristics of large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic, harmful, corrosive and high-pressure gases. The compression method is generally specified in the world for compressing high-purity gas, flammable and explosive gas, toxic gas and oxygen. Etc. (such as nitrogen diaphragm compressor, oxygen diaphragm GD series diaphragm compressor :
Structure type : D type
Piston Travel : 130-210mm
Max Piston force : 40KN-160KN
Max discharge Pressure : 100MPa
Flow Rate Range :30-2000Nm3/h
Motor Power : 22KW-200KW ompressor, hydrogen sulfide diaphragm compressor, argon diaphragm compressor, etc.).
Advantages of Nitrogen diaphragm compressor
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.
Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.
Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.

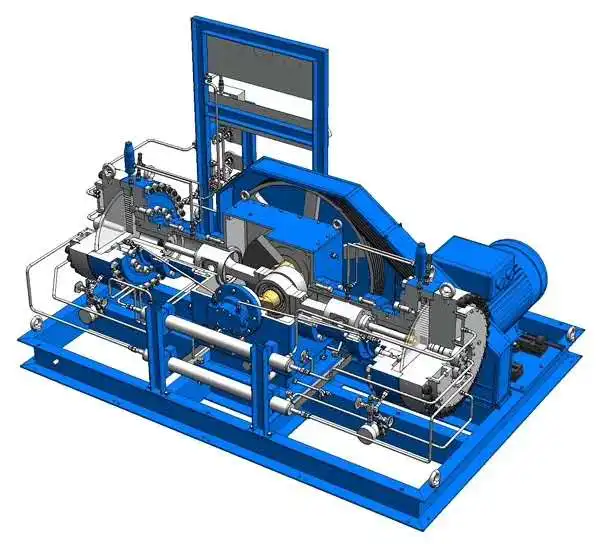

The diaphragm compressor is mainly composed of motor, base, crankshaft box, crankshaft connecting movement mechanism, cylinder component, oil and gas pipeline, electronic control system, and some assessories .
GV series diaphragm compressor parameter table | ||||||||||||||||
No. | Model | Cooling water(L/h) | Flow (Nm³/h) | inlet pressure (MPa) | outlet pressure (MPa) | Dimensions L×W×H (mm) | Weight (Kg) | Motor Power (kW) | ||||||||
1 | GD-120/4-80 | 3.0 | 120 | 0.4 | 8.0 | 3000×1600×1400 | 4.0 | 30 | ||||||||
2 | GD-130/0.98-11 | 3.0 | 130 | 0.098 | 1.1 | 3000×1800×1600 | 4.0 | 30 | ||||||||
3 | GD-150/2-20 | 3.0 | 150 | 0.2 | 2.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
4 | GD-100/0.1-5 | 4.0 | 100 | 0.01 | 0.5 | 2800×1500×1500 | 3.0 | 18.5 | ||||||||
5 | GD-100/5.5-200 | 5.0 | 100 | 0.55 | 20 | 3200×2000×1600 | 4.5 | 45 | ||||||||
6 | GD-80/0.12-4 | 5.0 | 80 | 0.012 | 0.4 | 2800×1600× 1500 | 3.8 | 15 | ||||||||
7 | GD-60/0.3-6 | 4.0 | 60 | 0.03 | 0.6 | 2800×1600×1500 | 4.0 | 15 | ||||||||
8 | GD-70/0.1-8 | 3.8 | 70 | 0.01 | 0.8 | 3000×1600×1250 | 5.0 | 18.5 | ||||||||
9 | GD-40/0.02-160 | 5.0 | 40 | 0.02 | 16 | 2800×1460×1530 | 3.0 | 22 | ||||||||
10 | GD-100/0.5-6 | 2.0 | 100 | 0.05 | 0.6 | 3000×2000×1560 | 6.0 | 18.5 | ||||||||
11 | GD-36/1-150 | 4.0 | 36 | 0.1 | 15 | 3000×1500×1500 | 4.0 | 45 | ||||||||
12 | GD-35/0.7-300 | 4.0 | 35 | 0.07 | 30 | 3000×1600×1500 | 4.0 | 22 | ||||||||
13 | GD-500/15-35 | 4.5 | 500 | 1.5 | 3.5 | 3000×2000×1700 | 4.0 | 45 | ||||||||
14 | GD-150/15-210 | 4.5 | 150 | 1.5 | 21 | 3200×1700×1600 | 4.0 | 45 | ||||||||
15 | GD-120/8-220 | 4.5 | 120 | 0.8 | 22 | 3200×1700×1600 | 3.8 | 45 | ||||||||
16 | GD-100/9 | 4.5 | 100 | 0.0 | 0.9 | 3200×1700×1800 | 4.5 | 22 | ||||||||
17 | GD-100/1.5-150 | 4.5 | 100 | 0.15 | 15 | 3200×1700×1800 | 4.5 | 45 | ||||||||
18 | GD-40/30 | 4.5 | 40 | 0.0 | 3.0 | 3200×1700×1800 | 4.0 | 18.5 | ||||||||
19 | GD-200/10-15-90 | 4.5 | 200 | 1.0-1.5 | 9.0 | 3200×1800×1600 | 4.0 | 37 | ||||||||
20 | GD-100/7-150 | 4.0 | 100 | 0.7 | 15 | 3000×1800× 1600 | 4.0 | 55 | ||||||||
21 | GD-25/-0.1-47 | 4.0 | 25 | -0.01 | 4.7 | 3000×1800×1600 | 4.0 | 15 | ||||||||
22 | GD-45/0.5-100 | 4.0 | 45 | 0.05 | 10 | 3000×1800×1600 | 4.0 | 30 | ||||||||
23 | GD-30/0.1-160 | 4.0 | 30 | 0.01 | 16 | 3000×1800×1600 | 4.0 | 18.5 | ||||||||
24 | GD-120/2.5-70 | 4.0 | 120 | 0.25 | 7.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
25 | GD-135/10-210 | 4.0 | 135 | 1.0 | 21 | 3000×1600×1400 | 4.0 | 37 | ||||||||
26 | GD-60/40-350 | 4.5 | 60 | 4.0 | 35 | 3000×1800×1600 | 4.0 | 30 | ||||||||
27 | GD-95/10-350 | 4.0 | 95 | 1.0 | 35 | 3000×1600×1400 | 4.0 | 37 | ||||||||
28 | GD-220/11-90 | 4.0 | 220 | 1.1 | 9.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
29 | GD-300/15-220 | 4.5 | 300 | 1.5 | 22 | 3600×2200×1700 | 5.0 | 75 | ||||||||
30 | GD-300/13-210 | 5.0 | 300 | 1.3 | 21 | 3500×2300×1800 | 6.0 | 75 | ||||||||
31 | GD-120/12-350 | 6.5 | 120 | 1.2 | 35 | 3500×2300×1600 | 8.5 | 45 | ||||||||
32 | GD-165/10-250 | 8.0 | 165 | 1.0 | 25 | 3500×2300×1500 | 8.5 | 55 | ||||||||
33 | GD-120/8-350 | 6.5 | 120 | 0.8 | 35 | 3500×2300×1600 | 8.5 | 45 | ||||||||
34 | GD-800/210-320 | 8.0 | 800 | 21 | 32 | 3500×2300×1500 | 8.5 | 37 | ||||||||
35 | GD-420/8-39 | 6.5 | 420 | 0.8 | 3.9 | 3600×2500×1700 | 6.0 | 75 | ||||||||
36 | GD-370/20-200 | 4.5 | 370 | 2.0 | 20 | 3600×2200×1700 | 5.0 | 75 | ||||||||
37 | GD-350/18-210 | 4.5 | 350 | 1.8 | 21 | 3600×2200×1700 | 5.0 | 75 | ||||||||
38 | GD-300/8-120 | 4.5 | 300 | 0.8 | 12 | 3600×2200×1700 | 5.0 | 75 | ||||||||
39 | GD-308/4 | 10.0 | 308 | 0 | 0.4 | 4200×3200×2600 | 10.0 | 55 | ||||||||
40 | GD-180/8.5 | 5.0 | 180 | 0 | 0.85 | 4200×3200×2600 | 10.0 | 55 | ||||||||
VR
FAQ
Q1.How to get A quote ?
a.Flow: _____ Nm3 / hour
b.Inlet pressure: _____Bar（MPa）
c.Outlet pressure: _____Bar（MPa）
d. Gas medium: _____
b.Inlet pressure: _____Bar（MPa）
c.Outlet pressure: _____Bar（MPa）
d. Gas medium: _____
Q2.How many Diaphragm compressor do you produce every month?
A: We can produce 50 pieces per month.
A: We can produce 50 pieces per month.
Q3.Can you use our brand?
A: Yes, OEM is available
A: Yes, OEM is available
Q4. How can we guarantee quality?
A: Always a pre-production technical specification program before mass production. ;
Always final Inspection before shipment;
A: Always a pre-production technical specification program before mass production. ;
Always final Inspection before shipment;
Q5: Can you accept color customization?
A5: Yes we can.
A5: Yes we can.
