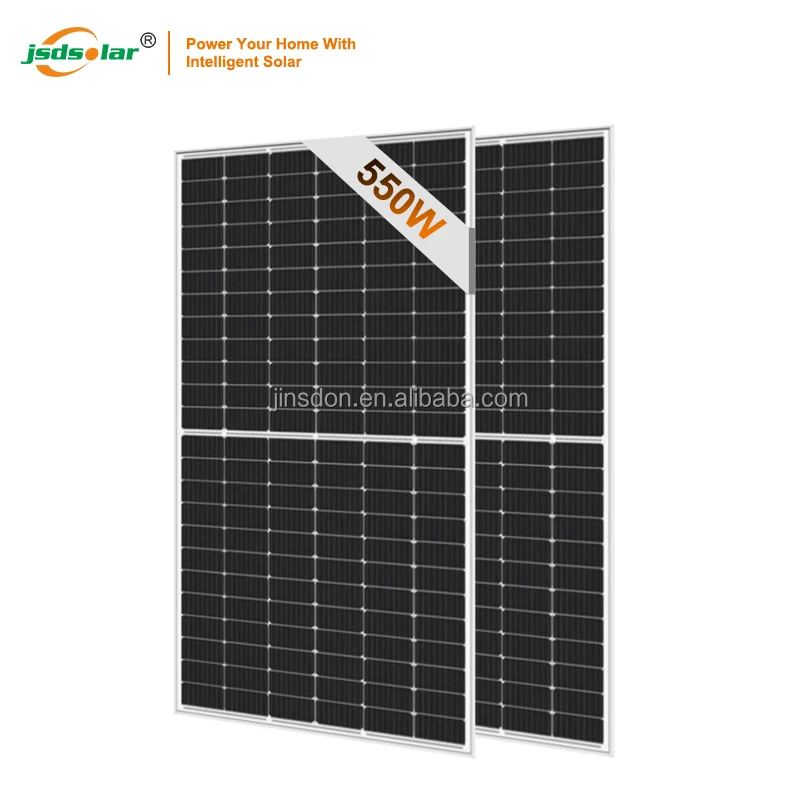

Jsdsolar Local Warehouse PV Module Solar Photovoltaic Panels 500w 450w 550w All Black Solar Panel
- Category: >>>
- Supplier: Shenzhen Jinsdon Lighting Technology Co. Ltd.
Share on (1600910298028):
Product Overview
Description
Advantages of Jsdsolar
Product Specification
Half-cut Technology
New circuit design, lower internal current and lower internal resistance loss
Significantly avoiding heat spot
The unique circuit design to reduce the temperature of heat spot significantly,so that to reduce the power loss and then increase
the output of modules.Jsdsolar PV Module Solar Panel Solar Photovoltaic Panels 430w 400w 500w 450w 550w Bifacial All Black Solar Panels
Significantly avoiding heat spot
The unique circuit design to reduce the temperature of heat spot significantly,so that to reduce the power loss and then increase
the output of modules.Jsdsolar PV Module Solar Panel Solar Photovoltaic Panels 430w 400w 500w 450w 550w Bifacial All Black Solar Panels
Lower cost
Increasing power generation can reduce the cost per kilowatt-hour
Excellent performance of PID resistance
The performance of PID resistance(Potential Induced Degradation) passed the standard of TUV Nord.
JUNCTION BOX
Waterproof protection grade:IP67/IP68
Safety Level: Class II
Maximum System Voltage : 1500V
outstanding waterproof level、
Effectively resist harsh environmentsFrame
Strong machinical load
resistance up to 5400Pa Anodic oxidation layer resistant to
chemical corrosion available
in silver and black
Waterproof protection grade:IP67/IP68
Safety Level: Class II
Maximum System Voltage : 1500V
outstanding waterproof level、
Effectively resist harsh environmentsFrame
Strong machinical load
resistance up to 5400Pa Anodic oxidation layer resistant to
chemical corrosion available
in silver and black
Specification
TEMPERATURE & MAXIMUM RATING | |
MaximumSystemVoltage（V） | 1500V |
MaximumSeries FuseRating（A） | 25A |
PowerTolerance | 0~+3W |
Pmax Temperature Coefficient（s W/℃） | -0.350%/℃ |
VocTemperature Coefficient（s V/℃） | -0.285 %/℃ |
IscTemperature Coefficient（s A/℃） | +0.045 %/℃ |
NOCTNominal OperatingCellRemperature（℃） | 45±2℃ |
Operating and StorageTemperature（℃） | -40~+85℃ |
MECHANICAL CHARACTERISRTICS | |
Cell Type | 182*91 Mono |
No. of Cells | 144（12*12） |

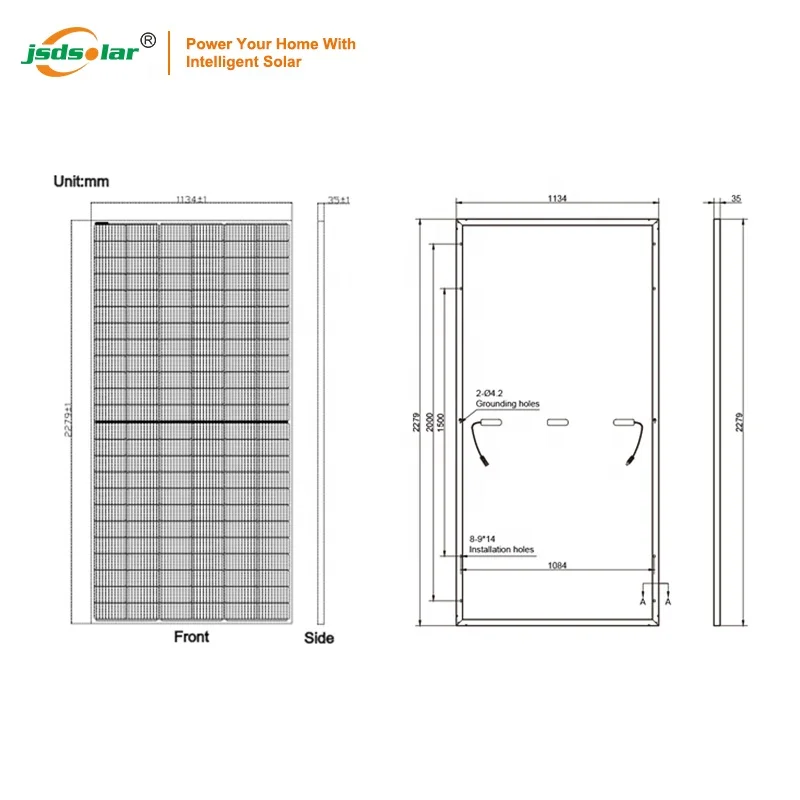

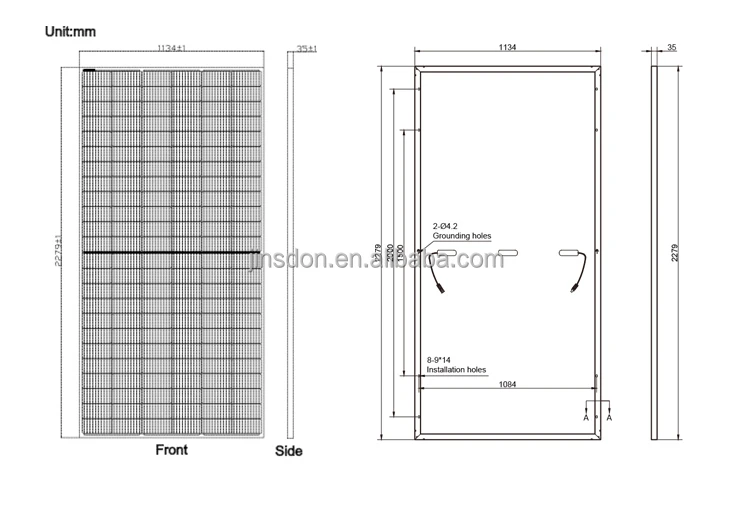

Dimensions | 2279*1134*35mm |
Weight | 28.40kg |
Front Glass | 3.2mm high transmission,low iron,tempered glass |
Frame | Anodized AluminiumAlloy |
Junction box | IP67/IP68 3diodes |
Output cables | 4mm²cable 35cm（Inlcuding MC4 connector) |
MaxWind Load/Snow Load | 2400Pa/5400Pa |
Container | |
20FTcontainer | 5Packages/155pcs |
40HQ container | 20Packages/620pcs |

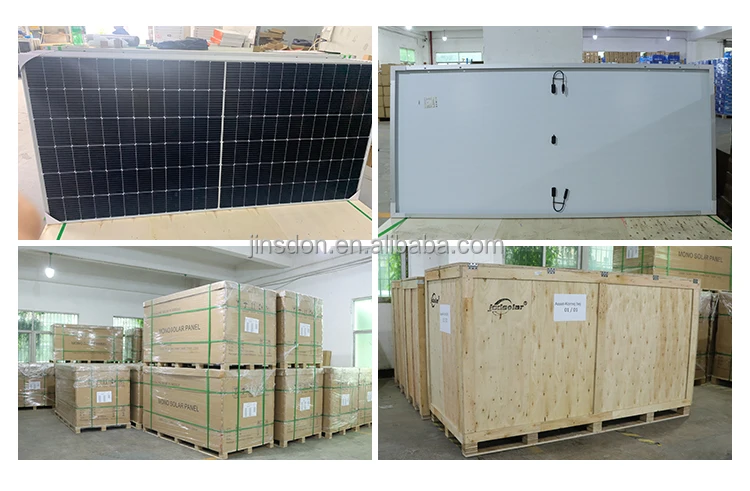

Packing & Delivery

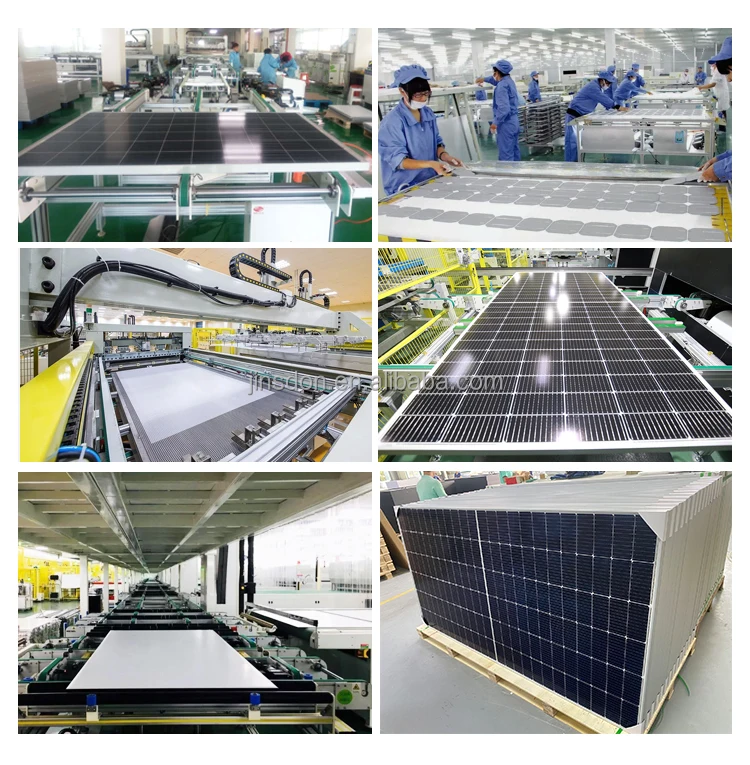

Production line
