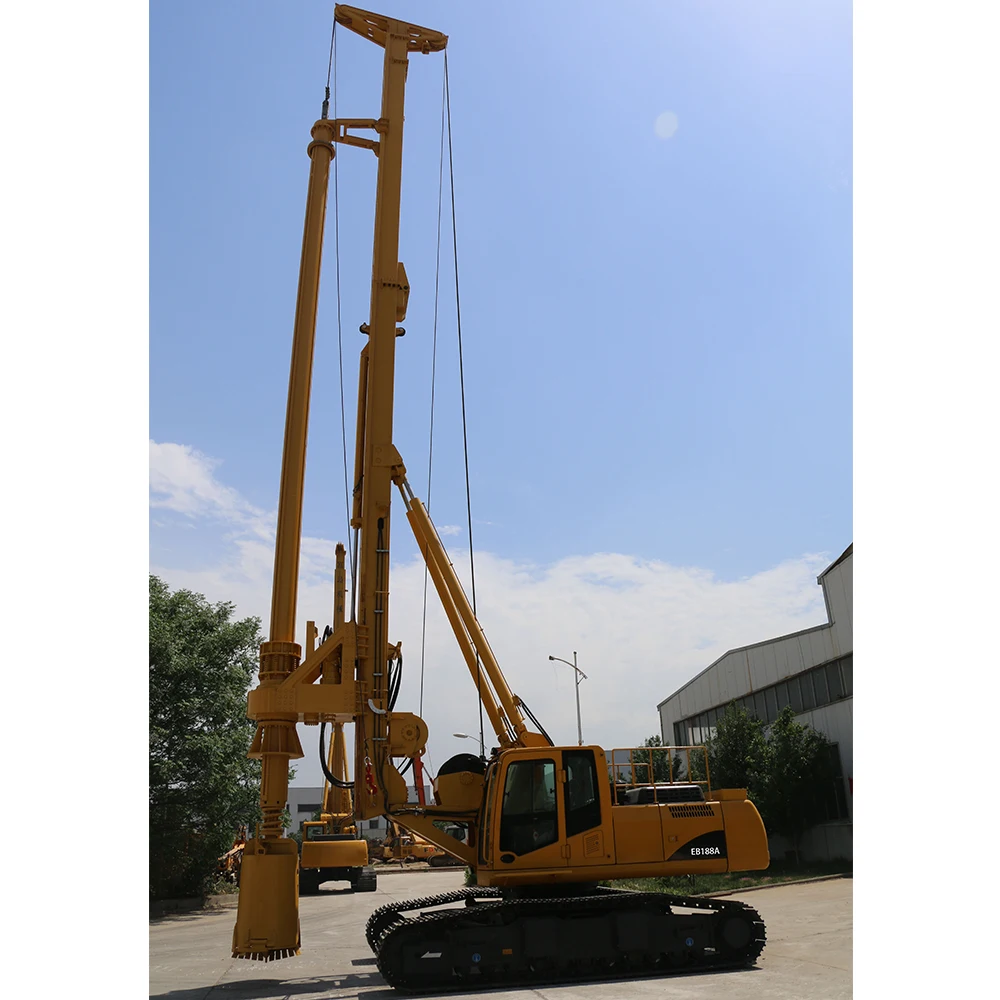

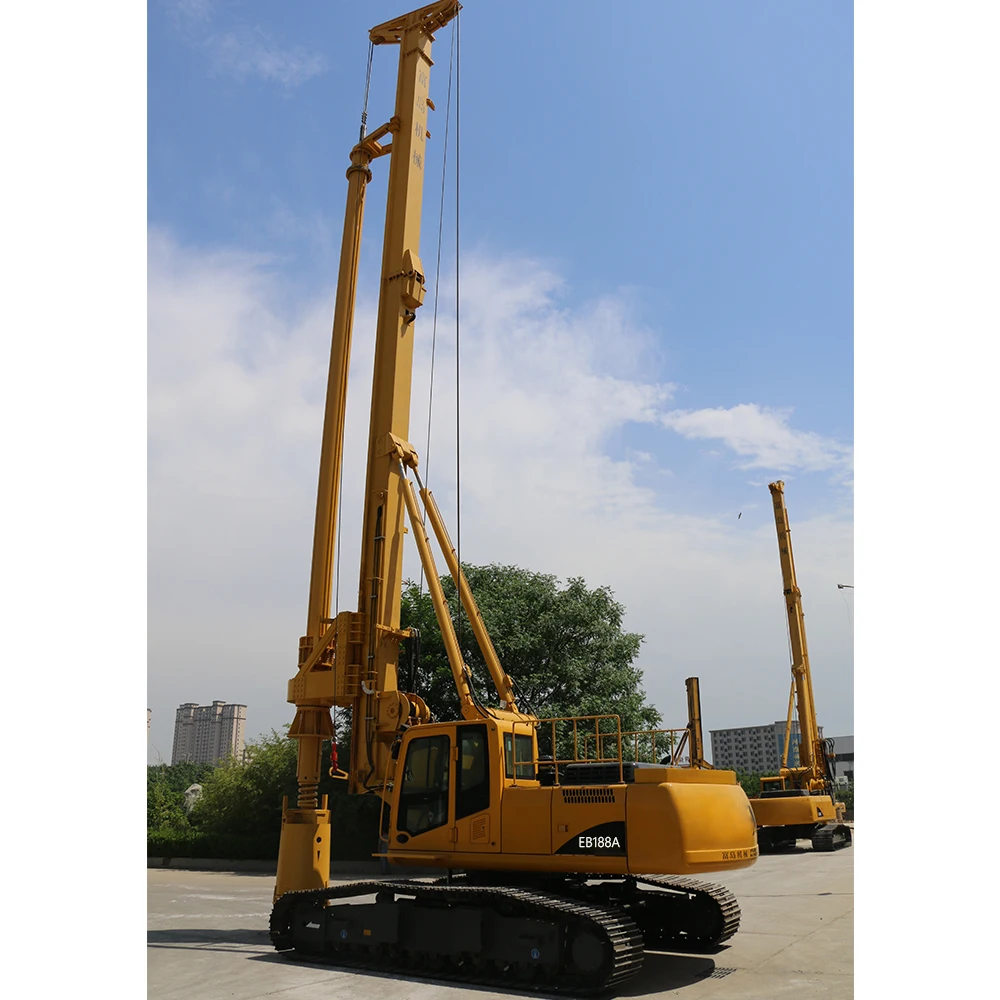

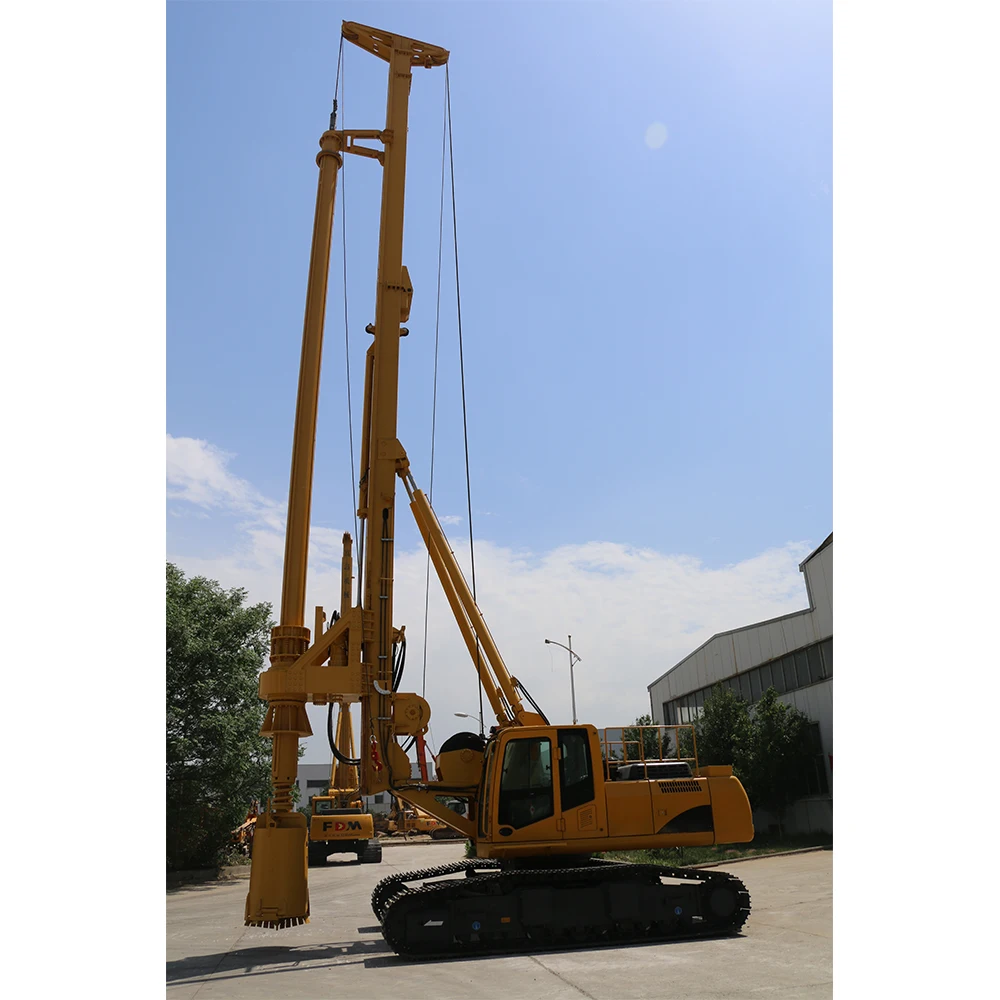

High position-oriented structure hydraulic rotary drilling rig bore pile machine rotary drilling rig machine
PRODUCT INTRODUCTION

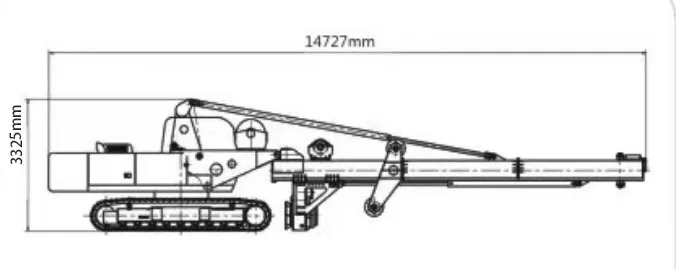

Transport Dimentions

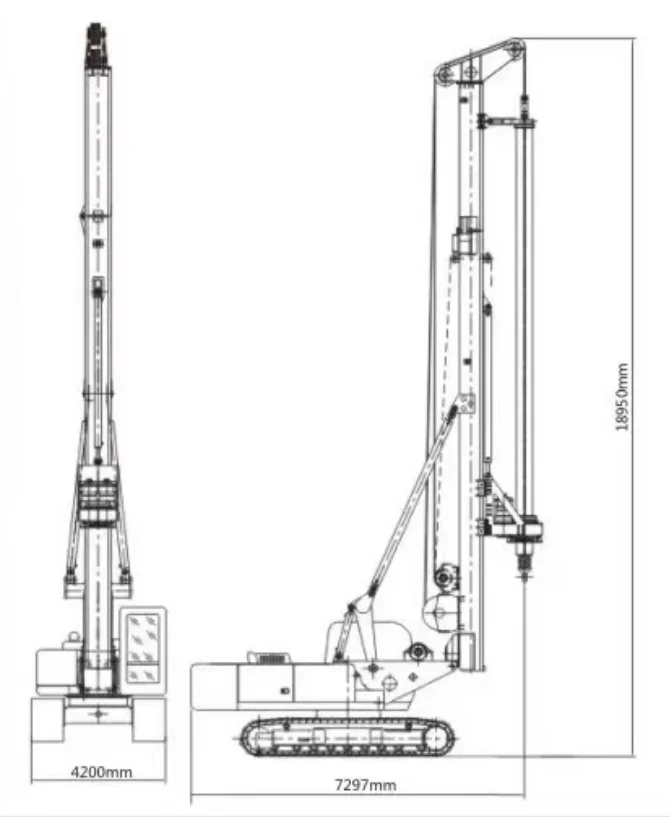

Working Dimentions

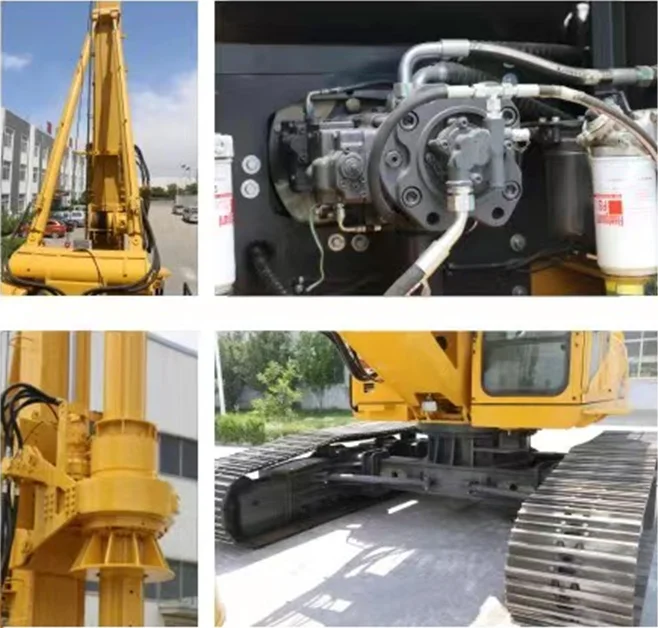

* The folding mast structure has the advantages of simple, great durability, saving cost and making repair more convenient.
* Using the high position-oriented structure for the frame, which guarantees the verticality between Kelly bar and ground, makes construction more convenient, improves work efficiency, increasing safely.
* The new infinitely variable speed power head can output different torque with the change of bottom layer, and realize the function of high speed soil dumping. In addition, it can meet the needs of unloading soil in complex projects by cooperating with the soil bucket function of the main hoist.
* Main windlass: Adopting original imported hydraulic pressure motor from Italy. It has sensitive reaction and can free down, which speed can be up to 70m/min and improve the construction efficiency. Main winch lays in the cavity of the U -shape which locates in the operator's right field of vision (enables operator to observe working condition of main winch freely). This kind of situation is not only simple but also practical.
Type | EB188A | ||
Drilling diameter | 600-1600mm | ||
Max drilling depth | 60/50m | ||
Overall measurement | Working dimensions | 18950mmX4200mmX7297mm | |
Transport dimensions | 14727mmX3200mmX3325mm | ||
Rotary drive | Torque | 180kn.m | |
Rotation speed | 5/30rpm | ||
Crowd cylinder | Max.push | 160kn | |
Max.pull | 100kn | ||
Max.stroke | 3000mm | ||
Main winch | Max.line pull | 150kn | |
Max.line speed | 70m/min | ||
Auxiliary winch | Max.line pull | 60kn | |
Max.line speed | 50m/min | ||
Engine | Rated power | 169KW | |
Type | QSB7Kang Mingxin | ||
Electronic Managerment System | Long distance montitor system | Available | |
Drilling record system | Available | ||
On car printer | Available | ||
Hydraulic system pressure | 300bar | ||
Chassis | Chassis modality | Customized | |
Max.traveling speed | 3km/h | ||
Min.ground clearance | 460mm | ||
Windth of track shoes | 700mm | ||
Leveling around | Free adjustment forward/backward | 0-100℃ | |
Free adjustment left/right | ±3℃ | ||
Machine Weight | 45000kg | ||

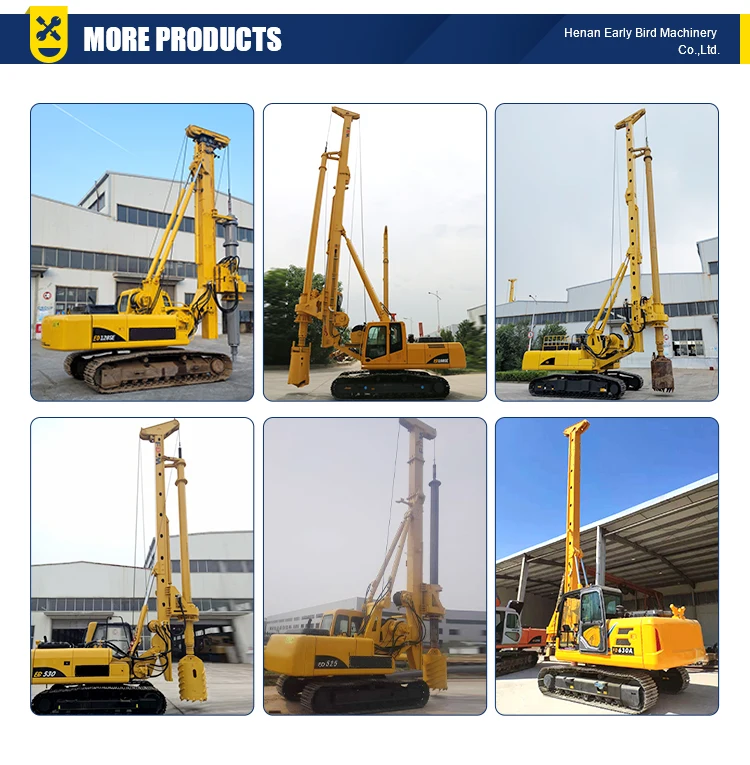

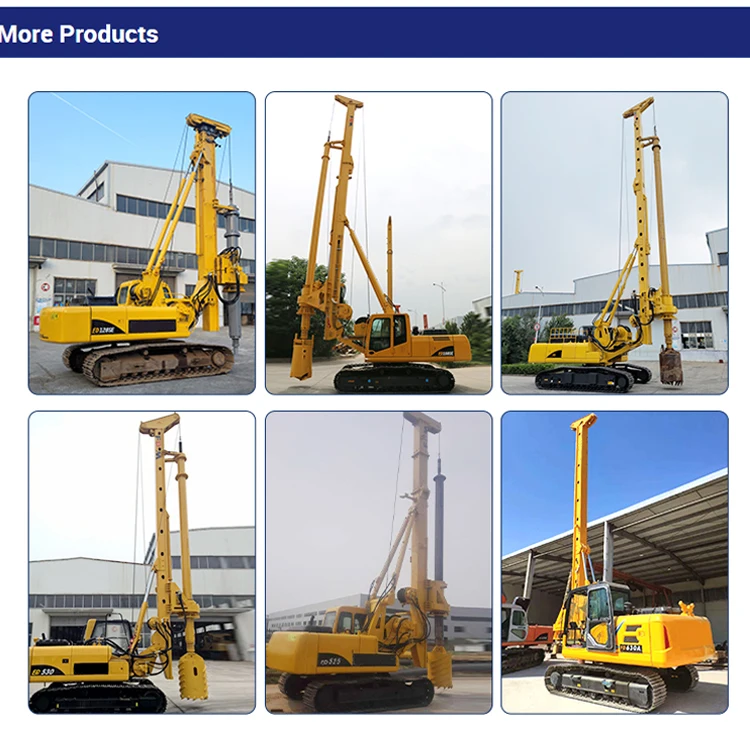

More Products
