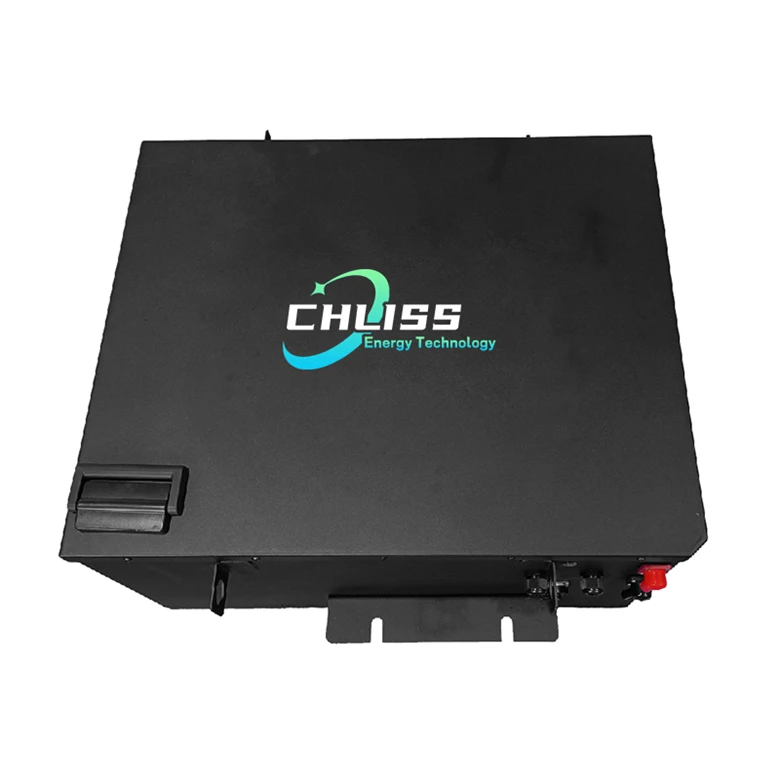

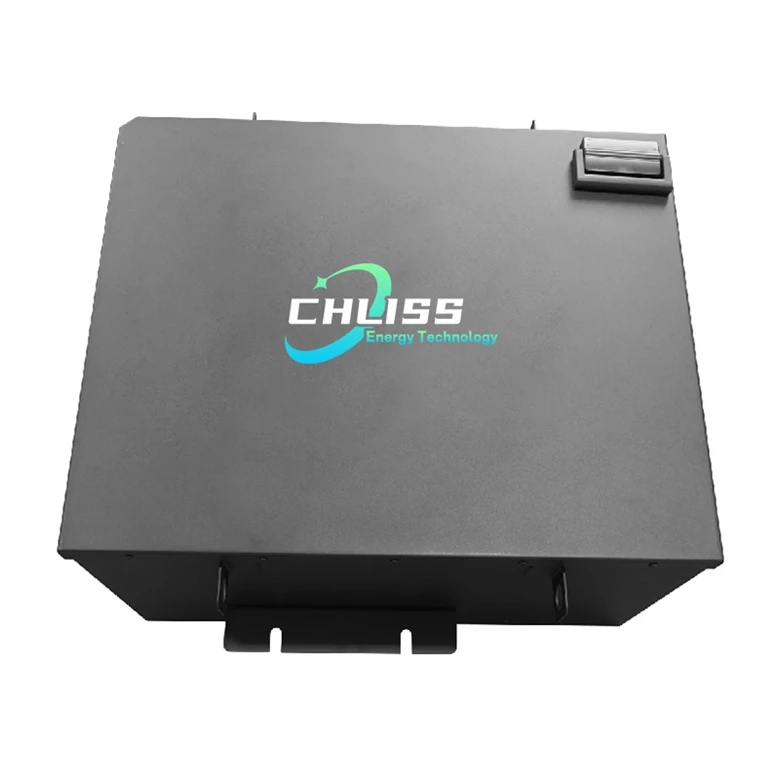

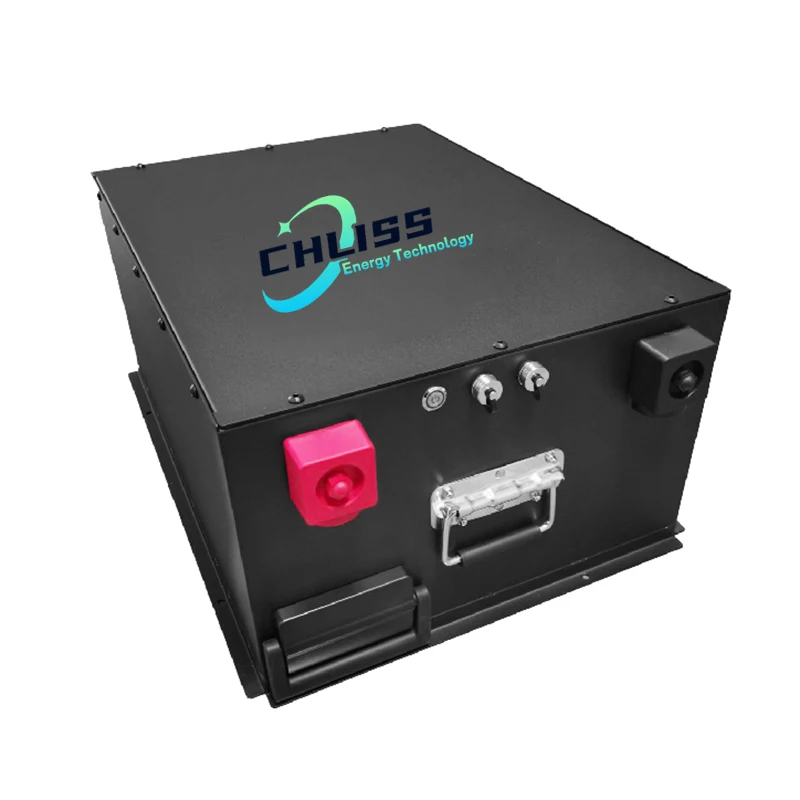

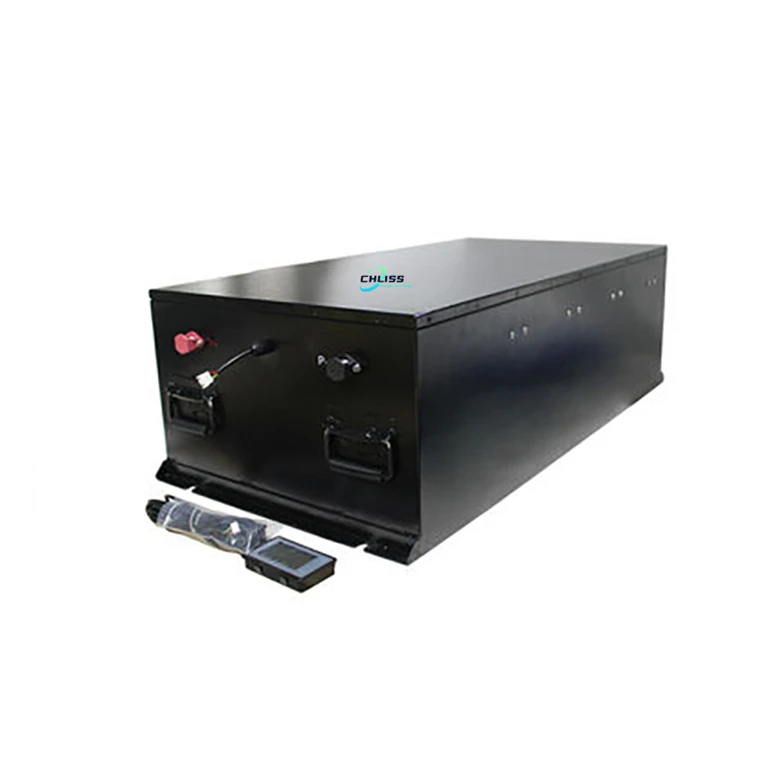

Chliss LiFePo4 Battery12v 24v 36V 48v 60v 20AH 30AH 50AH 60AH 100AH 120AH 150AH 200AH 300AH 400AH 480AH Energy Storage Battery
- Category: >>>
- Supplier: Guangzhou Chliss Energy Technology Co. Ltd.
Share on (1600910396141):
Product Overview
Description
Battery Type | LFP | Protection Level | IP67 | |
Nominal Voltage | 12.8V DC | Operating Temperature | -20 ºC to +75 ºC | |
Working Voltage Range | 10V - 14.2V DC | Ambient Temperature (charging or storing) | 0 ºC to +45 ºC | |
Charging Voltage | 14.6V DC | Product Dimensions (L x W x H) | 35.5 x 30.5 x 16.5 cm | |
Min. charge cycles (up to 80% original capacity) | 2000 | ø Operating time | ≈ 3 - 6 h | |
Charging Time | 5 h (with LCL12L) 2.5 h (with LCL12X) | Weight | 12 kg | |
Capacity | 1200Wh | Smart BMS Features | Overvoltage Protection Overload Protection Deep Discharge Protection High Temperature Protection Short Circuit Protection Automatic Cell Balancing | |
Max. continuous discharge current | 50A |

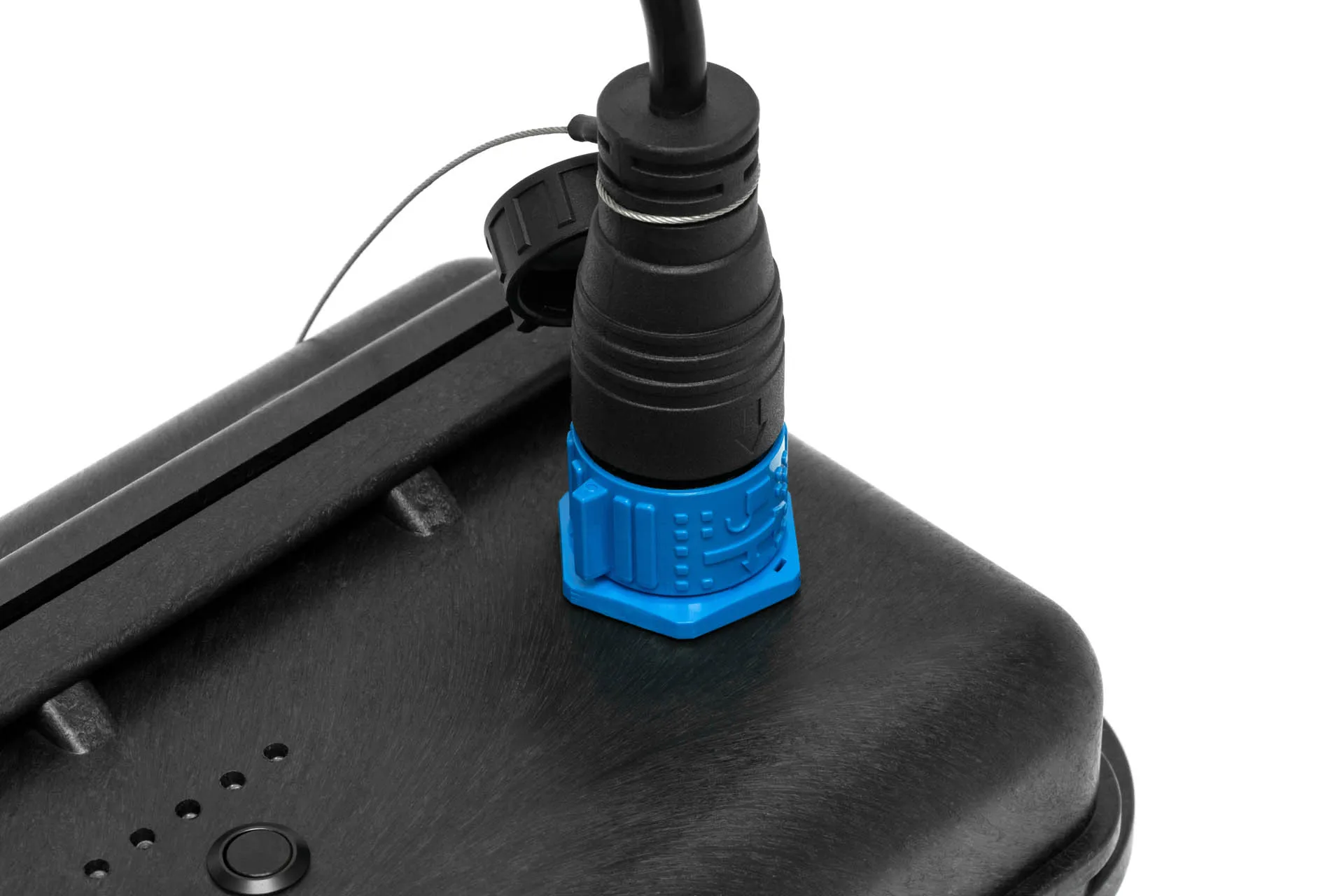

Waterproof connections
Security is our top priority. To provide safe and flawless outdoor use we built waterproof (IP 67) push-in connectors into our
batteries. The installation of the waterproof plug is straightforward and can be done on any electrical boat motor, taking less
then five minutes to install. Afterwards, the connector can easily be plugged into the battery, snapping firmly into the lock
offering IP 67 waterproof protection.
batteries. The installation of the waterproof plug is straightforward and can be done on any electrical boat motor, taking less
then five minutes to install. Afterwards, the connector can easily be plugged into the battery, snapping firmly into the lock
offering IP 67 waterproof protection.

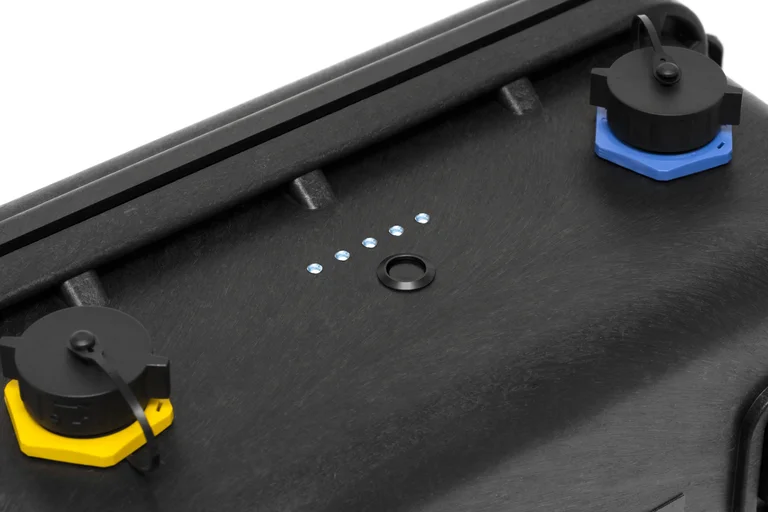

Charge status display
To enjoy your adventure carefree, offers you easy control options with a charge level indicator and an ON/OFF button - both IP67 waterproof. The charge level indicator is made of 5 bright LED that light up as soon as the battery is turned on, providing an overview while using the battery. Each LED corresponds to 20% of charge. Once the charge level drops below 10%, the last remaining LED starts to blink as an indication for low charge level. When all LEDs blink it's an indication for overloading, overvoltage or too high temperatures - the BMS will protect the cells and shuts the battery down.

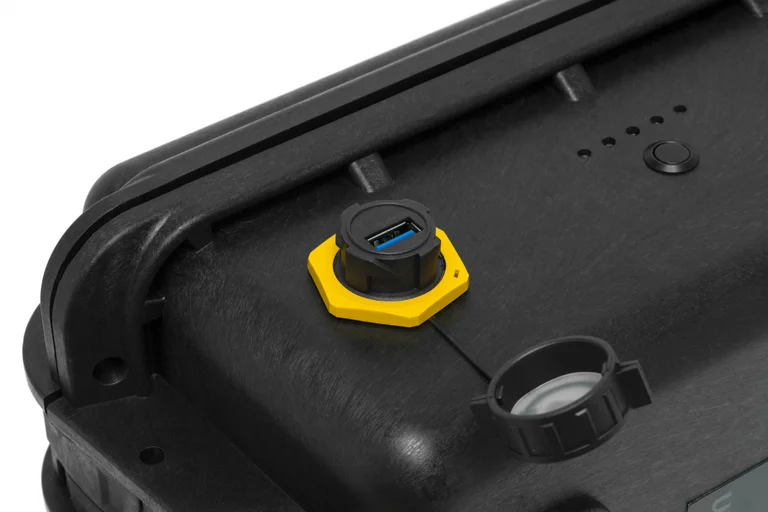

USB Connection
During outdoor activities one is often instructed on different energy consumers. The USB connection (type A, 5V 2.1A) enables you to operate energy consumers other than the electrical boat engine.
NOTE: The USB port is not IP67 waterproof when the cap is open!
NOTE: The USB port is not IP67 waterproof when the cap is open!

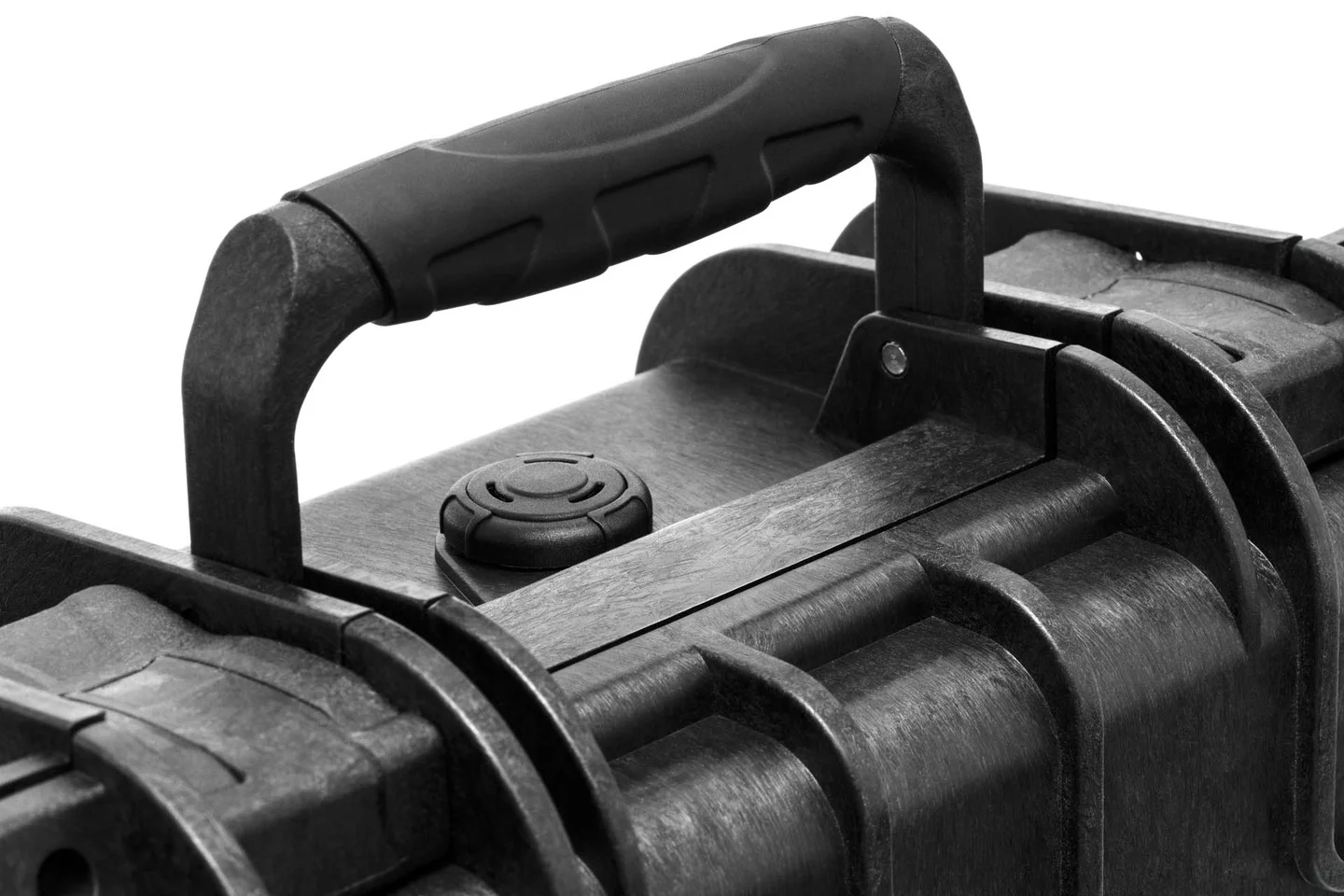

Handle and case
The Chliss Outdoor batteries are light, portable yet robust. Their lightweight and a large non-slip rubber handle makes the batteries easy to carry and transport. The hard case is reinforced with glass fiber whilst the battery cells are covered by an additional EVA foam layer, which protects the battery from injuries and vibrations.

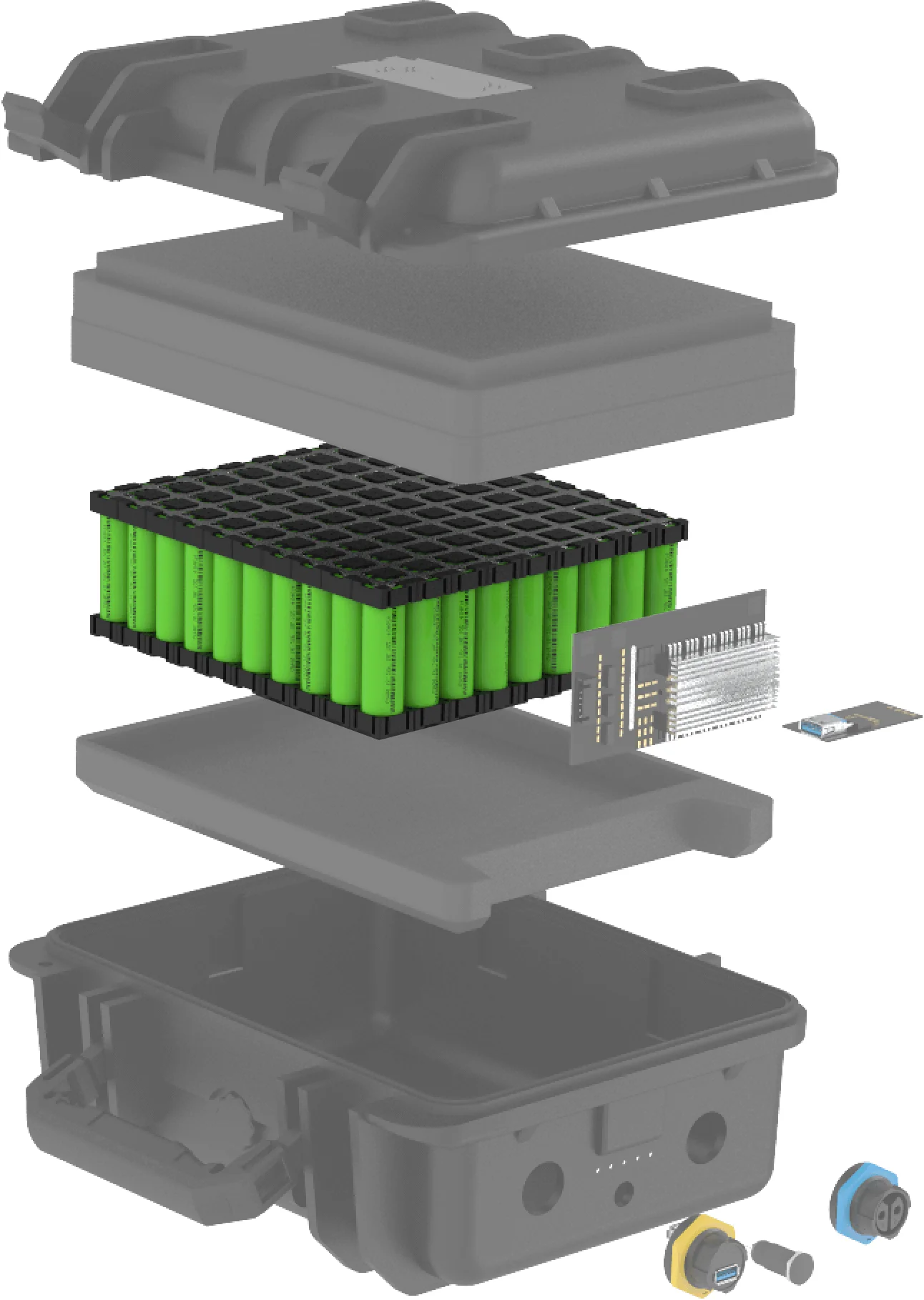

Designed for Outdoors
High-strength fiber composite polypropylene with rib reinforcements for enhanced durability and rigidity
High-density EVA foam protects the lithium cells and electronics against shock and vibration
Multiple temperature sensors enhance safety and protect the battery through constant monitoring of the inner cell temperatures, automatically switching the battery off if high or low temperature thresholds are exceeded
Passive charge level equalization between the cells promotes even consumption and rebalancing which leads to optimal performance and preserves a long battery life
High-density EVA foam protects the lithium cells and electronics against shock and vibration
High-density EVA foam protects the lithium cells and electronics against shock and vibration
Multiple temperature sensors enhance safety and protect the battery through constant monitoring of the inner cell temperatures, automatically switching the battery off if high or low temperature thresholds are exceeded
Passive charge level equalization between the cells promotes even consumption and rebalancing which leads to optimal performance and preserves a long battery life
High-density EVA foam protects the lithium cells and electronics against shock and vibration
The internal pressure relief valve provides additional safety
Permanently elastic, proven Sikaflex® 291i sealant for additional sealing of all openings in the housing
Permanently elastic, proven Sikaflex® 291i sealant for additional sealing of all openings in the housing
IP67 waterproof and dustproof switches and connectors
