NEW On or Off car disc brake lathe MA 2009 Disc aligner machine
NEW On or Off car disc brake lathe MA-2009 Disc aligner machine

NEW On or Off car disc brake lathe MA 2009 Disc aligner machine

Share on (1600910417835):


Price:

Quantity:


Product Overview

Description


NEW On or Off car disc brake lathe MA-2009 Disc aligner machine

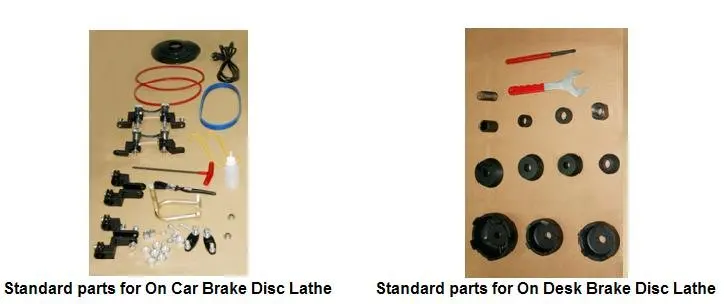

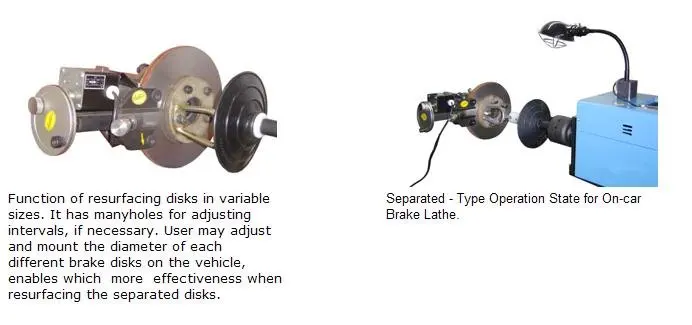

MA2009 1569045042.jpgMA2009 1569045066.jpg

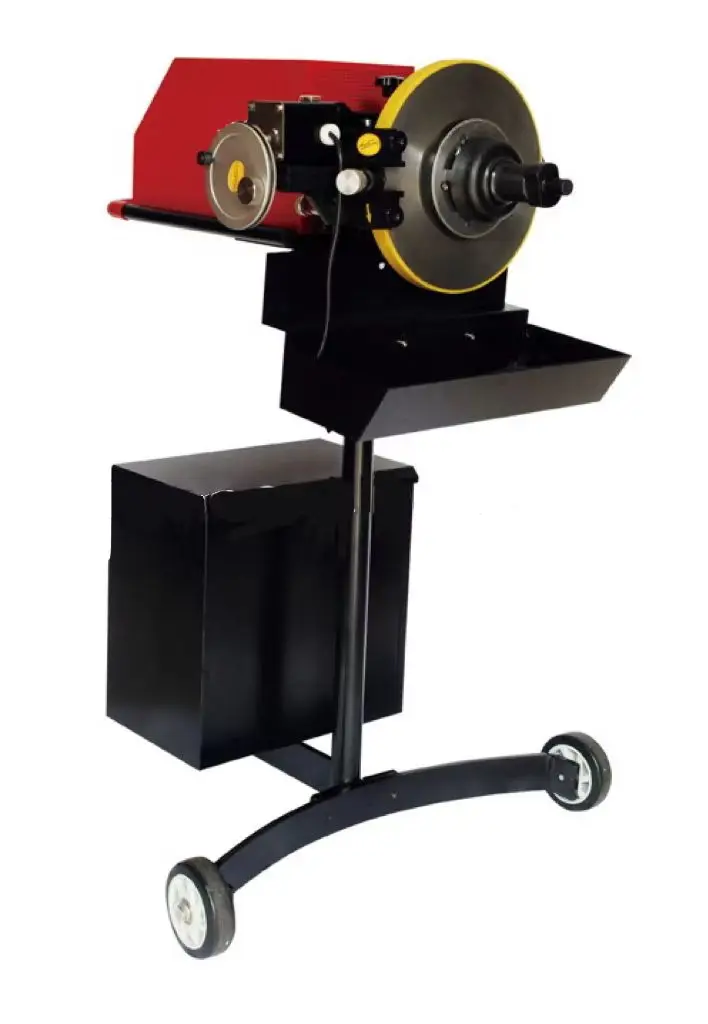

Multi-function disk brake-lathe simultaneously equipped with vehicle-mounted type and separated type.You can use separated type brake-lathe for the disk that is easy to detach, while vehicle-mounted type brake-lathe for the disk that is hard to detach.BL-602 is the economic and highly capable brake-lathe to meet your requirement.





Technical data


















Disc Lathe:


Maximum brake disc thickness: 40mm
Adjustment knob accuracy: 0.005mm
Feed rate: 8.5mm/min
Electrical specifications: 220V / 110V
Net weight: 6.5kg





Drive Unit:


Working height min / max: 1 / 1.25m
Drive speed: 98rpm
Electrical specifications: 220V / 110V
Weight: 85kg
Ambient temperature range: -5°C to 35°C
Turning accuracy: ≤ 0.005mm
Brake disc runout: ≤ 0.005mm
Brake disc thickness variation: 0.005 – 0.01mm
Brake disc surface roughness: Ra 1.5 – 2.0um
