10 inch Driver Vehicle Display and Navigation GPS Tracking Mobile Data Terminals ELD Management J1939 Android Tablet
- Category: >>>
- Supplier: Shenzhen Sunny Island Lilliput Electronic Co. Ltd.
Share on (1600910430969):
Product Overview
Description
VT-10 Pro
VT-10 Pro with octa core processor, Android 9.0 system, integrated with WiFi, BT, LTE, GPS etc functions are suitable forvarious applications.
Overview
VT-10 serial tablets are suitable for fleet management, agricultural intensive farming, and Intelligent Transportation systems. Allowed the solutions providers including field of fleet management, SaaS, Agriculture Farming, Buses, warehouse operator easy to integrated their software smart.VT-10 serial tablet powered by Qualcomm Processor, 1000nits higher brightness display, rugged design at IP67 rating, high-precision GPS and high speed 4G network, optional Front camera and rear camera NFC, barcode scan, fingerprint recognition. Supporting part of MDM platform, support custom OTA upgrade, KIOSK mode.
Product Description
1000nits high brightness IPS Panel
10.1 inch IPS Panel, 1280*800 resolution and 1000nits higher brightness, makes VT-10 tablet sunlight visible with better end user experience, especially for out-door used.
IP67 Rated
VT-10 is certified by IP67 rating, which is to soak for 30 minutes in a water depth of 1 meter. It can also work normally in harsh environments.
The rugged design have improved the reliability and stability of the tablets, and extend the service life, thereby reducing hardware costs.
High-precision GPS positioning
VT-10 tablet supports high-precision GPS positioning system. It can play a great role in agricultural intensive farming and fleet management.
A positioning chip with good performance is necessary for MDT.
8000mAh Removable battery
The tablet built in 8000mAh Li-on replaceable battery, which can be quickly installed and removed, it can help you improve maintain efficiency and reduce after-sales cost. Make a better user experience.
CAN Bus data reading
The CAN Bus data reading is important for fleet management and agricultural intensive cultivation.
VT-10 can support data reading of CAN 2.0b, SAE J1939, OBD-II and other protocols. It is convenient for integrators to read engine data and better improve vehicle data collection capabilities.
Wide range of operating temperature support
VT-10 support to work in wide range of operating temperature for outdoor environment, whether it is fleet management or agricultural machinery, high and low working temperature problems will be encountered. VT-10 supports to work in the temperature range of -10°C ~65°C with reliable performance, the CPU processor will not slow down
Fall protection and Drop Resistance
VT-10 is certified by the US military standard MIL-STD-810G, anti- vibration, shocks and drop resistance. It supports a height of 1.2m drop. In the event of an accidental fall, it can avoid damage to the machine and increase its service life
Custom optional functions supported

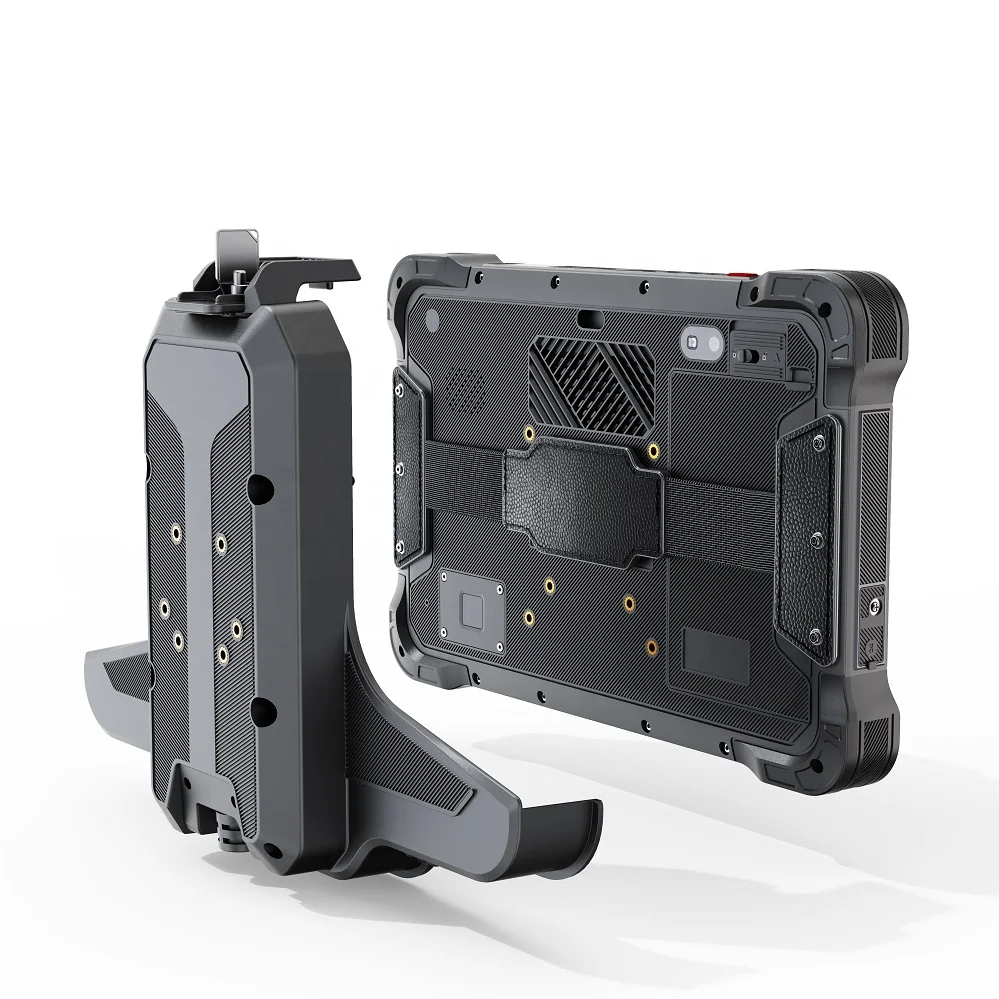

More options to meet customer’s different needs. It also supports options of camera, fingerprint, barcode reader, NFC, Docking Station, one-wire etc, to better suit for different applications.
Specification
Model Number | VT-10 Pro |
CPU | Qualcomm Cortex-A53 64-bit Octa-core Processor， 1.8GHz |
GPU | Adreno 506 |
Operating System | Android 9.0 |
RAM | 2GB LPDDR3 (Default) / 4GB (Optional) |
Storage | 16 GB eMMC (Default) / 64GB (Optional) |
Storage Expansion | Micro SD 128 GB |
LCD | 10inch HD (1280 x 800), 1000cd/m² higher brightness, Sunlight readable |
Touchscreen | Multi touch capacitive touchscreen supporting glove and rain mode |
Camera (optional) | Front:5 MP Rear: 16 MP with LED light |
BT | 4.2 BLE |
WLAN | IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz |
Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) |
GNSS | GPS/GLONASS |
NFC (optional) | Read/Write Mode:ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s MIFARE 1K,4K,NFC Forum type 1,2,3,4,5 tags,ISO/IEC 15693 All peer-to-peer modes Card Emulation Mode(from host):NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s;T3T FeliCa |
Sound | Build-in speaker 2W, 85dB Internal microphones |
Interfaces | Docking connector x1(POGO-PIN x24) 3.5mm headphone jack, Headset jack x1 Type-C, Compliant with USB 3.0 (For data transfer;support OTG) USB2.0 (Type-A)×1 RS232×2 Docking station status×1 ACC×1 Power×1 CANBUS (1 of 3) CAN 2.0b (optional) J1939 (optional) OBD-II (optional) GPIO (Positive Trigger input) Input ×2, Output ×2 (Default) GPIO x6 (optional) RJ45 (10/100)optional RS485optional RS422optional |
1D/2D scanner | All major 1D barcodes; PDF417 QR Code M1/M2/Micro and Data Matrix etc. |
Fingerprint Reader (optional) | Capacitive, area sensor; Capacitive, area sensor |
Sensors | Acceleration sensors, ambient light sensor,Gyroscope, compass Acceleration sensors, ambient light sensor |
Power | DC8-36V (ISO 7637-II compliant) Battery: 3.7V,8000mAh Li-ion (Replaceable) Battery: User replaceable Li-ion 5000 mAh with warm swap function Battery charging time:about 4.5hours Battery operating time: about 4.5hours (Typical) |
Physical Dimensions (WxDxH) | 277×185×31.6mm |
Weight | 1357g(2.99lb) |
Environment | Gravity drop resistance test: 150cm Vibration test: MIL-STD-810G Dust resistance test: IP6x Water resistance test: IPx7 Operating temperature: -10° C ~ 65°C(14°F-149°F) charging temperature: 0° C ~ 55°C (32°F-131°F) Storage temperature: -20° C ~70° C |
Packing & Delivery
Company Profile
About
3R TABLET mainly focus on the developing and manufacturing of automotive and commercial products.
3Rtablet is a technology based and market oriented innovative enterprise. Our R&D team has been deeply engaged in embedded technology for many years, mainly focusing on the development, manufacturing, marketing and delivery of IoV products.
3Rtablet follows innovative technologies, complete solutions, friendly products, excellent quality and professional services, in order to continuously improve product quality and customer satisfaction. 3Rtablet offers OEM/ODM service, products could be tailored to meet your needs.
