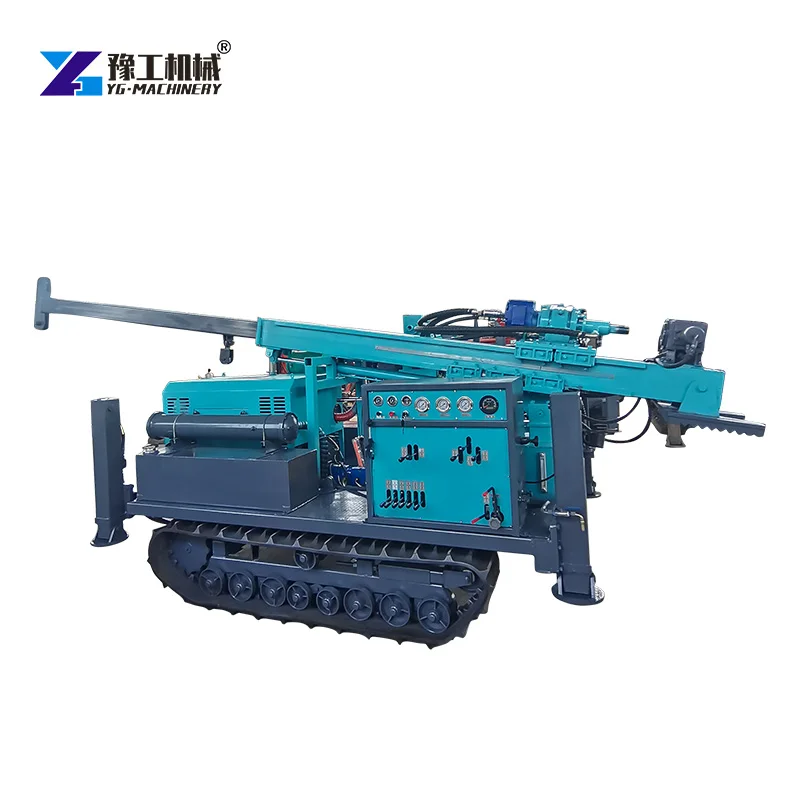

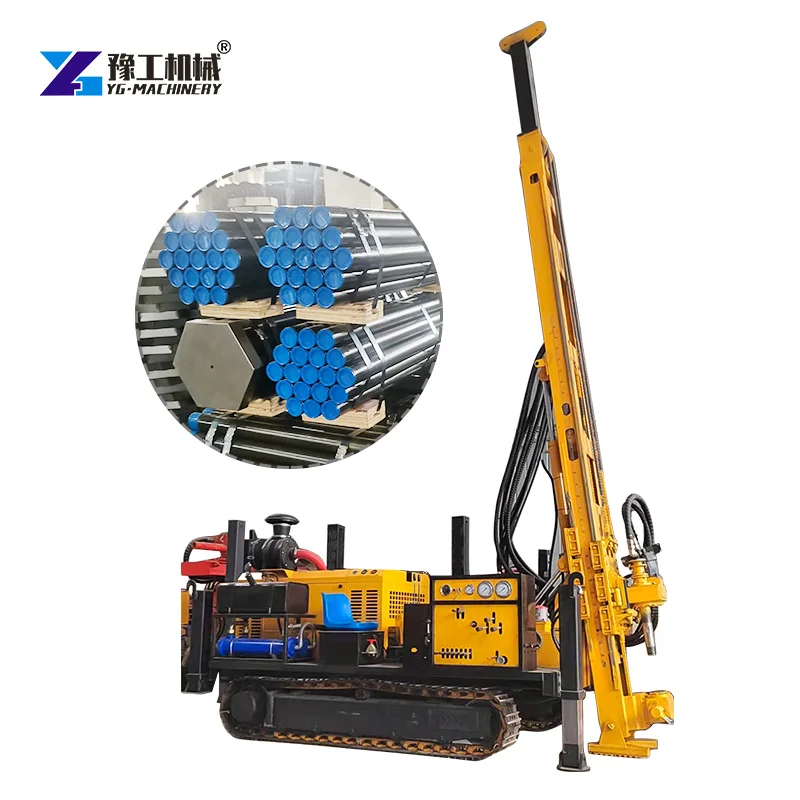

Articulated and telescopic boom drill towers for optimizing rig access in confined spaces
- Category: >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (1600910478663):
Product Overview
Description
XYX-3 Hydraulic trailer mounted drilling rig for water wells
Main featuer :
Equipped with wheel undercarrigae device and hydraulicsupport clinder, it's every convenient for transport and adjusting the drilling rig level Hydraulic oil pressure feed device,improve drilling rig level Equipped with normal closed hydraulic chuck, operation is flexible and reliable Pressure gauge display teh condition of the bottom of the drill hole Diesel engine adopt the electric starter , to reduce te labor itensity.
Application:
XYX-3 Hydraulic trailer mounted drilling rig for water wells Hot Sale borehole trailer mounted water well drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole, driling and direct grouting, civil well sand earth tempreature central air-conditioner, etc.
Specification
Specification
The whole machine parameter | ||
Drill hole depth | 100 250 300 600m | |
Drill hole diamter | 300 200 150 75mm | |
Hole diameter | 300mm | |
Final hole diameter | 75mm | |
Drill pipe | 60mm | |
Borehole inclination | 90-75 | |
Borehole inclination | 90°-65° | |
Structure weight/size | Structure weight/size | |
Vertical shaft | ||
Vertical shaft forward speed | 30-1050r/min | |
Vertical inversion speed | 29-137r/min | |
Vertical stroke | 600mm | |
Vertical inner hole diameter | 96mm | |
Main Hoist | ||
Single rope winding speed | 0.5 0.9 1.4 1.9m/s | |
Diameter of wire rope | 12.5mm | |
Brake width | 90mm | |
Drum diameter | 300mm | |
Drum capacity | 65m | |
The biggest single rope hoisting capacity | 30KN | |
Mud pump (optional) | ||
Type | Horizontal three cylinder BW-250 mud pump | |
Flow | 250L/min | |
Working pressure | 7Mpa | |
Water inlet diameter | 75mm | |
Water outlet diameter | 50mm | |
Drilling rig power | ||
The diesel engine | 39kw/2400rpm | |
Electric motor | Y180L-4 22KW | |
Wheeled chassis carrying capacity | 3.5T | |
The width of the wheeled chassis | 2m | |
The leight of the wheeled chassis | 0.6M | |
Color | Yellow/green | |
Product Description
Product Description
Packing & Delivery
Packing & Delivery
Company Profile
Company Profile
Henan Yugong Machinery Co., Ltd. located in China's national central city--Zhengzhou, with abundant resources and convenient transportation. Our company is a integrated large-scale manufacturing enterprise. Our company experienced 15 years of high-speed development, gathering large number of talents and winning sound reputation and credibility. Our product quality, rapid and healthy development ensured by convenient transportation network, advanced management concepts, and comprehensive management system. Henan Yugong Machinery Co., Ltd.: Take the reforming as the motive force, science and technology oriented, culture as the soul, continuously strengthen and improve enterprise management toward scientization, informatization, modernization. We sincerely expect to cooperate with various circles, achieve mutual benefit and win-win situation.
FAQ
FAQ
1. who are we?
We are based in Henan, China, start from 2016,sell to South Asia(18.00%),Eastern Europe(14.00%),Domestic Market(13.00%),Mid East(11.00%),South America(10.00%),Southeast Asia(6.00%),Western Europe(6.00%),North America(5.00%),Oceania(5.00%),Northern Europe(4.00%),Central America(3.00%),Africa(2.00%),Southern Europe(2.00%),Eastern Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Concrete Pumps,Mine Drilling Rig,Paper Cup Making Machine,PSA Nitrogen Generator,PSA Oxygen Generator
4. why should you buy from us not from other suppliers?
We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DEQ,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2016,sell to South Asia(18.00%),Eastern Europe(14.00%),Domestic Market(13.00%),Mid East(11.00%),South America(10.00%),Southeast Asia(6.00%),Western Europe(6.00%),North America(5.00%),Oceania(5.00%),Northern Europe(4.00%),Central America(3.00%),Africa(2.00%),Southern Europe(2.00%),Eastern Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Concrete Pumps,Mine Drilling Rig,Paper Cup Making Machine,PSA Nitrogen Generator,PSA Oxygen Generator
4. why should you buy from us not from other suppliers?
We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DEQ,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
