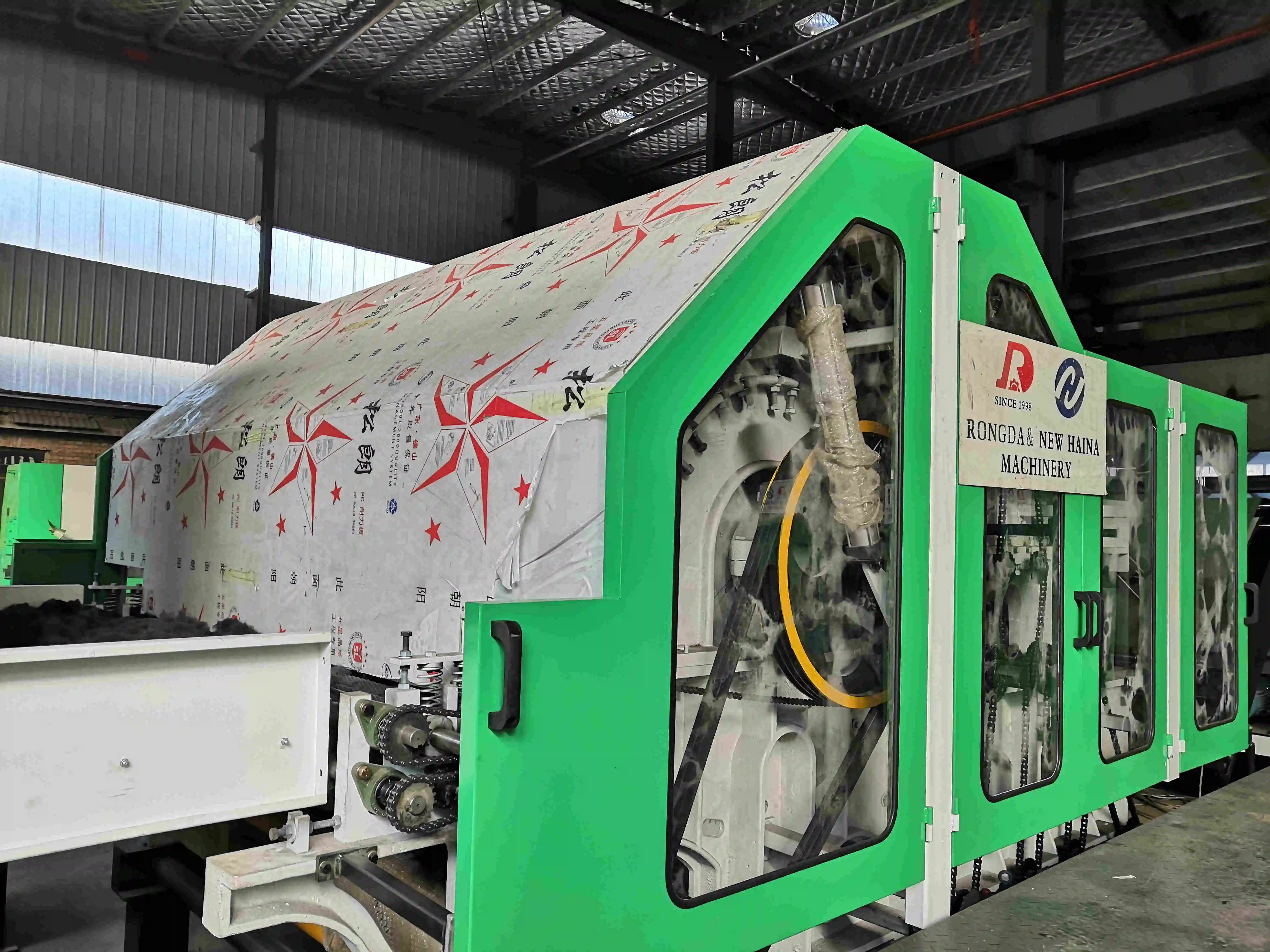

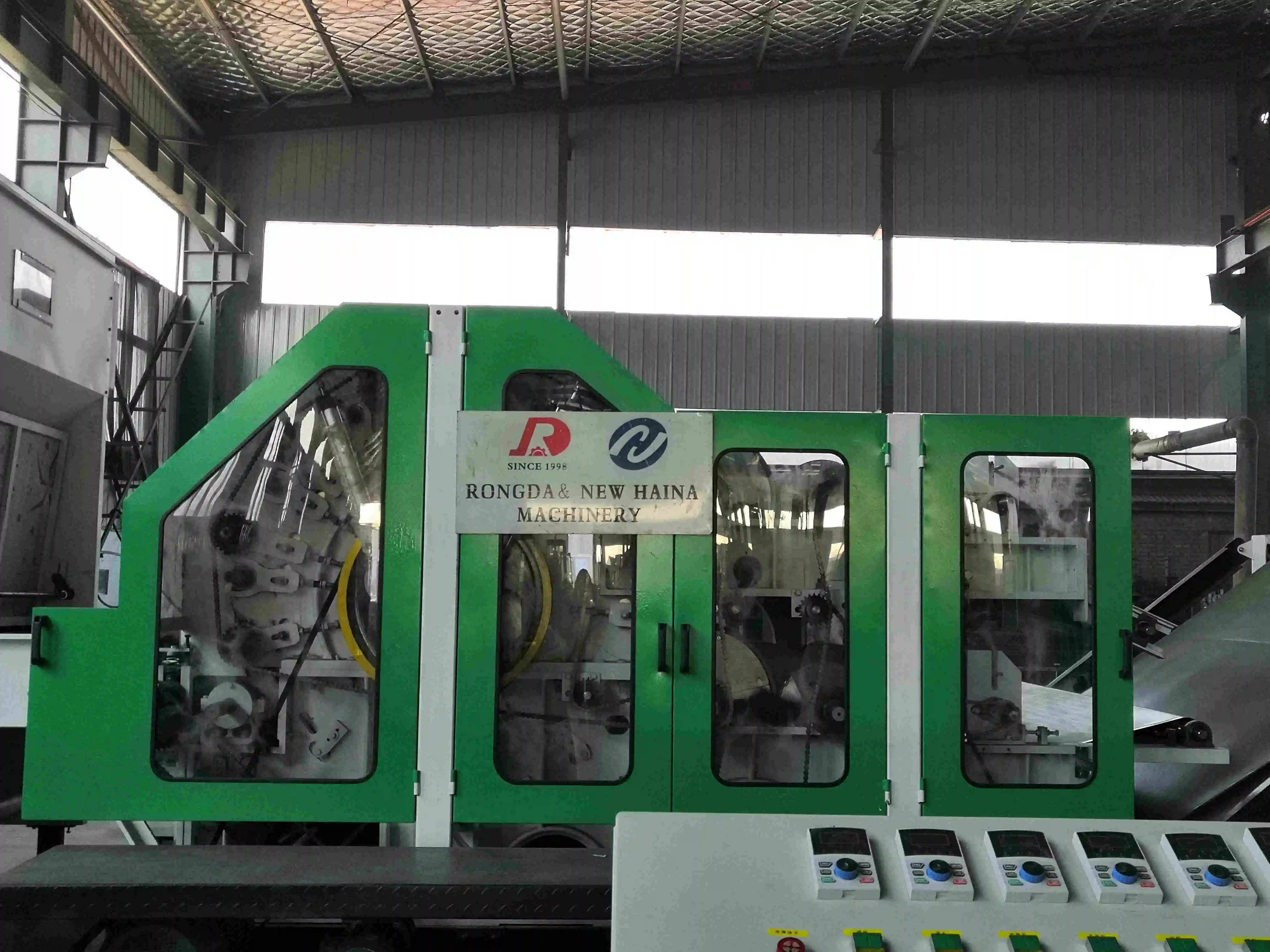

Non woven fabric production machine Polyester fiber is evenly carded into a web to make a felt carding machine
- Category: >>>
- Supplier: Shandong New Haina Machinery Co. Ltd.
Share on (1600910503572):
Product Overview
Description
Product Description
Carding machine used to card artifical fiber from 0.7D-30D*38-140 to form web for cross lapper or cotton,jute,glass fiber etc
Uses and characteristics:
Carding machine used to card artifical fiber from 0.7D-30D*38-140 or cotton fiber,jute fiber,glass fiber,steel fiber and so on to form web for cross lapper. it has single cylinder or double cylinder double doffer two kinds style with high production capacities; Cotton stripping has been using stripper bar or roller,the cotton feeding roller is controlled by frequency inverter with anti-metal protection device.
Main specifications:
Machine width: 1,550mm, 1,850mm, 2,000mm, 2,300mm, 2,500mm,3000mm
Cylinder diameter: 850mm, 1,020mm, 1,230mm,1,500mm
Doffer diameter: 492mm, 525mm
Output speed: 20-45m/min
Power: 11.25-21kW
Carding machine:working width:1550*1230
NO. | ITEM | DESCRIPTION |
1 | Model | GMCD2-1550×1230 |
2 | Raw materials work on | Processing of raw materials from feeding machine, the output fiber layer |
3 | Working width | 1550 mm |
4 | Production capacity | 1550 Carding machine,300kg/h |
5 | Fiber raw materials requirements | 3~15D×38~65mm |
6 | The speed of the output fiber layer | ≤40m/min |
7 | Total power | 22.5 KW |
8 | Main body | High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays |
9 | Feeding roller | With a pressure roller feeding uniformity. Feeding roller: 4sets , φ65mm
|
10 | Metal detectors | Equipped with metal detectors, feedback and control power and warning |

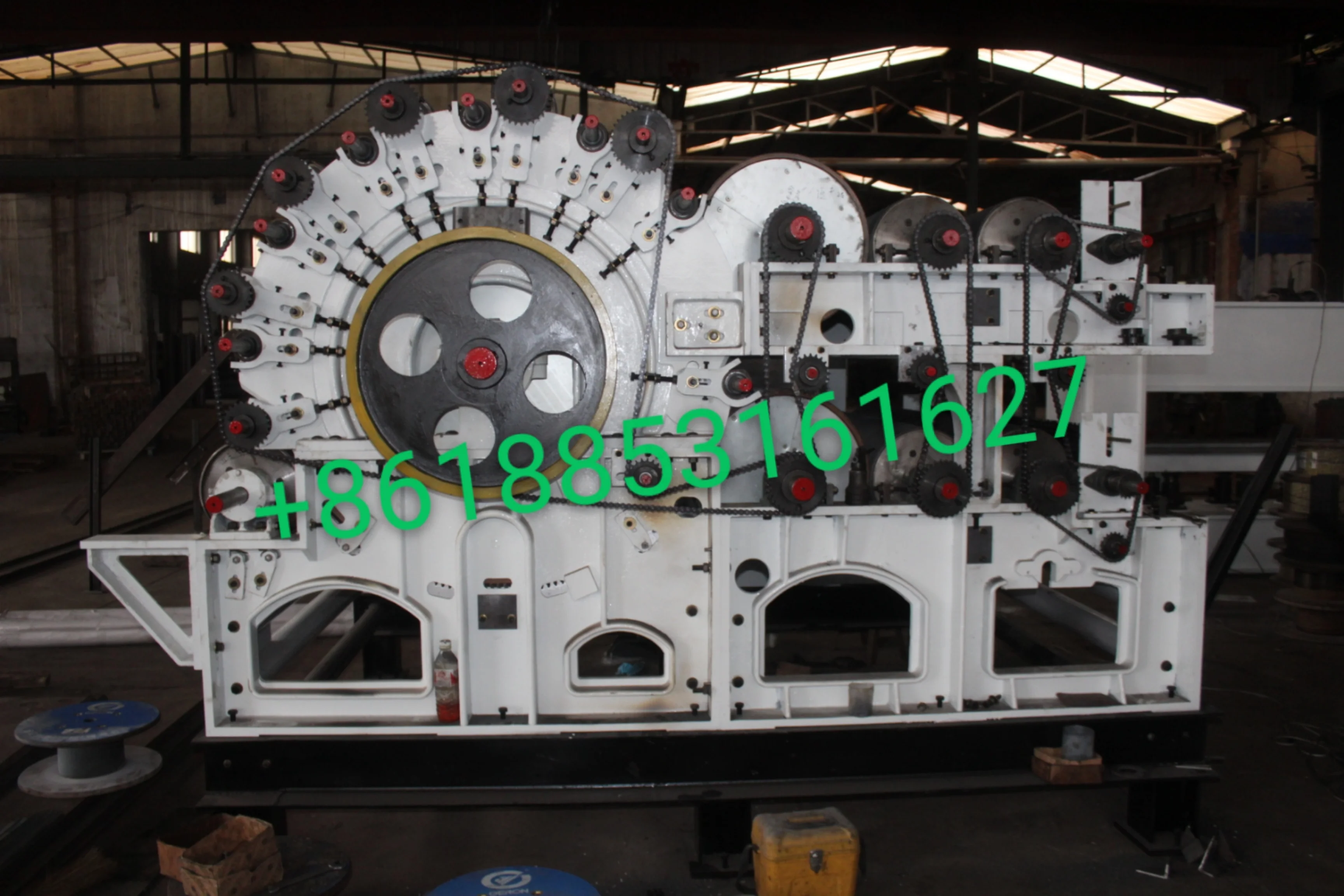

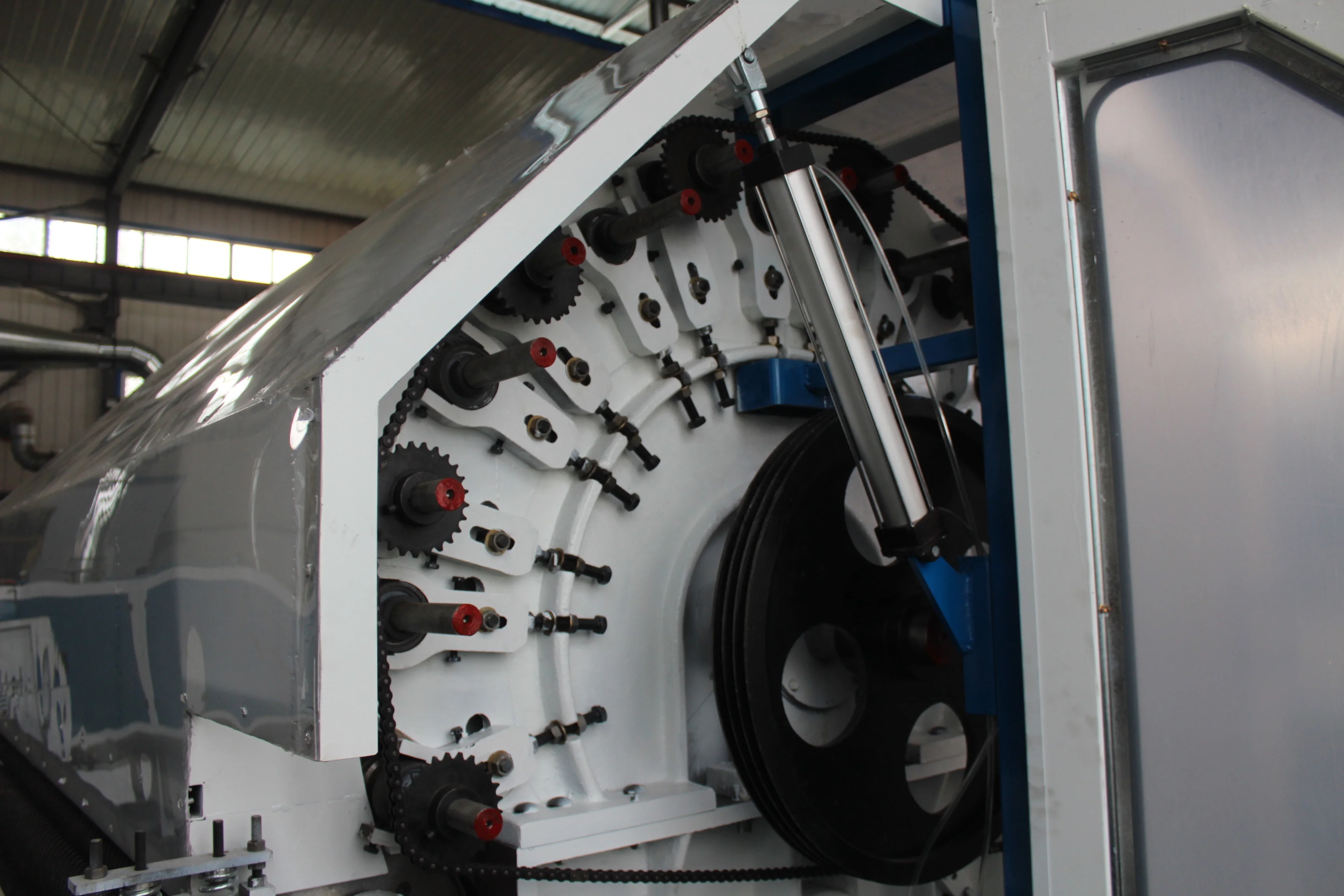

11 | Diameter of Cylinder &doffer &mixed and disorderly roller | 1230 mm; double doffer diameterφ492 mm, mixed and disorderly roller diameter: φ295 mm |
12 | No of groups | There are 5 carding working groups, so can get a very good carding effect |
13 | Dust collection points | There are 4 dust places |
14 | Working shield | Working shield with transparent organic glass, a mechanical rotation can be observed during it running |
15 | Power | Main motor 15kw, reducer 1.5kw *6 |
Packing: wooden case
