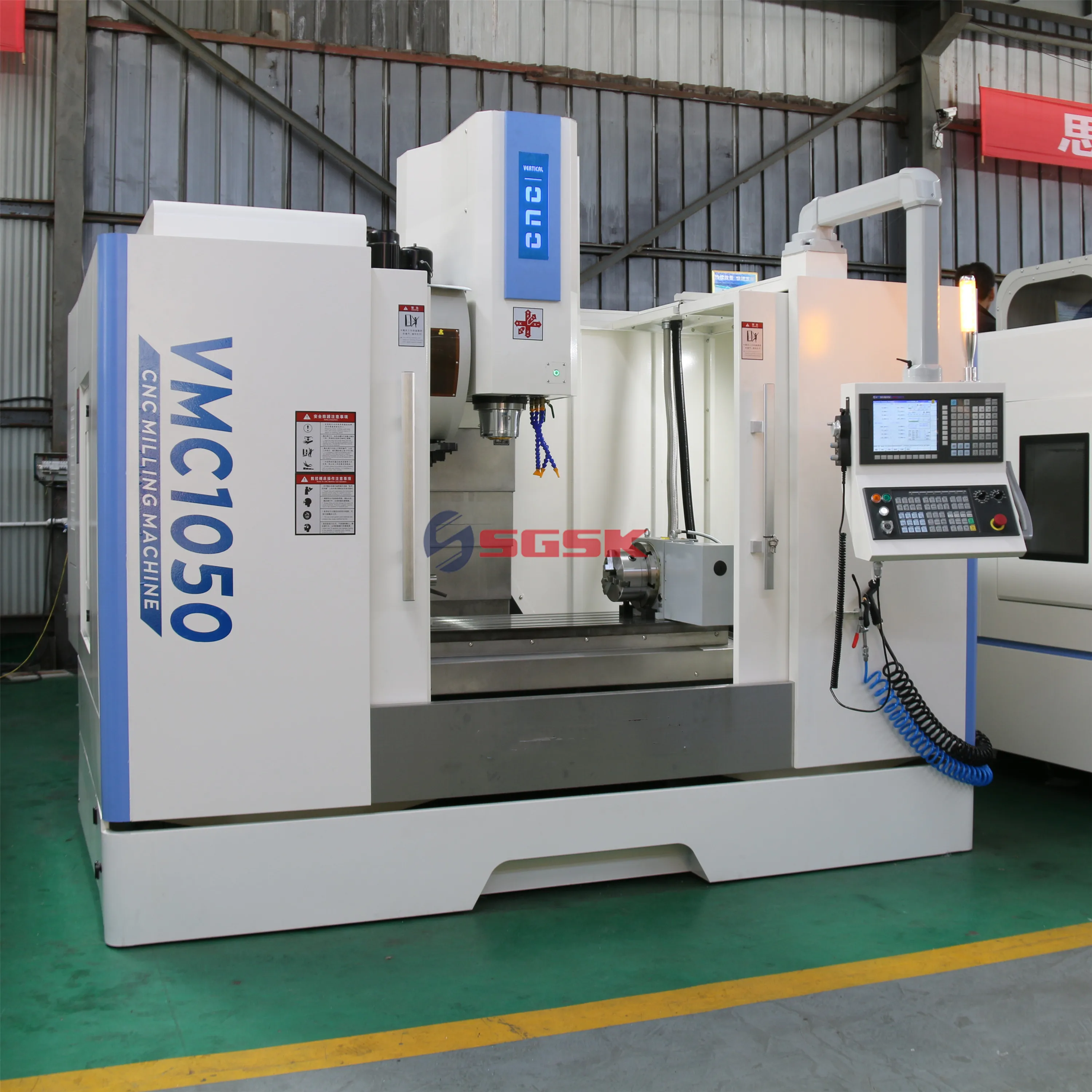

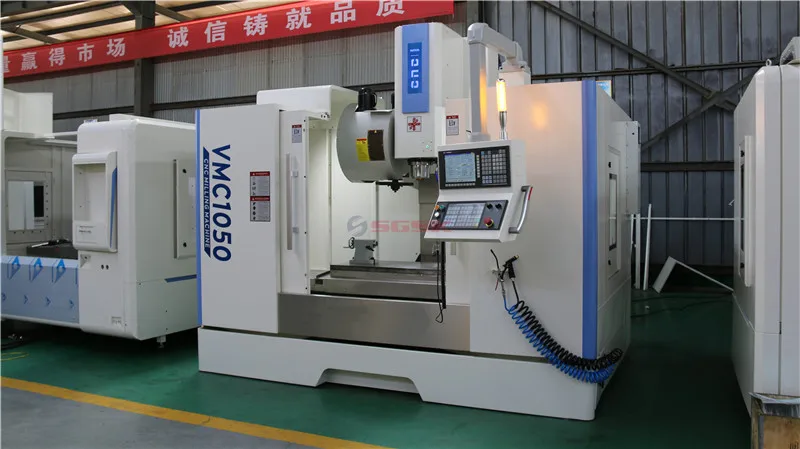

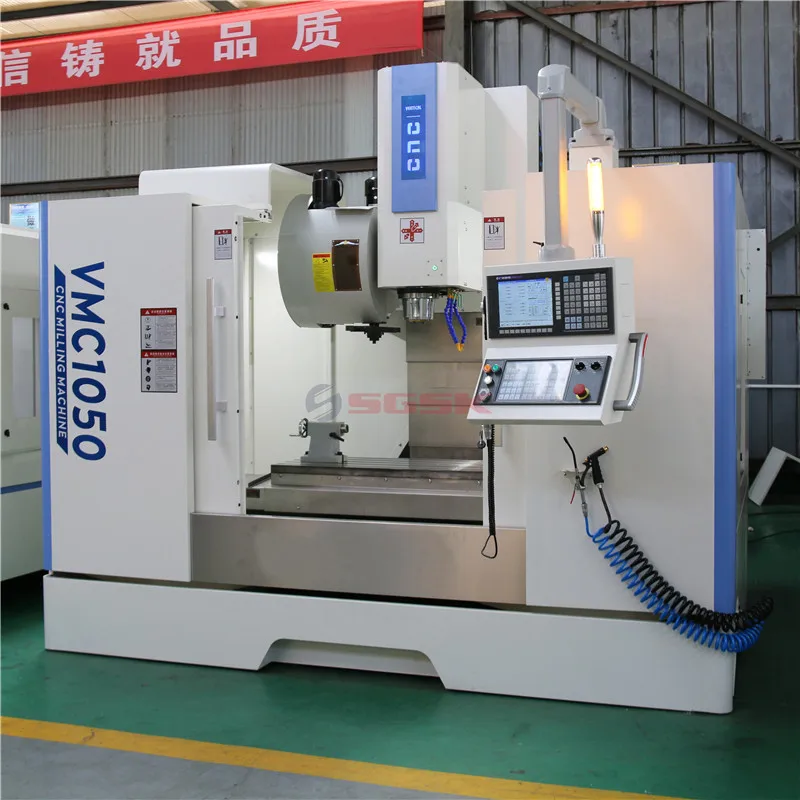

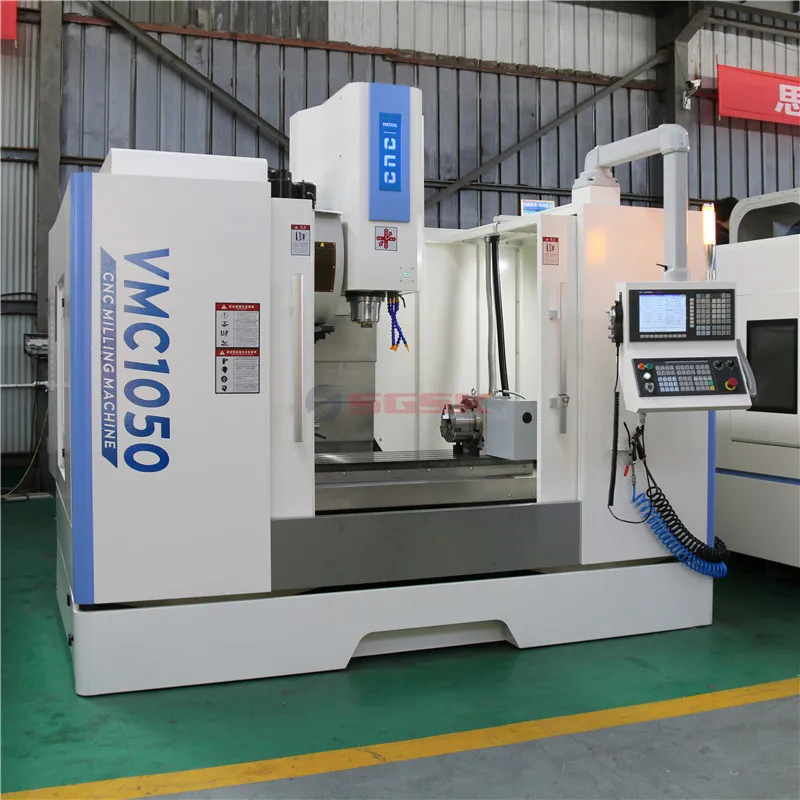

Taiwan sipndle cnc milling machine VMC1050 siemens controller
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1600910532818):
Product Overview
Description
Taiwan sipndle cnc milling machine
VMC1050 siemens controller
Products Description
Details Display
Product Paramenters

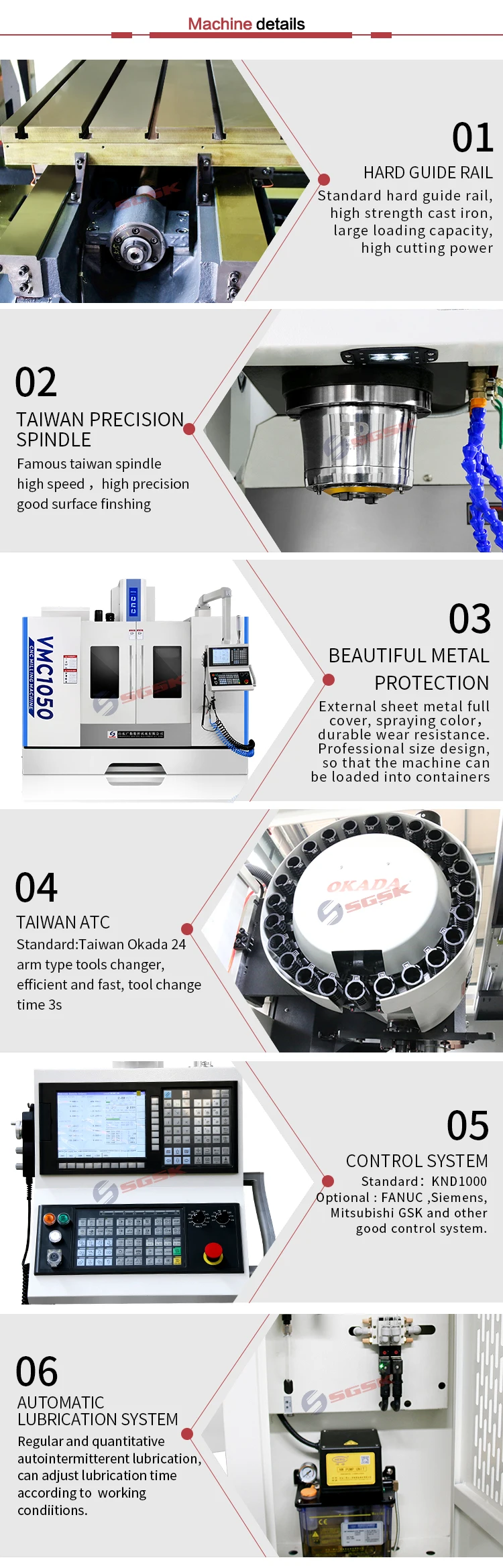

Features:
Taiwan spindle
Taiwan ball screw and locking nut
Sweden SKF bearing
Automatic lubrication system
Chip conveyor at optional
Application:
1. The main components such as base, column, workbench, middle slide and lifting slide are all cast from high-strength materials and treated by artificial aging to ensure the stability of long-term use of machine tools, providing stability for machine performance. Guarantee.
2, Choose high-speed, high-precision, high-rigidity spindle unit, strong carrying capacity, the highest speed of 8000rpm;
3. X axis travel of worktable is up to 1200 mm. Y and Z Axis guide rails are wide rectangular sliding guides, which are quenched and precision ground by super audio. The sliding guide surface is precisely scraped and coated with composite PTFE material,combined with automatic forced lubrication, reducing the friction resistance of the feed motion, reducing the low speed crawling and improving the precision life of the machine.

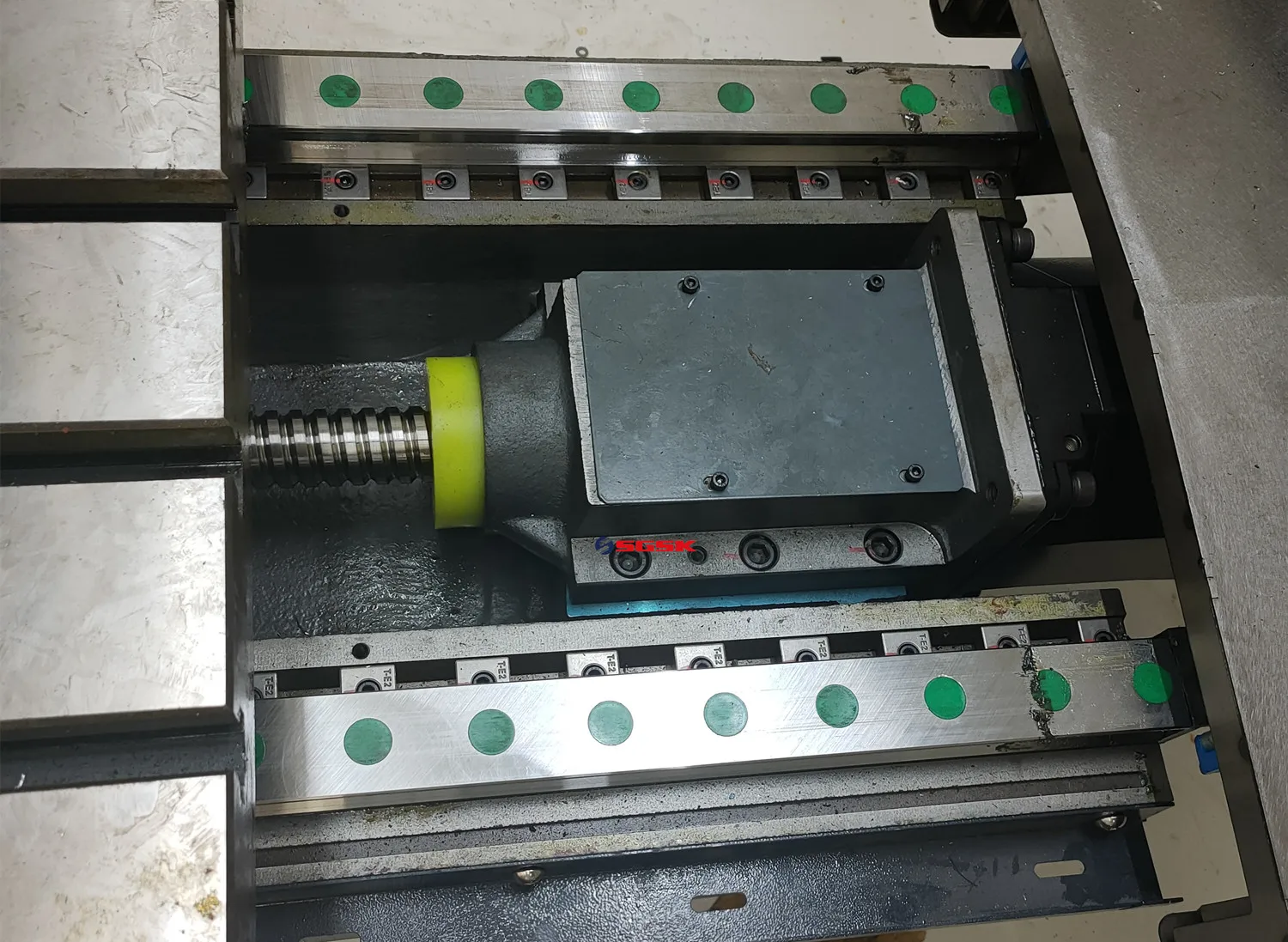

4. X, Y and Z axis feeds are all made of high-precision, high-strength ball screw and servo motor drive to ensure the positioning accuracy of the machine.
5. Guideway and ball screw use stainless steel protection device to ensure the cleaning of the lead screw and the guide rail to ensure the machine drive and running accuracy.
6. Z axis is equipped with a weight balancing device to ensure smooth and smooth movement of the spindle.
7. Electric lubrication device can force the lubrication of the vertical, horizontal and vertical lead screws and guide rails to
reduce the wear of the machine tool and ensure the efficient operation of the machine tool. The cooling system can change the flow rate of the coolant by adjusting the nozzle to meet different processing. demand.

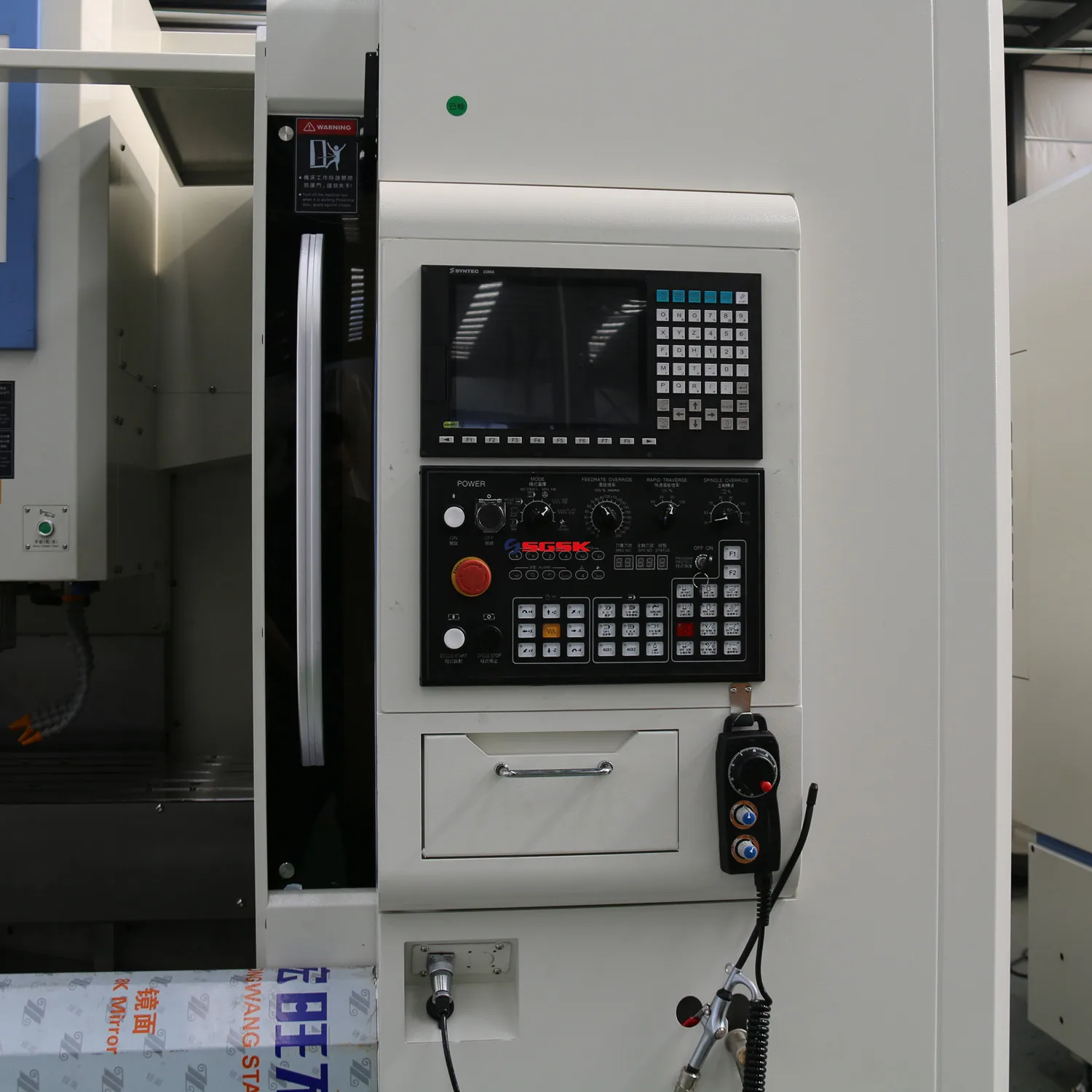

8. Machine tool operating system is suspended by the arm at the upper right of the machine tool. It conforms to the ergonomic principle. The operation box can be rotated by a certain angle, and the operation is convenient and reliable.
Product main technical specifications:
Taiwan spindle
Taiwan ball screw and locking nut
Sweden SKF bearing
Automatic lubrication system
Chip conveyor at optional
Application:
1. The main components such as base, column, workbench, middle slide and lifting slide are all cast from high-strength materials and treated by artificial aging to ensure the stability of long-term use of machine tools, providing stability for machine performance. Guarantee.
2, Choose high-speed, high-precision, high-rigidity spindle unit, strong carrying capacity, the highest speed of 8000rpm;
3. X axis travel of worktable is up to 1200 mm. Y and Z Axis guide rails are wide rectangular sliding guides, which are quenched and precision ground by super audio. The sliding guide surface is precisely scraped and coated with composite PTFE material,combined with automatic forced lubrication, reducing the friction resistance of the feed motion, reducing the low speed crawling and improving the precision life of the machine.
4. X, Y and Z axis feeds are all made of high-precision, high-strength ball screw and servo motor drive to ensure the positioning accuracy of the machine.
5. Guideway and ball screw use stainless steel protection device to ensure the cleaning of the lead screw and the guide rail to ensure the machine drive and running accuracy.
6. Z axis is equipped with a weight balancing device to ensure smooth and smooth movement of the spindle.
7. Electric lubrication device can force the lubrication of the vertical, horizontal and vertical lead screws and guide rails to
reduce the wear of the machine tool and ensure the efficient operation of the machine tool. The cooling system can change the flow rate of the coolant by adjusting the nozzle to meet different processing. demand.
8. Machine tool operating system is suspended by the arm at the upper right of the machine tool. It conforms to the ergonomic principle. The operation box can be rotated by a certain angle, and the operation is convenient and reliable.
Product main technical specifications:
Specifications | Units | VMC1050 |
Table size | mm | 1000x500 |
X axis travel | mm | 1000 |
Y axis travel | mm | 500 |
Z axis travel | mm | 550 |
Max. worktable load | kg | 800 |
T slot(number-width-pitch) | 5-18x100 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 |
Main motor power | kw | 7.5/11 |
X/Y/Z rapid traverse speed | m/min | 24/24/12 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Hard rail | |
Distance from spindle axis to column surface | mm | 600 |
Distance between spindle nose and worktable surface | mm | 130-680 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | Arm 24 | |
Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 |
Machine weight | kg | 6700 |

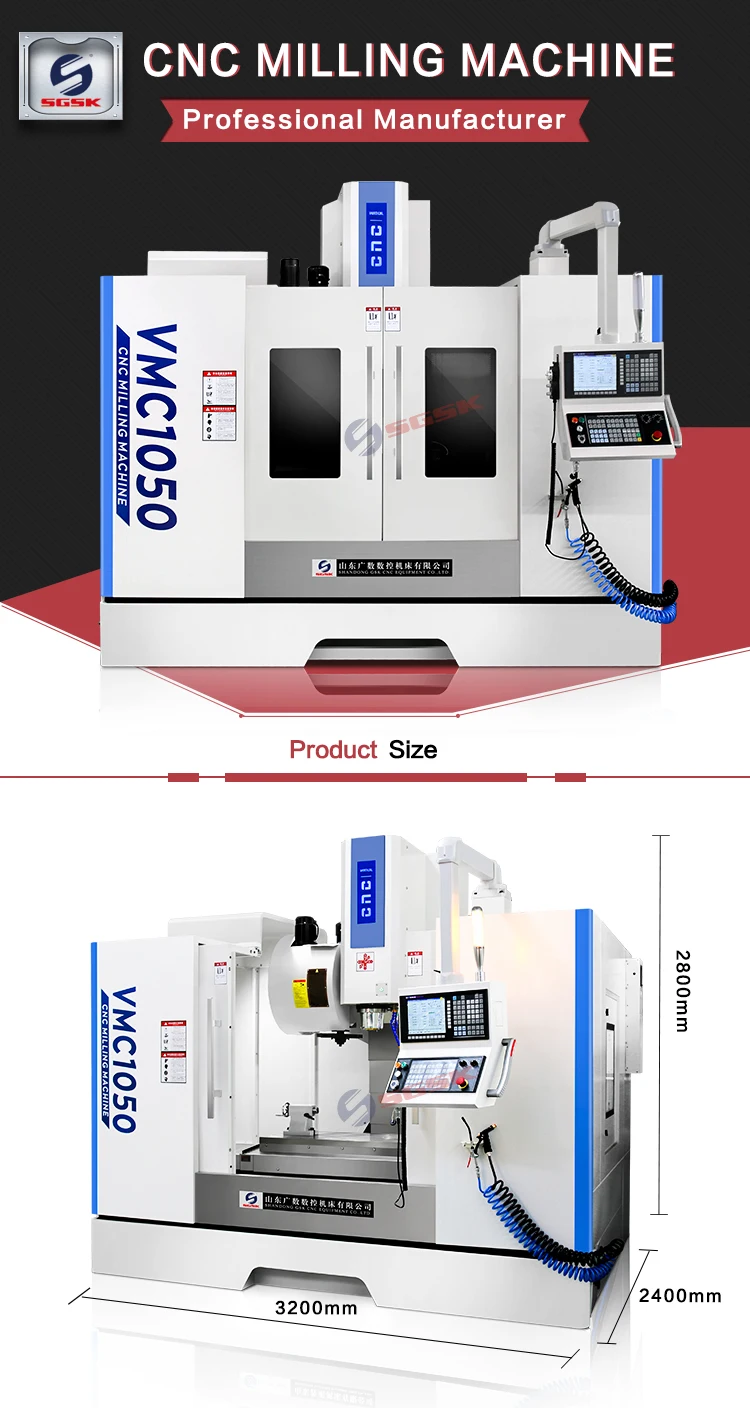

Overall dimension | mm | 3200x2400x2800 |
Recommend Products
Why Choose Us
All our machine include cnc lathe machine, cnc milling machine , lathe machine , milling machine , drilling machine will running 24hours . And it have finished all test , then we will arrange package.
Choose SGSK machines, we will supplied the 5 star service to you .
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
