High Table Semi Auto PP Belt Strap Carton Box Packing Machine
- Category: >>>
- Supplier: Nantong Huabo Machinery Technology Co. Ltd.
Share on (1600910639072):
Product Overview
Description

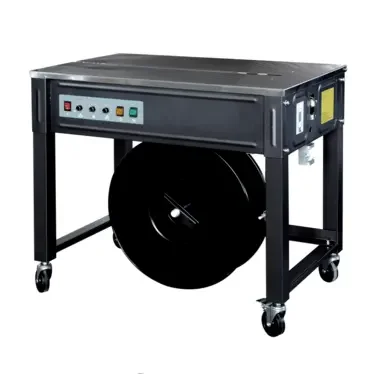

High Table Semi-Auto PP Belt Strap Carton Box Packing Machine
Description:
YYIPACK-A2F semi automatic Carton Case Strapping Bundling Machine is capable of allotting, tightening and fastening polypropylene straps around the packages, automatically.Its heater assists in applying pressure on the strap and connects the ends with heat welds. Semi automatic strapping machine power switch have inbuilt sensors that makes the motor to switch off while not working and again restarts automatically with the insertion of strap.
* Semi-automatic strapping machine for PP strapping material
* Tough and compact construction with a small footprint
*Simple, safe and user-friendly operation
* Mobile with high capacity strap reel
*Strap tension adjustable from soft to high
Main Specifications
| Model | YYIPACK-A2F (open with 4 legs) |
| Degree of Automation | Semi-automatic |
| Power Supply | 1P, 220V/50/60Hz, 0.25kW |
| Packing Speed | ≤ 3s/cycle |
| Tension Rage | 3 - 45kgs |
| Hot-adhering position | Bottom |
| Worktable Height | 730mm |
| Applicable Strap | Width: 5-15mm, thickness: 0.5-0.8mm |
| Applicable Strap Reel | 210mm * 178mm |
| Control System | PC board control |
| Machine Dimensions (mm) | L840*W540*H730 |
| Package Dimensions (mm) | L870*W570*H900 |
| Weight (kg) | N.W:60 G.W: 67 |
| Electrical Configuration | Motor: DC motor |
| Noise | ≤75dB(A) |
| Environmental Conditions | Humidity≤98%, temperature 0-40℃ |
| Adhesion | Adhesive surface≥90%, adhesive width≥20%, deviation of adhesive position≤2mm |

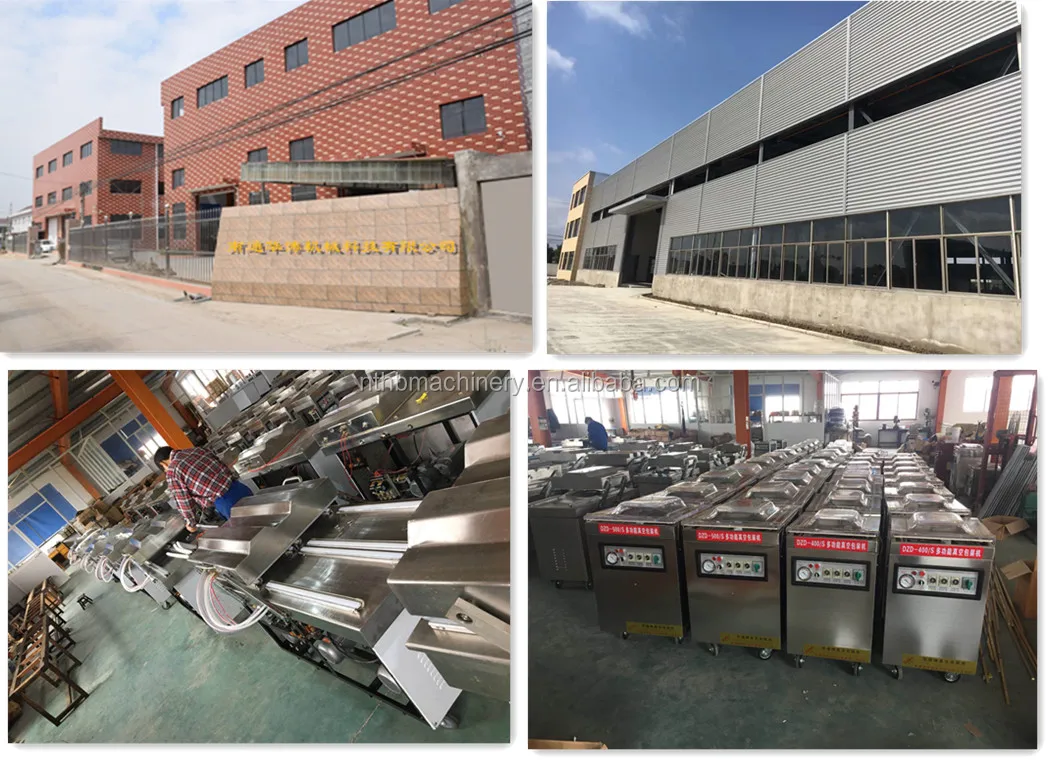

Factory Image
Related Products
FAQ
Are you factory ?
Of course yes, we are factory .
What’s payment do you support?
T/T, L/C at sight, Western Union is accepted. For regular order, 30% downpayment ,
70% balance before ship.
What’s lead time ?
Machines always be finished within 10days.Some customelized should can be confirmed
Do you support OEM/ODM?
Yes, we can develop the styles base on customer’s requirement.
Do you offer Certification Of Original?
Yes , we can. CO,FORM E ,FORM F and so on is availabe
How to pay Express Charge if order samples ?
If you have DHL.FEDEX,TNT,UPS account, samples would be sent under freight collected through your account.
If you don’t have DHL,FEDEX,TNT,UPS account,We have to calculate freight cost with EXPRESS Company first,
before sent machine ,you could pay freight charge directly to our company account.
Any more question,Pls feel free to contact below or leave message on alibaba.
