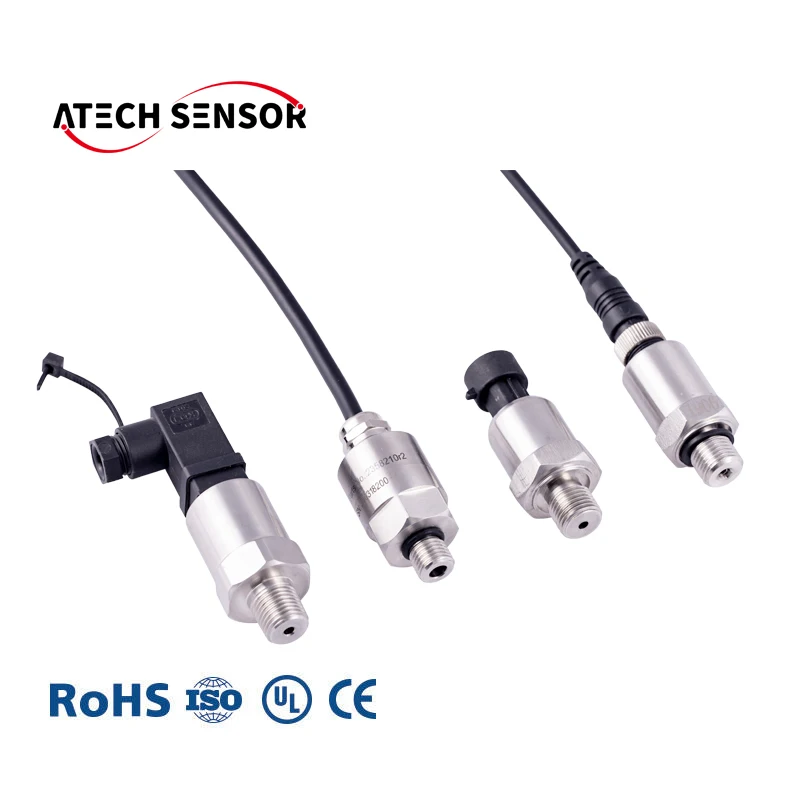

Atech PT 208 Smart Oem 4 20ma Pressure Transducer Pressure Transmitter Pressure Sensor
- Category: >>>
- Supplier: Atech Sensor Co. Ltd.
Share on (1600910654895):
Product Overview
Description
Please Click Here To Contact US for More Details!
PT208 4~20mA Hydraulic Ceramic Pressure Transmitter price pressure sensor
Related products PT-201 >>>> Contact Us
 | PT201 pressure ranges:0~2...1000bar overload pressure:300%FS output signal:4~20mA, 0~5V, 0~10V, 1~5V,0.5-4.5V ,RS485, RS485&4-20mA accuracy:0.5%FS (standard) 0.25%FS 0.1%FS |
 |
Product Description
PT208 series of pressure transmitter is a standard and most popular transmitter applied water pump, auto engines, air conditioning equipments ect. The pressure transmitter features of high stability, small size, ligh weight ,compact structure and low cost for mass production.
The products are made of stainless steel.the pressure sensingelements and chips are selected from well-known Germany brands. Specialcircuits are adopted to zero and full range conveniently. The product are approved with CE, intrinsically safe, Customized structures and output formats can be designed according to special application requirements .
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
Applications
-Automobile, Compressor and Refrigeration Industry-Engineering machinery
-Pressure control and monitor
-Water treatment system
-Hydraulic and Pneumatics
-HAVC and BAS Control
-Pump, fitness equipment,household appliances
-Factory Automation
-Fluid Control and Instrumentation Systems
Customer Feedback

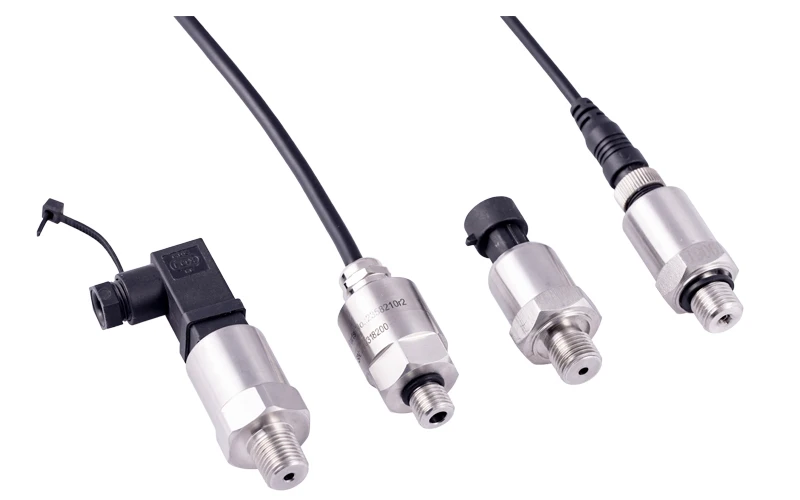

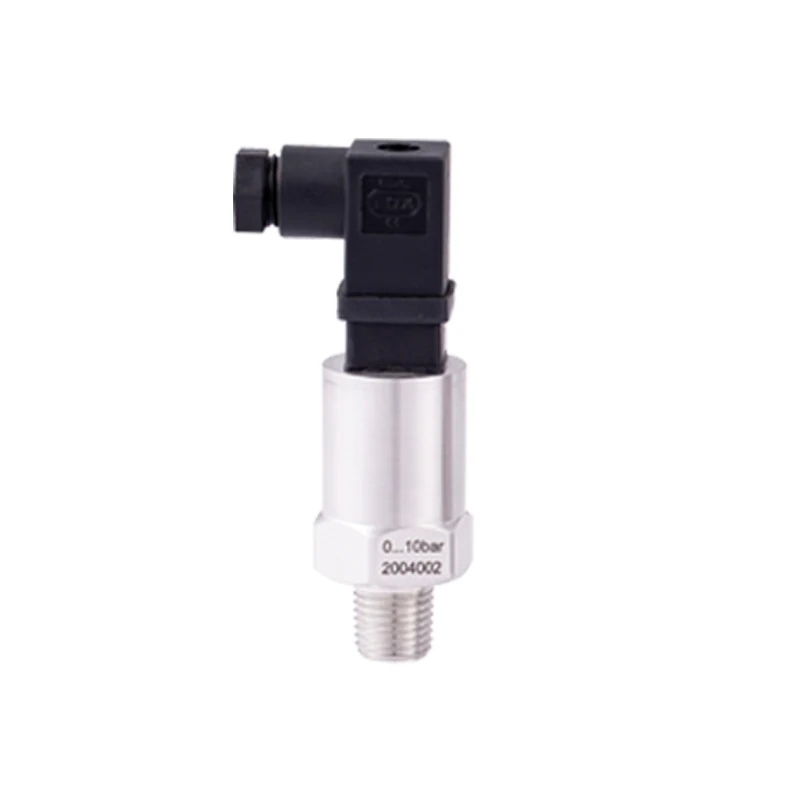

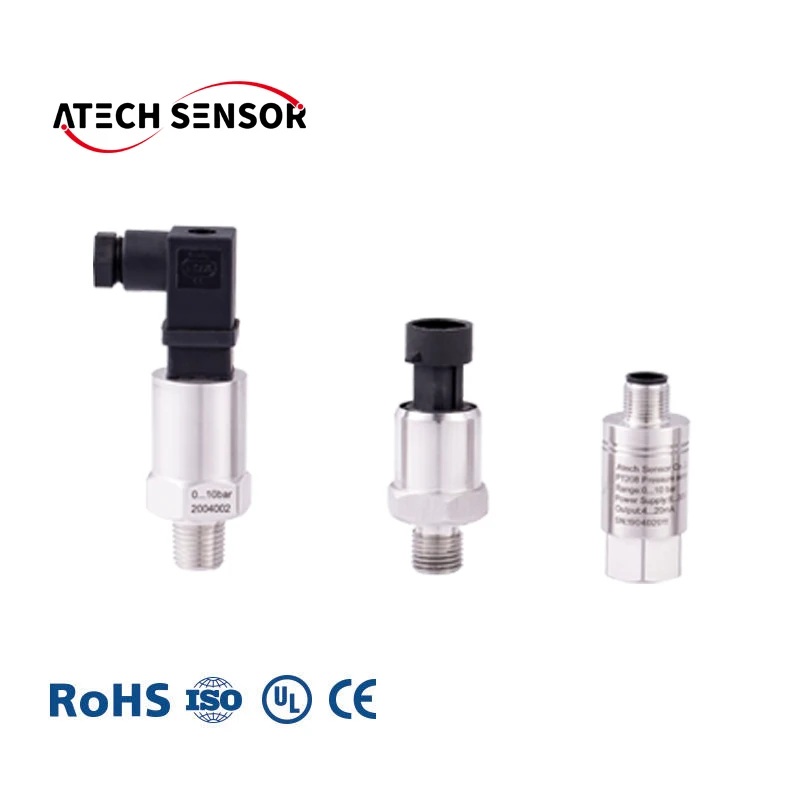

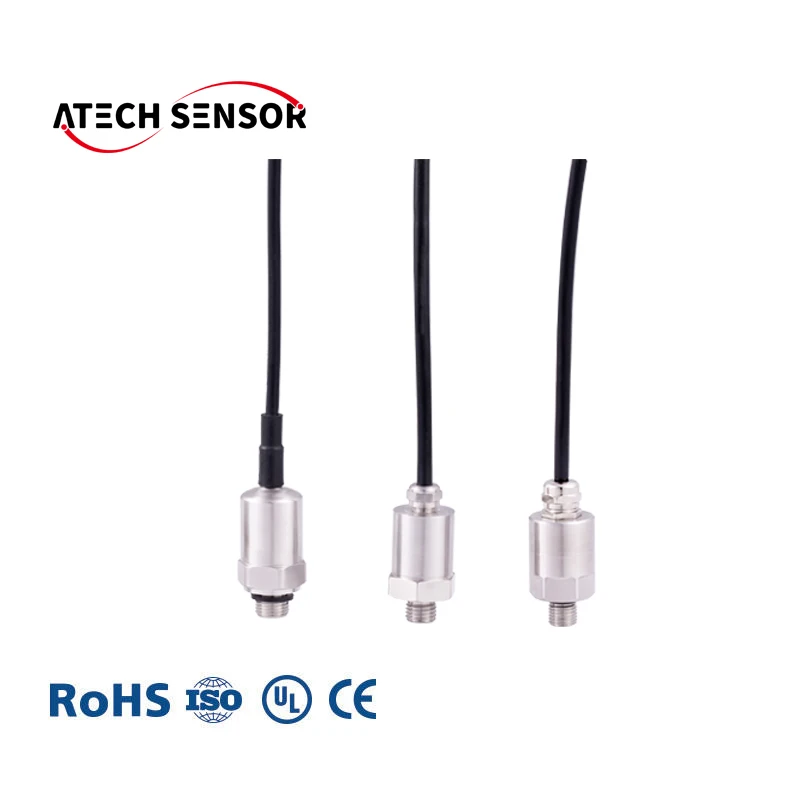

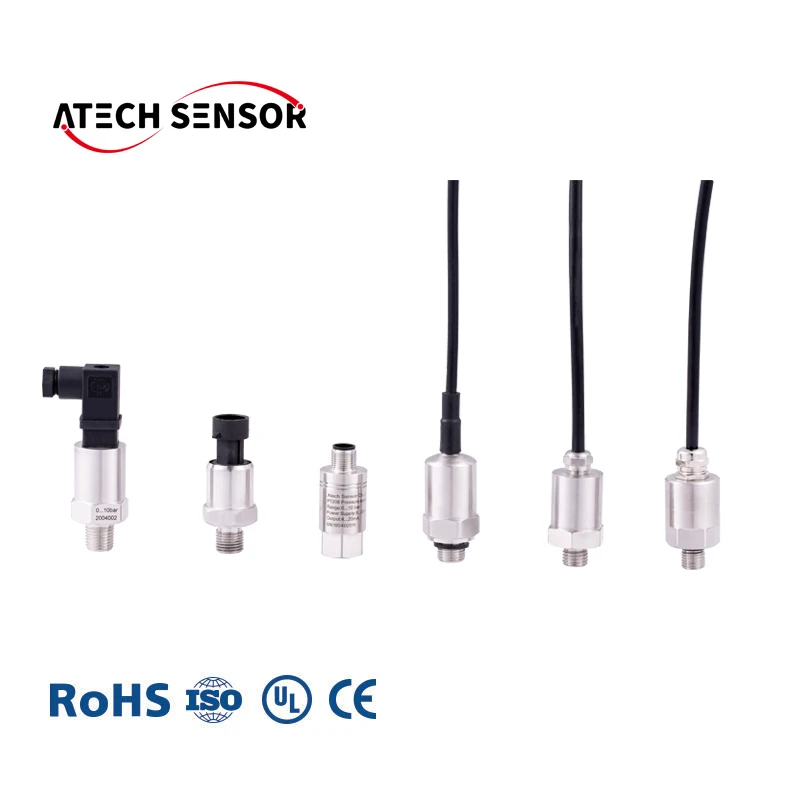

Product display
Product Show
Packaging & Shipping
Company Information
Atech sensor co,. Ltd. specializes in sensor production and sales. The main products includes pressure sensor and transmitter, Level transmitter, water level sensor, pressure gauge, melt pressure transmitter, temperture sensor,pressure tranducer ,oil pressure sensor,Explosion proof pressure transducer, low-pressure transducer,Commerical Marine pressure transducer,Fuel pressure & Fuel tank pressure sensor,Liquid pressure sensor, ultrasonic level sensor, pressure sensensor chip, load cell,ect.
As manufacturer, based on technology innovation, good production capacity and strict quality control, we can meet different customers' OEM and ODM demands.
As a manufacturer and exporter, we provide the best products with our rich experience and perfessional technoloty for our customers.
Application
FAQ
1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18month
5.Q: How can I visit your factory?
-- Fly to Xian Yang air port, it’s our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.
