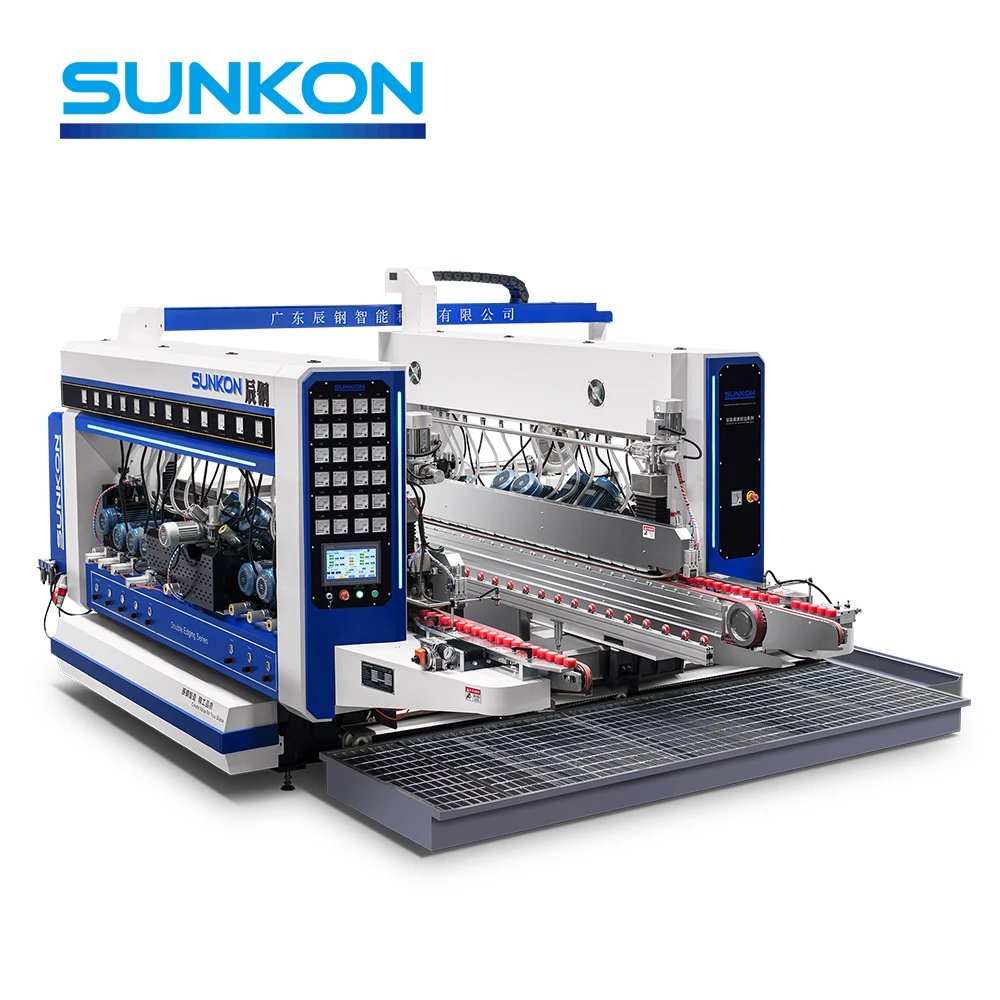

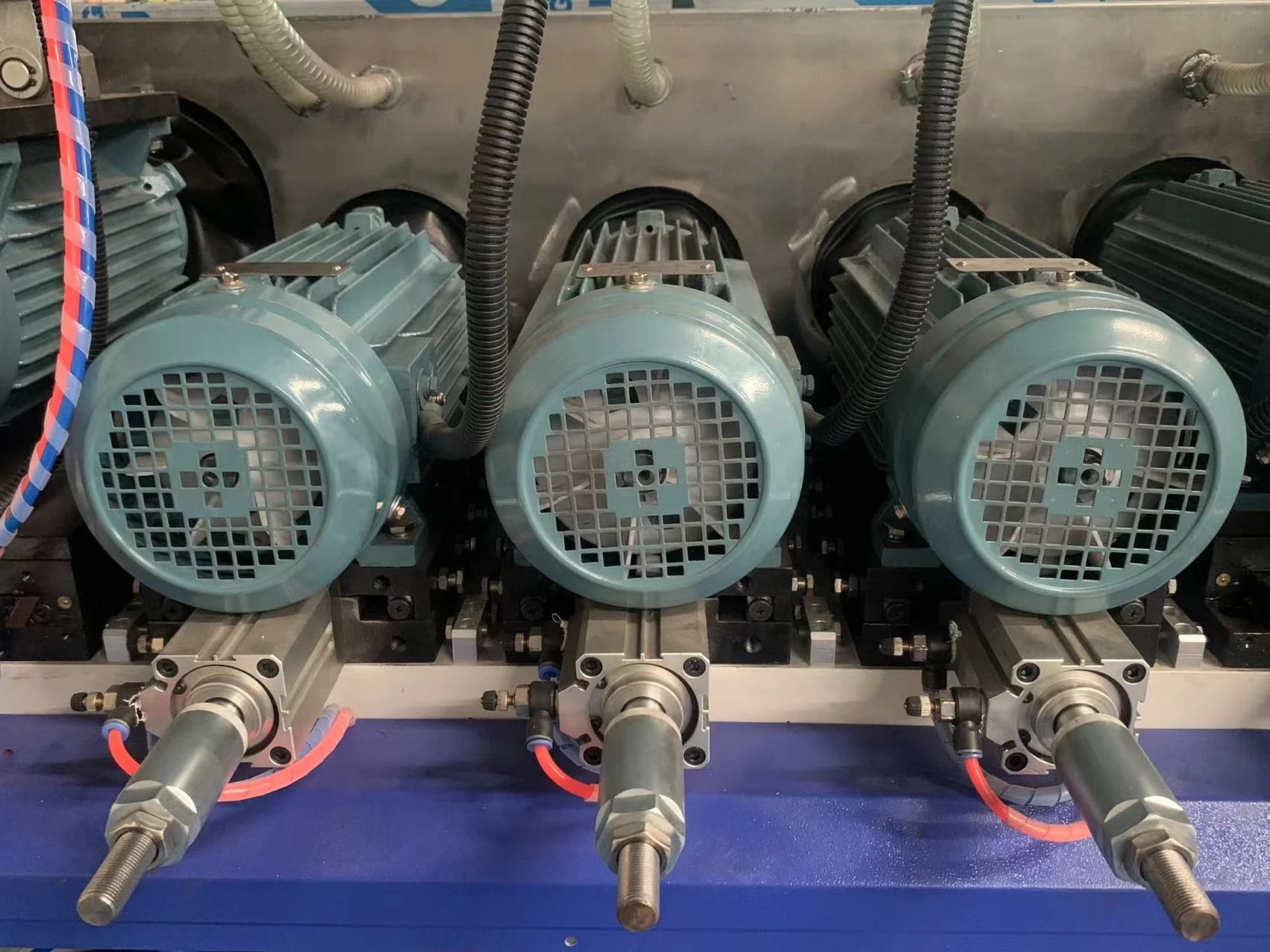

CGSZ2042 Plc Control Straight Line Glass Double Edging Machine With 20 Motors intelligent glass double edger China glass edger
- Category: >>>
- Supplier: Cgtech Glass Machinery Co. Ltd.
Share on (1600910692587):
Product Overview
Description
Product Catalog
Technical specification
Model No.: CGSZ2042
Max. glass width: 4200 mm
Max. glass width: 4200 mm
Min. glass size: 350*350 mm
Max. transmit speed: 12 m/min.
Max. open and close: 5 m/min.
Glass thickness: 3-25 mm
No. of spindles: 20
Total power: 50 KW
Air pressure: 0.6-0.8 Mpa
Working table (H): 920±30 mm
Glass double edging machine is an economic, efficient, practical and reliable product, which is researched & developed independently by SUNKON. Suitable for furniture, construction and other type of flat glass processing.

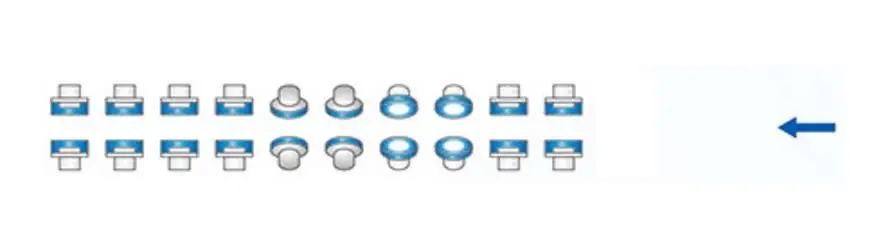

1.The double parallel straight lines’ bottom and arris of glass can be processed at one time by rough, fine grinding and pneumatic polishing.

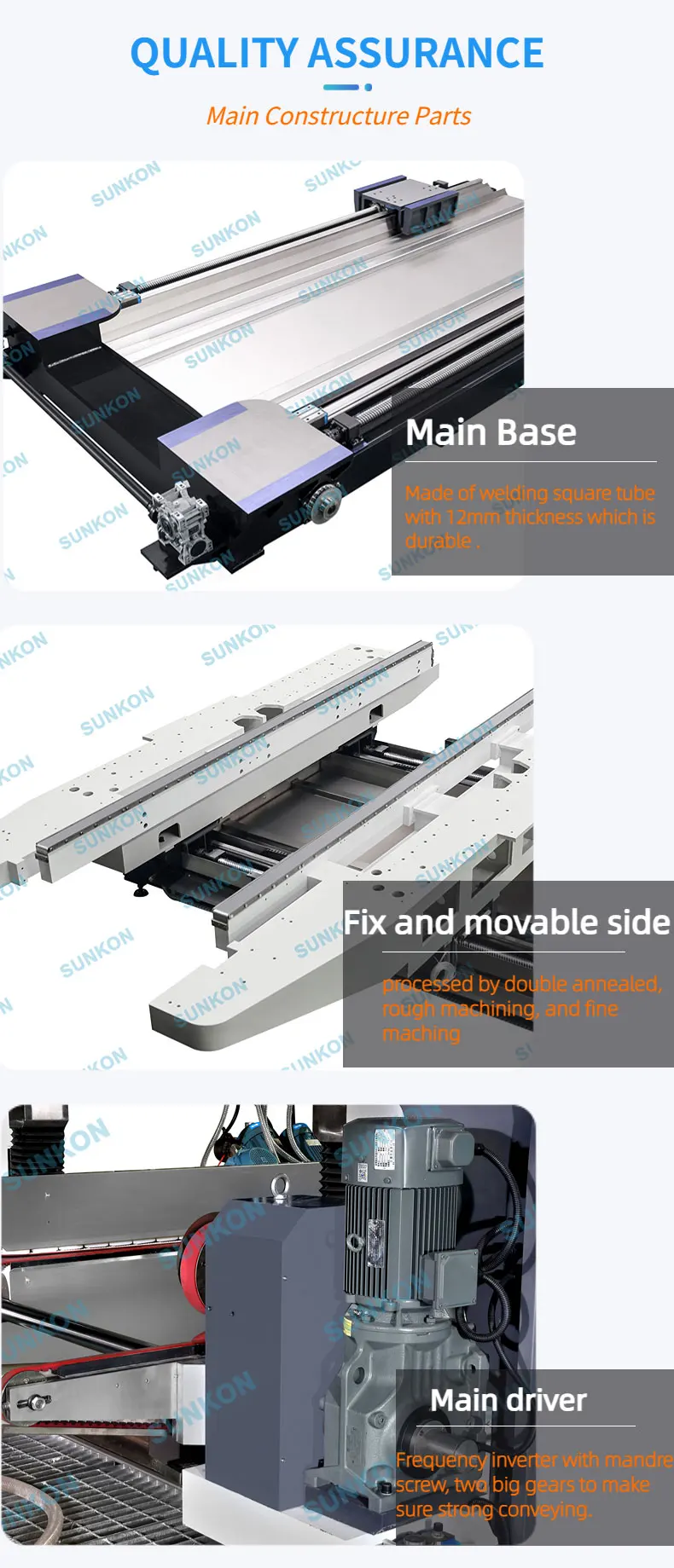

2.The glass double edger installed with excellent linear guide and screw mandrels which ensures the processing precision. Bracket of movable side system is W frame design, which increases the accuracy of movements and the degree of stability; also it can extend the life time of the linear rack.
1.The double parallel straight lines’ bottom and arris of glass can be processed at one time by rough, fine grinding and pneumatic polishing.
2.The glass double edger installed with excellent linear guide and screw mandrels which ensures the processing precision. Bracket of movable side system is W frame design, which increases the accuracy of movements and the degree of stability; also it can extend the life time of the linear rack.
3.Double edgers adopts all-in-one structure for machine and circuit box is good for waterproof, space saving and convenient for operation. The main body adopts cast iron with annealing treatment.

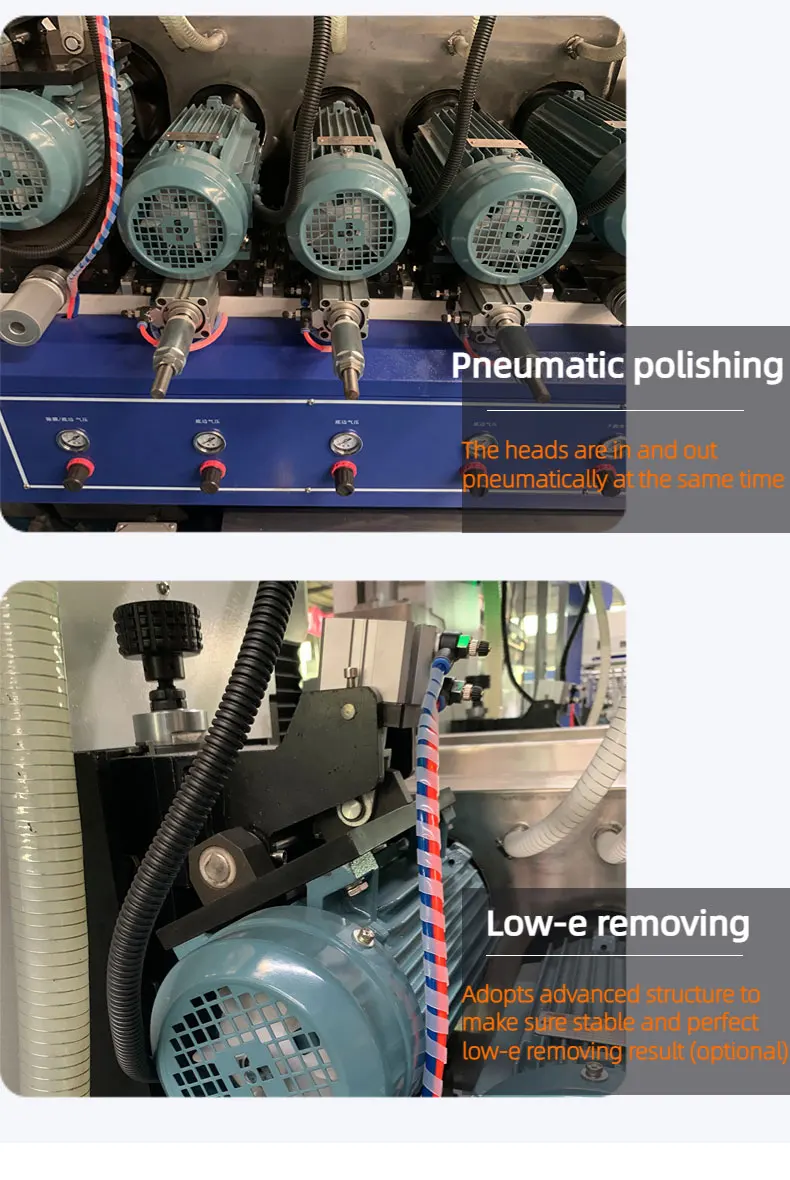

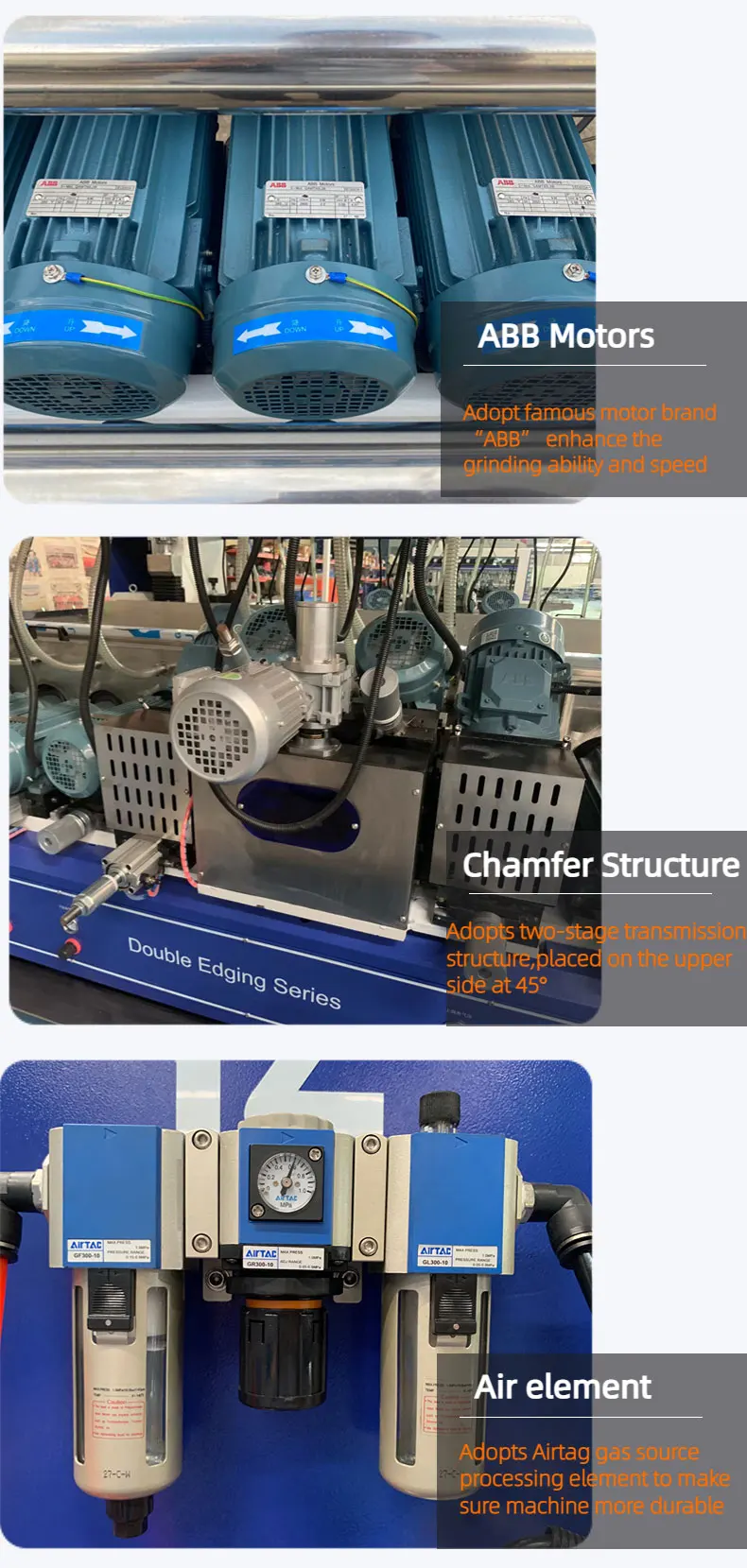

4.The improved pneumatic polishing uses the high precision linear guide rail for guiding and this structure can make polishing more stable and reliable, as well as to save the grinding wheel effectively.
5.Position corrected device has been added on the machine, which solves the deviate problem of small glass, and truly realize intelligent operation of connected machines when transferring glass.
6.Lifting distance of upper press beam is large for replacing wheels easily.
Company Profile
Details Images
Products Show
Exhibition
Certifications
FAQ
Q1: What's the delivery time ?
A: glass double edging machine --- about 30 working days ;
glass double edging production line ---50-60 working days .
Q2: What's the payment term ?
A: T/T would be better with quick transfer and few bank fee.
Q3: How do I order a product that works for me?
A: We recommend that you consult with our sales manager before ordering and inform customer service of glass size, number of spindles and other information.
Q4: Can you provide designers to help design with my plant layout?
A: Yes, we can provide you with a technical engineer to complete your solution. Please send us pictures or related scheme sketches on the Internet.
Q5: Can I produce if I want a different configuration?
A: We are manufacturers and fully support customization! Customers who require customization will check the details with our sales staff in advance to avoid deviations and errors!
