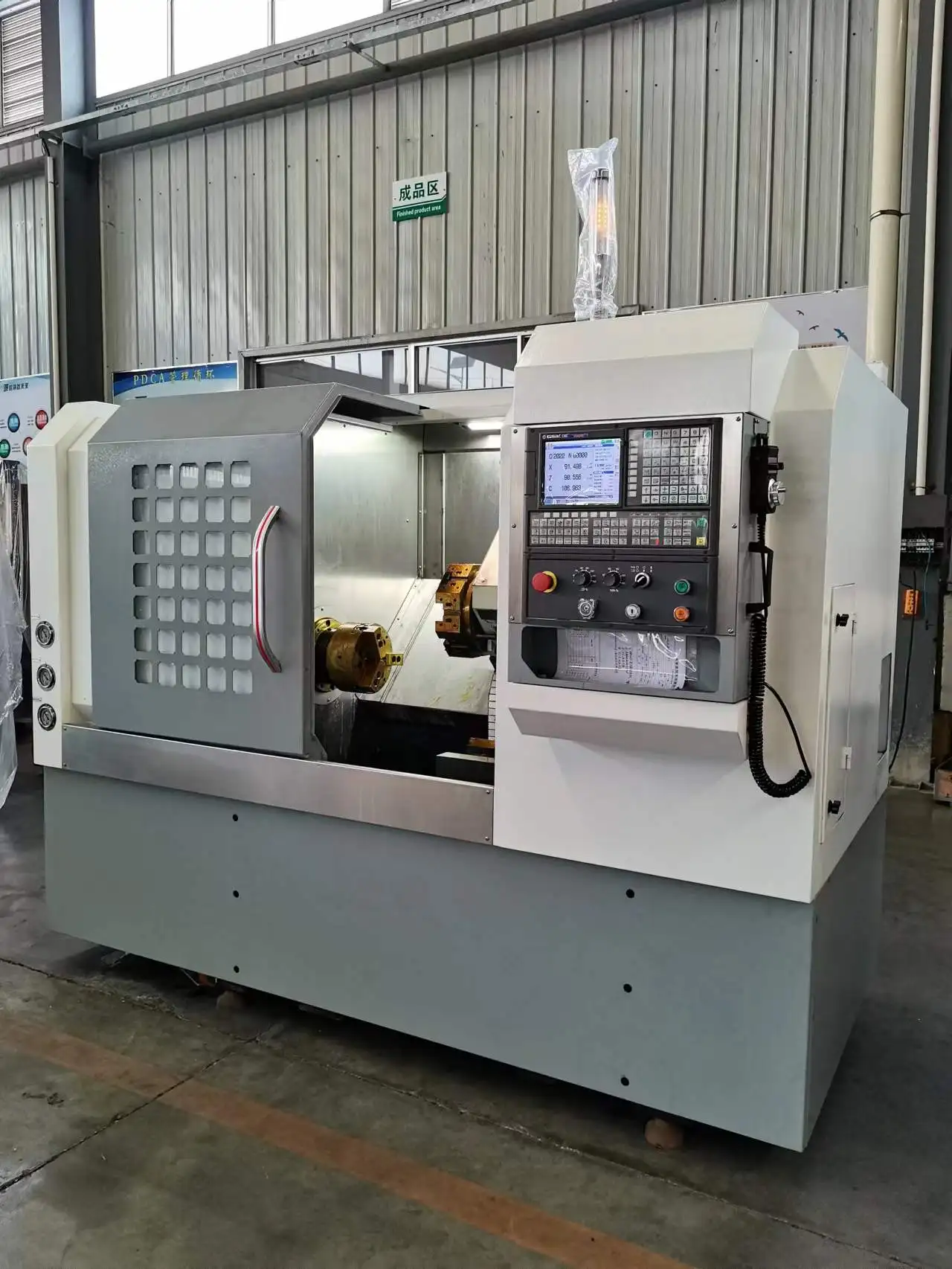

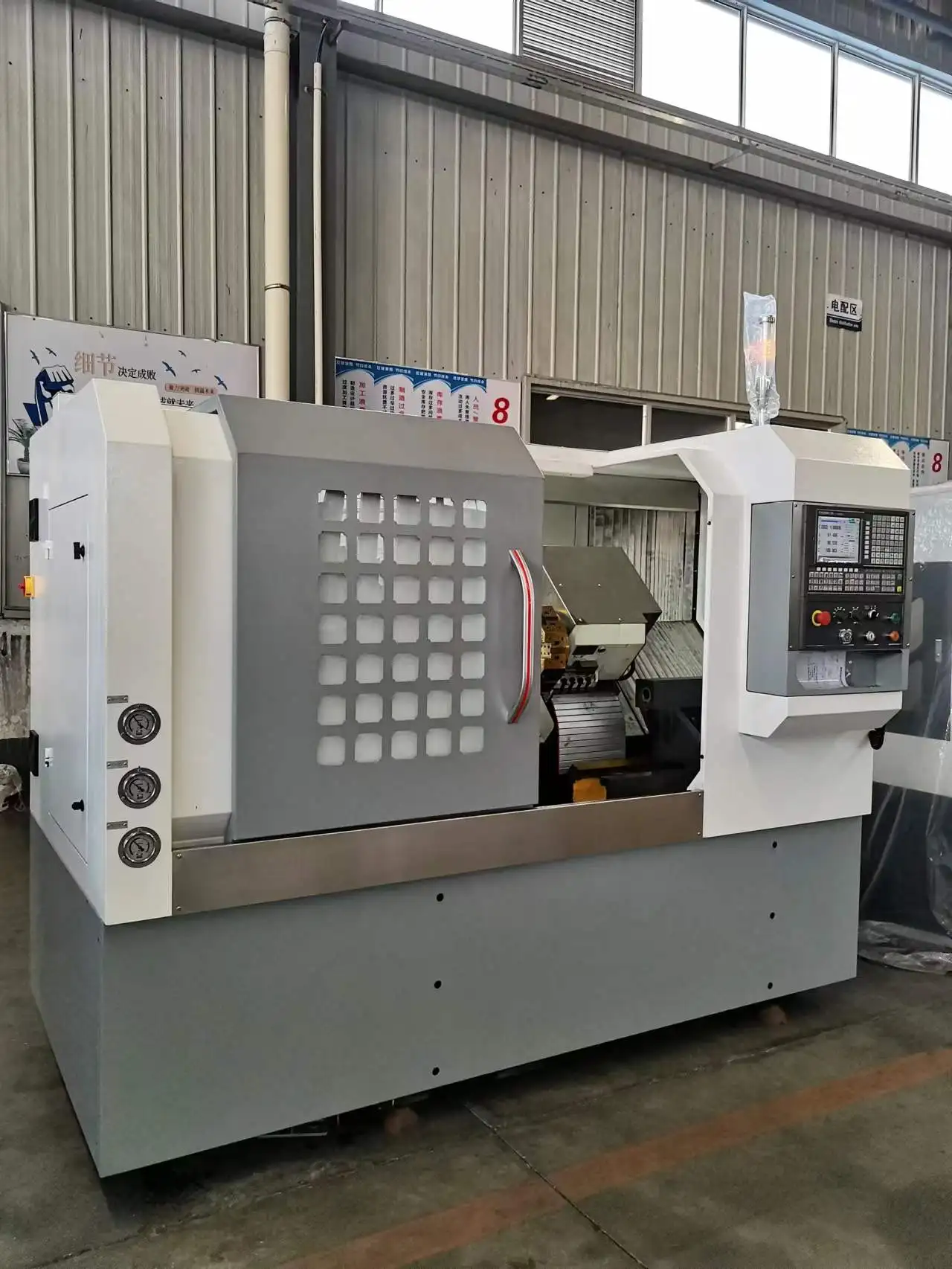

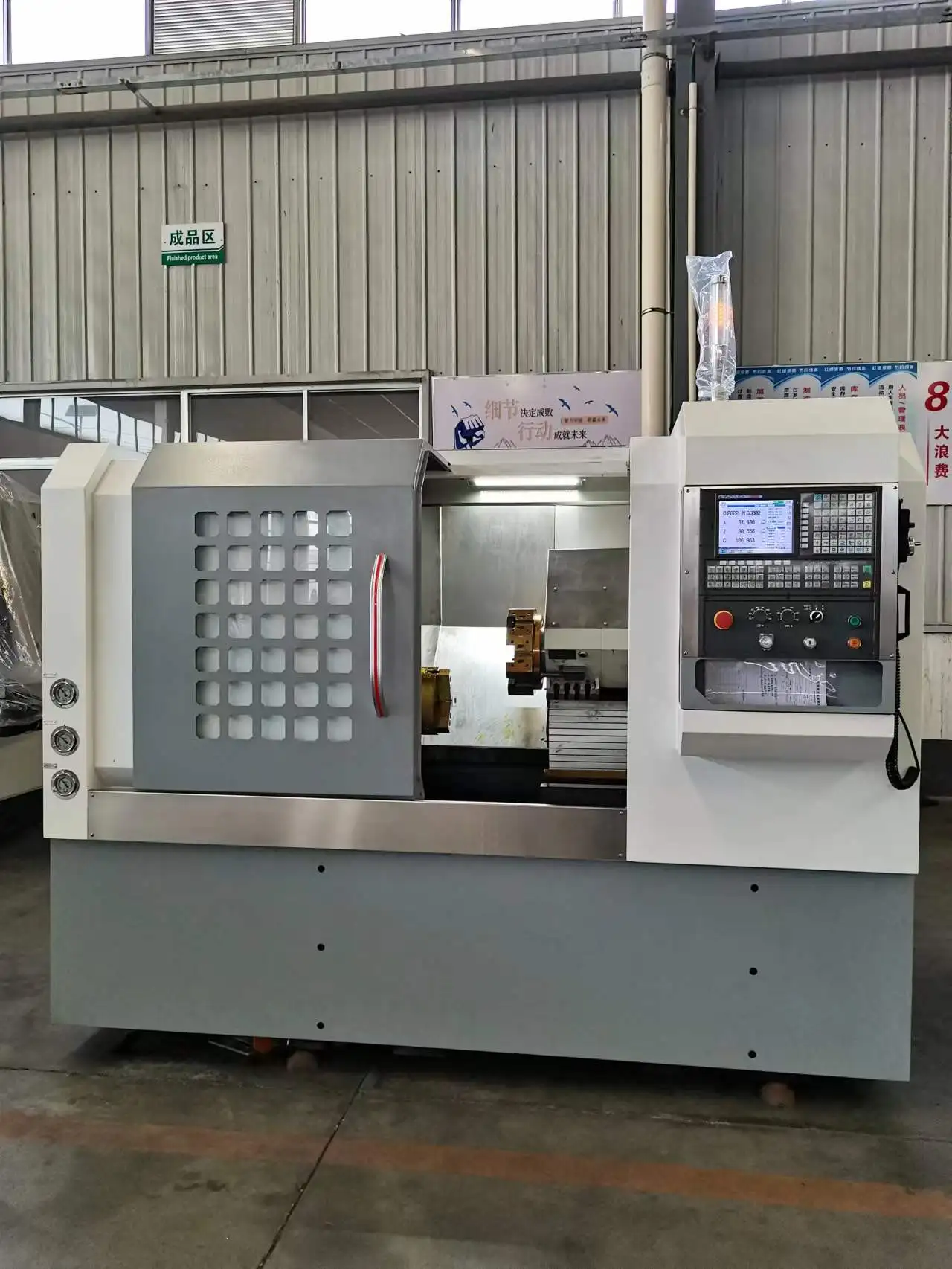

CKM6640 cnc lathe machine slant bed high precision
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (1600910767710):
Product Overview
Description
Slant bed CNC Lathe CKM6640 Quotation

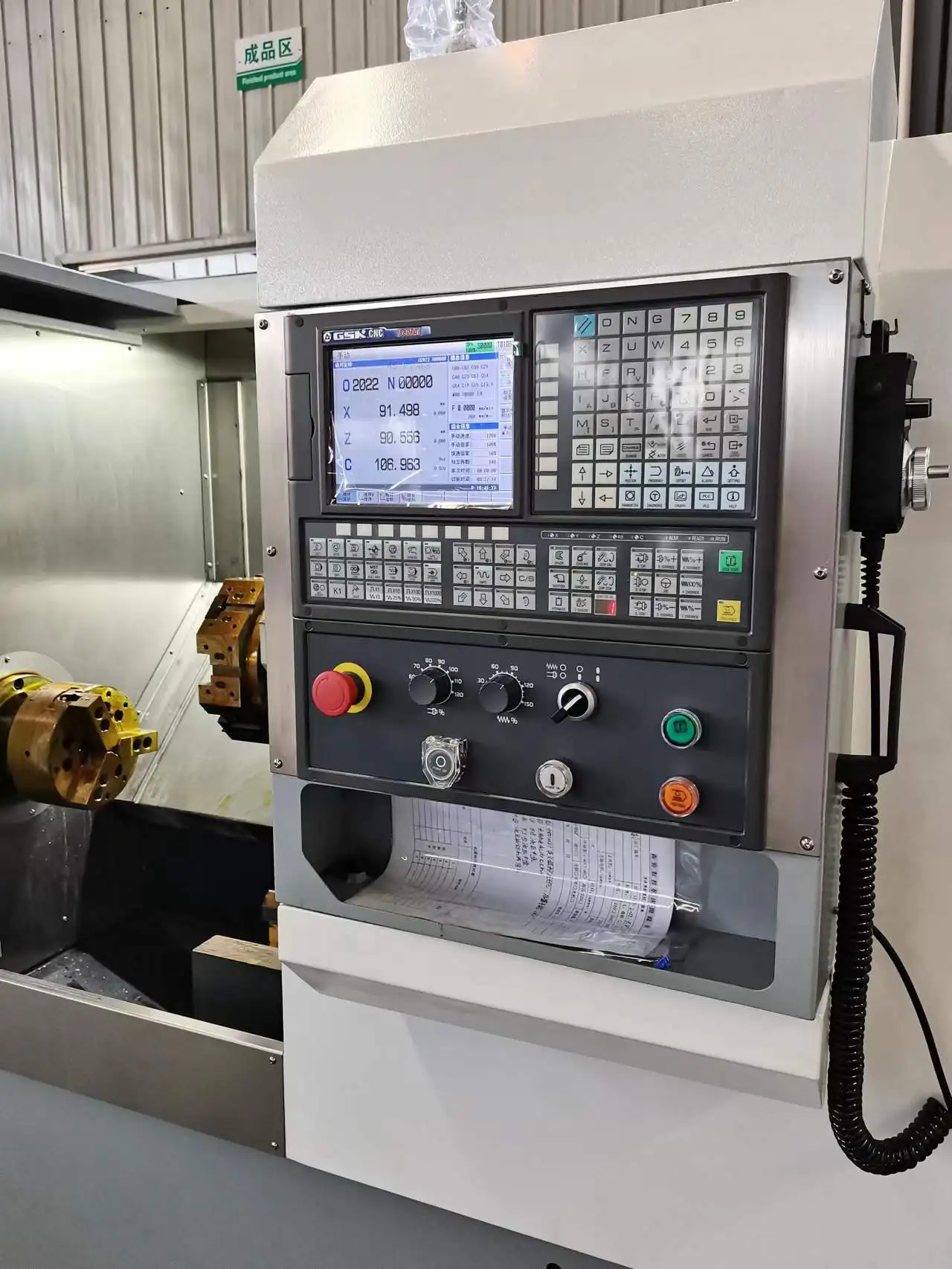

GSK980 TDI SYSTEM | Above price includes 1. 5.5 kw SERVO TYPE main motor 2. Taiwan HIWIN linear guide 3. Taiwan HIWIN ball screw 4. 8 station hydraulic turret 5. 8” thru-hole Hydraulic chuck 7. coolant system including coolant pump, sump piping & fitting etc 8.advanced LED lighten system 9. Three color warning light 10. Full cover--good water-proof, dust-proof, oil-proof 11. mechanical and electrical user manual, control system operating manual, electrical drawing etc 12. spare parts free of cost with machine will be shown in the following table. 13. Power:380-400v, 3 phases, 50hz. If need transformer, pay additionally. 14. Hydraulic tail stock |
CNC Lathe CKM6640 specification
Guide way type |
| Taiwan /HIWIN or PMI brand higher accuracy linear guide |
Slant bed | degrees | 45 |
Max. swing over bed | mm | 400 |
Max. swing over cross slide | mm | 300 |
Max. processing length | mm | 500 |
X/Z axis travel | mm | 260/700 |
Spindle nose |
| A2-5 |
Spindle bore | mm | Φ56 |
Max. Diameter of the bar | mm | Φ45 |
Spindle speed | rpm | 5000 |
Work piece clamping type |
| 8” Hydraulic chuck |
Spindle motor power | kw | 5.5 |
X/Z axis motor torque | N.m | 7.5/7.5 |
X/Z repeat-ability | mm | +/-0.003 |
Tool post type |
| 8 position hydraulic turret 80-8T |
Hydraulic tail stock sleeve diameter | mm | 70 |
Hydraulic tail stock sleeve travel | mm | 80 |
Hydraulic tail stock sleeve taper |
| MT4# |
Hydraulic tail stock travel | mm | 200 |
X/Z ball screw specification |
| 3210/3210 |
Machine dimension (L*W*H) | mm | 2500*1300*1710 |
N.W. | kg | 2600 |
