Tobee Effluent Handling
$12,600

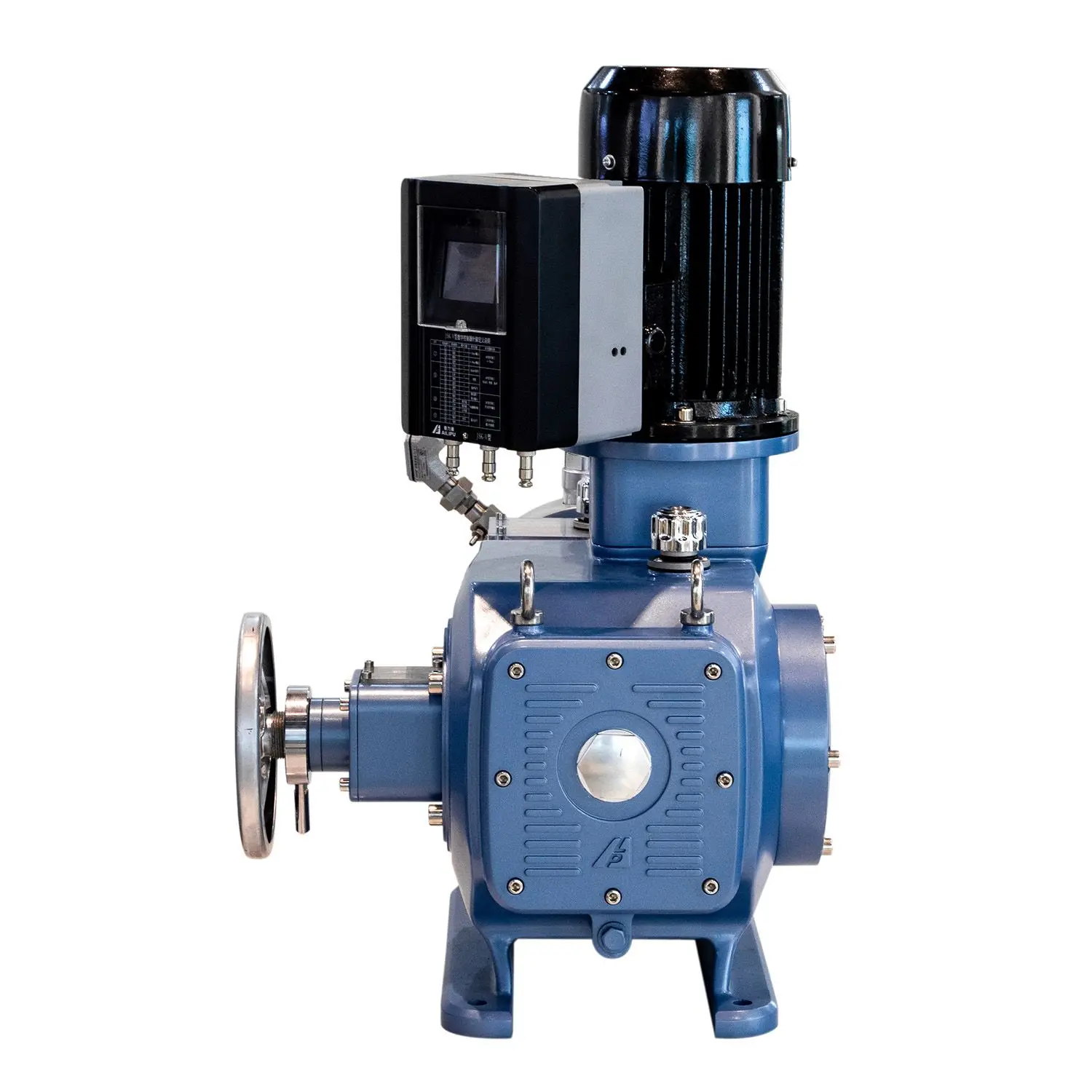

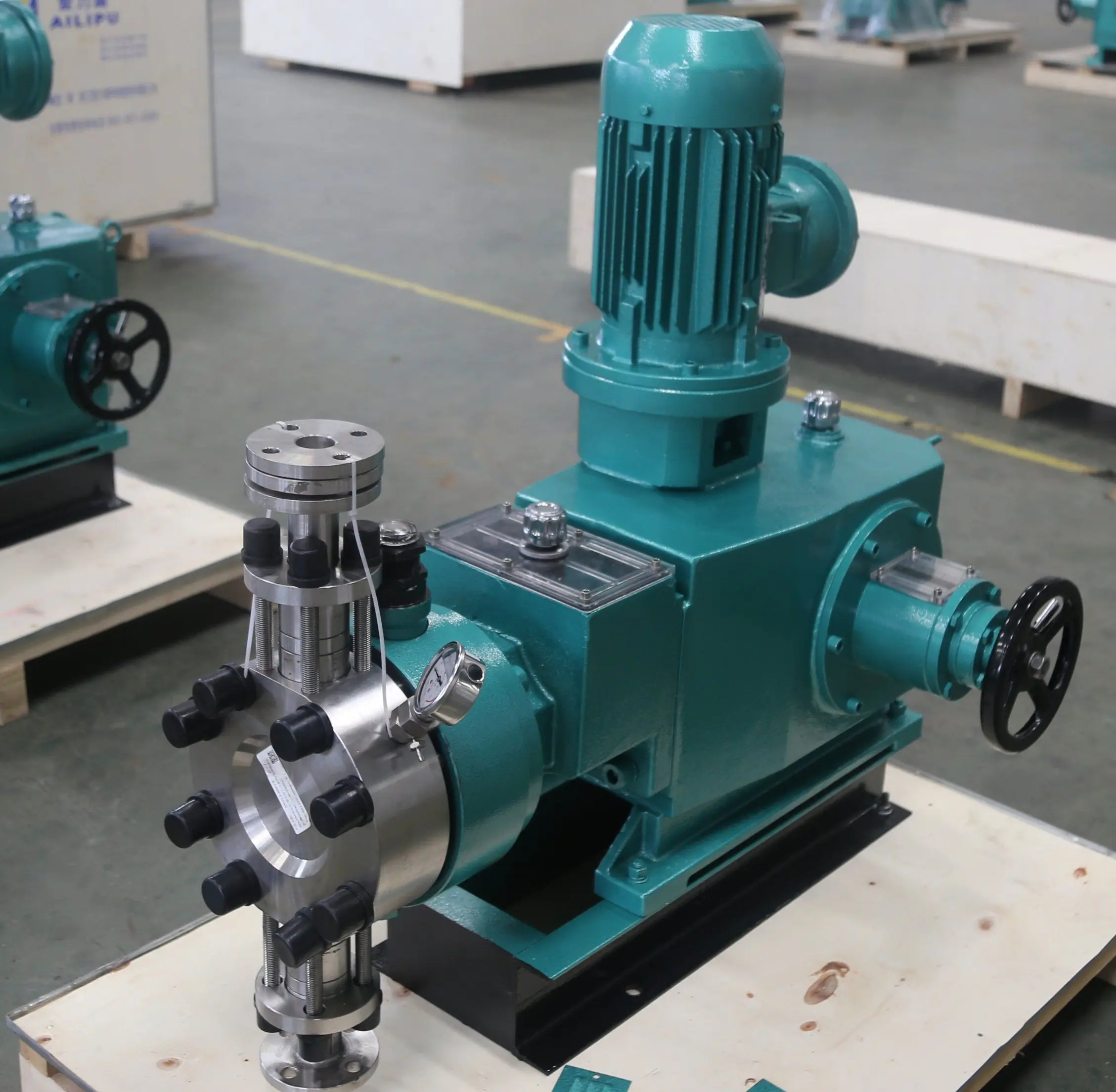

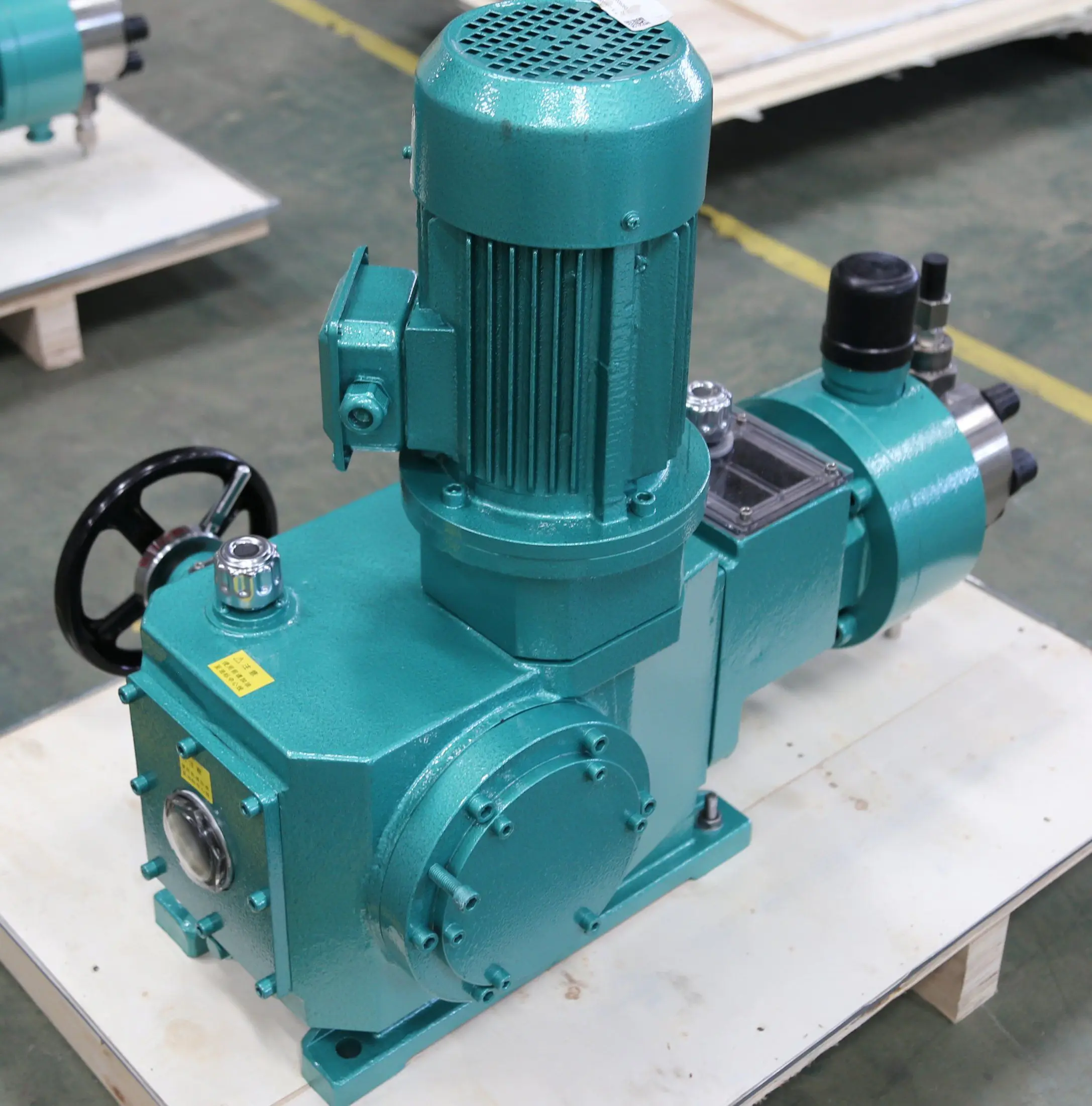

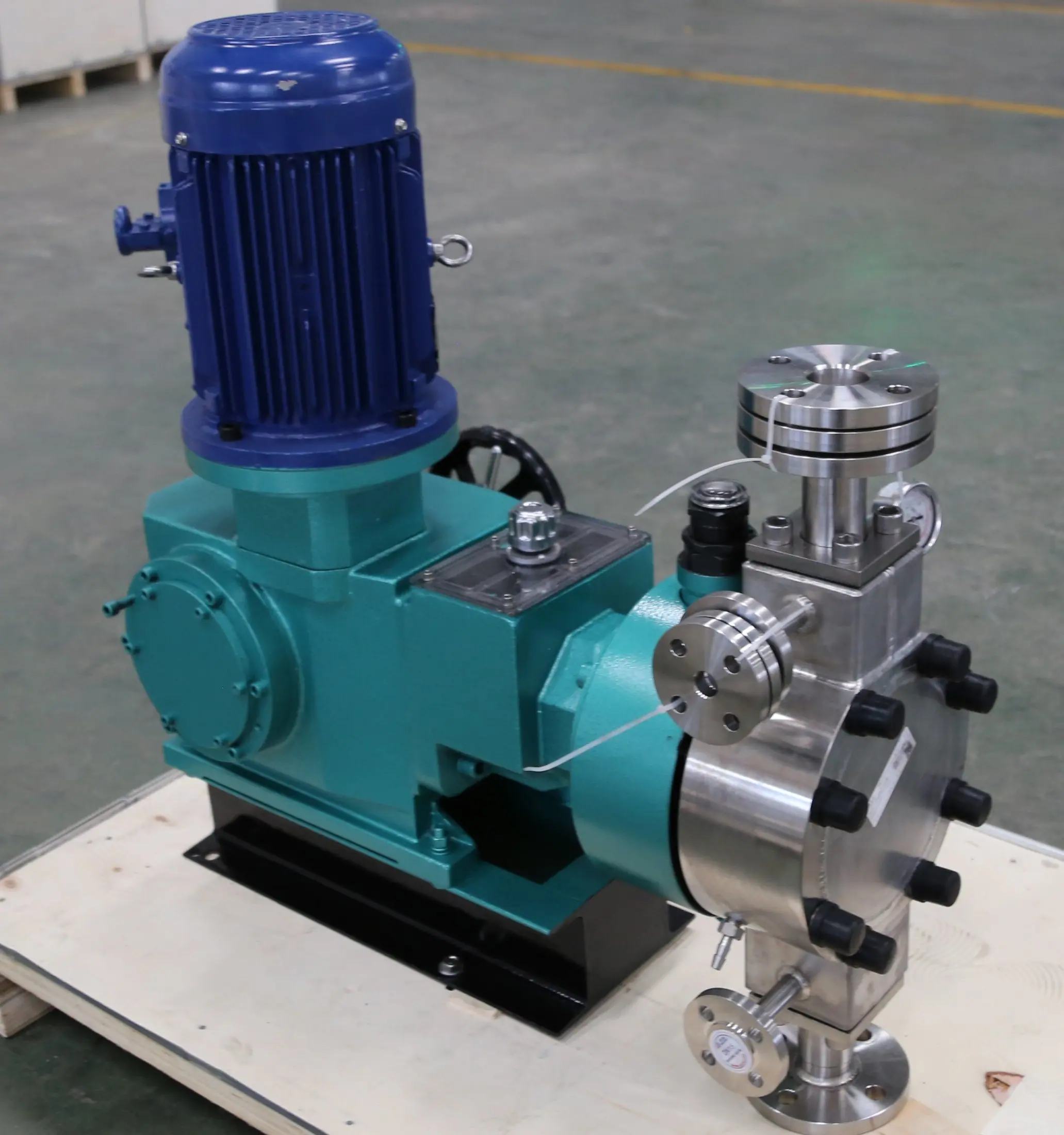

Electric Hydraulic Pump Chemical Dosing System Acid and Base Dosing Pump Vertical Pump
- Category: >>>
- Supplier: Zhejiang Ailipu Technology Co. Ltd.
Share on (1600910776091):
Product Overview
Description

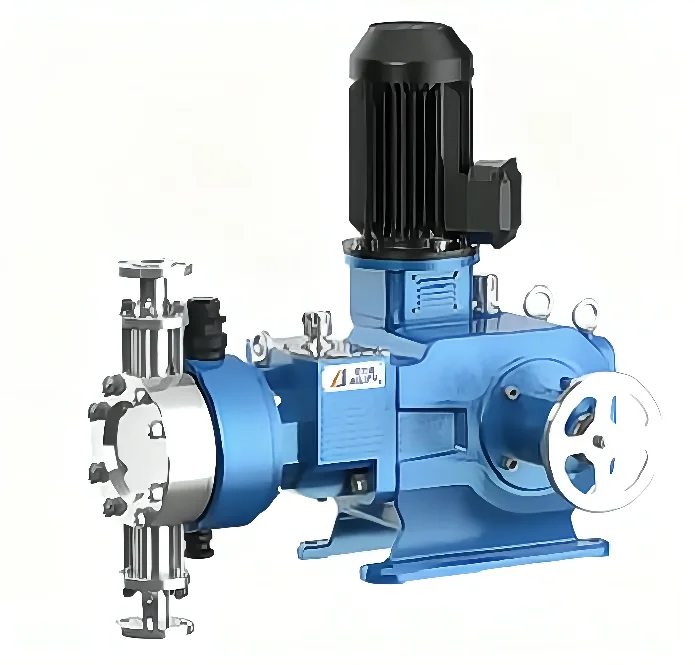

Product Show
Products Description
Trademark | AILIPU |
Pump Head Material | PVC/PVDF/SS304/SS316/material can be customized |
Key Selling Points | Reliable performance/High operating safety/High efficiency & Accurate measurement |
Application | Agricultural/Chemical/Oil&Gas/Power generation/Pulp & paper/Textiles/Water treatment/ Wastewater treatment/Cooling towers/General industry, etc |
Feature | Simple maintenance /Corrosion resistant/ Economical & Practical |
Certification | CE/ISO9001:2008 /ISO45001:2018 /ISO14001:2015 |
Production Capacity | 5000 PCS/ Month |
Hydraulic metering pump has the characteristics of non-leakage, which can transport flammable combustible
crystallizable, volatile , radioactive, toxic, suspension and expensive liquid. Especially for diaphragm metering
pump which contains alarm device, able to send an alarm within 2 seconds in case of diaphragm rupture, thus
guaranteeing the safety of operators and specific operation.
Application
It can be applied in a wide range from the general water of normal temperature to some liquid which are strong corrosive, volatile, vrystalized, combustible, and explosive, extremely toxic, foul-smelling, moderately viscous, radioactive and other valuable liquid. Meanwhile, it can also transfer some suspending liquid. In order to prevent the accidents caused by the mix of the media and hydraulic oil, or in terms of some liquid which are combustible, explosive, toxic and valuable, the double diaphragm hydraulic metering pumps with the alarm functions for the repture of diaphragms can be applied.
Feature
* No dynamic seal, no leakage and easy maintenance
* The working pressure can be up to 40MPa; the measurement accuracy can be up to +/- 1%; the capacity range of the simplex pump: 12L/H - 1800L/H
* The control of the capacity flow is by adjusting of the length of the stroke and the frequency conversion; meanwhile, the remote automatic control can be available when there is the stroke controller or the frequency changer installed.
* The working temperature of the medium should neither exceed 120ºC nor below -30ºC; otherwise it wil influence the life of the diaphragm
* The new three-valve structure and the application of limit oil compensating mechanism not only ensure the fullness of hydraulic oil in the hydraulic working chamber but also avoid filling oil excessively and prevent hydraulic shock so that make the both sides of the diaphragm have balanced force and increase the working life of the diaphragm to more than 8000H.
crystallizable, volatile , radioactive, toxic, suspension and expensive liquid. Especially for diaphragm metering
pump which contains alarm device, able to send an alarm within 2 seconds in case of diaphragm rupture, thus
guaranteeing the safety of operators and specific operation.
Application
It can be applied in a wide range from the general water of normal temperature to some liquid which are strong corrosive, volatile, vrystalized, combustible, and explosive, extremely toxic, foul-smelling, moderately viscous, radioactive and other valuable liquid. Meanwhile, it can also transfer some suspending liquid. In order to prevent the accidents caused by the mix of the media and hydraulic oil, or in terms of some liquid which are combustible, explosive, toxic and valuable, the double diaphragm hydraulic metering pumps with the alarm functions for the repture of diaphragms can be applied.
Feature
* No dynamic seal, no leakage and easy maintenance
* The working pressure can be up to 40MPa; the measurement accuracy can be up to +/- 1%; the capacity range of the simplex pump: 12L/H - 1800L/H
* The control of the capacity flow is by adjusting of the length of the stroke and the frequency conversion; meanwhile, the remote automatic control can be available when there is the stroke controller or the frequency changer installed.
* The working temperature of the medium should neither exceed 120ºC nor below -30ºC; otherwise it wil influence the life of the diaphragm
* The new three-valve structure and the application of limit oil compensating mechanism not only ensure the fullness of hydraulic oil in the hydraulic working chamber but also avoid filling oil excessively and prevent hydraulic shock so that make the both sides of the diaphragm have balanced force and increase the working life of the diaphragm to more than 8000H.
Technical Date

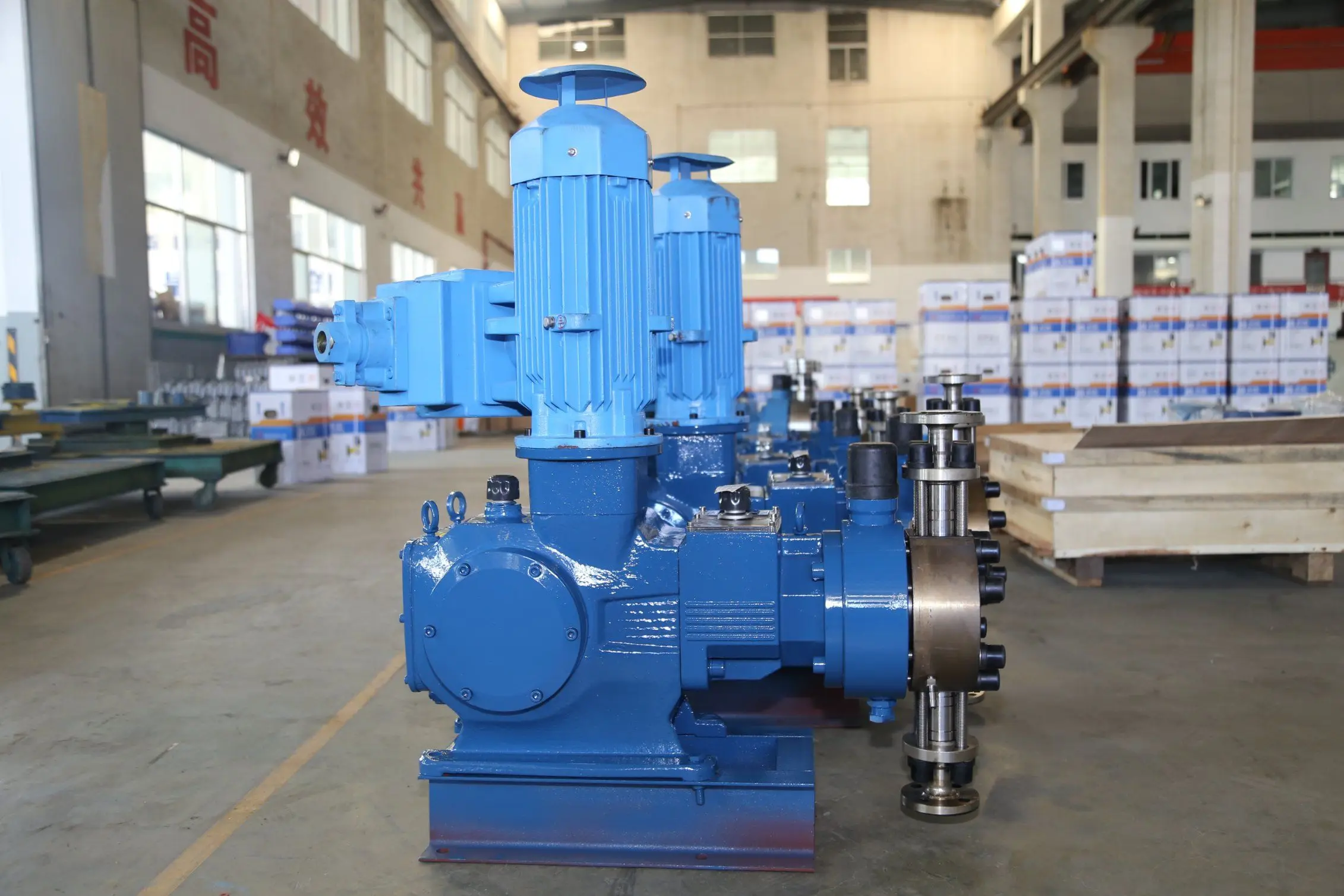

More Products Show
About Us
Zhejiang Ailipu Technology Co.,Ltd. (Stock Code: 430716) was founded in 1997, specializes in metering pumps, process hydraulic diaphragm pumps, and chemical dosing skids. Our products are widely used in Oil &Gas, Chemical,Water Treatment,Power,Nuclear,Mining, Military, Medical, and Food industries, which are exported to the United States, Russia,Japan, South Korea, Brazil, the Middle East, Africa, Western Europe and many other countries and territories.
The company’s registered capital is ¥ 51.315 million, and has more than 380 employees, including more than 120 intermediate and senior engineers. Our R&D team covers machinery, electricity, instrumentation and communication. We have long-term partnership with Tsinghua University, Zhejiang University,and many other well-known institutions.
Our goal is to provide users with the best solution of fluid dosing. We are willing to cooperate with our customers for mutual benefit and common development.
Our company holds more than 100 national patents and gained many awards. The company is China National Nuclear Corporation's qualified supplier and first-class supplier of PetroChina, Sinopec and CNOOC. Ailipu is the drafter of 3 Made in Zhejiang Standarcds:“Electromagnetic Diaphragm Metering Pump” “Plunger Metering Pump” and “Hydraulic Diaphragm Metering Pump”. The company has Manufacture License of Pressure Equipment.
Our goal is to provide users with the best solution of fluid dosing. We are willing to cooperate with our customers for mutual benefit and common development.
