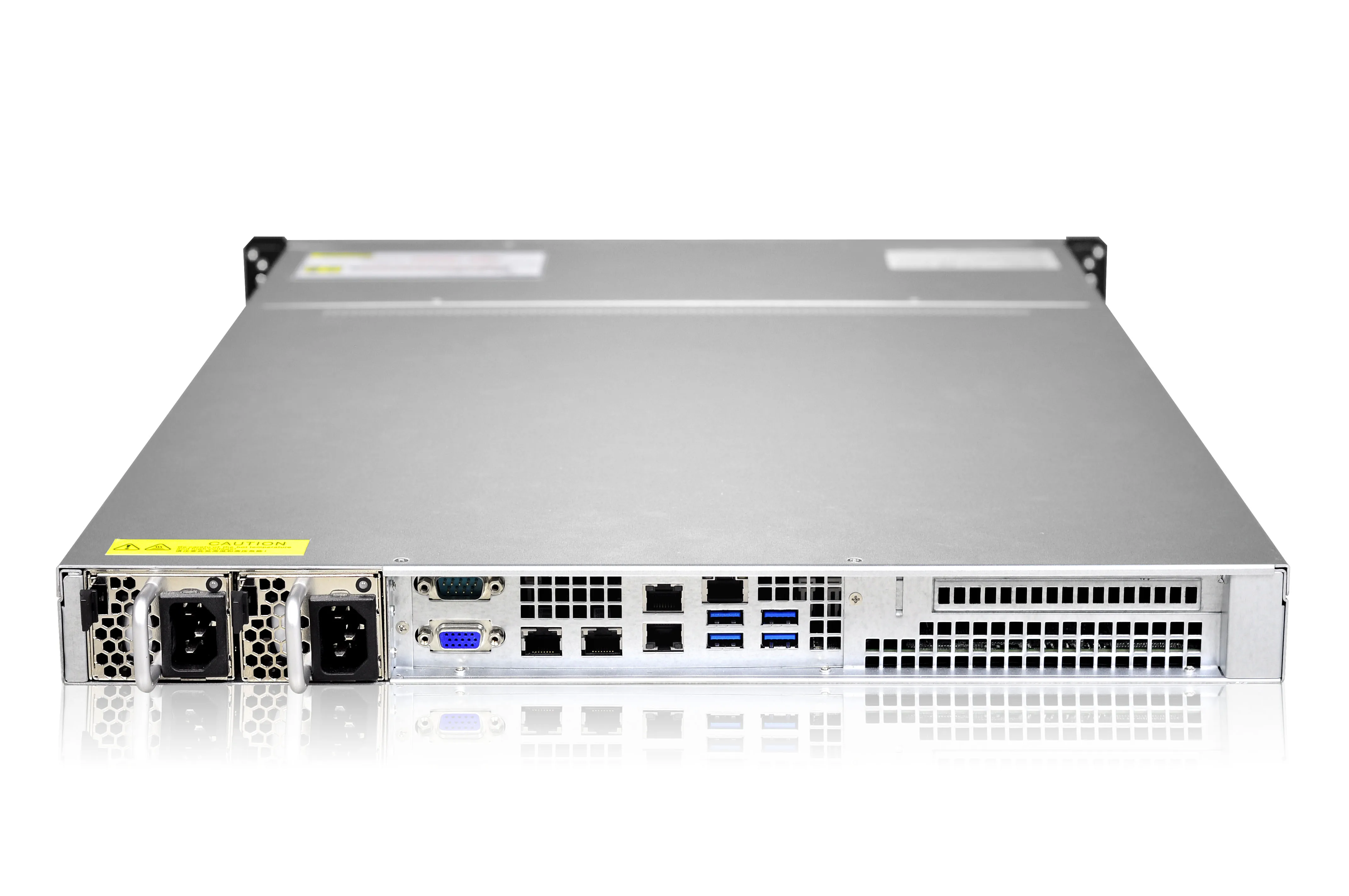

1U4 bays server case rackmount chassis with 670mm depth
1U4 bays server case rackmount chassis with 670mm depth
1U4 bays server case rackmount chassis with 670mm depth
1U4 bays server case rackmount chassis with 670mm depth
1U4 bays server case rackmount chassis with 670mm depth
1U4 bays server case rackmount chassis with 670mm depth
1U4 bays server case rackmount chassis with 670mm depth

1U4 bays server case rackmount chassis with 670mm depth

Share on (1600910967674):


Price:

Quantity:


Product Overview

Description



Video Description




Product Description

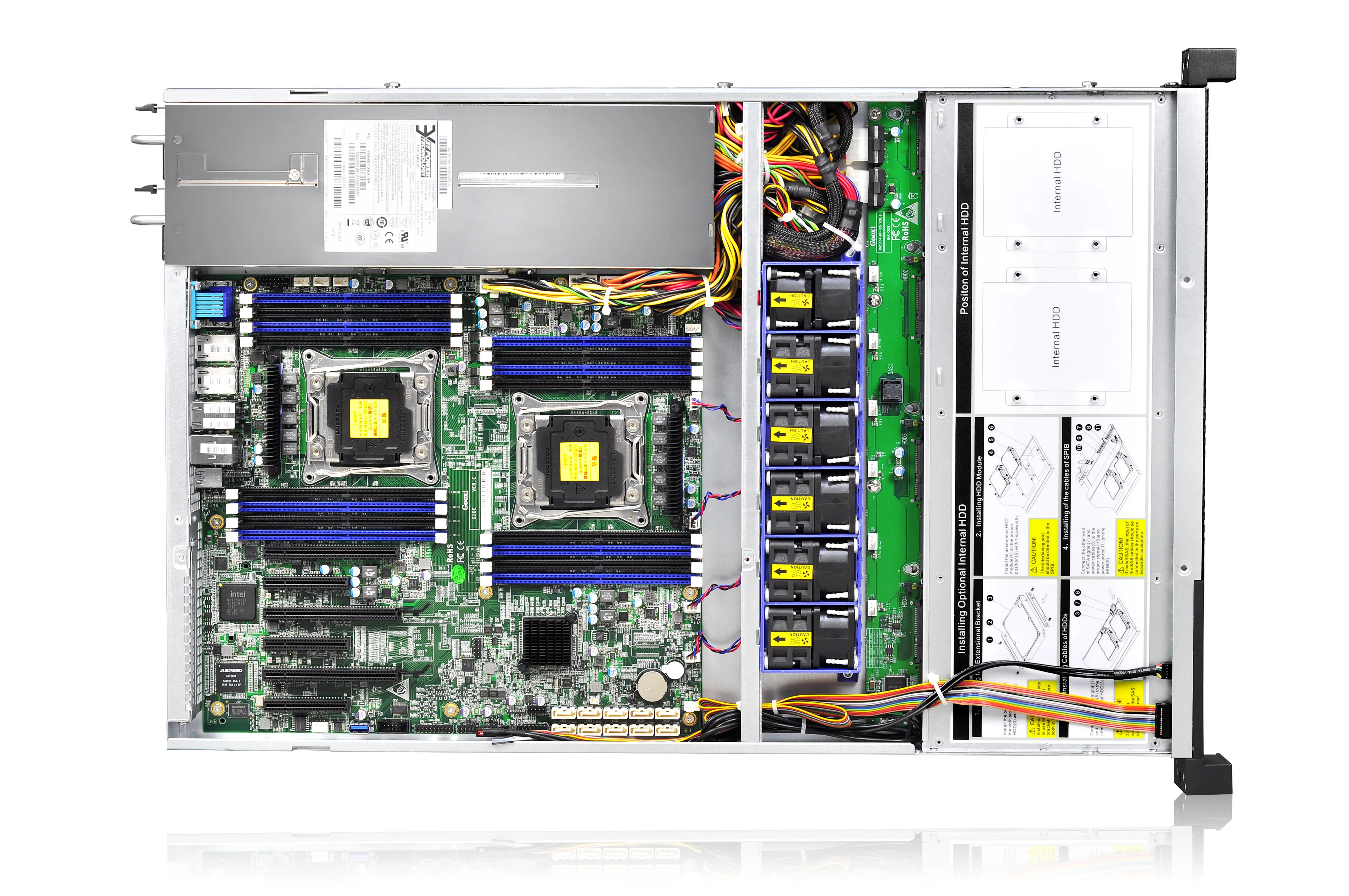

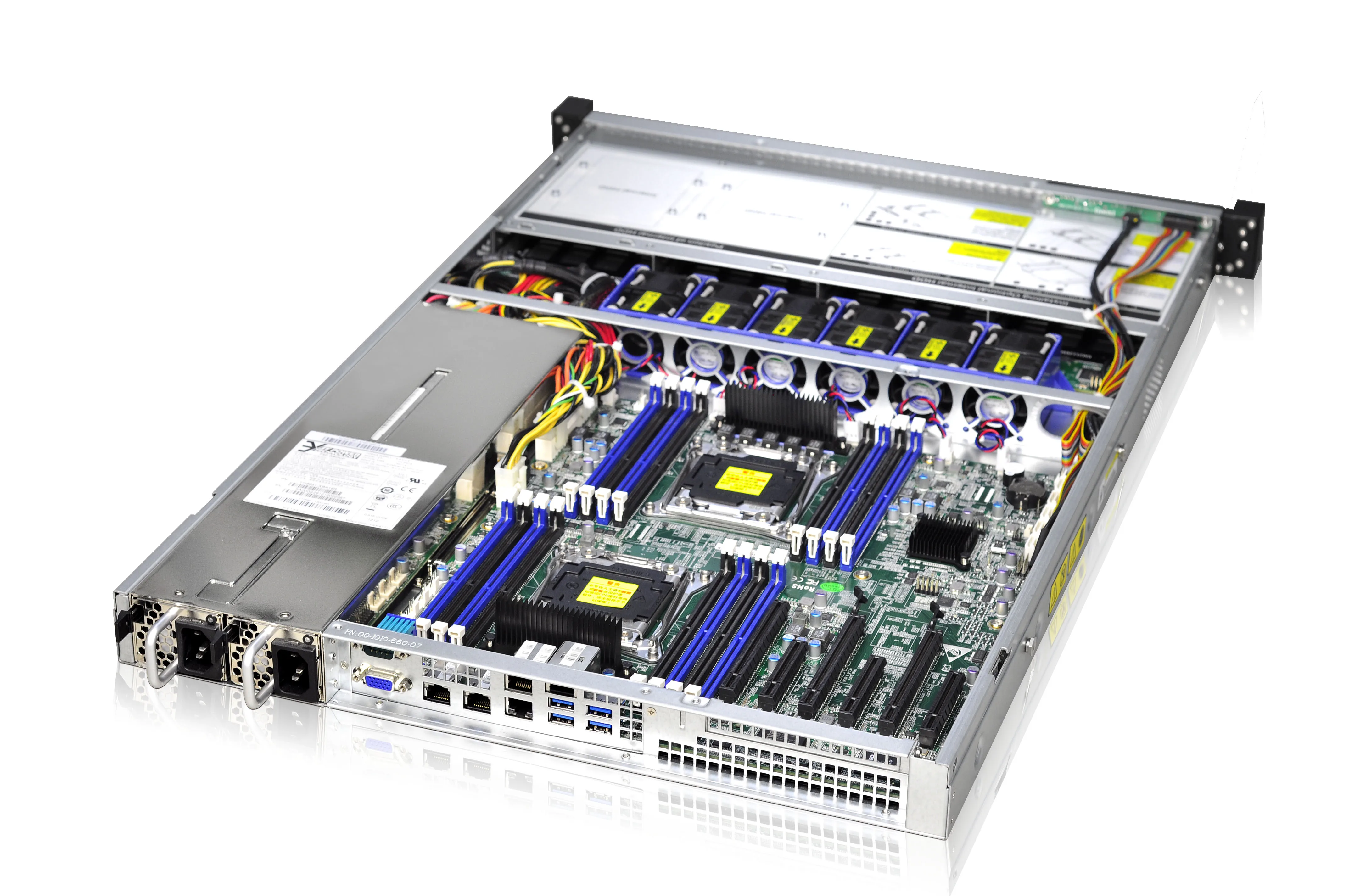

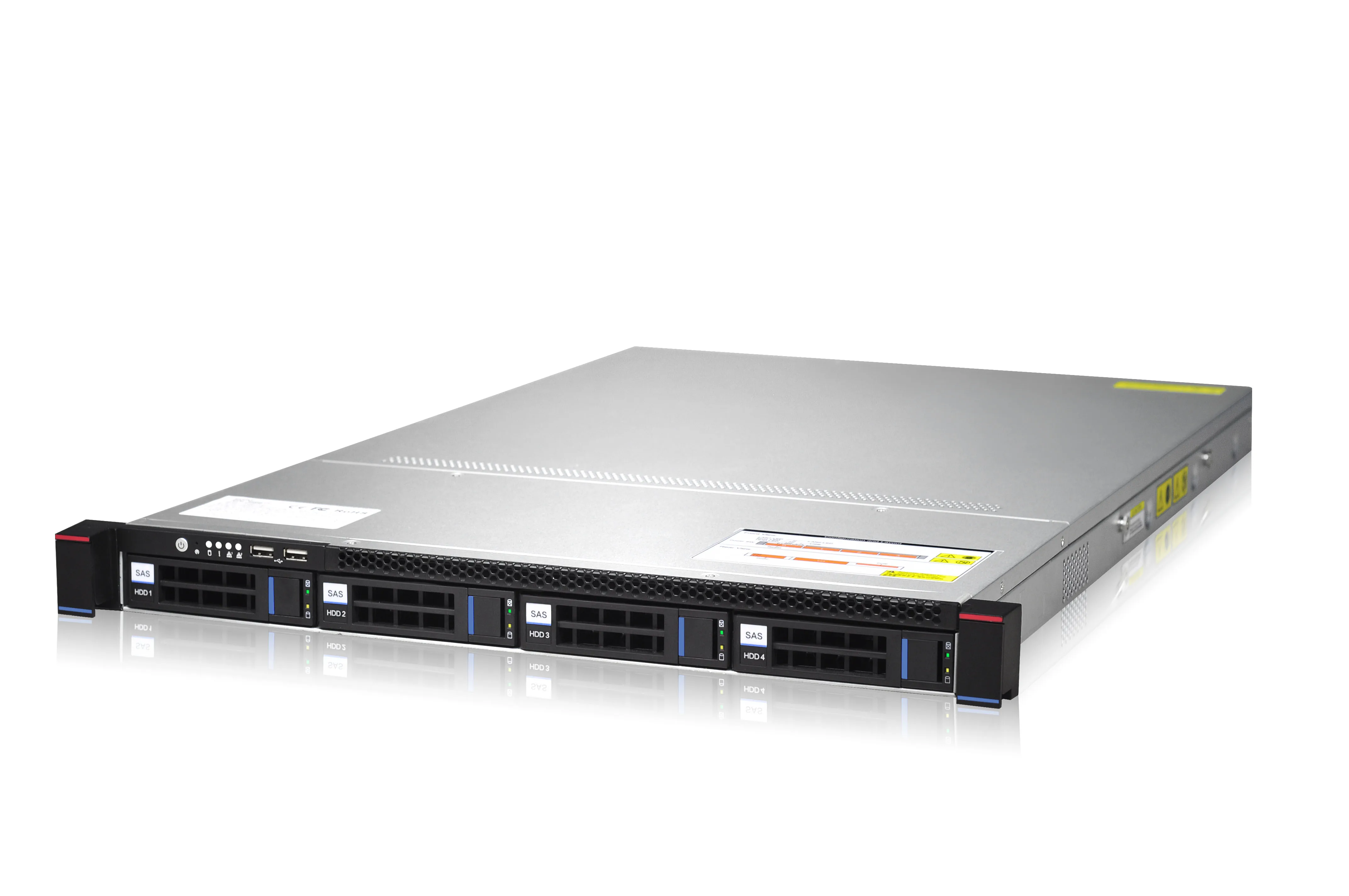

* 1U Rackmount server chassis series with 670mm depth
* Serverboard support up to standard EEB 12"x13", backward supports to CEB and below
* Supports 1x full-height full-length PCIe cards
* Front 4x3.5" hot-swap HDDs (2.5" HDD compatible) and 2x2.5" internal HDDs
* High-performance 4x 4028 cooling fans with anti-vibration mechanism and optional up to 6x 4056 middle fans
* Smart system fan controlled by intelligent temperature management

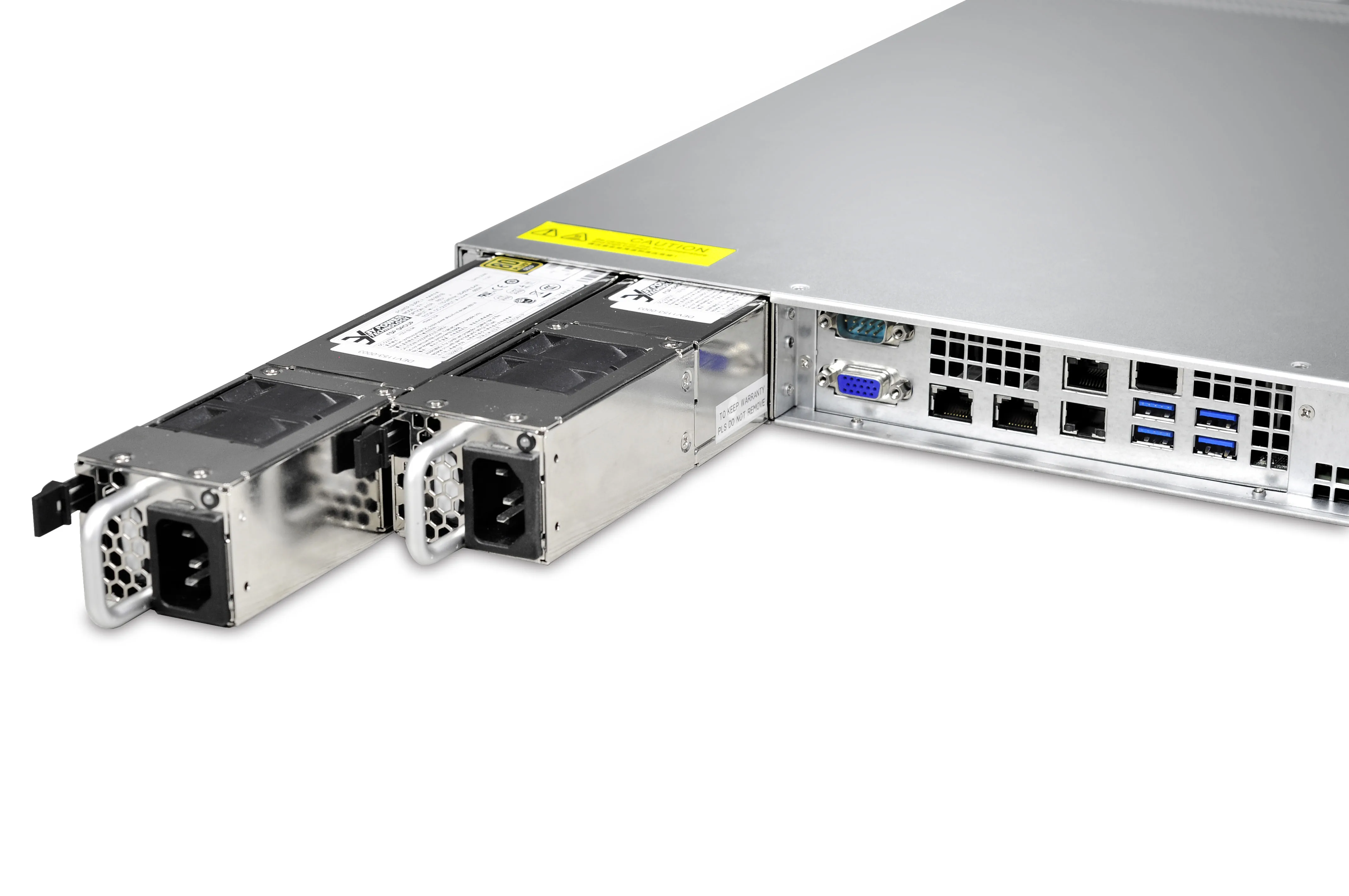

* Supports 1U Single PSU or 1+1 Redundant PSU
* 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs




Specification


Chassis Form
Rackmount
Chassis Height
1U
Compatible Motherboard
EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX
Power Type
Single power or 1+1 redundant power supply
Backplane
12Gb/s passive backplane
Hard Drive Bay
Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drive, 4x 3.5”(or 2.5”) hot-swap hard drive bays, built-in 2x 2.5”non-hot-swap
expansion bays
HDD Shockproof
The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard
disk, and does not affect the hard drive I/O speed
System Fan
Supports intelligent-temperature control, 4x 4028 hot-swap fans, up to 6x 4056 fans
Expansion Slot
1 full-height PCIe expansion card slot
Security
TPM module
Front Panel Control
2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 2 network indicators
Slide Rail
Optional
Air Duct
Optional
Front Mask
Optional
Product Material
Imported SGCC (galvanized steel sheet), ABS panel and perforated mesh
Chassis Size
670mm*433mm*43.5mm (D* W* H)
Chassis Gross Weight
7.3kg（Net weight）/ 9.7kg（Gross weight
Package Size
902mm*591mm*183mm(D* W* H）


Company Profile



Gooxi, as a leading server solution provider in China, with independent R&D and production capacity of the whole industry chain, is currently one of the few manufacturers in server and storage of software and hardware in China that integrates R&D, production, sales and service. Our products have been expanded to more than 10 series such as server and storage platform, barebone system, motherboard, chassis, accessories, etc., and are widely used in cloud computing, cloud storage, data center, Internet, artificial intelligence, security, telecommunications, radio and television, finance, government, education, blockchain and other fields.



Gooxi attaches great importance to independent R&D. The R&D center is located in Shenzhen with a team of nearly 200 people, covering all disciplines necessary for server R&D, such as motherboard design, structural design, BIOS/BMC development, signal simulation, thermal simulation, AI algorithm, SIT, Layout, software and hardware functions, and whole-machine testing. It can customize product design to Customer needs. And Gooxi constantly increases its R&D investment each year, continuously enhancing its R&D strength, and striving for first-class R&D capabilities in the industry. Gooxi has a complete integrated manufacturing

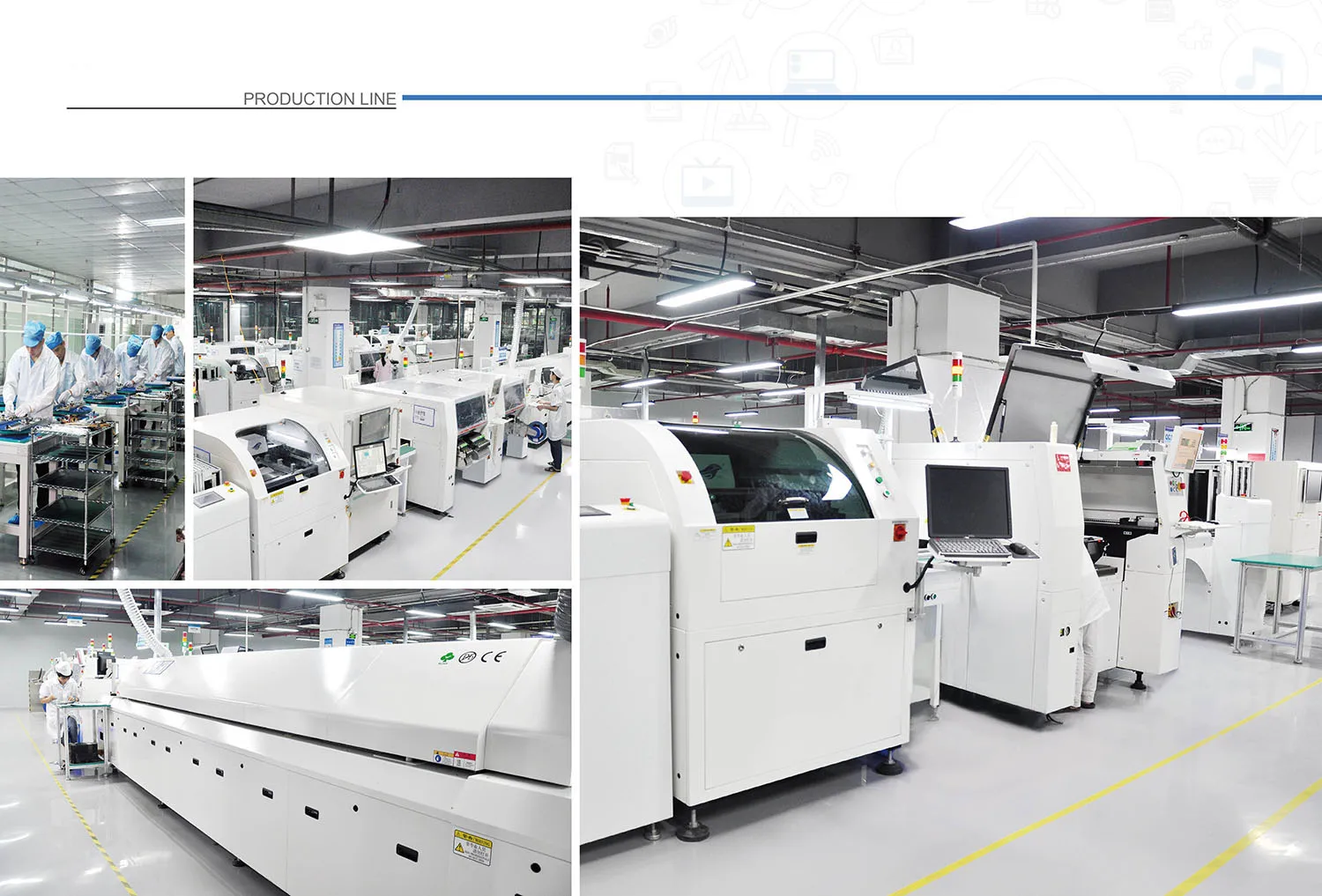

system for production, processing and quality inspection. The production base is located in Dalingshan Town, Dongguan City, Guangdong Province. The total production area of the factory is over 30,000 square meters. It has 12 production lines,3 SMT patch lines and a complete set of stamping, CNC, and other structural production platforms. With an annual output of over 300,000 servers, it has become a server supplier for many listed companies and large enterprises.



Gooxi has a comprehensive and accurate global marketing service system. Headquartered in Shenzhen, it has established 3 major branches in Beijing, Dongguan, Shanghai as well as a Hong Kong subsidiary. It has Taipei Overseas Business Development Department, sales outlets in Xi'an, Chongqing, Hangzhou, Jilin and the United States (Chino), South Korea (Seoul), and cooperative dealers and joint guarantee outlets around the world.

Gooxi has always been deeply engaged in the server field, and constantly innovating at the forefront of technology to meet the evolving server application requirements of Customers. Through 15 years of development, Gooxi has obtained a large number of national intellectual property rights such as invention patents, utility model patents, software copyrights, and appearance patents, etc. Many of the core technologies are in the leading position in the industry. At present, Gooxi has made remarkable achievements in the field of X86 server and information innovation, and has established strategic partnerships and ecological industry alliances with Intel, AMD, LSI, Infineon, Microsemi, Seagate, WD, Samsung, Phytium, Hygon, Loongson, Zhaoxin, Kunlun Software, KylinSoft and many other upstream and downstream suppliers in the server industry.

Since its establishment, Gooxi has always been 'customer-oriented', and Taken 'win-win cooperation' as its development strategy. Upholding the concept of integrity, collaboration, innovation and win-win cooperation, Gooxi has committed to becoming the world's
leading provider of server solutions.
