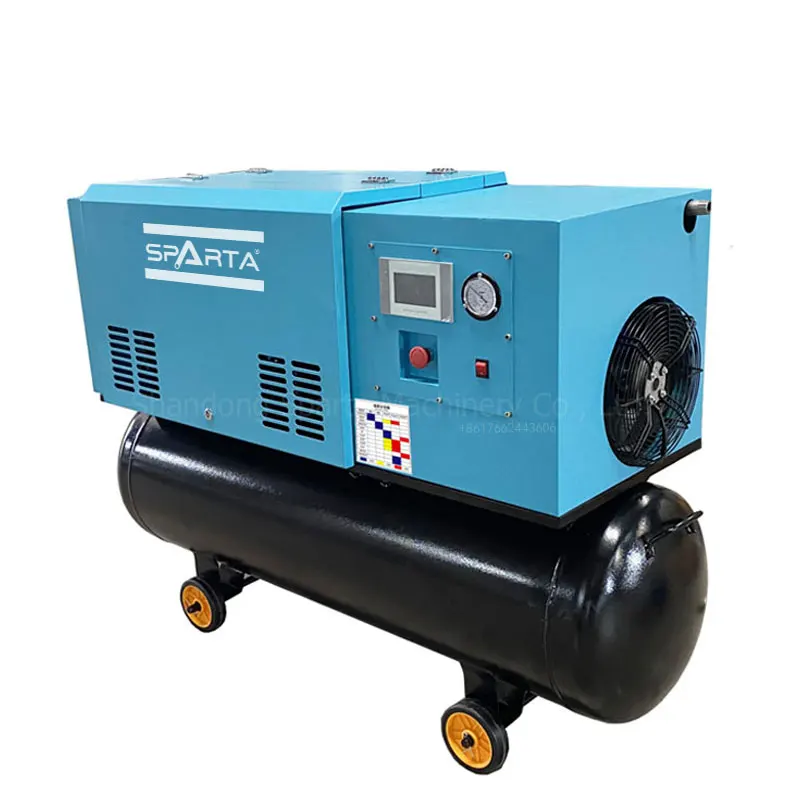

7.5KW 10bar All In One VSD Industrial Mobile Combined Screw Air Compressor with Air Dryer Tank
- Category: >>>
- Supplier: Shandong Sparta Machinery Co. Ltd.
Share on (1600911358182):
Product Overview
Description
7.5KW 10bar All In One VSD Industrial Mobile Combined
Screw Air Compressor with Air Dryer Tank
4-In-1 type with tank ,air dryer and pre-line filter
Model: S-GC380-10/8S
Voltage: 380V/220V 50HZ/60HZ
Power :7.5kw / 10HpPressure: 8Bar / 10Bar /13Bar / 16Bar
Air.Delivery(m³/min): 0.8-1.3m³/min / 40cfm
Feature: Permanent magnet frequency conversion
or Fixed speed
Dimension(L＊W＊Hmm): 1550＊550＊1150
Weight: 245kg
Remark:Normal voltage is 380V/220V/50HZ,
If need to customize other voltages and frequencies, please communicate with me in detail.
Sales Manager: Coco
Tel/Wechat /Whatsapp:
+8617662443606
E-mail: coco@sdspartan.com
Skype: coco@sdspartan.com
Tel/Wechat /Whatsapp:
+8617662443606
E-mail: coco@sdspartan.com
Skype: coco@sdspartan.com
Shandong Sparta Machinery Co., Ltd
2-In-1 Engineering Single Tank 380V Three phase
Model: S-GC2-6/8D
Voltage: 380V 50HZ Three Phase
Power :4kw / 6 hpPressure: 8KG / 8Bar, / 0.8Mpa / 116Psi
Air.Delivery(m³/min): 1.1m³/min / 40cfm
Feature: Fixed frequency
2-In-1 Engineering Single Tank 380V Three Phase
Model: S-GC220-6/8S
Voltage: 220V 50HZ Single phase
Power :4kw / 6 hp
Power :4kw / 6 hp
Pressure: 8KG / 8Bar, / 0.8Mpa / 116Psi
Air.Delivery(m³/min): 1.1m³/min / 40cfm
Feature: Permanent magnet frequency conversion
Feature: Permanent magnet frequency conversion
Dimension(L＊W＊Hmm): 1050＊500＊1050
2-In-1 Engineering Single Tank 220V Single Phase
Model: S-GC220-10/8S
Voltage: 220V 60HZ Single phase
Power :7.5kw / 10 hpPressure: 8KG , 13KG / 8Bar, 13Bar / 116Psi, 200Psi
Air.Delivery(m³/min): 1.1m³/min / 40cfm
Feature: Permanent magnet frequency conversion
2-In-1 Engineering Single Tank 380V Three Phase
Model: S-GC-10/8D
Voltage: 380V 50HZ Three phase
Power :7.5kw / 10 hp
Power :7.5kw / 10 hp
Pressure: 8KG , 13KG / 8Bar, 13Bar / 116Psi, 200Psi
Air.Delivery(m³/min): 1.1m³/min / 40cfm
Dimension(L＊W＊Hmm): 1050＊500＊1020
Dimension(L＊W＊Hmm): 1050＊500＊1020
Pipe diameter: G 1/2”
Engineering Single Tank 380V Three Phase
Model: S-GCDG-20/10D
Voltage: 380V 50HZ Three phase
Power :15kw / 20 hpPressure: 8Bar ,/ 10Bar / 13Bar / 16Bar
Feature: Fixed speed
Air.Delivery(m³/min): 1.3-2.6m³/min
Feature: Fixed speed
Engineering Single Tank 380V Three Phase
Model: S-GCDG-20/13D
Pressure: 8Bar ,/ 10Bar / 13Bar / 16Bar
Air.Delivery(m³/min): 1.3-2.6m³/minFeature: Fixed speed
Dimension(L＊W＊Hmm): 1450＊850＊1090
Pipe diameter: G 1”
Pipe diameter: G 1”
Engineering Double Tank 380V
Model: S-GC-30/10D
Power :22kw / 30kw / 37kw
Power :22kw / 30kw / 37kw
Air.Delivery(m³/min): 2.5-6.6m³/min
Dimension(L＊W＊Hmm): 1650＊750＊1200
Pipe diameter: G 1”
Dimension(L＊W＊Hmm): 1650＊750＊1200
Pipe diameter: G 1”
Product Name | 4-in-1 Screw Air Compressor with Air Dryer Tank |
Model | S-G-20/10S |
Type | Screw type / 2-in-1 with tank / 4-in-1 with tank,pre-line filter and air dryer |
Lubrication | Oil-filled |
Power(KW) | 4KW 7.5KW 11KW 15KW 22KW 30KW 37KW / 6HP 10HP 15HP 20HP 30HP 40HP 50HP |
Host | BSC |
Air.Delivery | 1.1 m³/min - 6.6m³/min or 40cfm - 230cfm |
Pressure | 8/10/13/16bar or 116/145/188/232 psi |
Dimension(L＊W＊Hmm) | 1550＊550＊1150 |
Weight | 245KG |

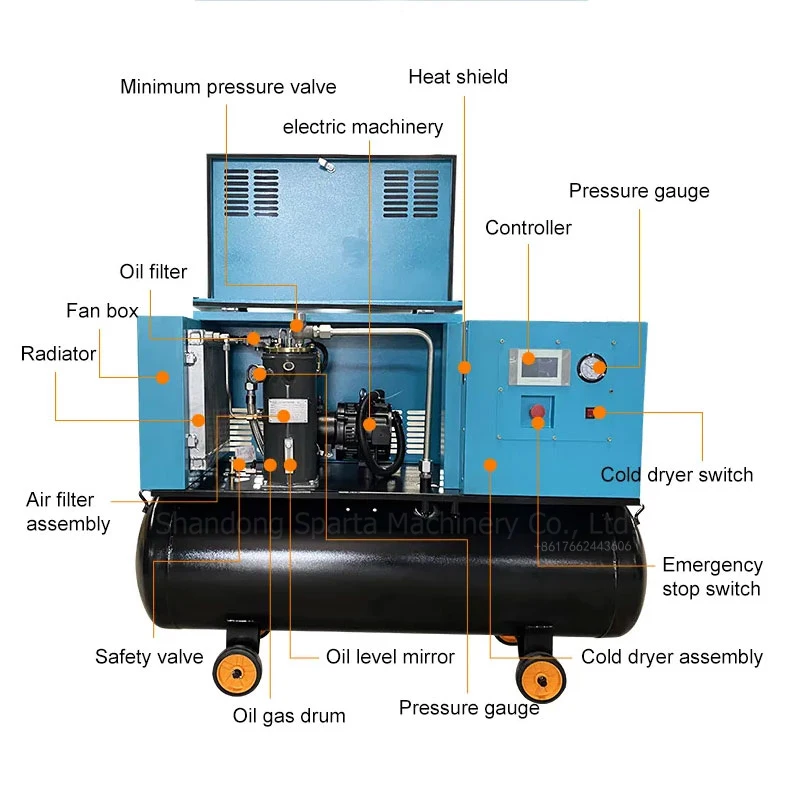

Internal structure diagram
Q1: Are you Factory?
A: Yes, We have our own factory. We have more than 12 years production experience.
Q2. Do you accept DEM &ODM?
A: Of course! We support OEM & ODM! We can make the products according to customers' design and specifications. Our companyis experienced in making high tensile m9 hex bolt and has already provide this service to many customers around the world.
Q3. How long is yourdelivery time?
A: For OEM or ODM products, it takes 30 to 45 days. For standard products, it take 7 to 15 days
