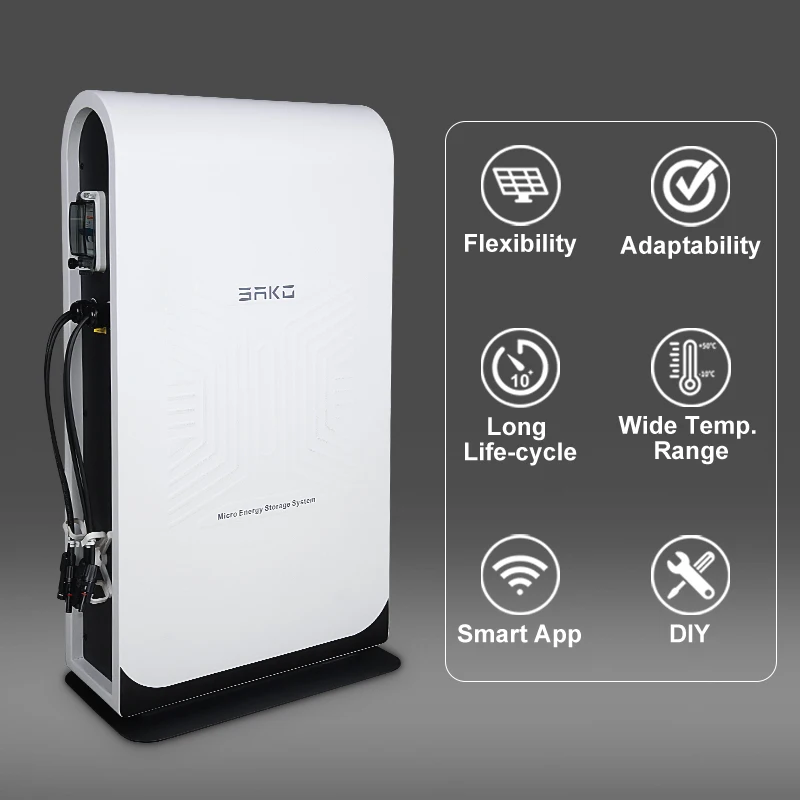

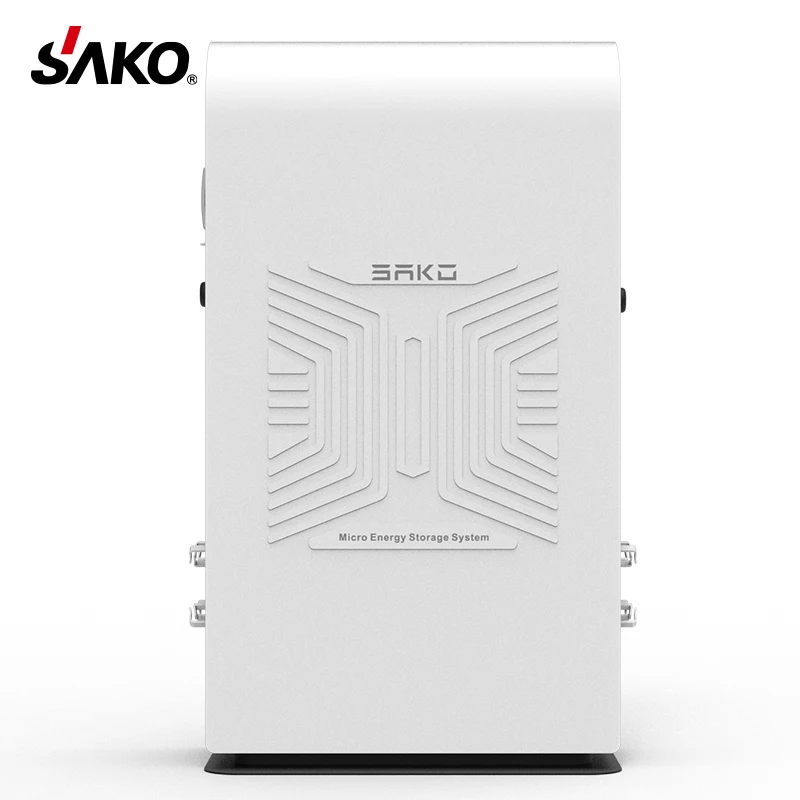

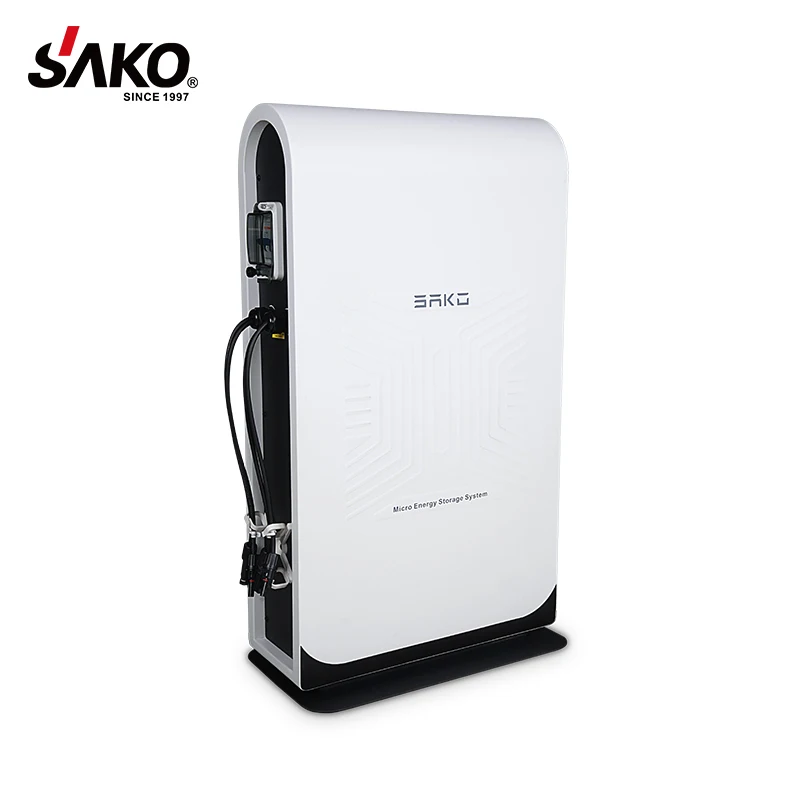

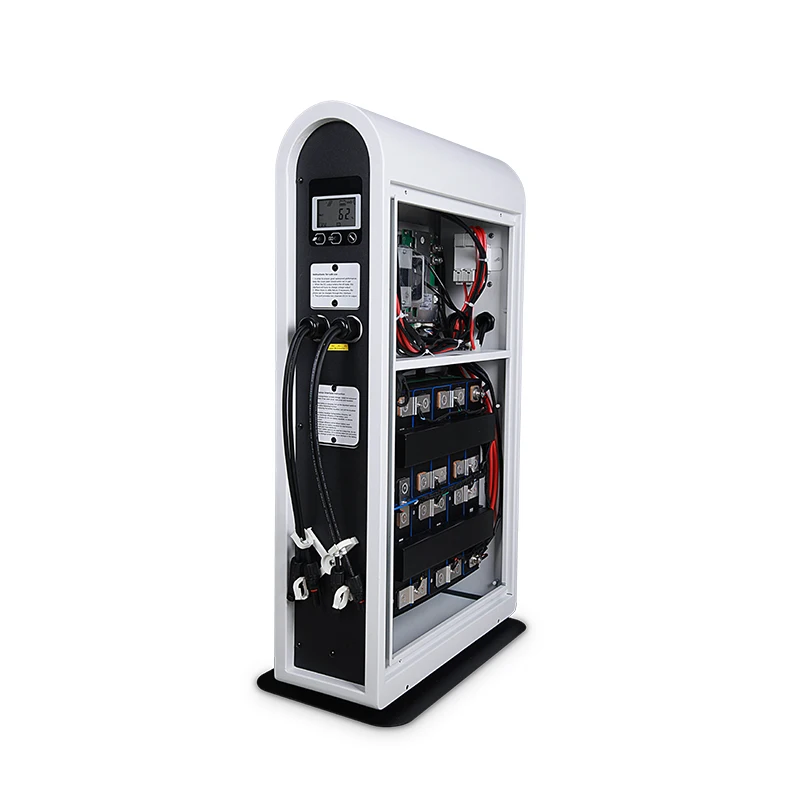

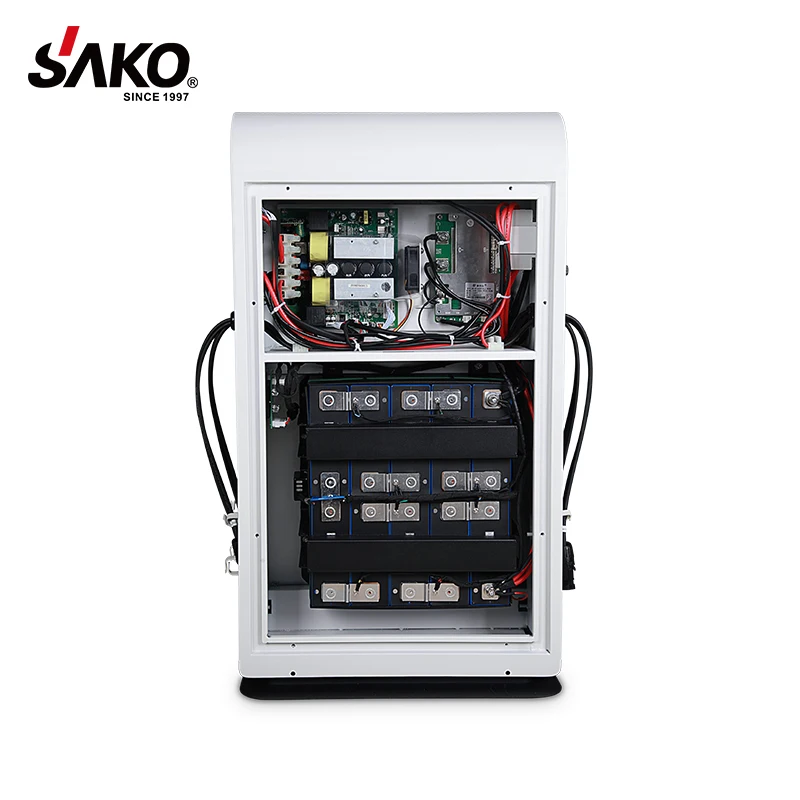

Sako M Ess 1.6Kwh 3.2Kwh 48V Lithium Ion Batteries Lifepo4 Battery Packs Home Solar Balcony Energy Storage System
- Category: >>>
- Supplier: Shenzhen Sako Solar Co. Ltd.
Share on (1600911425845):
Product Overview
Description
Product Description
MODEL | M-ESS 1.6KWH | M-ESS 3.2KWH | ||||||
SPECIFICATION | ||||||||
P.V. Input Features | ||||||||
Commonly used module power | 210 to 650W+ (2 Pieces) | 210 to 650W+ (2 Pieces) | ||||||
Maximum input voltage | 100V | 100V | ||||||
MPPT voltage range | 25~70Vdc | 25~70Vdc | ||||||
Start-up voltage | 25Vdc | 25Vdc | ||||||
Maximum input current | 2 x 20A | 2 x 20A | ||||||
Maximum input short circuit current | 2 x 30A | 2 x 30A | ||||||
DC Output Features | ||||||||
DC output current | 2 x 20A | 2 x 20A | ||||||
Output voltage range | 28~36Vdc | 28~36Vdc | ||||||
USB Charging port | DC5V1A * 2 pcs | DC5V1A * 2 pcs | ||||||
Timer setting | the Timer DC Output time can be set through the mobile APP or LCD Display | |||||||
Lithium Battery Features | ||||||||
Total Energy | 1600Wh | 3200Wh | ||||||
Usable Energy(90%DOD) | 1440Wh | 2880Wh | ||||||
Normal Battery Voltage | 32.0Vdc | 32.0Vdc | ||||||
Typical Capacity | 50Ah | 100Ah | ||||||
Max.Charge Current | 25A | 50A | ||||||
Max.Discharge Current | 50A | 60A | ||||||
Operation Voltage Range | 28.0～36.0Vdc | 28.0～36.0Vdc | ||||||
Operation Temperature | -10℃～+50℃ | -10℃～+50℃ | ||||||
Charging Heating Function | when Temp. lower than 0°C，Low temperature charging heating function will start , battery pack will running between 0~5°C (optional) | |||||||
Protection | ||||||||
Protection | Overcharge protection、Overdischarge protection、Solar reverse polarity protection、Overtemperature protection、Lowtemperature charging protection | |||||||
IP Grade | IP54 | |||||||
Other Features | ||||||||
Display method | LED+LCD | |||||||
Display subtance | PV status, Battery status, DC Output status, Alarm status, | |||||||
WiFi subtance | PV status, Battery status, DC Output status, Alarm status, Timing setting Function | |||||||
Accessory | ||||||||
PV cable | With 5M PV MC4 extension cable x 2; With 1M PV MC4 extension cable x 2 | |||||||
Ambient | ||||||||
Noise(dB) | < 45dB (1 meter) | |||||||
working Temperature | -10℃～+50℃ | |||||||
Humidity | 0~95% ( no condensation) | |||||||
Sea Level(m) | ≤1500 | |||||||
Dimension | ||||||||
L×W×T (products size) mm | L744*W420*H166mm | L744*W420*H166mm | ||||||
L×W×T (package size) mm | L799*W490*H275mm | L799*W490*H275mm | ||||||
Weight(NW Kg) | 39Kg | 46Kg | ||||||
Weight(GW Kg) | 44Kg | 51Kg | ||||||
20FT QTY( UNIT) | ||||||||
