Ginri SVR1000/AD220 display Single phase Voltage monitoring Protective Relay

Product Overview

Description

GINRI LCD display single phase AC/DC 24-48V Overvoltage/Undervoltage Monitoring Relay Voltage Protector

SVR1000/AD220



♦ Features

    -- Powered by the measuring circuit

    -- Compatible with AC and DC supply

    -- Built-in LCD and keypad afford a precise,digital setting

    -- Compact modular 43mm  housing

    -- Adjustable over- and undervoltage threshold

    -- Independent adjustable delay time for overvoltage, undervoltage

    --  Adjustable reset mode:automatic reset or manual reset

    -- 1  CO & 1NC contacts

 --  Fault recording with last 3 faults



♦ Protective Functions

  -- Overvoltage     -- Undervoltage



♦ Typical Applications

   • Pumps     • Fans  • Air-conditioning system

   • Blowers    • Motors  • Compressors •  Elevators



Approvals

    • CE

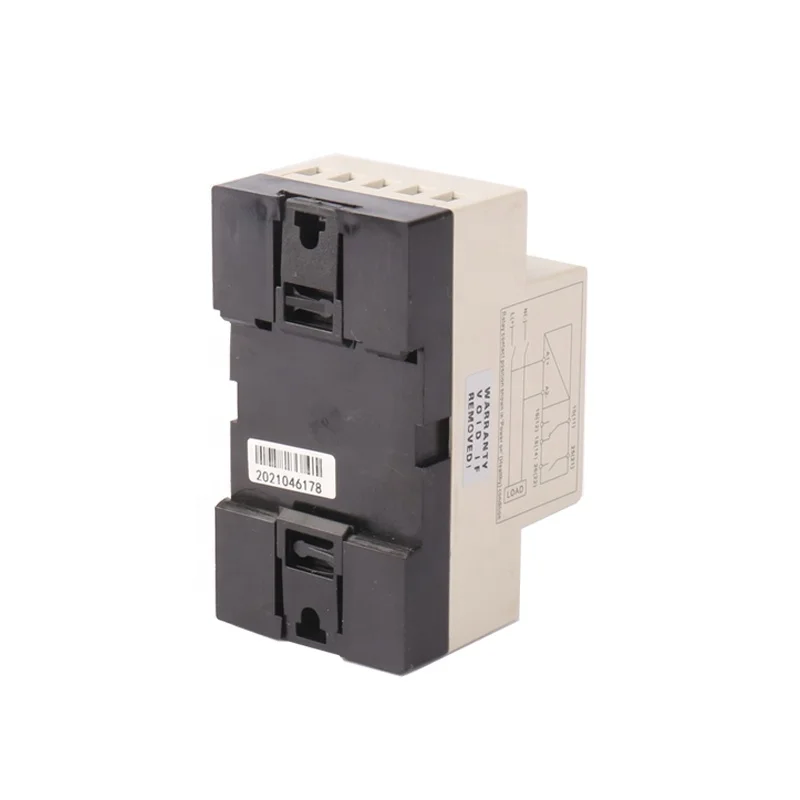

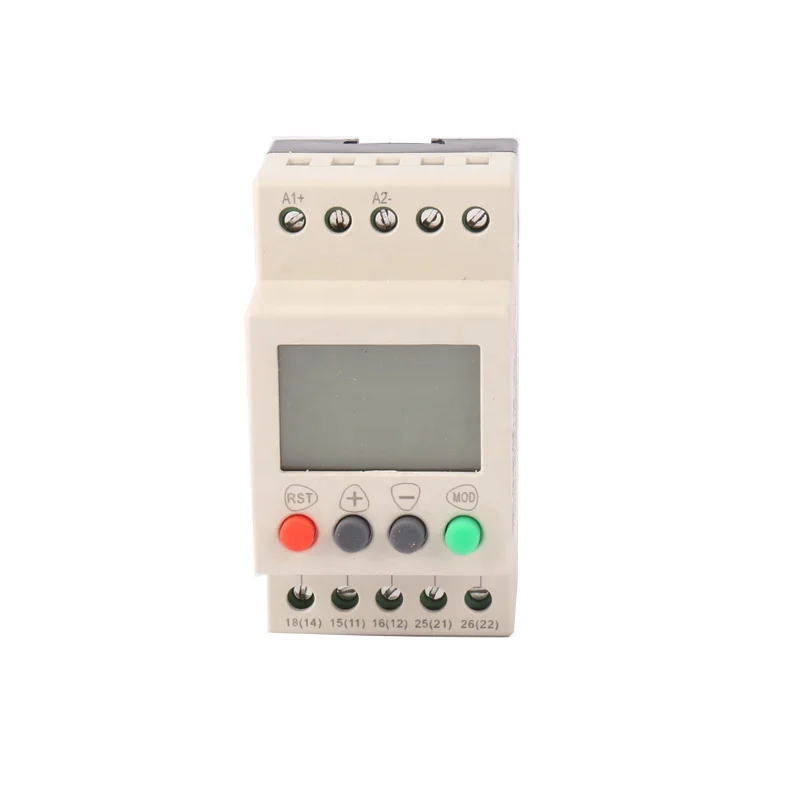

♦ Product Photo





♦ Technical data



Model	SVR1000/AD48
Measuring circuit	A1+,A2-
Rated voltage	AC/DC 24~48V,50/60Hz
Monitoring functions	overvolatege, undervoltage
Overvoltage setting range	AC/DC 20.0~80.0V  adjustable
Undervoltage setting range	AC/DC 20.0~80.0V  adjustable
Voltage hysteresis	0.1~30.0V  adjustable
Delay time for overvoltage and undervoltage	0.1-999s adjustable
Reset mode	Manual/ Automatic/Automatic with power-on delay
Delay time for reset	0.1-999s adjustable
Indicators	LCD indicating voltage,operationand fault status
Output contacts	1 CO & 1NC
Contact capacity	6A ,250VAC
Dimensions (H x W x D)	80×43×54mm
Mounting	DIN rail



♦ Wiring Diagram







♦ GINRI Selection Guide







♦ GINRI Packing







♦ GINRI Relay Family Photo
