PET Bottle Crushing Pelletizing Line Wasted Plastic Recycling Machine Production Line
- Category: >>>
- Supplier: Cissco Machinery Co. Ltd.
Share on (1600911511437):
Product Overview
Description
Product Description

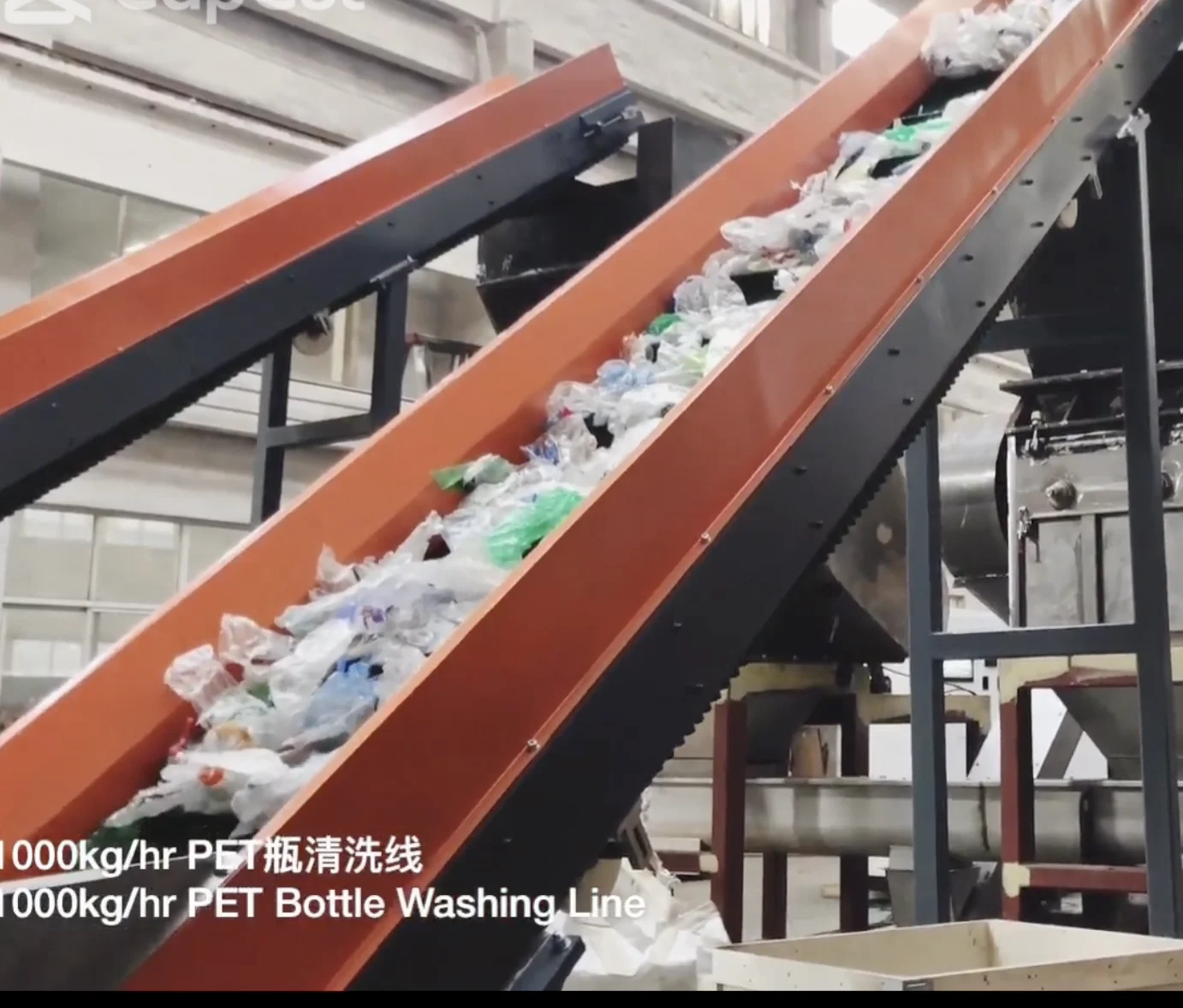

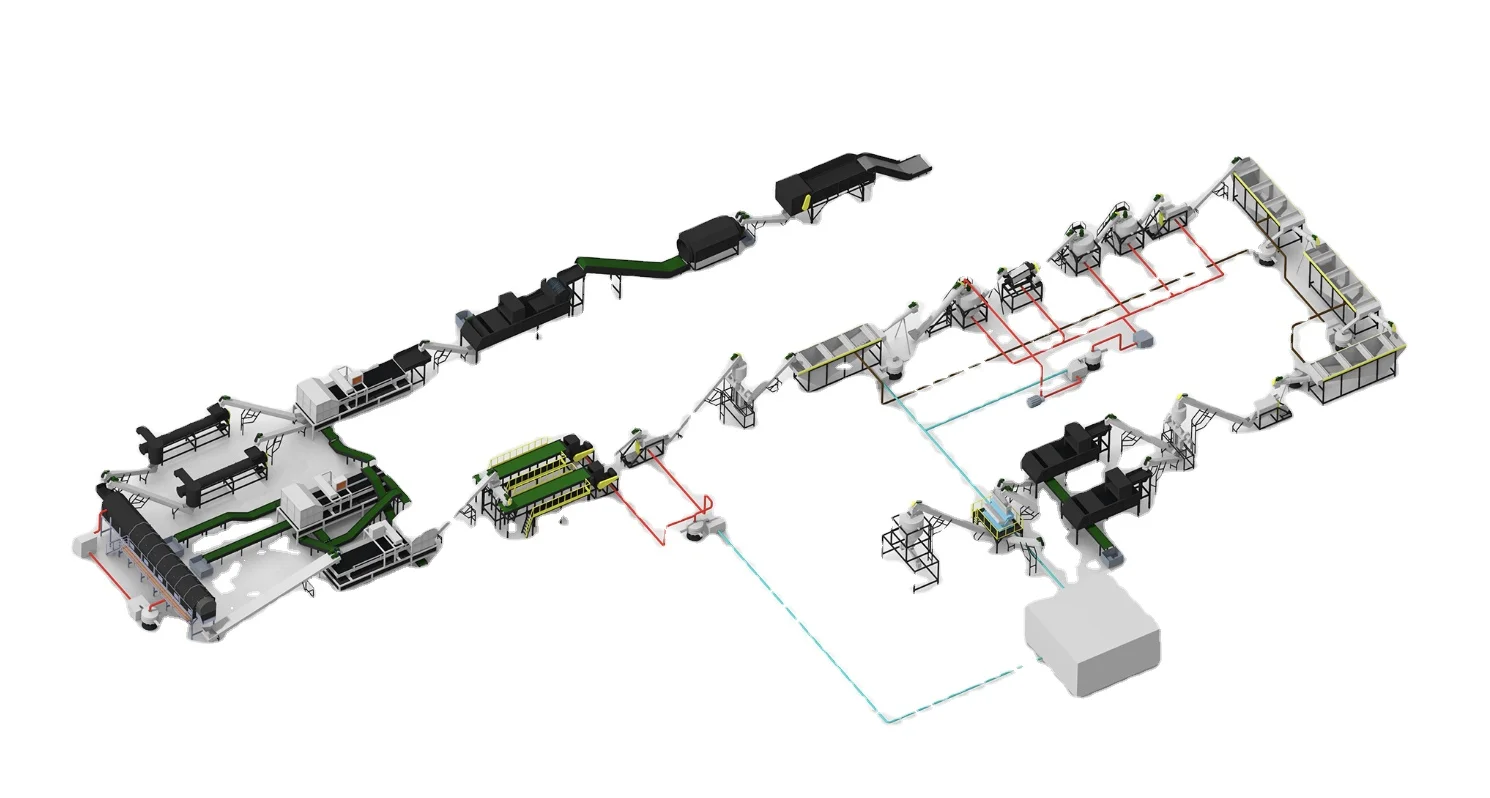

PET Bottle Washing Line

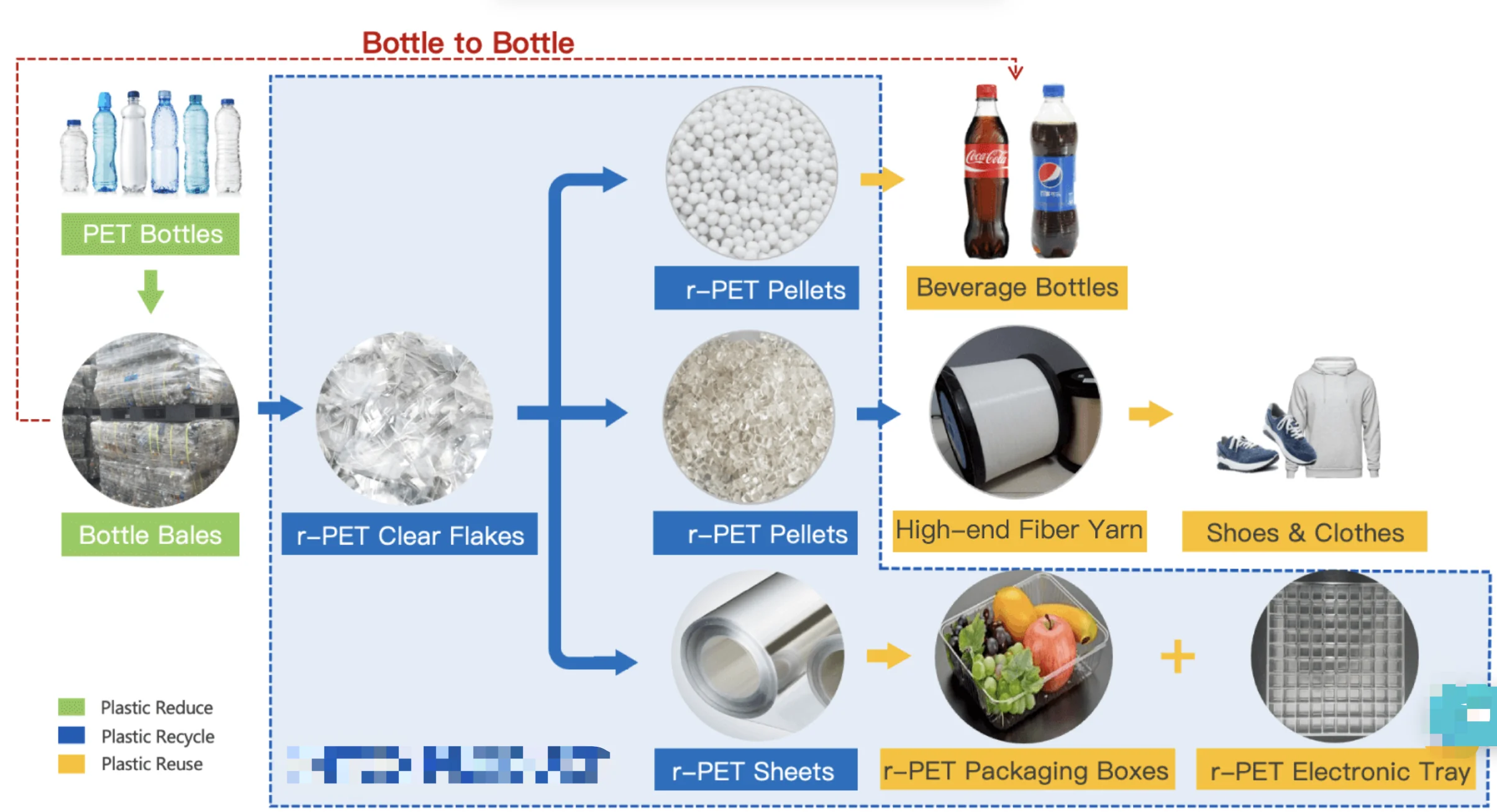

With improvement of the human environmental awareness, We are paying more attentions to the carbon emissions, PET material recycling become to first priority of us,CissCo Machinery automatic washing recycling production system with variety of design technology and modular construction, according to the regional situation of raw material , differences between production areas, products quality requirements and investment budget, applicable to bottle to bottle grade, sheet package grade and fiber (PSF) grade production Currently available capacity up to 6000 kg/h.

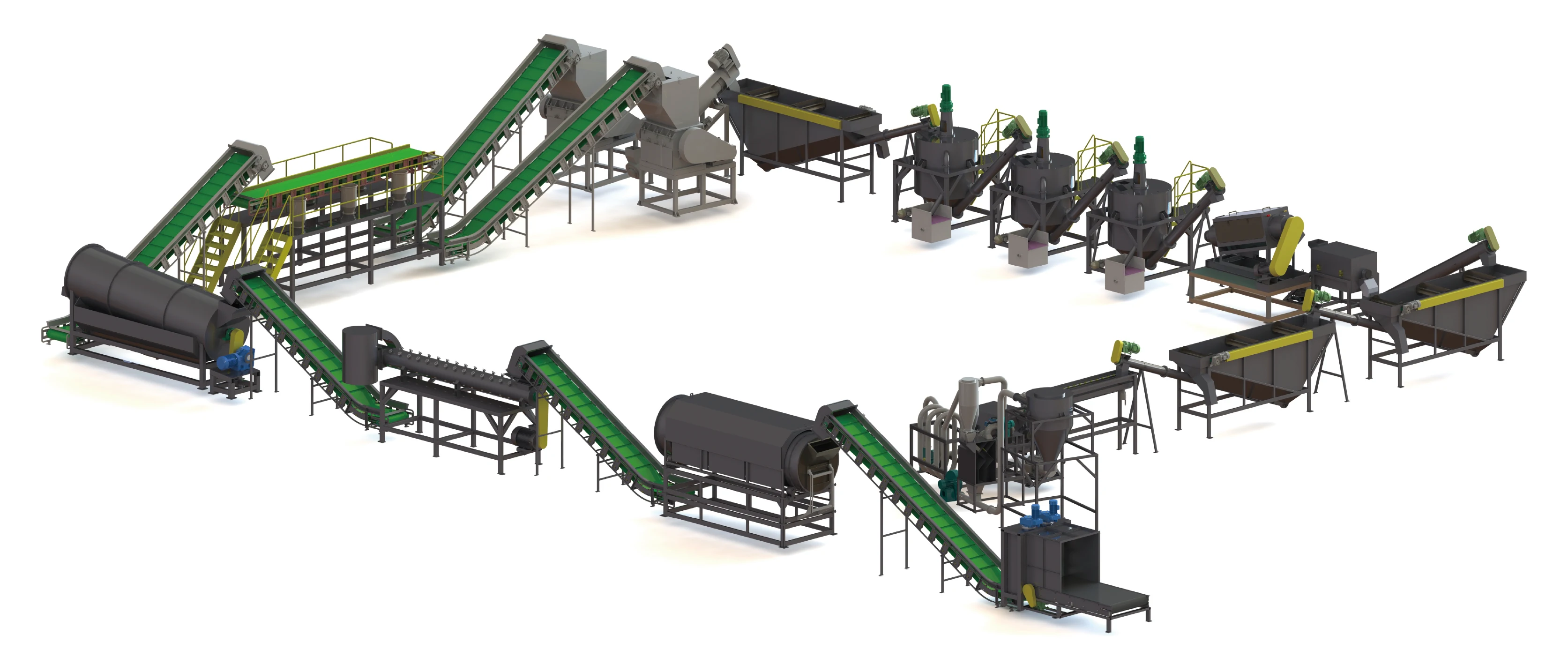

PET Plastic Bottles/Buckets Crushing Washing Drying Recycling Line

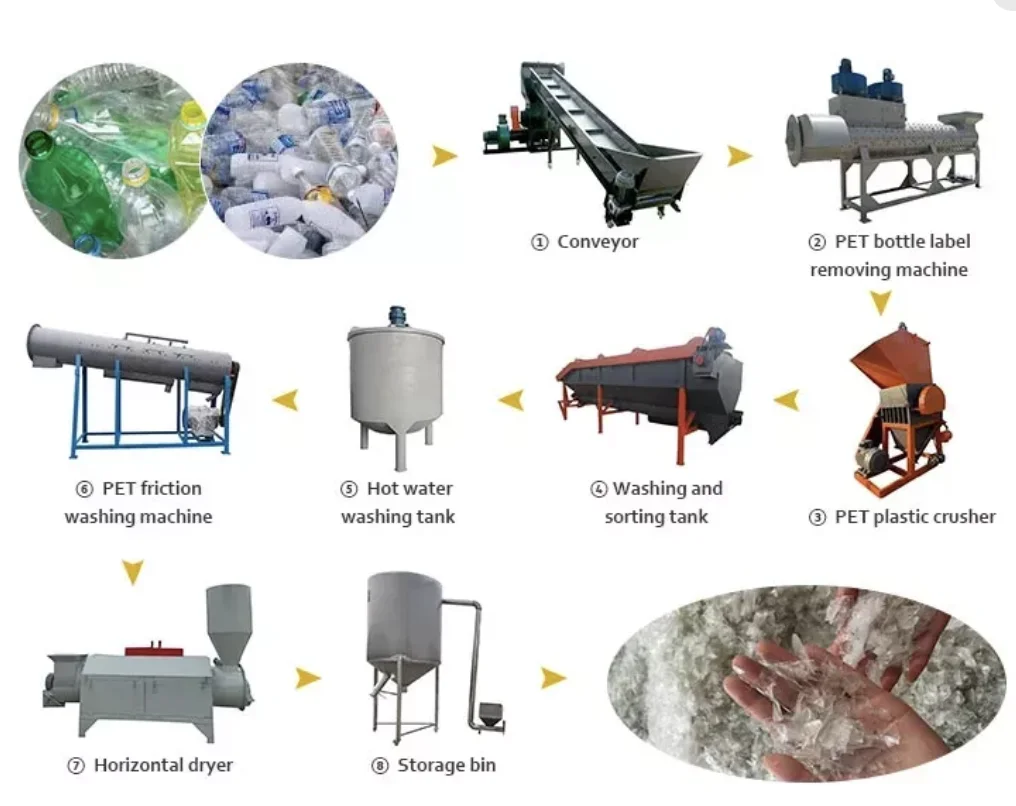

As we all know, the recycling of PET bottles is the most important part of plastic recycling today, and CISSCO has also focused on the research of PET recycling for many years. Usually we have the following steps to deal with complete PET bottles, sorting→crushing → washing → drying. PET waste bottles are dirty and must undergo strict washing before granulation to remove oil, dust and other sundries.
In addition, waste PET bottles are often accompanied by accessories such as bottle caps, labels, and bottom brackets, because they are usually made of made of PP/PE and other materials, they are incompatible with PET.
Therefore, in the recycling and pelletizing process of waste PET bottles, these accessories must be sorted out separately.
In addition, waste PET bottles are often accompanied by accessories such as bottle caps, labels, and bottom brackets, because they are usually made of made of PP/PE and other materials, they are incompatible with PET.
Therefore, in the recycling and pelletizing process of waste PET bottles, these accessories must be sorted out separately.
Main Part

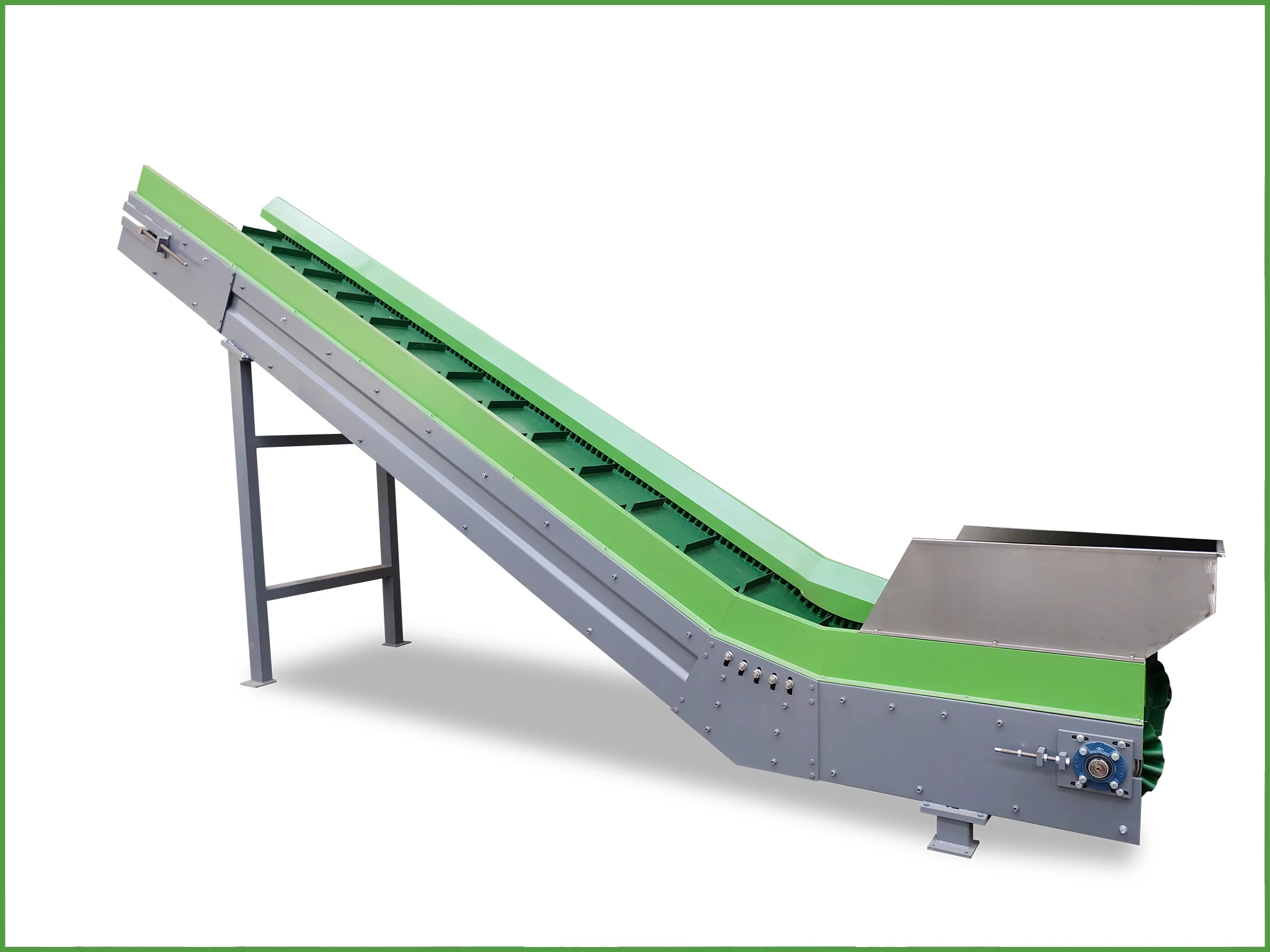

Belt Conveyor
Width of belt: 800mm
Basic material of belt: PVC
Motor power: 2.2KW
Thickness: 5mm
Output: 1000kg/h
Basic material of belt: PVC
Motor power: 2.2KW
Thickness: 5mm
Output: 1000kg/h

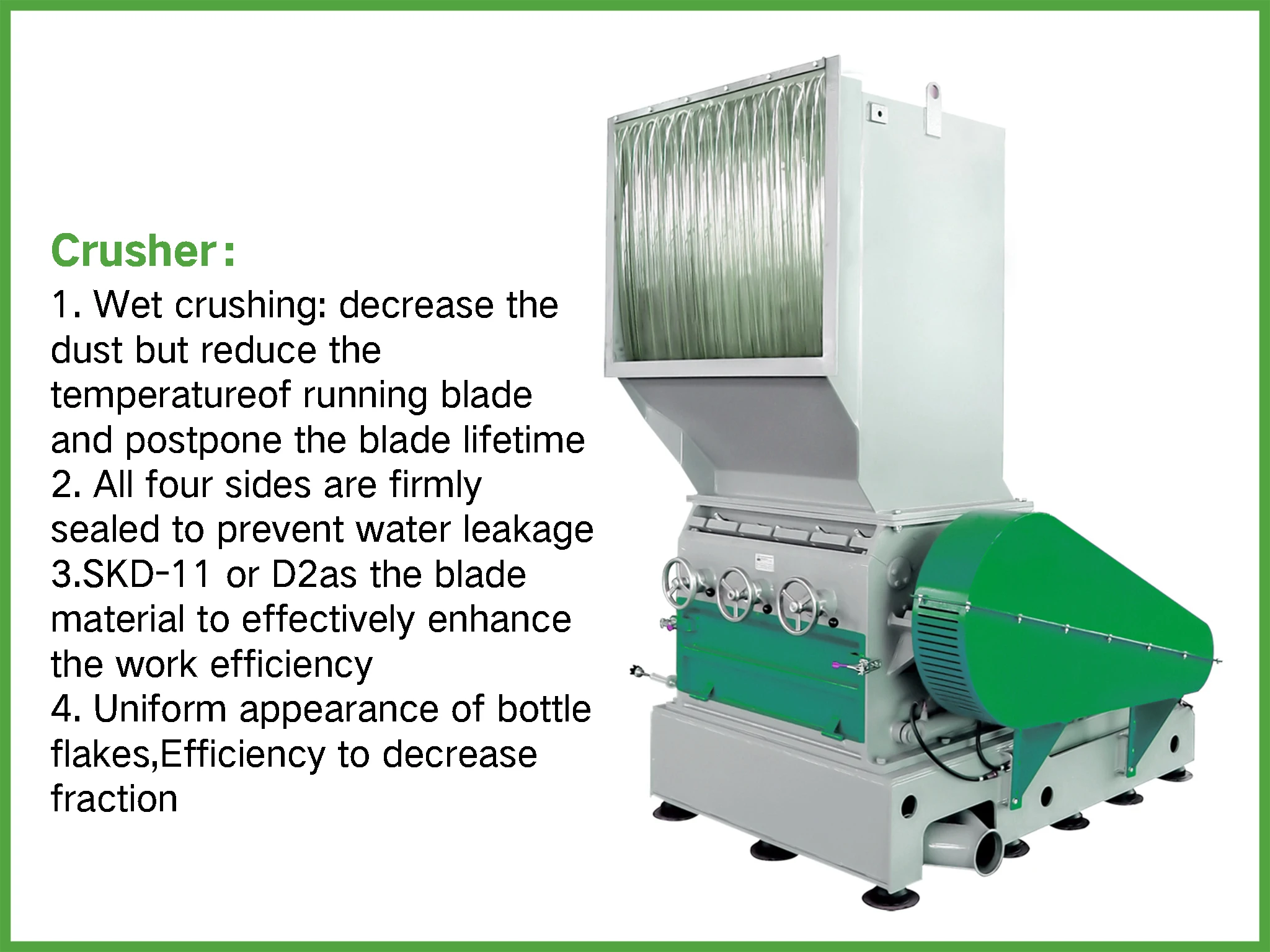

Crusher
Application: to cut plastic into smaller pieces
Motor Power: 55 kw
Opening Motor Power：0.75kw
Screen motor power：0.75kw
Main-crew Diameter：φ550mm
Main Crew Width：1000mm
Basic material of blades: SKD11
Cooling way of hydraulic station: water recycling
Curtain: we can design plastic curtain in the feeding mouth, to block the powder during process.
Motor Power: 55 kw
Opening Motor Power：0.75kw
Screen motor power：0.75kw
Main-crew Diameter：φ550mm
Main Crew Width：1000mm
Basic material of blades: SKD11
Cooling way of hydraulic station: water recycling
Curtain: we can design plastic curtain in the feeding mouth, to block the powder during process.
Screw Loader
Screw diameter：250mm
Motor power：3KW
Part of contacting material: stainless steel
Motor power：3KW
Part of contacting material: stainless steel

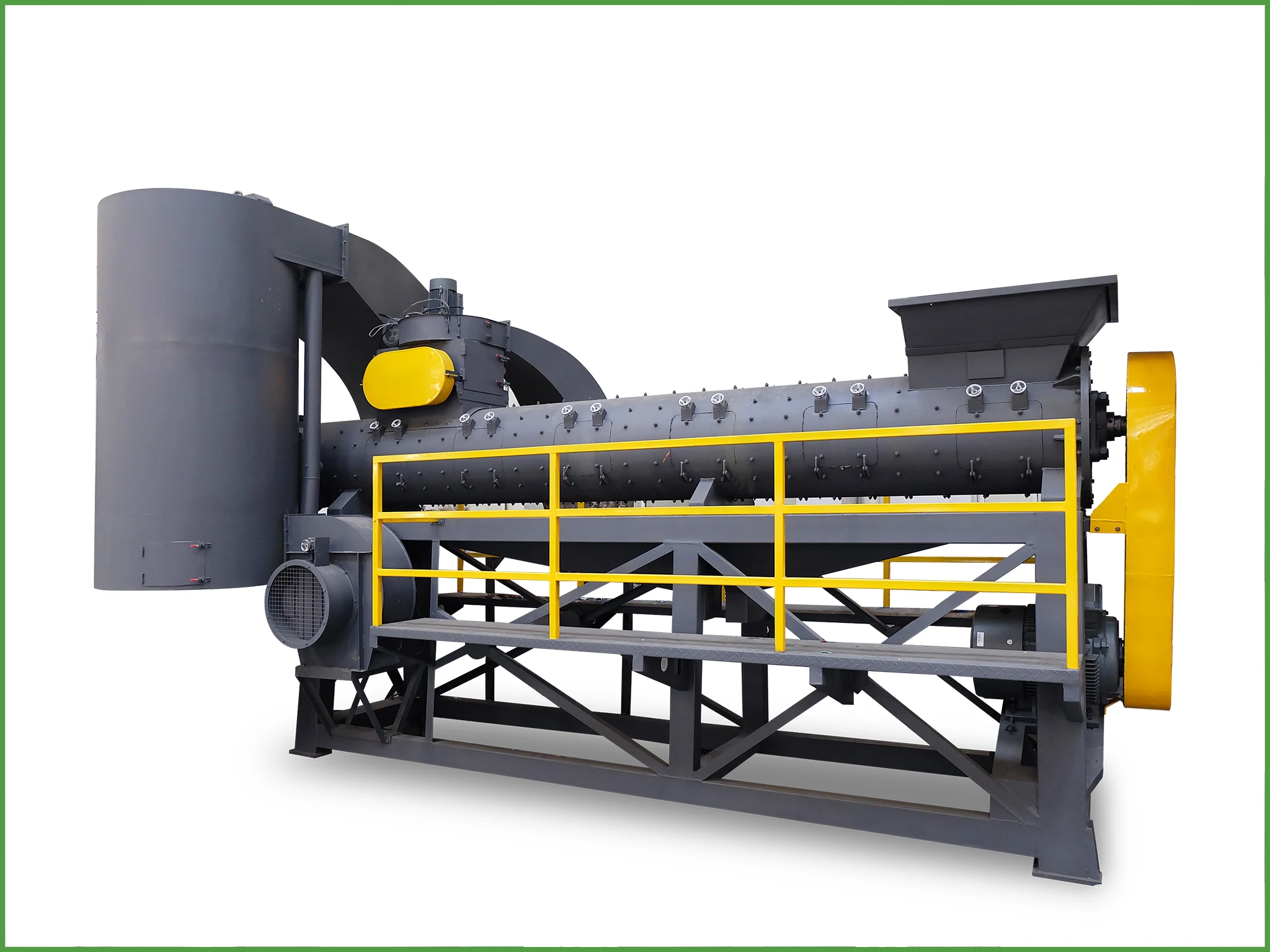

LABEL SEPERATER
most labels are PVC heat-shrinkage sleeves which cannot be removed by bottle prewashing, it is a big problem in PET bottle
recycling industry. CISSCO machinery bottle label remover machine can completely solve the problem. - special blowing cyclone
labal seperate ratio 85-95%
-teeth type blades: made by tungsten steel with copper welde
recycling industry. CISSCO machinery bottle label remover machine can completely solve the problem. - special blowing cyclone
labal seperate ratio 85-95%
-teeth type blades: made by tungsten steel with copper welde

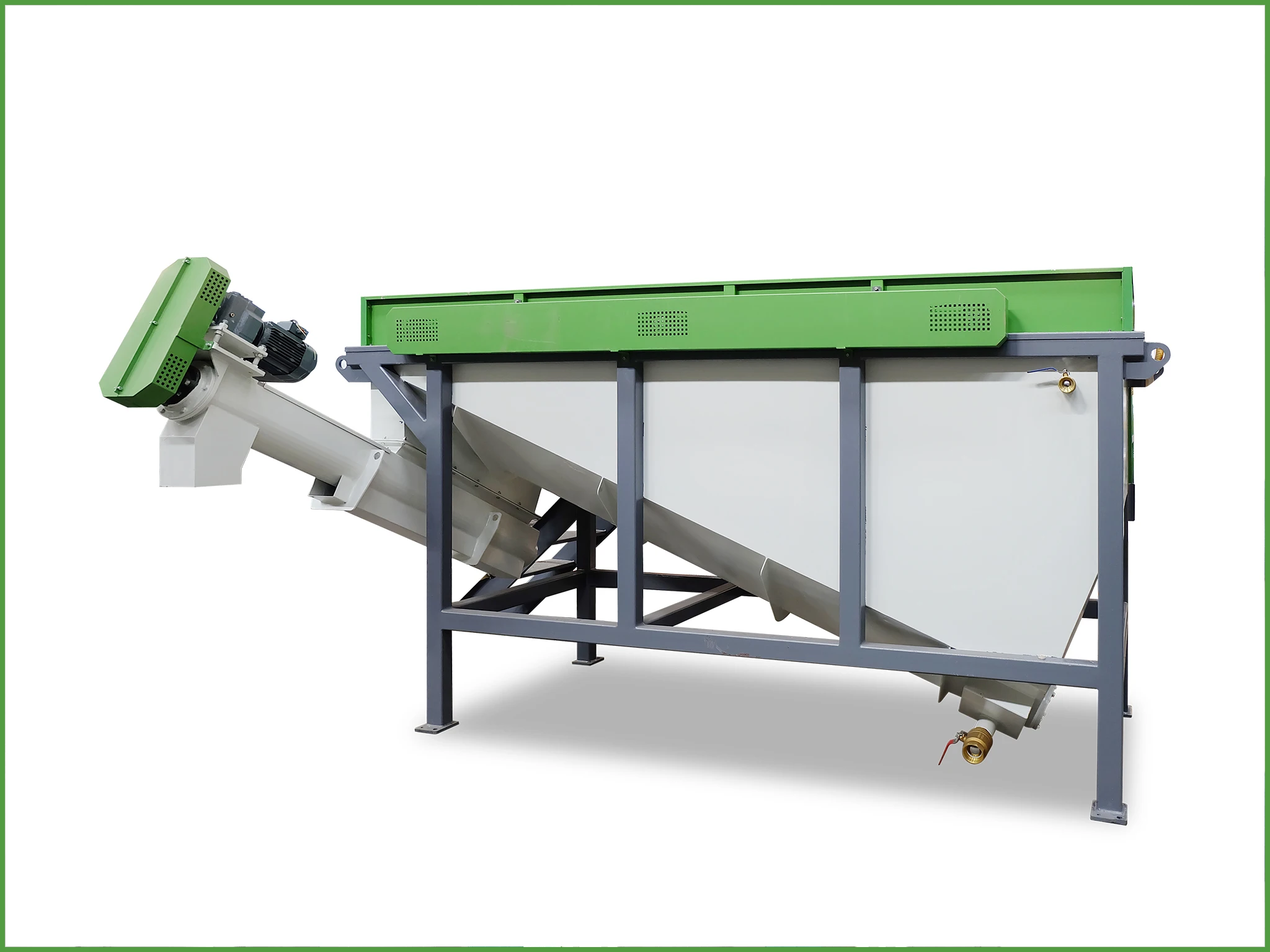

Floating Wash
it is one of the main machines in waste plastic PET bottle washing recycling line.
When the plastic is fed into the floating washer tank, PET flakes will sink down to the bottom of the washer tank as the density
is heavier than water, while the pp caps and pvc labels will float on water. The pet flakes will be washed and carried out by the
screw downside, and the caps and labels will be taken out by the rollers on top of the tank. In this way, the pet flakes will be
washed and different materialS will be separated
When the plastic is fed into the floating washer tank, PET flakes will sink down to the bottom of the washer tank as the density
is heavier than water, while the pp caps and pvc labels will float on water. The pet flakes will be washed and carried out by the
screw downside, and the caps and labels will be taken out by the rollers on top of the tank. In this way, the pet flakes will be
washed and different materialS will be separated

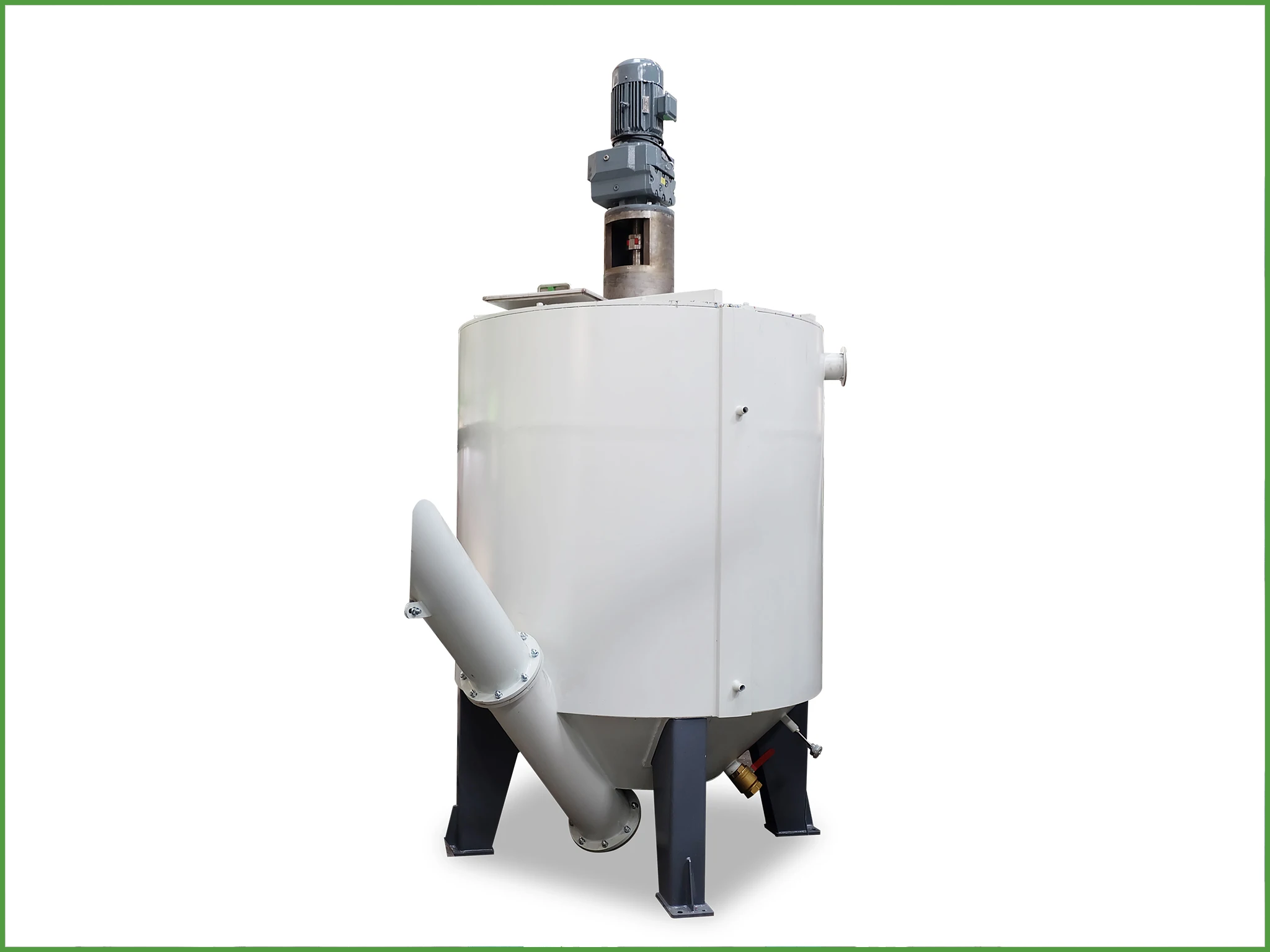

HOT WASHER
Our traditional hor water washer is a batch-style system designed to wash away hard to remove contaminations such as glues, oils,
greases, and even left-over foods/ liquids. For PET bottle recycling, the hot water wasing preess is an essential step in
producing higher priced "hot washed" PET flakes.
greases, and even left-over foods/ liquids. For PET bottle recycling, the hot water wasing preess is an essential step in
producing higher priced "hot washed" PET flakes.

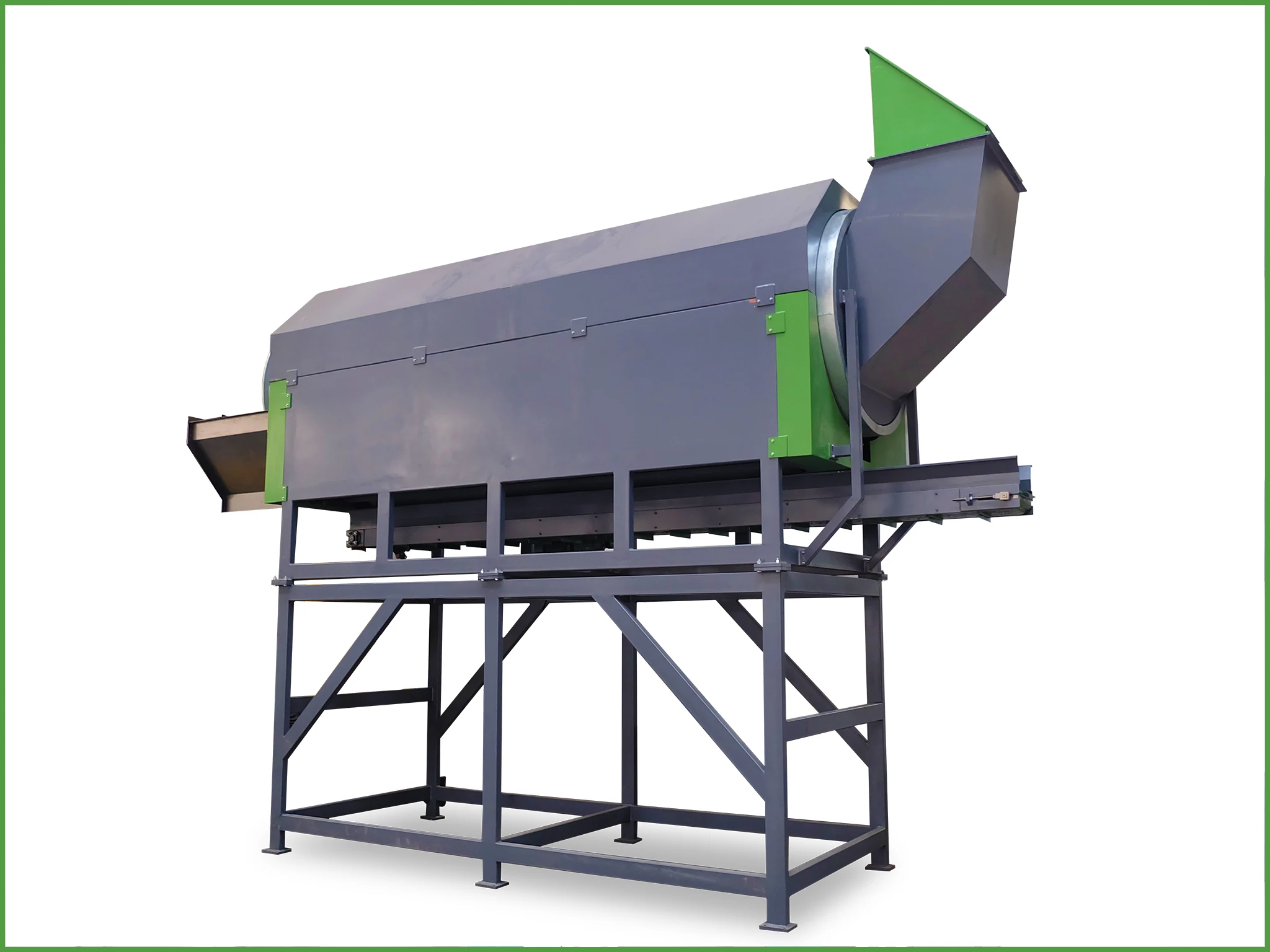

TROMMEL
It can remove small sand, stone, metal, caps and impurity less than 50mm by rotary centrifugal force. On top of its applications
in PET recycling, the trommel separator is often found being used in municipal waste separation.
in PET recycling, the trommel separator is often found being used in municipal waste separation.
Specification
Model | Capacity （kg/h） | Consumption （kw/h） | Steam （kg/h） | Detergent （kg/h） | Water （ton/h） | Installation Power （kw） | Space （m2） | Man Power (persons/shift） |
PET500 | 500 | 110 | 500 | 10 | 0.7 | 220 | 700 | 6 |
PET1000 | 1000 | 170 | 600 | 14 | 1.5 | 395 | 800 | 6 |
PET2000 | 2000 | 340 | 1000 | 18 | 3 | 430 | 1200 | 8 |
PET3000 | 3000 | 460 | 1200 | 28 | 4.5 | 590 | 1500 | 8 |
PET6000 | 6000 | 680 | 1500 | 50 | 8 | 850 | 2000 | 12 |

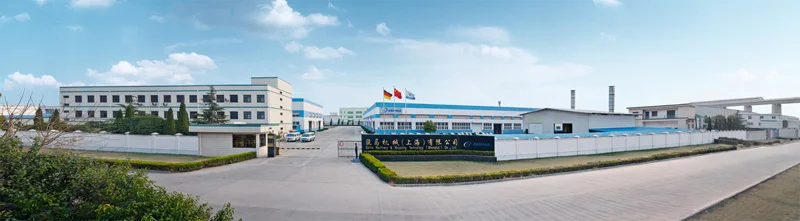

Company Profile
CissCo Machinery is a fast forward professional supplier of complete plastic extrusion equipments and recycling systems.
At CissCo, we design, engineer and manufacture customized PLASTIC RECYCLING MACHINE. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world.
We are supplying:
1. PE PP PVC pulverizer machine;
2. Crusher and Shredder machine;
3. EPS foam compactor machine;
4. EPS foam hot melt machine;
5. Plastic pelletizer;
6. Plastic pelletizing machine;
7. Plastic bottle and film washing line;
8. Bed crushing and shredding line;
9. Refrigertor recycling machine.
At CissCo, we design, engineer and manufacture customized PLASTIC RECYCLING MACHINE. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world.
We are supplying:
1. PE PP PVC pulverizer machine;
2. Crusher and Shredder machine;
3. EPS foam compactor machine;
4. EPS foam hot melt machine;
5. Plastic pelletizer;
6. Plastic pelletizing machine;
7. Plastic bottle and film washing line;
8. Bed crushing and shredding line;
9. Refrigertor recycling machine.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2008,sell to Africa(20.00%),Western Europe(15.00%),Domestic Market(10.00%),North
America(10.00%),Mid East(9.00%),Southeast Asia(8.00%),Eastern Asia(7.00%),South Asia(6.00%),Eastern Europe(5.00%),South
America(5.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
YARN MACHING,TWISTING MACHINE,EXTRUDER MACHINE,COATING MACHINE,FACE MASK MACHINE
4. why should you buy from us not from other suppliers?
CissCo has been supplying Plastic Extrusion Machinery for more than 20 years. It has ample of know how, experience in extrusion
technology. It has so many customers in different countries. It has a strong R&D and sales team who can supply TURNKEY project.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2008,sell to Africa(20.00%),Western Europe(15.00%),Domestic Market(10.00%),North
America(10.00%),Mid East(9.00%),Southeast Asia(8.00%),Eastern Asia(7.00%),South Asia(6.00%),Eastern Europe(5.00%),South
America(5.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
YARN MACHING,TWISTING MACHINE,EXTRUDER MACHINE,COATING MACHINE,FACE MASK MACHINE
4. why should you buy from us not from other suppliers?
CissCo has been supplying Plastic Extrusion Machinery for more than 20 years. It has ample of know how, experience in extrusion
technology. It has so many customers in different countries. It has a strong R&D and sales team who can supply TURNKEY project.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
