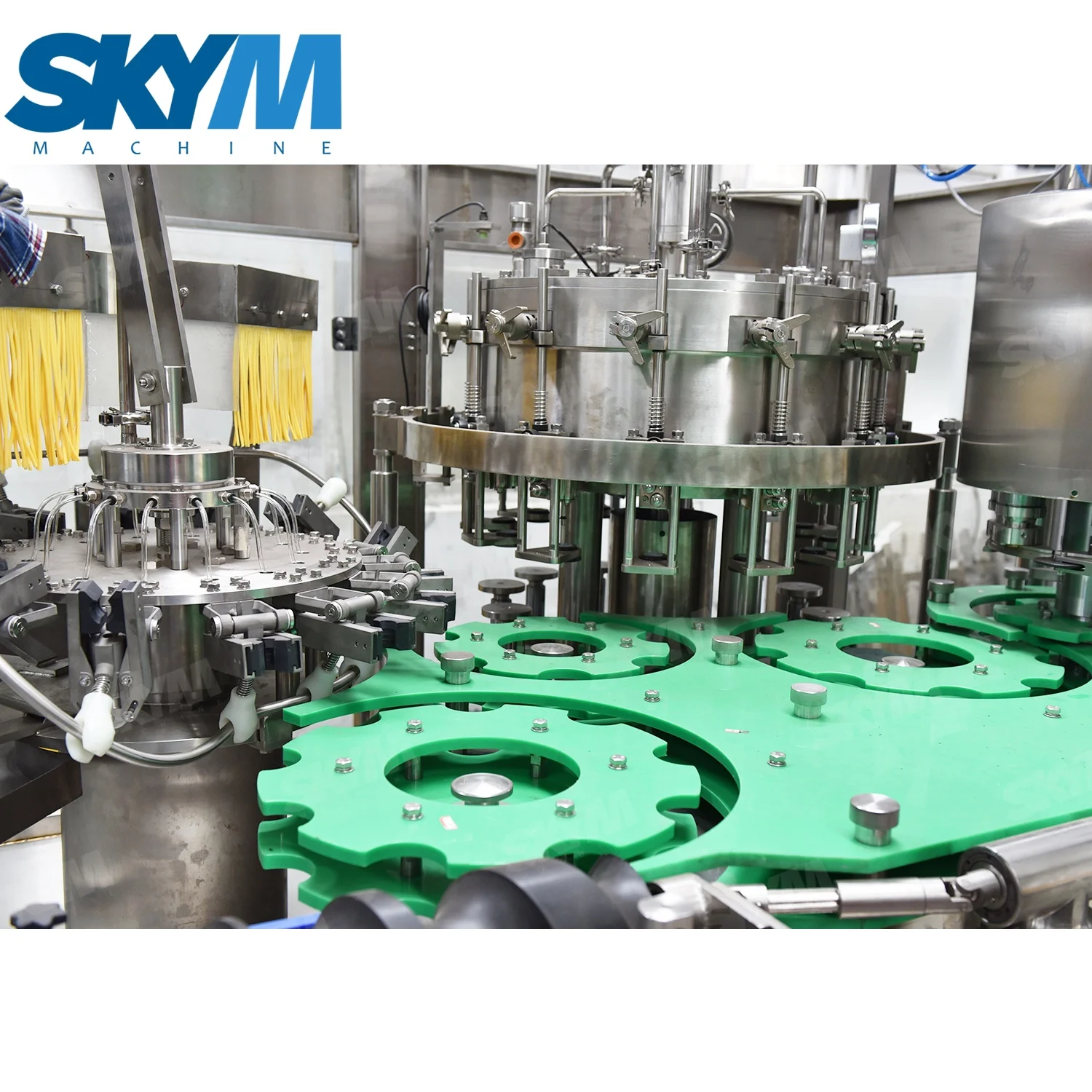

Factory Price Screw Cover Glass Bottle Beer wine liquid Equal pressure filling Machine bottling filling production line
- Category: >>>
- Supplier: Zhangjiagang Sky Machine Co. Ltd.
Share on (1600911512236):
Product Overview
Description
Product Application
Product Description

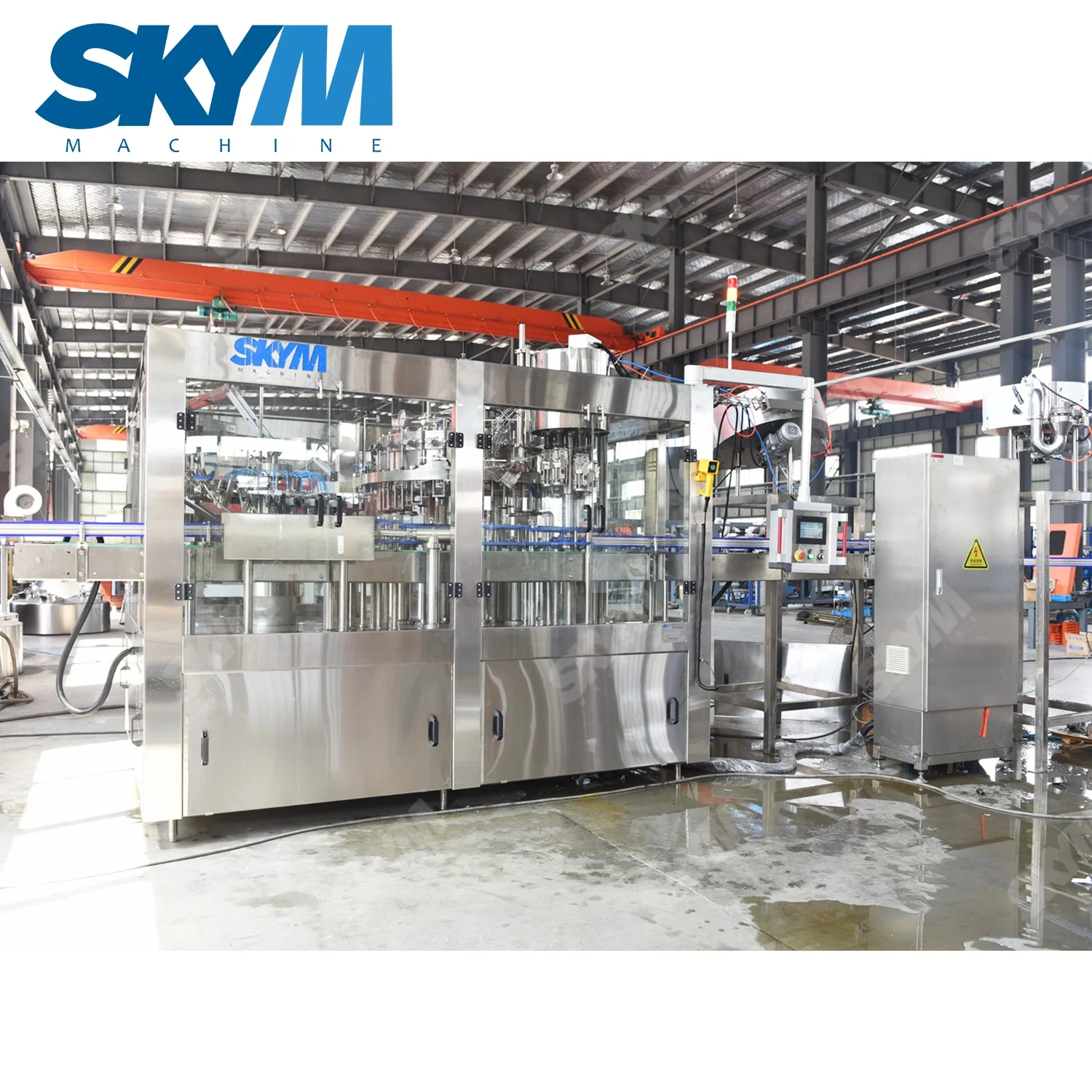

Glass Bottle Carbonated Soda Beverage Wine Filling Machine Soft Energy Drink Making Bottling Line With Aluminum Cap
DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment.Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.

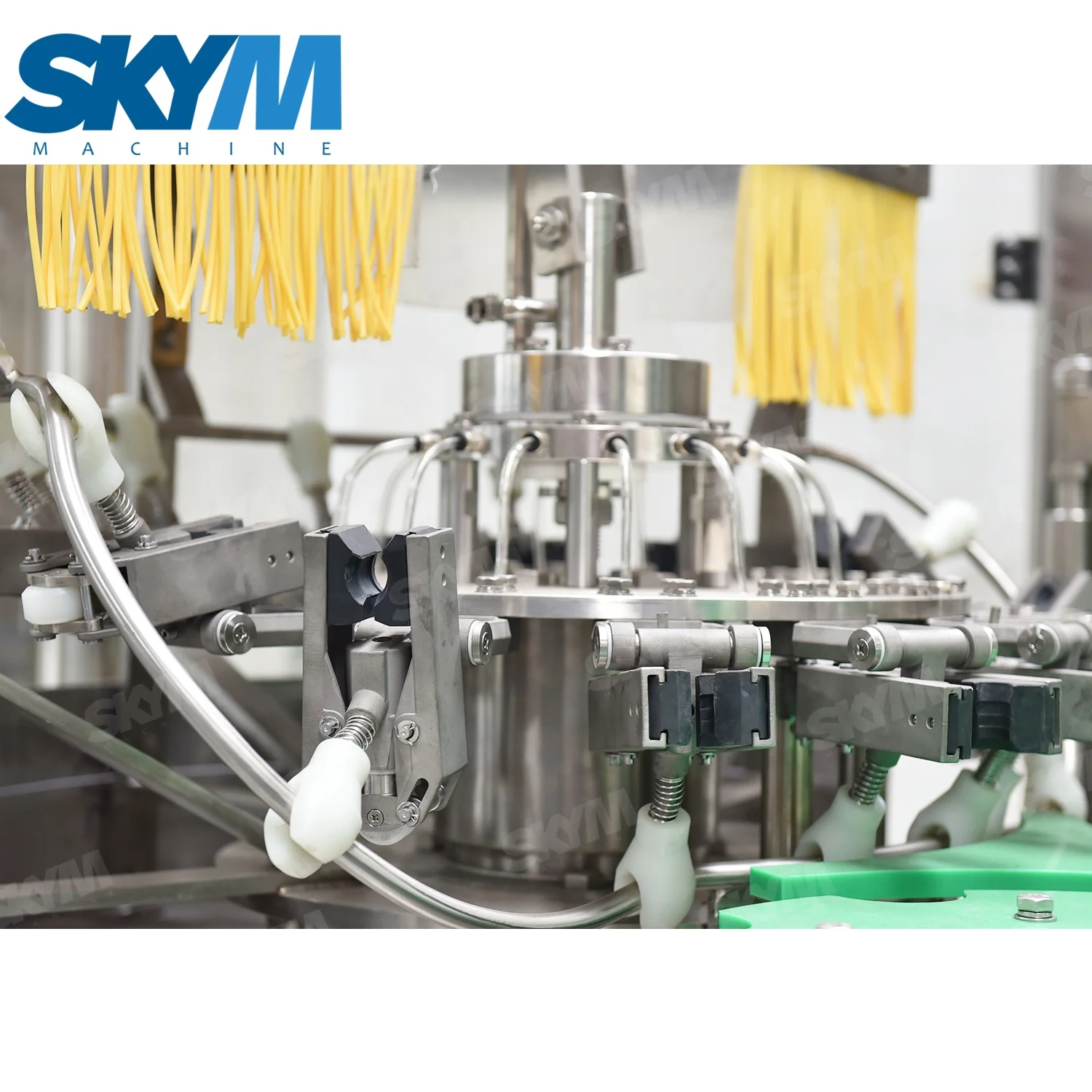

Rinser

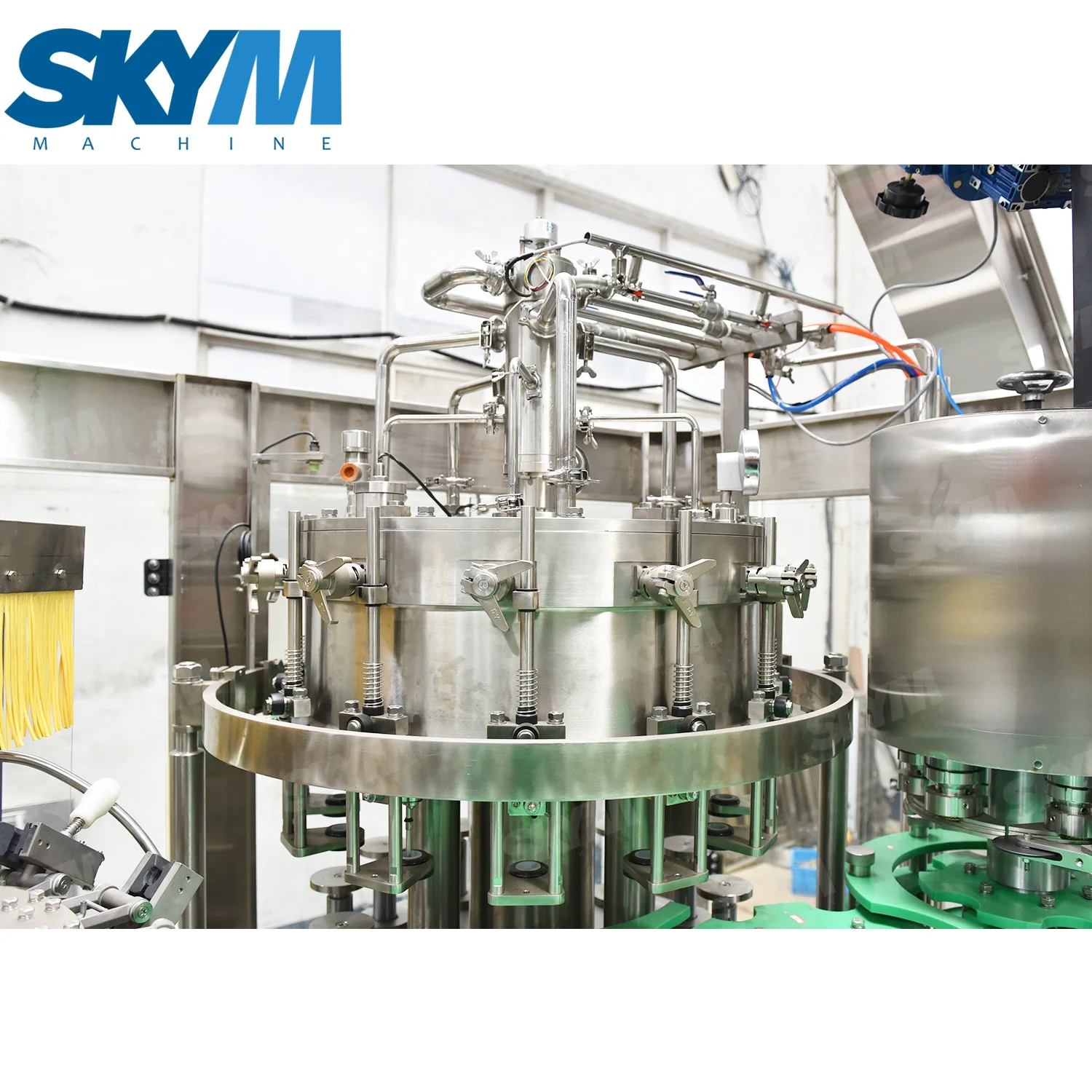

Filler

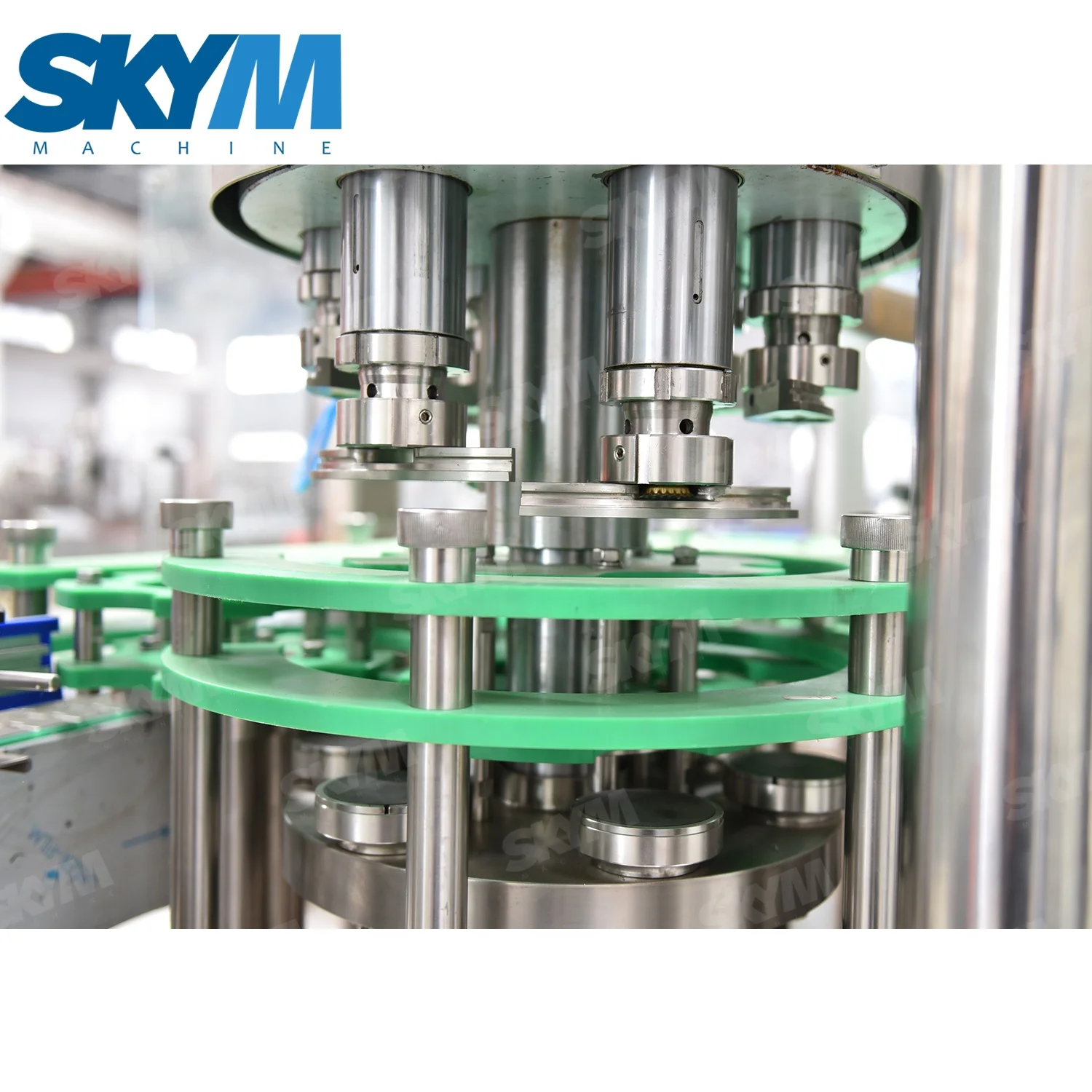

Capper
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\\'s Mitsubishi, France Schneider, OMRON.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\\'s Mitsubishi, France Schneider, OMRON.
Product Paramenters
Model | DCGF14-12-5 |
Amoust of working position | Rinsing 14, filling 12, capping 5 |
Production Speed | 3000bottles per hour(500ml) |
Pressure of air source | 0.3~0.7Mpa |
Air consumption | 0.2~0.6M3/min |
Pressure of rinse water | 0.06~0.2Mpa |
Consumption of rinsing water | 1t/hour |
Main motor power | 2.42kw |
283550*2650*2700Dimension | 2360*1770*2700(L*W*H) |
Weight | 2800kg |
Auxiliary Equipment
With many mature manufacturing experience, we can offer the following production lines and equipment for A to Z complete solution.

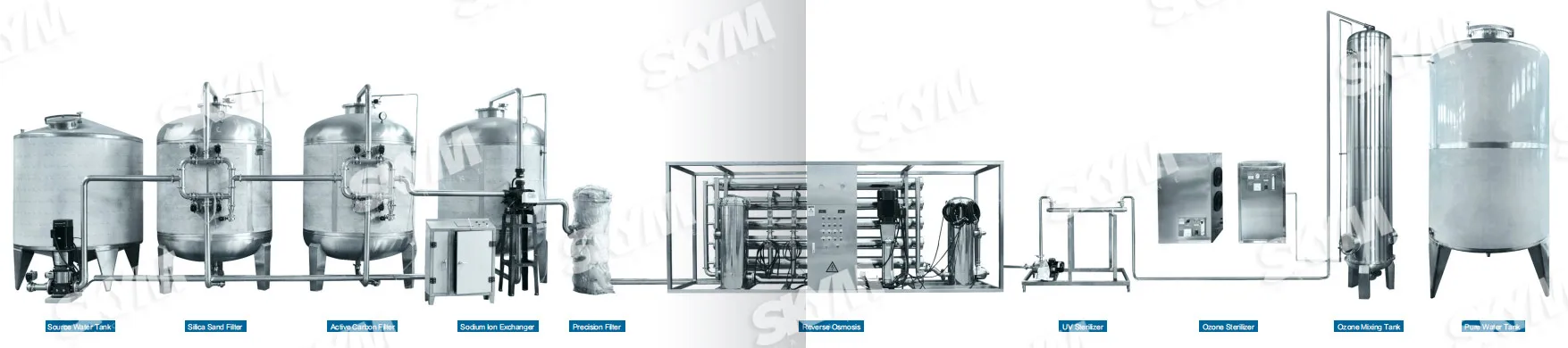

Water Treatment System
source water tank--water pump--silica sand filter-- active carbon filter-- sodium-- ion exchanger-- precision filter --reverseosmosis system-- uv sterilizer --Ozone sterilizer --pure water tank

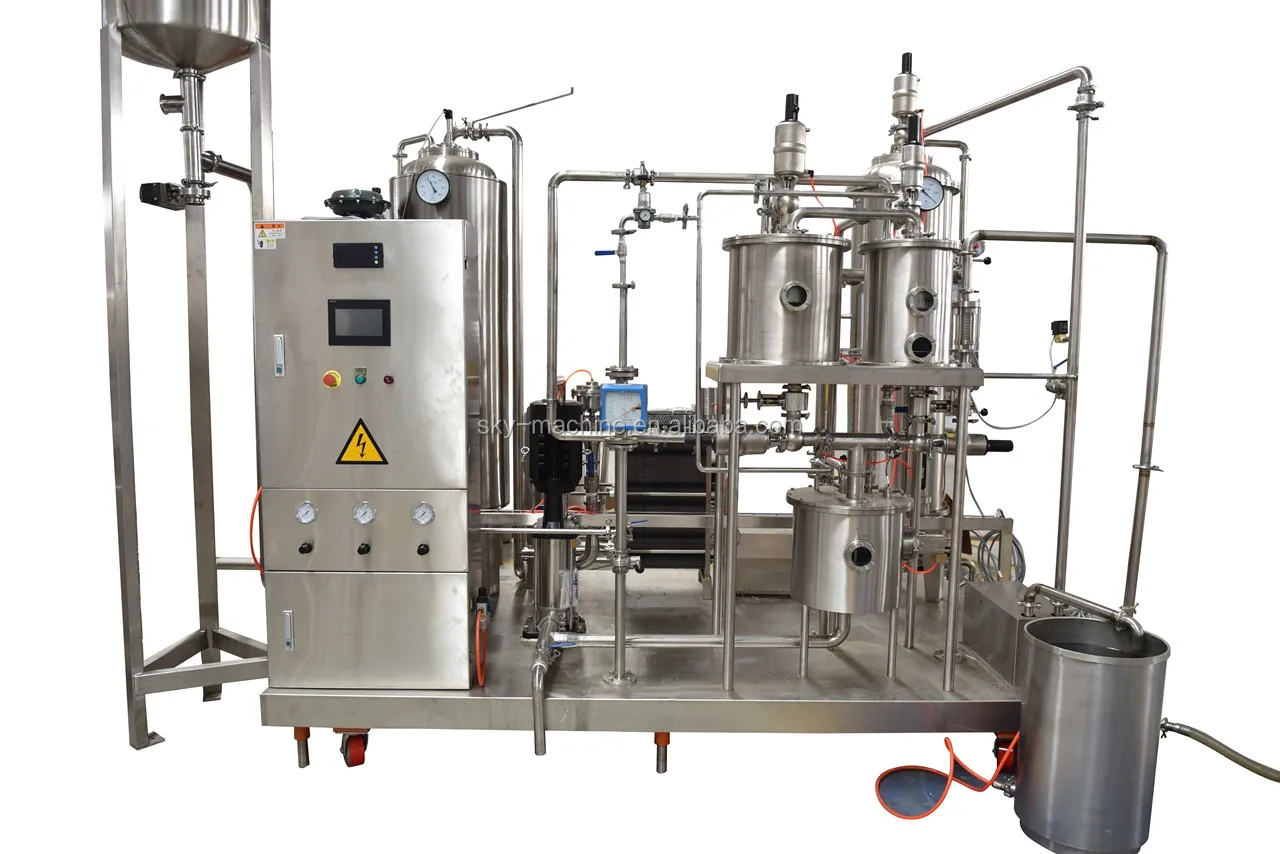

Beverage CO2 Mixing Machine
It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
Air Conveyor System
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power.
Belt Conveyor System
according to the requirements of different users, different production capacity, tank type, a combination of different ways of conveying module, motor control mode, with great flexibility.

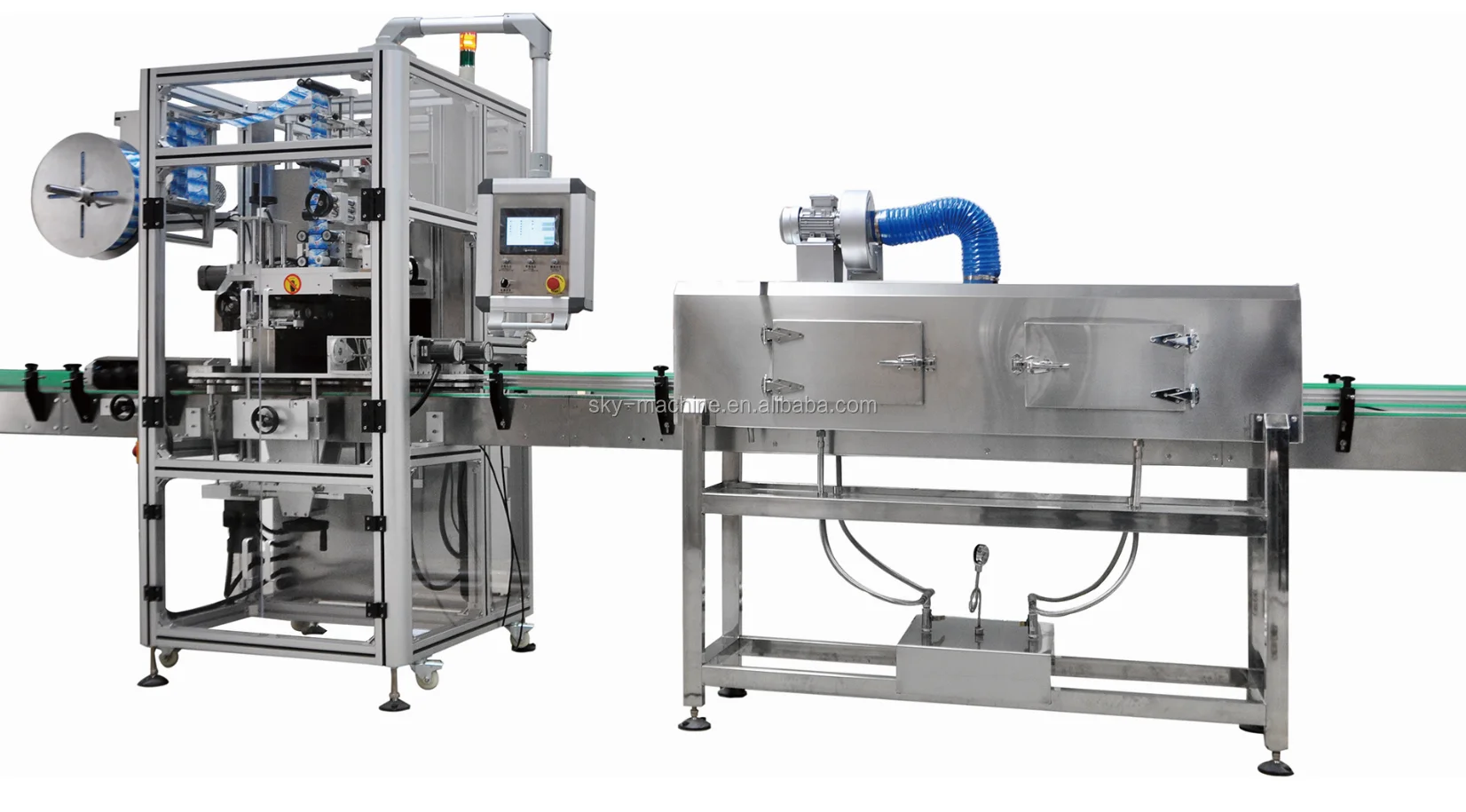

Automatic PVC shrink labeling machine
The machine can be used for various bottle types, such as: round bottle, square bottle, flat bottle, curve bottle, cup, and so on.
Blow Dryer
This machine installed after the filling machine, In order to dry the bottles which outside with some water drop, This machine is used to removing the water outside the bottle surface, the blowing capacity can be adjusted through the button.

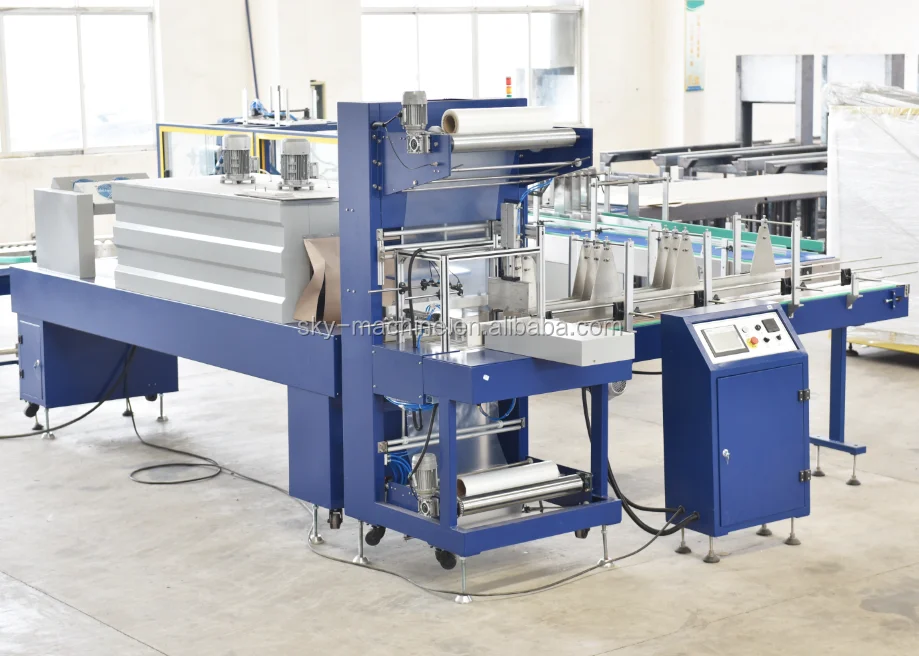

Automatic PE film shrink wrapping machine
(1)350/500/550/600ML
large package: 4*6, 4*5
Small package: 3*4, 3*5
(2)1L/1.5L/2L/2.5L
(2)1L/1.5L/2L/2.5L
large package:3*3,3*4
Small Package:2*2,2*3
Small Package:2*2,2*3

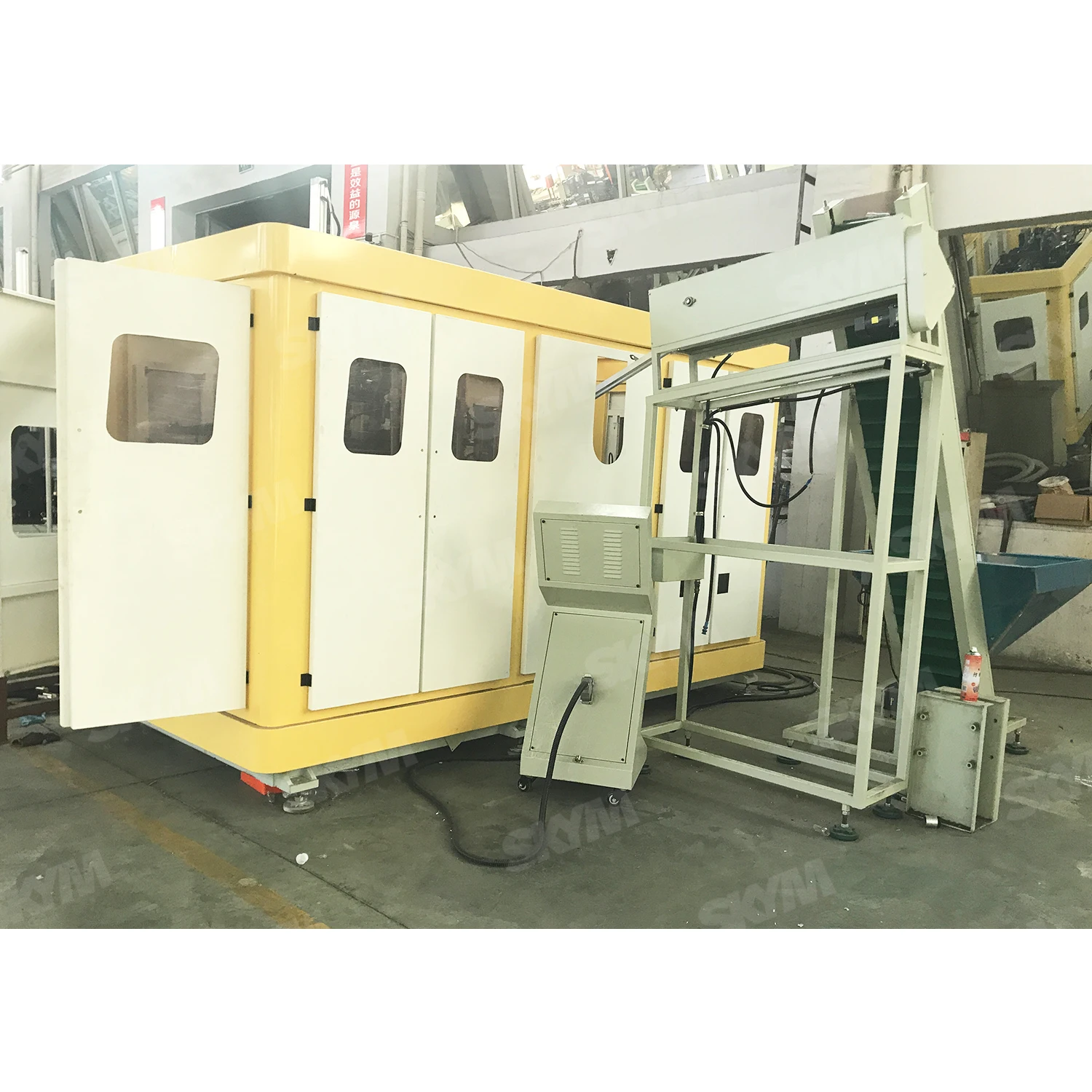

PET bottle making machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

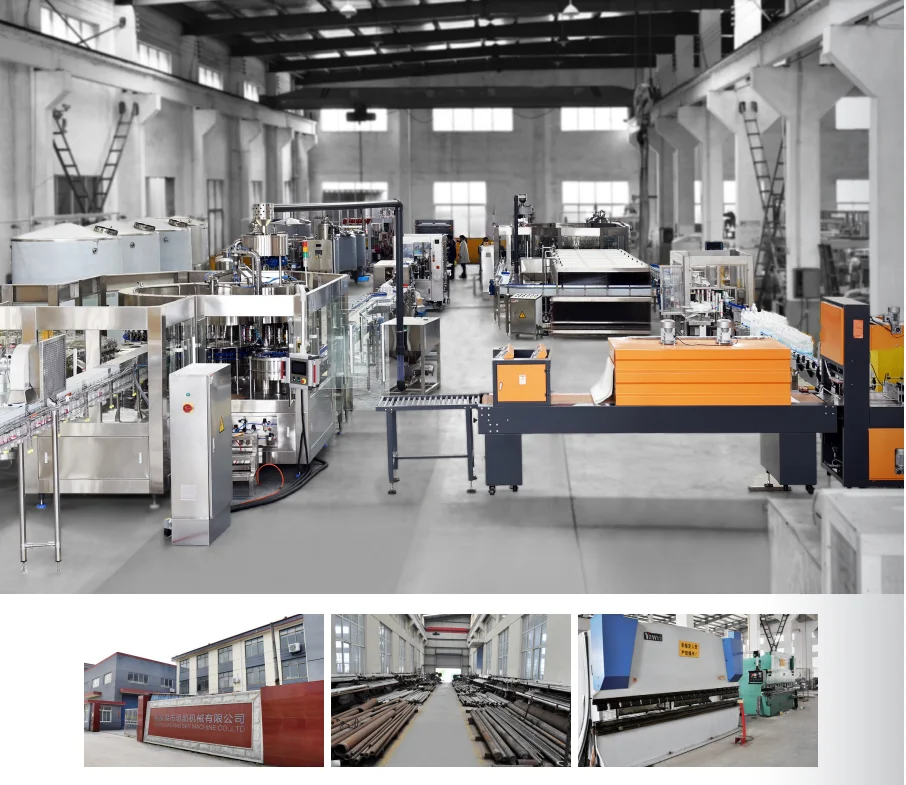

Company Introduction
Customer Photos
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
