PET Bottle Crushing Pelletizing Line Wasted Plastic Recycling Machine Production Line
- Category: >>>
- Supplier: Cissco Machinery Co. Ltd.
Share on (1600911518299):
Product Overview
Description
Product Description

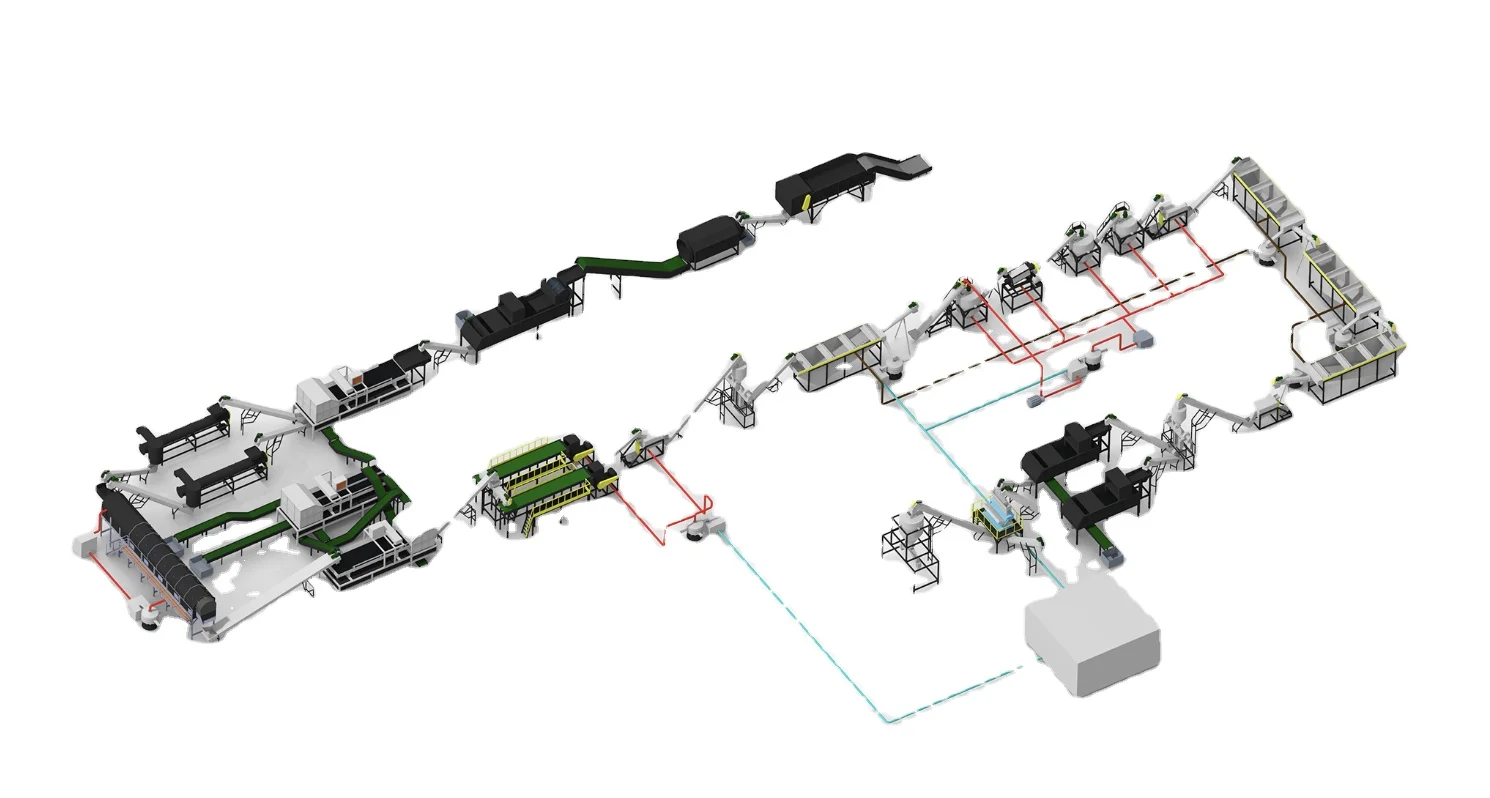

PET Bottle Washing Line

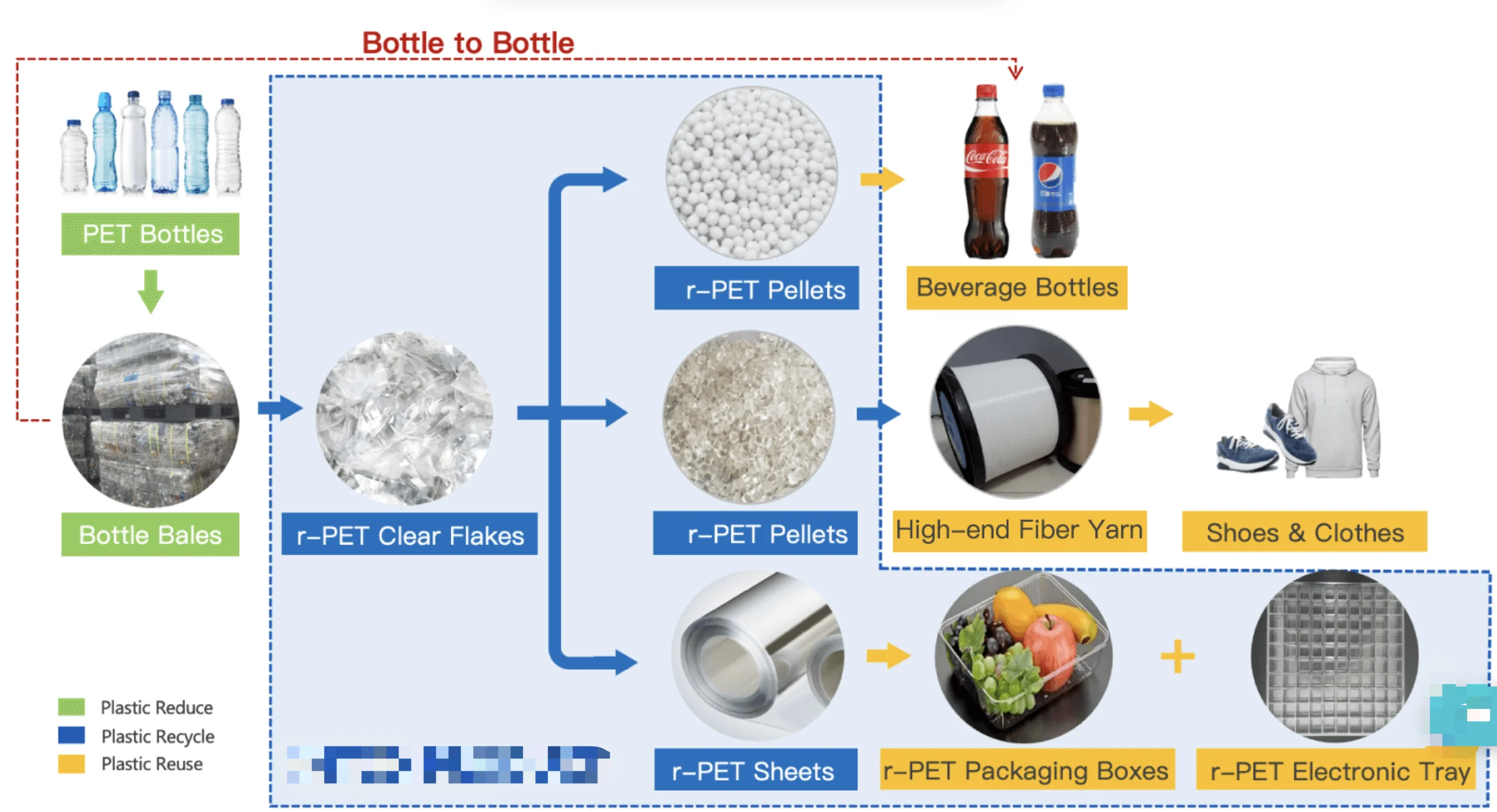

With improvement of the human environmental awareness, We are paying more attentions to the carbon emissions, PET material recycling become to first priority of us,CissCo Machinery automatic washing recycling production system with variety of design technology and modular construction, according to the regional situation of raw material , differences between production areas, products quality requirements and investment budget, applicable to bottle to bottle grade, sheet package grade and fiber (PSF) grade production Currently available capacity up to 6000 kg/h.
PET Plastic Bottles/Buckets Crushing Washing Drying Recycling Line
As we all know, the recycling of PET bottles is the most important part of plastic recycling today, and CISSCO has also focused on the research of PET recycling for many years. Usually we have the following steps to deal with complete PET bottles, sorting→crushing → washing → drying. PET waste bottles are dirty and must undergo strict washing before granulation to remove oil, dust and other sundries.
In addition, waste PET bottles are often accompanied by accessories such as bottle caps, labels, and bottom brackets, because they are usually made of made of PP/PE and other materials, they are incompatible with PET.
Therefore, in the recycling and pelletizing process of waste PET bottles, these accessories must be sorted out separately.
In addition, waste PET bottles are often accompanied by accessories such as bottle caps, labels, and bottom brackets, because they are usually made of made of PP/PE and other materials, they are incompatible with PET.
Therefore, in the recycling and pelletizing process of waste PET bottles, these accessories must be sorted out separately.
Main Part

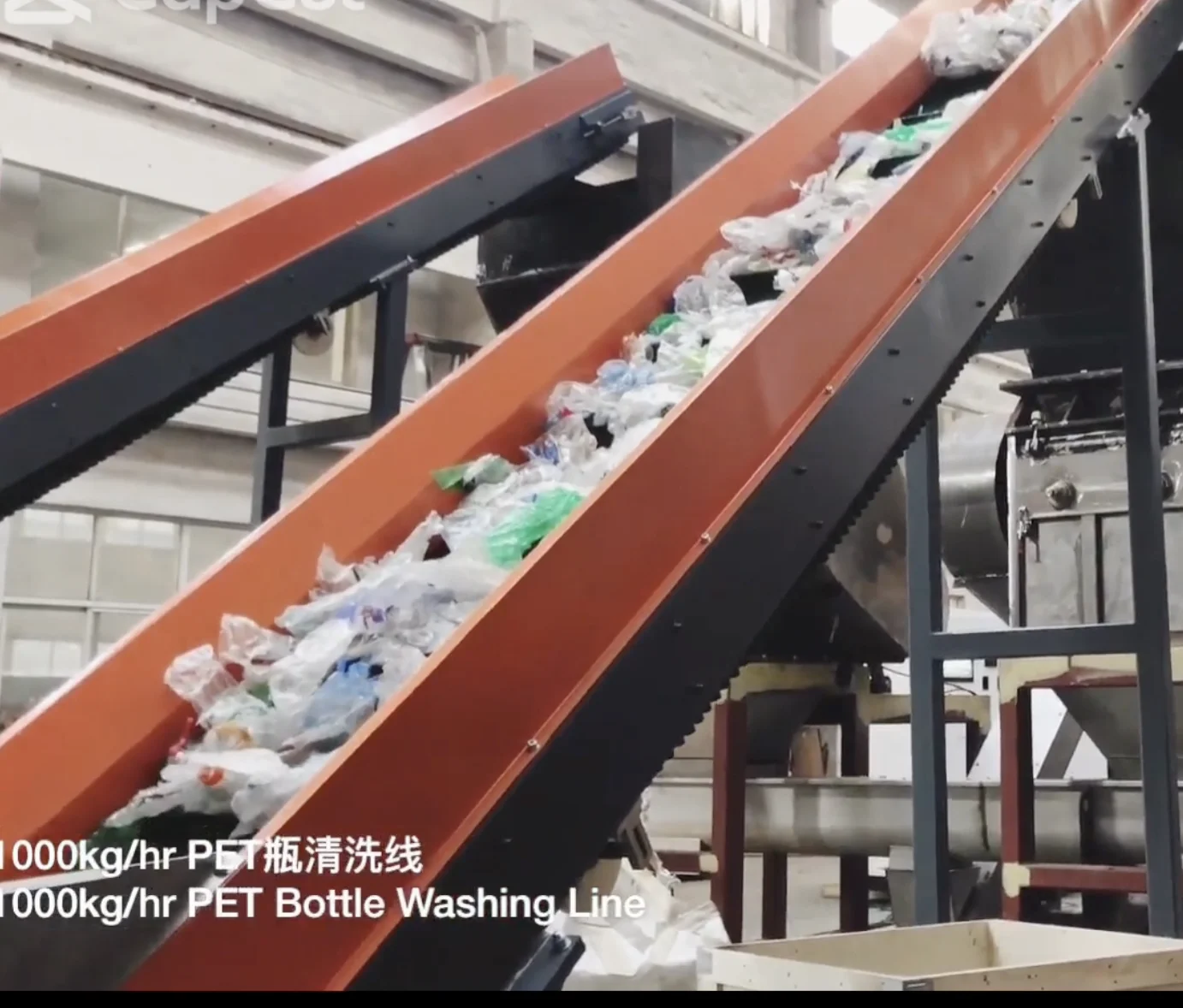

Belt Conveyor
Width of belt: 800mm
Basic material of belt: PVC
Motor power: 2.2KW
Thickness: 5mm
Output: 1000kg/h
Basic material of belt: PVC
Motor power: 2.2KW
Thickness: 5mm
Output: 1000kg/h
Crusher
Application: to cut plastic into smaller pieces
Motor Power: 55 kw
Opening Motor Power：0.75kw
Screen motor power：0.75kw
Main-crew Diameter：φ550mm
Main Crew Width：1000mm
Basic material of blades: SKD11
Cooling way of hydraulic station: water recycling
Curtain: we can design plastic curtain in the feeding mouth, to block the powder during process.
Motor Power: 55 kw
Opening Motor Power：0.75kw
Screen motor power：0.75kw
Main-crew Diameter：φ550mm
Main Crew Width：1000mm
Basic material of blades: SKD11
Cooling way of hydraulic station: water recycling
Curtain: we can design plastic curtain in the feeding mouth, to block the powder during process.
Screw Loader
Screw diameter：250mm
Motor power：3KW
Part of contacting material: stainless steel
Motor power：3KW
Part of contacting material: stainless steel
LABEL SEPERATER
most labels are PVC heat-shrinkage sleeves which cannot be removed by bottle prewashing, it is a big problem in PET bottle
recycling industry. CISSCO machinery bottle label remover machine can completely solve the problem. - special blowing cyclone
labal seperate ratio 85-95%
-teeth type blades: made by tungsten steel with copper welde
recycling industry. CISSCO machinery bottle label remover machine can completely solve the problem. - special blowing cyclone
labal seperate ratio 85-95%
-teeth type blades: made by tungsten steel with copper welde
Floating Wash
it is one of the main machines in waste plastic PET bottle washing recycling line.
When the plastic is fed into the floating washer tank, PET flakes will sink down to the bottom of the washer tank as the density
is heavier than water, while the pp caps and pvc labels will float on water. The pet flakes will be washed and carried out by the
screw downside, and the caps and labels will be taken out by the rollers on top of the tank. In this way, the pet flakes will be
washed and different materialS will be separated
When the plastic is fed into the floating washer tank, PET flakes will sink down to the bottom of the washer tank as the density
is heavier than water, while the pp caps and pvc labels will float on water. The pet flakes will be washed and carried out by the
screw downside, and the caps and labels will be taken out by the rollers on top of the tank. In this way, the pet flakes will be
washed and different materialS will be separated
HOT WASHER
Our traditional hor water washer is a batch-style system designed to wash away hard to remove contaminations such as glues, oils,
greases, and even left-over foods/ liquids. For PET bottle recycling, the hot water wasing preess is an essential step in
producing higher priced "hot washed" PET flakes.
greases, and even left-over foods/ liquids. For PET bottle recycling, the hot water wasing preess is an essential step in
producing higher priced "hot washed" PET flakes.
TROMMEL
It can remove small sand, stone, metal, caps and impurity less than 50mm by rotary centrifugal force. On top of its applications
in PET recycling, the trommel separator is often found being used in municipal waste separation.
in PET recycling, the trommel separator is often found being used in municipal waste separation.
Specification
Model | Capacity （kg/h） | Consumption （kw/h） | Steam （kg/h） | Detergent （kg/h） | Water （ton/h） | Installation Power （kw） | Space （m2） | Man Power (persons/shift） |
PET500 | 500 | 110 | 500 | 10 | 0.7 | 220 | 700 | 6 |
PET1000 | 1000 | 170 | 600 | 14 | 1.5 | 395 | 800 | 6 |
PET2000 | 2000 | 340 | 1000 | 18 | 3 | 430 | 1200 | 8 |
PET3000 | 3000 | 460 | 1200 | 28 | 4.5 | 590 | 1500 | 8 |
PET6000 | 6000 | 680 | 1500 | 50 | 8 | 850 | 2000 | 12 |
