MBBR System Bio Filter Media K1 K2 K3 K5 Bio Media MBBR Carrier Moving Bed Biofilm Reactor for Wastewater Treatment
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (1600911519805):
Product Overview
Description
Products Description
MBBR Bio filter media, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR)system. The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of mediagradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media, has better treatment effect compared with traditional media.
* New sewage treatment project of MBBR and Biological Aerated Filter process.
* Biochemical treatment of reclaimed water.
* River regulation denitrification and phosphorus removal.
* Aquaculture in addition to ammonia nitrogen, water purification.
* Biological filter media is used for biological deodorization tower.
Applications：
* The Sewage plant upgrade project , improve the standard and quantity.
* The Sewage plant upgrade project , improve the standard and quantity.
* New sewage treatment project of MBBR and Biological Aerated Filter process.
* Biochemical treatment of reclaimed water.
* River regulation denitrification and phosphorus removal.
* Aquaculture in addition to ammonia nitrogen, water purification.
* Biological filter media is used for biological deodorization tower.
Technical core of MBBR Bio Filter Media
1.Special design of surface, stronger bio-film growth capacity;2.Large specific surface area, high voidage, the more periphyton biomass;
3.Unique design of structure and shape according to hydromechanics, strong three-dimensional flow dynamics
in the water;

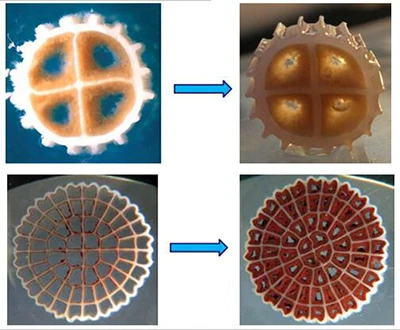

4.Adding hydrophilic groups and other trace elements, the biofilm formation time only 3-15 days;
5.Excellent impact strength, strong gas shear capacity;
6.Without any holder, easy to cure, save energy and space.
Advantages of MBBR Bio Filter Media
1.Strictly selected materials and special modification: Use virgin HDPE as the raw material with additive of special formula including UV and hydrophilic genes, FDA food grade.
2.More than 100 high speed production lines which can exceed 150,000 cubic meter MBBR media per year. We can complete large order in short time.
3.High-tech enterprises integrating formula, tooling design, production and logistics, then we can perfectly meet special requirement of customers.
4.Various of MBBR media are designed for aerobic and anaerobic tank.
2.More than 100 high speed production lines which can exceed 150,000 cubic meter MBBR media per year. We can complete large order in short time.
3.High-tech enterprises integrating formula, tooling design, production and logistics, then we can perfectly meet special requirement of customers.
4.Various of MBBR media are designed for aerobic and anaerobic tank.

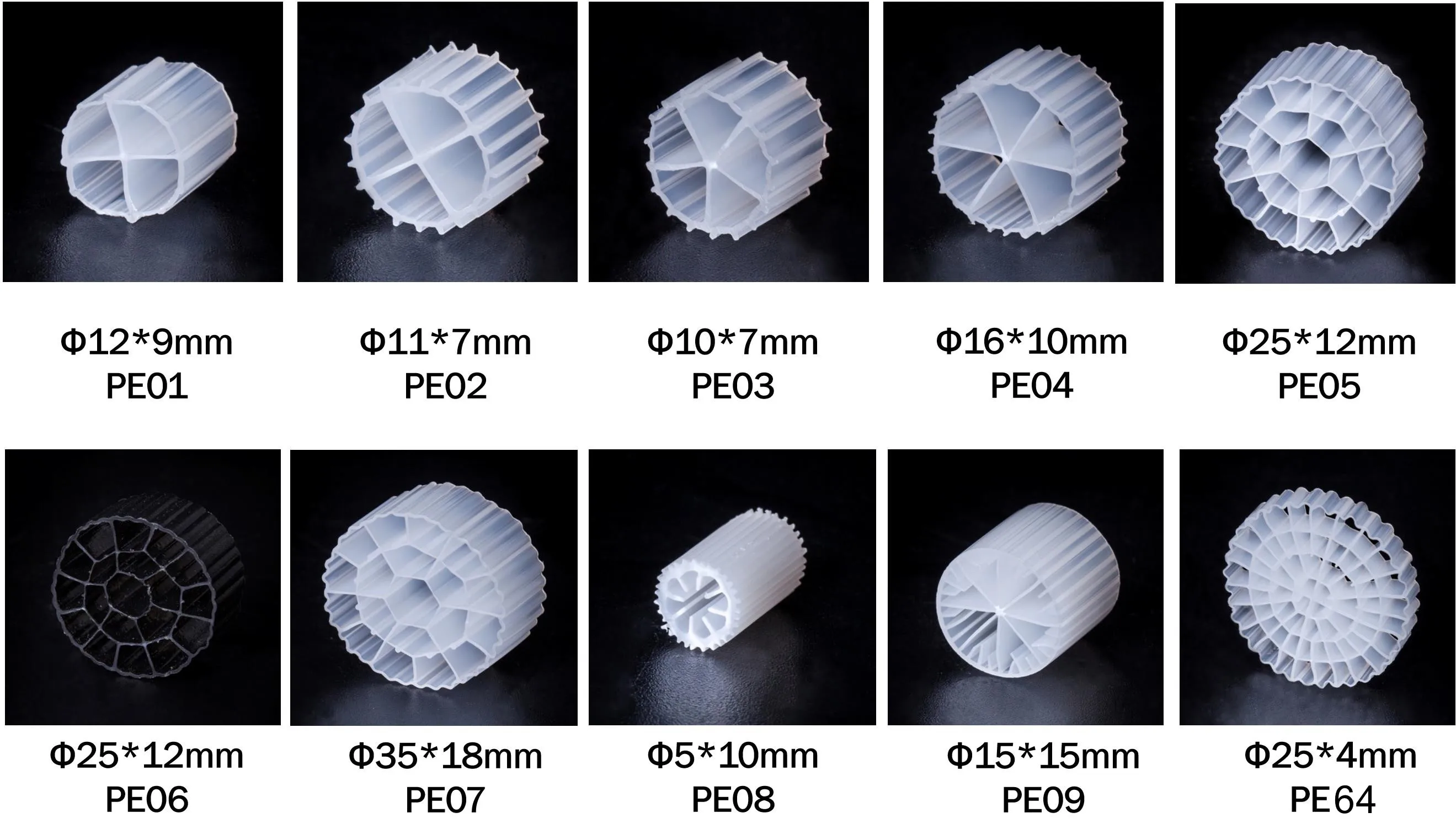

Model | Density | Diameter*Height | Surface Area | Hole | Packing numbers |
PE01 | 0.96-0.98g/cm3 | 12mm*9mm | >800㎡m³ | 4 rooms | >930000 pcs/m³ |
PE02 | 11mm*7mm | >900㎡/m³ | 4 rooms | >930000 pcs/m³ | |
PE03 | 10mm*7mm | >1000㎡/m³ | 5 rooms | >990000 pcs/m³ | |
PE04 | 16mm*10mm | >800㎡/m³ | 6 rooms | >260000 pcs/m³ | |
PE05 | 25mm*10mm | >600㎡/m³ | 19 rooms | >118000 pcs/m³ | |
PE06 | 25mm*10mm | >500㎡/m³ | 19 rooms | >118000 pcs/m³ | |
PE08 | 1.02-1.05g/cm3 | 5mm*10mm | >3500㎡/m³ | 7 rooms | >1540000 pcs/m³ |
PE09 | 0.96-0.98g/cm3 | 15mm*15mm | >900㎡/m³ | 40 rooms | >230000 pcs/m³ |
PE37 | 0.94-0.97g/cm³ | 25mm*10mm | >800㎡/m³ | 37 rooms | >118000 pcs/m³ |
PE38 | 0.94-0.97g/cm³ | 25*10mm | >800㎡/m³ | 38 rooms | >118000 pcs/m³ |
PE64 | 0.96-0.98g/cm3 | 25*4mm | >1200㎡/m³ | 64 rooms | >210000 pcs/m³ |
PE75S | 0.96-0.98g/cm3 | 25*4mm | >1600㎡/m³ | 75 rooms | >210000 pcs/m³ |
BioChip | / | 30*1.1mm | >5500㎡/m³ | / | >340000 pcs/m³ |
Process description
MBBR-SBR SLUDGE PROCESS
ANAEROBIC-ANOXIC-OXIC PROCESS
OXIDATION DITCH-MBBR PROCESS
