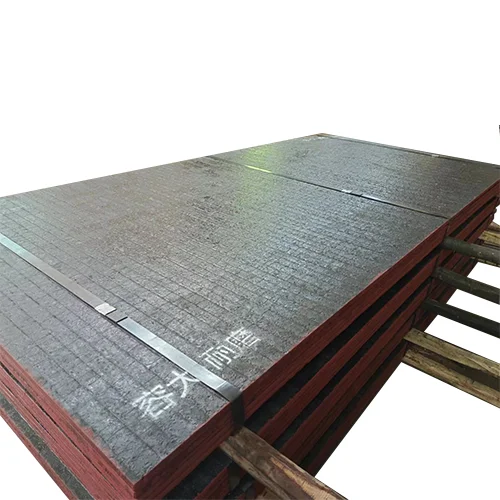

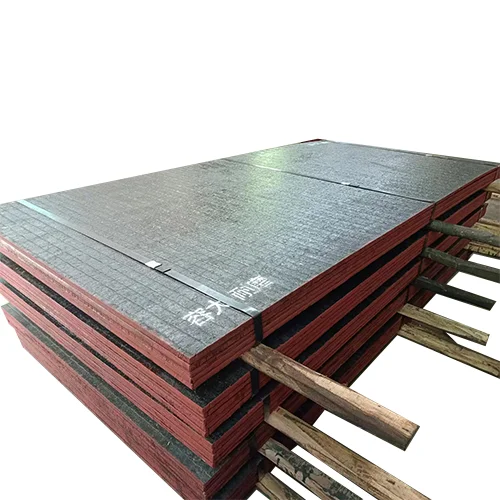

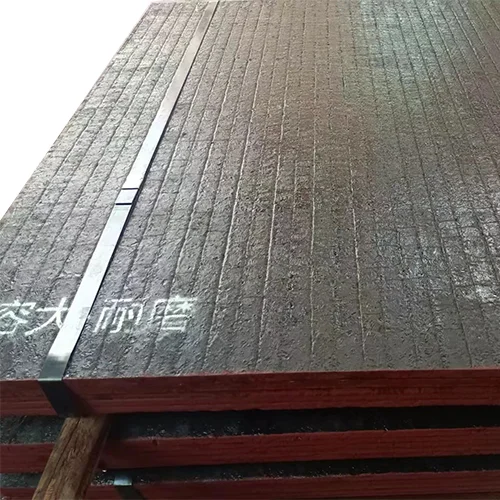

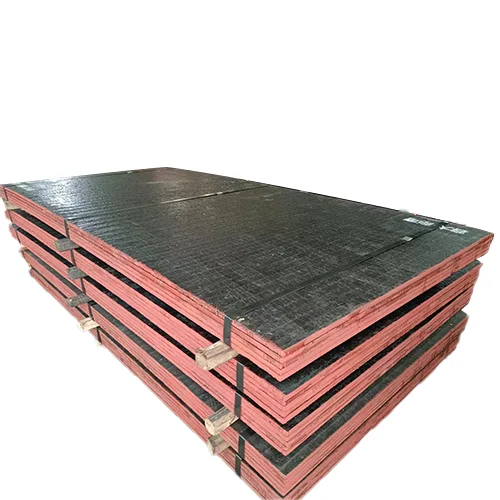

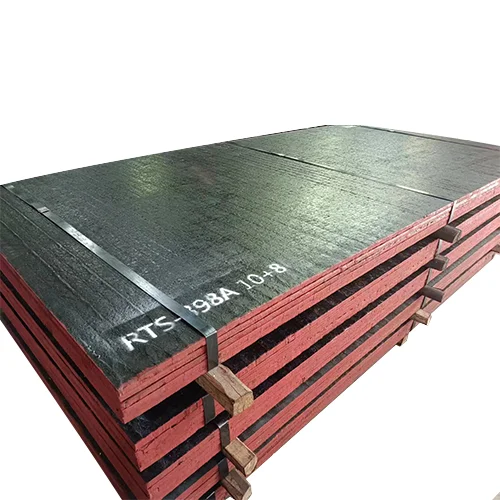

RTSD Quality Assurance Cutting parts die Wear resistant carbon steel sheet suitable for construction machinery
- Category: >>>
- Supplier: Guangdong Rongda Antiwear Tech Co. Ltd.
Share on (1600911530200):
Product Overview
Description
Product Name | RTSD specializes in customizing high wear resistance wear plate metal carbon alloy for construction machinery |
Brand | RTSD |
Base Plate | Q235/Q345 |
Hardfacing layer | High chromium high carbide overlay |
Chemical Composition | C(%): 3.0-5.0 ,Cr(%): 25-40 |
Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above 50% |
Hardness | HRC58-65 |
Surface Treatment | Hardfacing,clading,coated |
Technique | Hardfacing,open arc welding,submerged arc welding |
Wear Resistance | High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel |
Impact Resistance | Medium |
Flatness tolerance | ±3mm/m |
Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5mm |
Main Thicknesses | 3+3,4+4, 5+5 6+4,6+5,6+6,6+8 8+4,8+5,8+6,8+7,8+8 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 14+6,14+8,14+10,16+6,16+8,16+10 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 Customized. |
Plate Size | Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm. Customized |
Place of Origin | China |
Application | Mining,Steel,Cement,Power,Port,etc. |
