Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

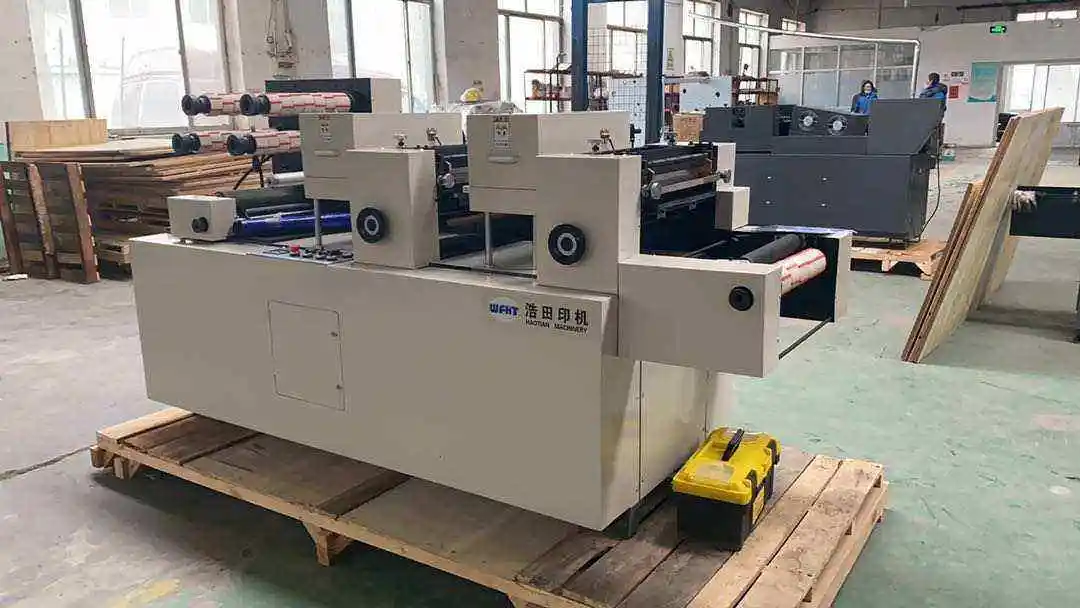

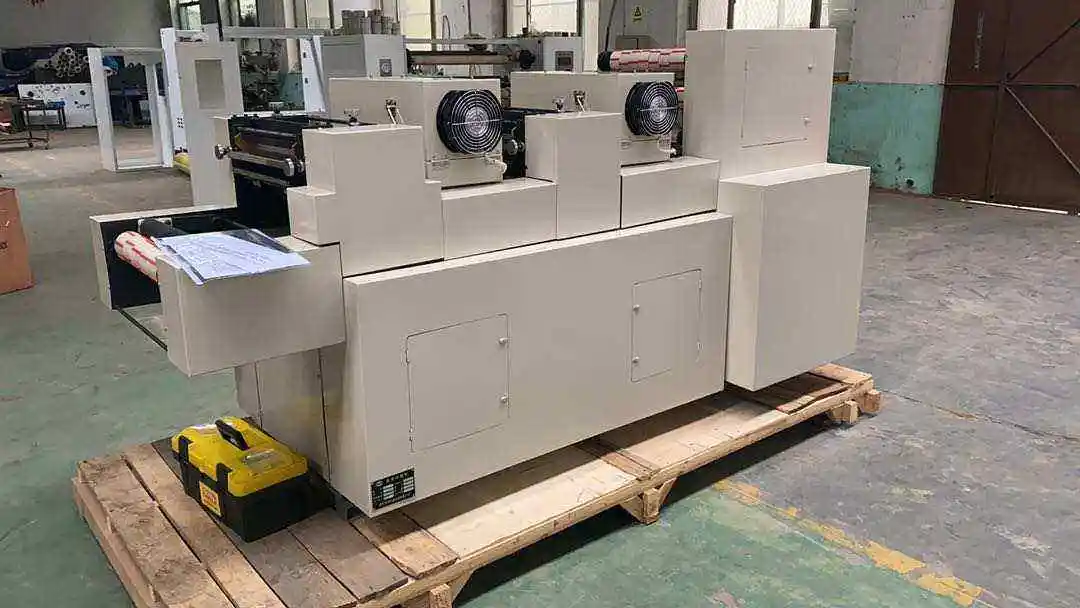

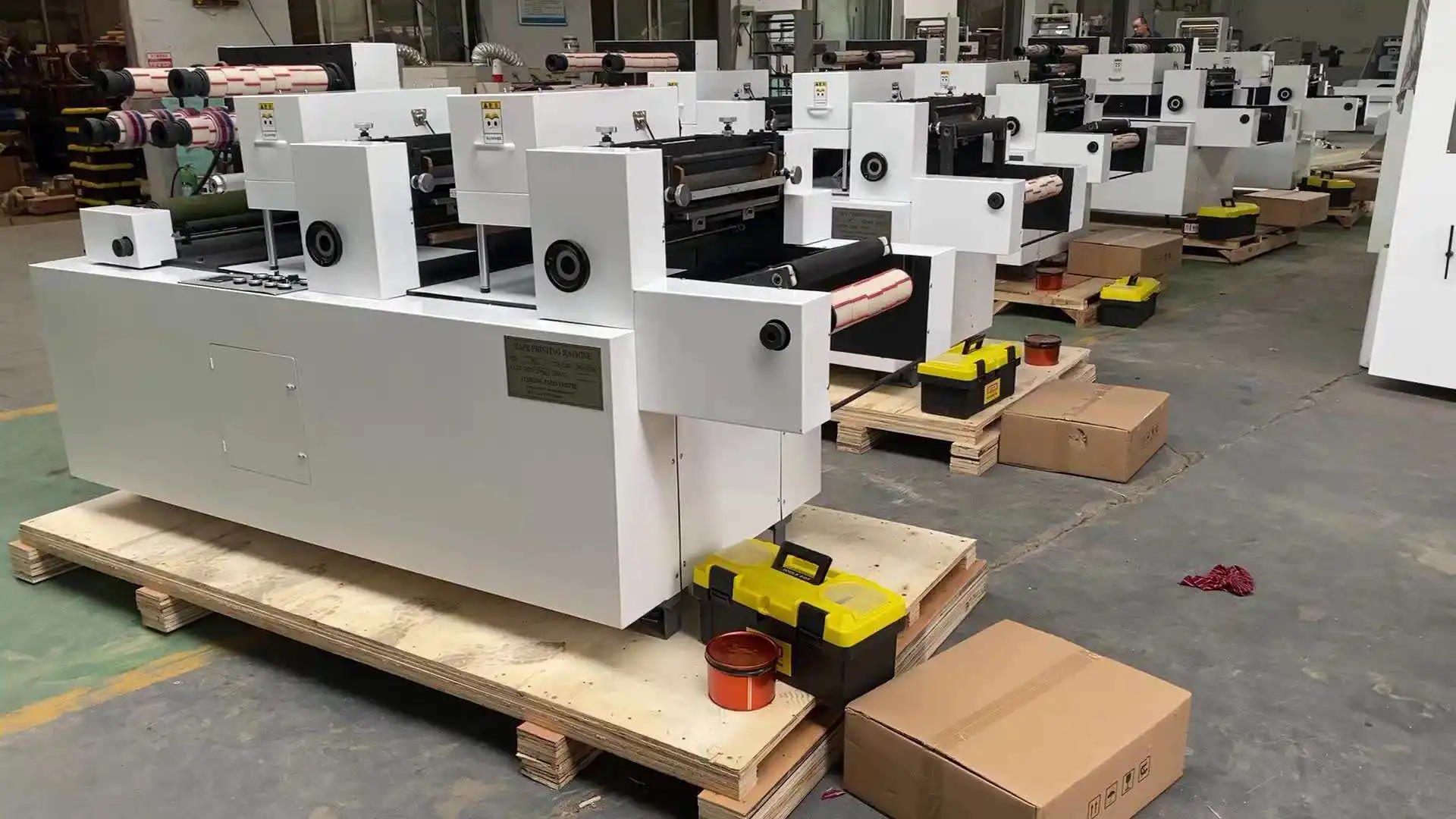

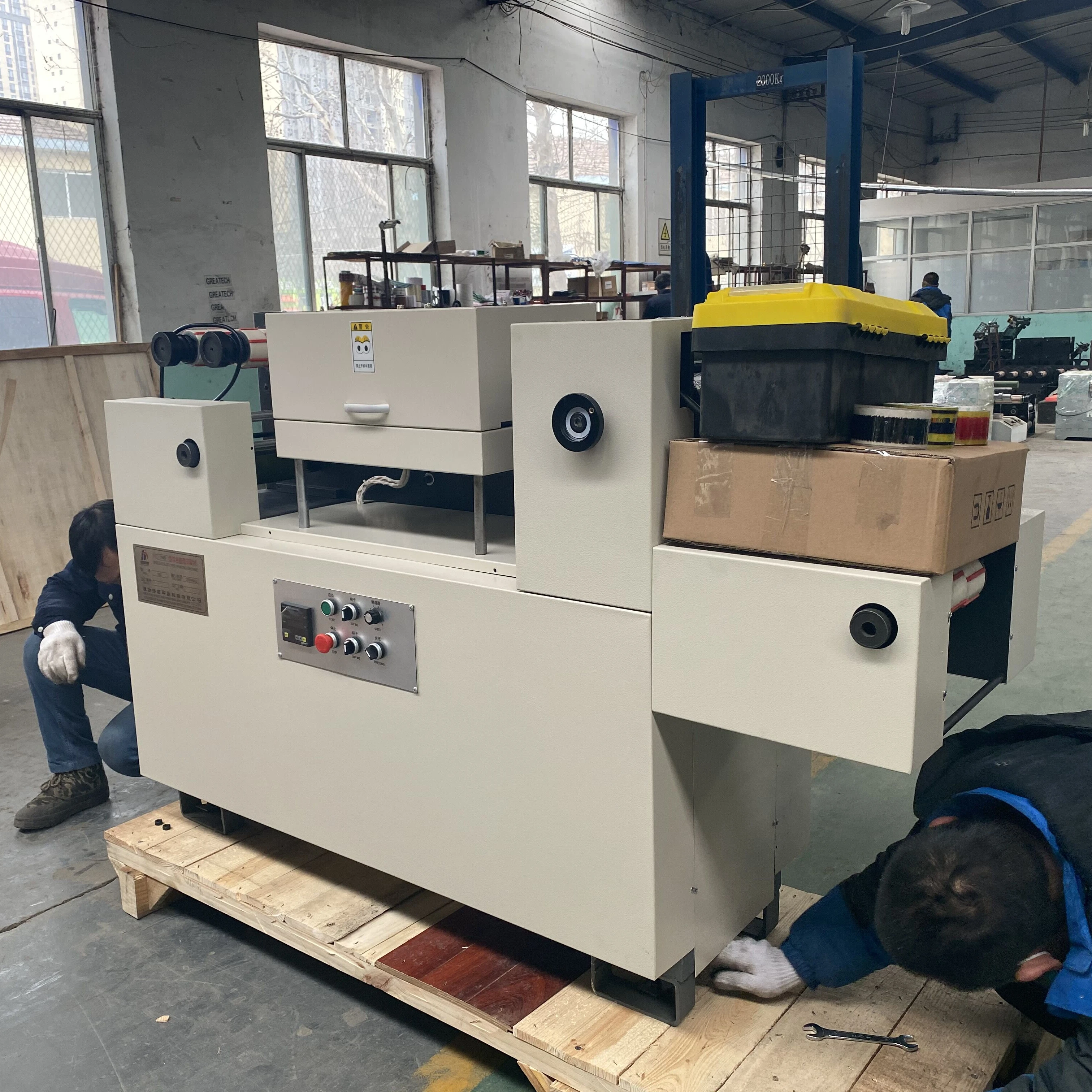

HT360 2 Low Price BOPP Tape Coating Machine with 2 Color Printing Machine
- Category: >>>
- Supplier: Weifang Haotian Printing Machinery Co. Ltd.
Share on (1600911530739):
Product Overview
Description
FEATURES AT A GLANCE
1. Suitable to print BOPP tape, Scotch tape.
2. Especially for small quantity printing.
3. Fully rotary printing station, high speed.
4. UV offset ink printing+poly plate,easy operation,low production cost.
5. Independent motor for driving and stepless speed adjusting.
6. Good unwinding tension and rewinding by slipping shaft,and tension adjustable.
7. Equipped with slitting system,can use as simple slitter and rewinder.
8. Four shaft for rewinding,can print more than 1 roll at same time.
9. Dried by UV light, fast and perfect.
10. Printing color, single color and two colors.
2. Especially for small quantity printing.
3. Fully rotary printing station, high speed.
4. UV offset ink printing+poly plate,easy operation,low production cost.
5. Independent motor for driving and stepless speed adjusting.
6. Good unwinding tension and rewinding by slipping shaft,and tension adjustable.
7. Equipped with slitting system,can use as simple slitter and rewinder.
8. Four shaft for rewinding,can print more than 1 roll at same time.
9. Dried by UV light, fast and perfect.
10. Printing color, single color and two colors.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | 360-2 | HT360-2 | |||||
Printing color | 2 Color | 2colour | |||||
Applicable tape width | 30-350mm | ||||||
Plate size | 350*251mm | ||||||
Printing area | 350*250mm | ||||||
Printing speed | 50-100m/min | ||||||
Max.diameter of tape roll | As your required | ||||||
Thickness of printing plate | 0.95mm | ||||||
Plate | Letterpress | ||||||
Ink | UV ink | ||||||
Type of roller | Ceramic Anilox roller | ||||||
Numbers of rewinding shaft | 4 shafts change automatically | ||||||
Weight of machine | 700kgs | 950kg | |||||
Total power | 380V/4.7KW | 380V/4.7KW | |||||
Overall dimension | 2250*1150*1420MM | 2250*900*1380MM | |||||
PRODUCT CONFIGURATION
UV LIGHT
plate
four shafts automatic change
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
1.How can I get sample to check your quality?
We have free sample available for all dear customers,you just have to pay the cost of freight or air courier.If you place order to us,we can deduct the cost from the total order amount.
2.If I don't know how to operate,how can I get installation and training?
We have an experienced service group,our engineer can go to your factory to give approx.1 week.You have to cover allthe
visa,flight ticket expense and provide our engineer accommodation and allowance $80/day.
3.If there is any problem on machine,how can I solve it?
First of all,we have online service,after submitting and problem we will come up with solution,if you can solve ityourself we will give you procedure step by step teach you solve it,by msg,pic,voice,or video talk.Normally we aregood at video talk,and it is most successful method.If any electronic parts in problem which is occured itself(not
improper operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieghtor air lift.
4.What' s the lead time and lead term?
Leading time is 10 days after rceipt of 30% deposit,balance paid before delivery.
We have free sample available for all dear customers,you just have to pay the cost of freight or air courier.If you place order to us,we can deduct the cost from the total order amount.
2.If I don't know how to operate,how can I get installation and training?
We have an experienced service group,our engineer can go to your factory to give approx.1 week.You have to cover allthe
visa,flight ticket expense and provide our engineer accommodation and allowance $80/day.
3.If there is any problem on machine,how can I solve it?
First of all,we have online service,after submitting and problem we will come up with solution,if you can solve ityourself we will give you procedure step by step teach you solve it,by msg,pic,voice,or video talk.Normally we aregood at video talk,and it is most successful method.If any electronic parts in problem which is occured itself(not
improper operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieghtor air lift.
4.What' s the lead time and lead term?
Leading time is 10 days after rceipt of 30% deposit,balance paid before delivery.
