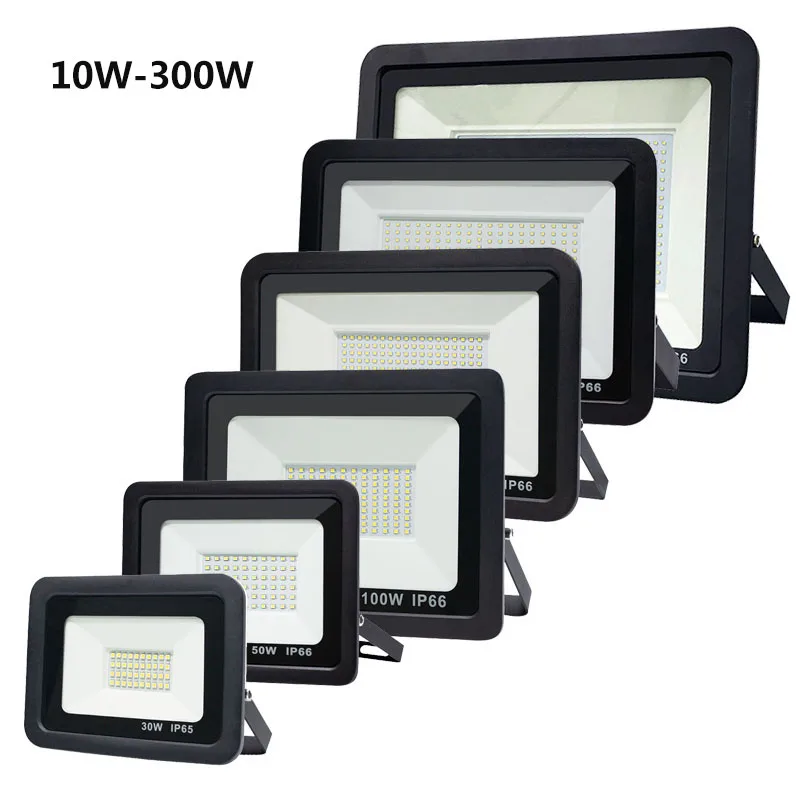

120 watt Stadium Sport Lighting IP66 Waterproof Reflector Led 50w 100w 150w 300 Watt 200w Outdoor Flood Light

Share on (1600911532508):


Price:$2.99 - $3.68

Quantity:


Product Overview

Description


Stadium Sport Lighting IP66 Waterproof Reflector 50w 100w 150w 300 Watt 200w Outdoor Led Flood Light


Stadium Sport Lighting IP66 Waterproof Reflector 50w 100w 150w 300 Watt 200w Outdoor Led Flood Light






Product Description


Quick Browse for LED Flood Lights:
• Product rated power: 150 Watts.
• Lumen flux: 13500-15000 lumens
• Dimension: L330*W230*H33mm.
• Color temperature: 2700K, 3000K, 4500K, 5500K, 6500K or customised.
• Driver mode: linear DOB solution (driver on board).
• Body color: White, Black.
• Surge protection: 4KV.
• Adopting SMD2835 super bright LED chips, up to 90lm/W.
• The light can be saving 95% comparing to traditional lamps.
• CE, ROHS approved.
• Warranty is 2 years.
• Able to make microwave sensor, motion sensor, daylight / photocell sensor etc.
• LED junction temperature less than 40 degree.
• High light transmission up to 95%.
• Easy installation and maintenance, quality guaranteed.
• Waterproof IP66 design for indoor and outdoor landscape lighting.





Descriptions of LED Flood Lights:

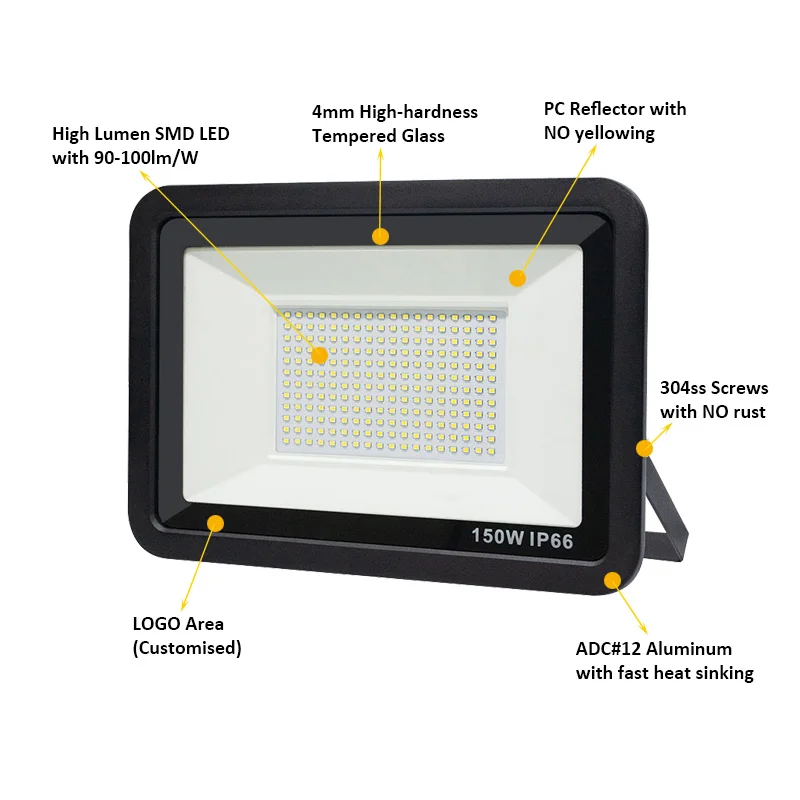

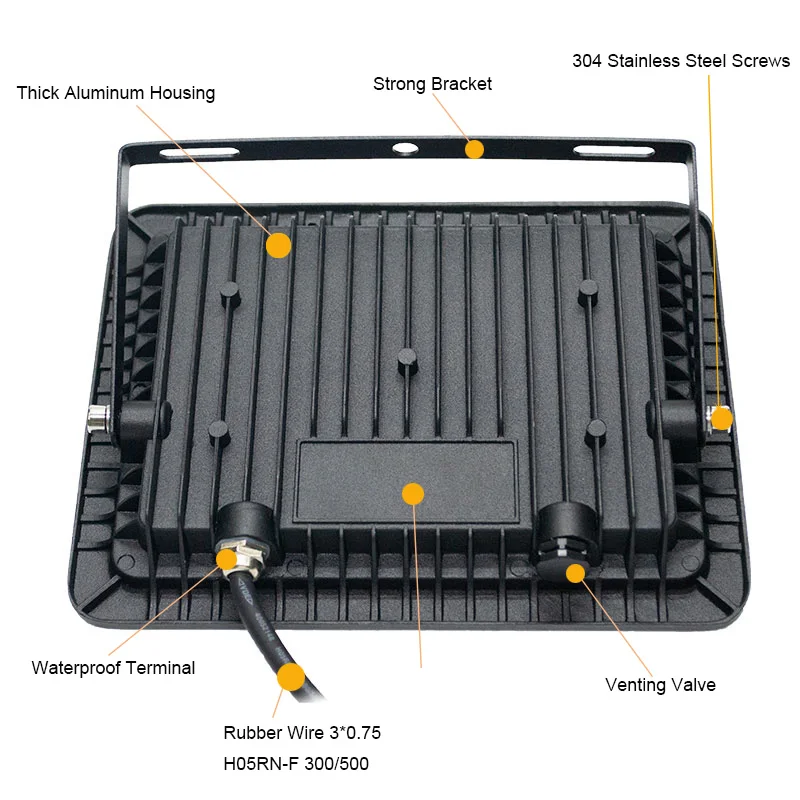

   The reflector led 150w is covered with simple appearance and unique waterproof design. It adopts over-thick die-casting aluminum as the main housing material and tempered glass as the cover material IK07. The radiator is fin type with fast heat dissipation. It adopts linear DOB working solution, keeping good working and stable quality.
    It is widely used for residential lighting like stair, door, shop, walkway, gateway, yard, and commercial lighting like building, wharf, minel, sport fields.





Product Specifications for 150 watts LED Flood Lights:

























































































































 Product Name Outdoors Reflector 50 100 150 200 300 Watt Led Flood Lights
 Usage Walkway, building, construction site, mineral estate, sport fields
 Product Model SU-CB150T
 Rated Power 150 Watts
 Optional Wattages 50 100 200 300 Watts
 Work Voltage AC100-130V / 2000-240V, 50/60Hz
 LED Chip LED chips
 Driver IC driver on board
 Lumen Flux 12750-13500 lumens
 Color Temperature 2700K-2800K, 3000K-3200K, 4000K-4500K, 5000K-5500K, 6000K-6500K
 Material Die-cast aluminum + tempered glass cover
 Dimension 330*230*33mm
 Surge Protection 4KV
 Anti-shock Level IK07
 Waterproof Protection IP66
 Wire Length Rubber cable H05RN-F  3*0.75mm² 50cm = 19.68inch
 Beam Angle 120°
 Lifespan 50000 hours
 CRI >70
 PF >0.9
 SDCM <5
 THD <20%
 Efficiency >85%
 Work Temperature -25 ~ 55°C
 Storage Temperature -30 ~ 60°C
 Finished Body Color Black or White
 Grade of Safety Class I
 Standard CE LVD EMC Rohs
 Warranty  2 Years

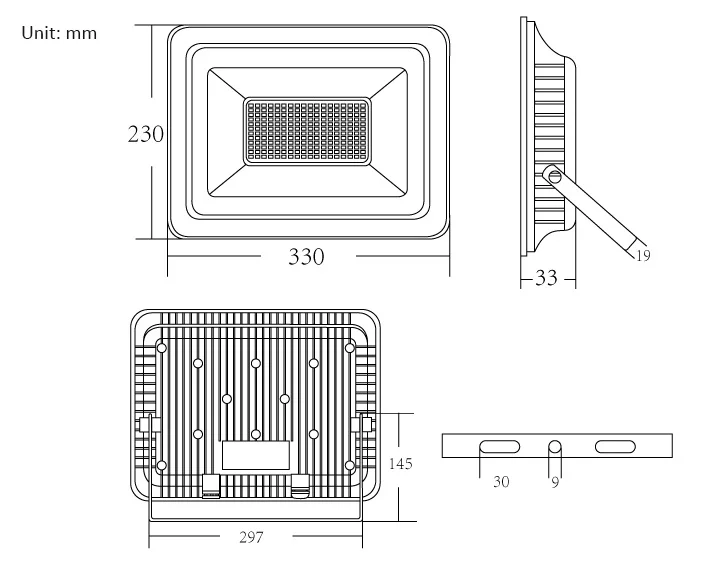

Product Size Diagram of 150 watts:


CB150T SIZE.jpg





More models for this product series:






















































Product ModelRated PowerLuminous FluxProduct SizePackage
SU-CB30T30W2700-2850LML159*W121*H26mm50 pcs/ctn
SU-CB50T50W4500-4750LML205*W160*H28mm 20 pcs/ctn
SU-CB100T100W9000-9500LML270*W210*H30mm10 pcs/ctn
SU-CB150T150W1350-14250LML330*W230*H33mm10 pcs/ctn
SU-CB200T200W18000-19000LML380*W280*H35mm4 pcs/ctn
SU-CB300T300W27000-28500LML445*W335*H45mm3 pcs/ctn




                                                                                  Please send us an enquiry!


contact us.jpg

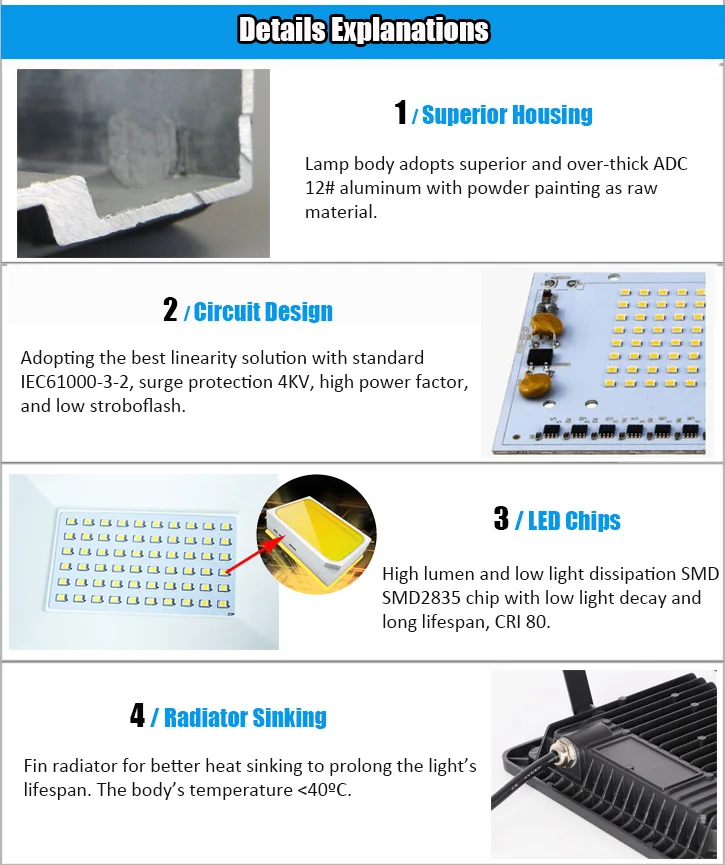

CB50T DETAILS.jpg

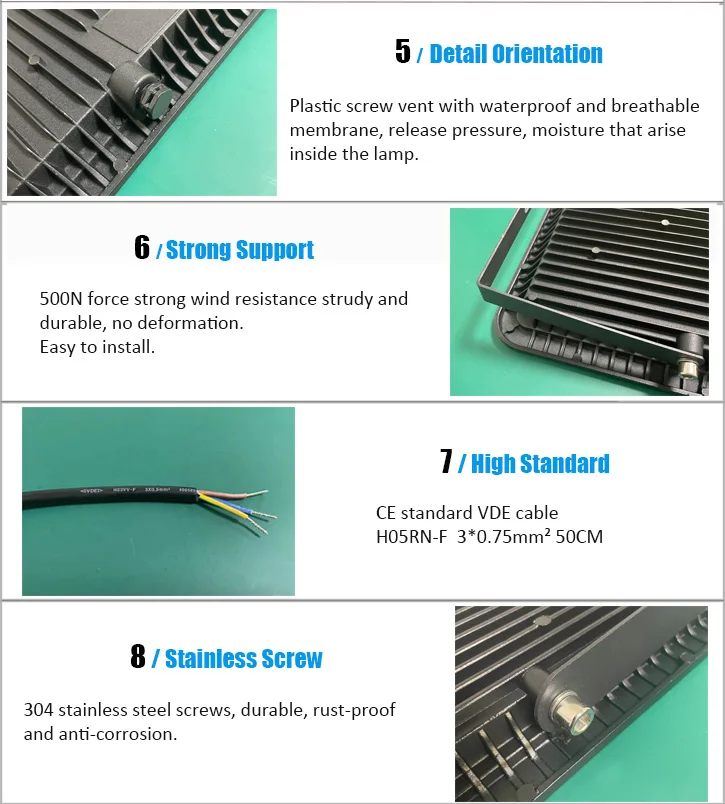

CB50T DETAILS 2.jpg

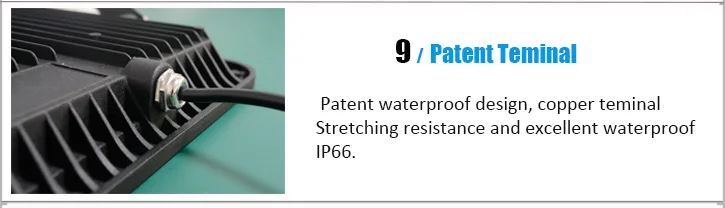

CB50T DETAILS 3.jpg

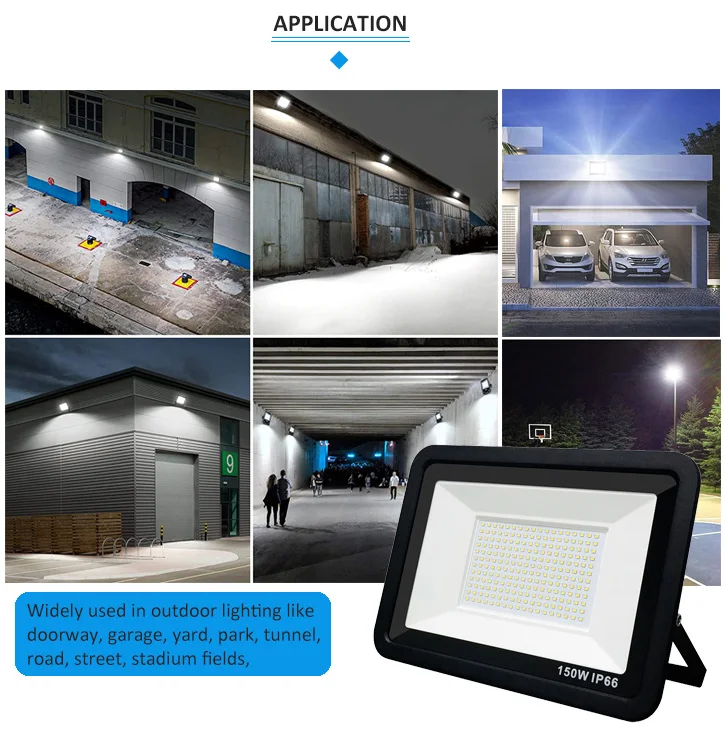

CB150W APPLICATION.jpg








PRODUCTS RECOMMENDATION-FL


contact us.jpg





                                                                            Send us an enquiry!


                                                                 Contact Us








Company Information


 ABOUT US.jpg

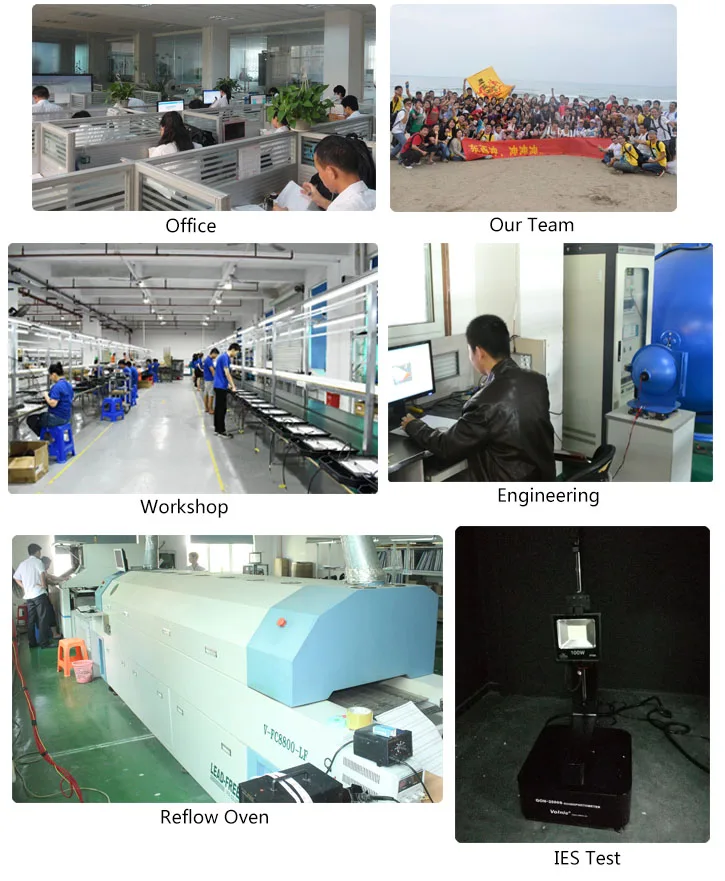

ABOUG US 2.jpg

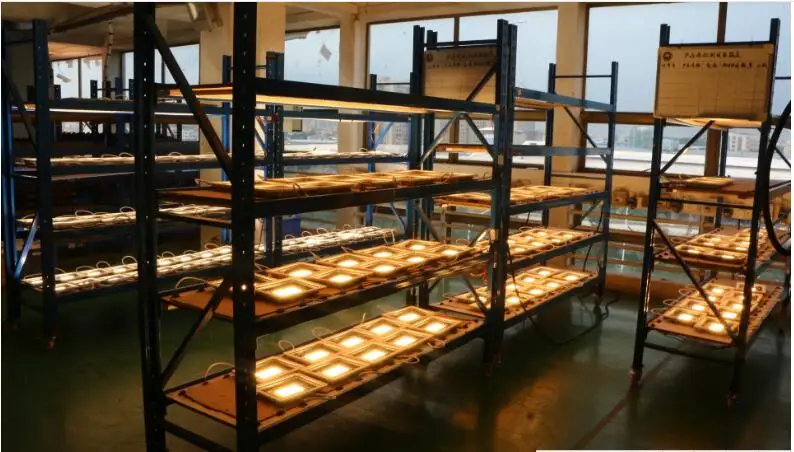

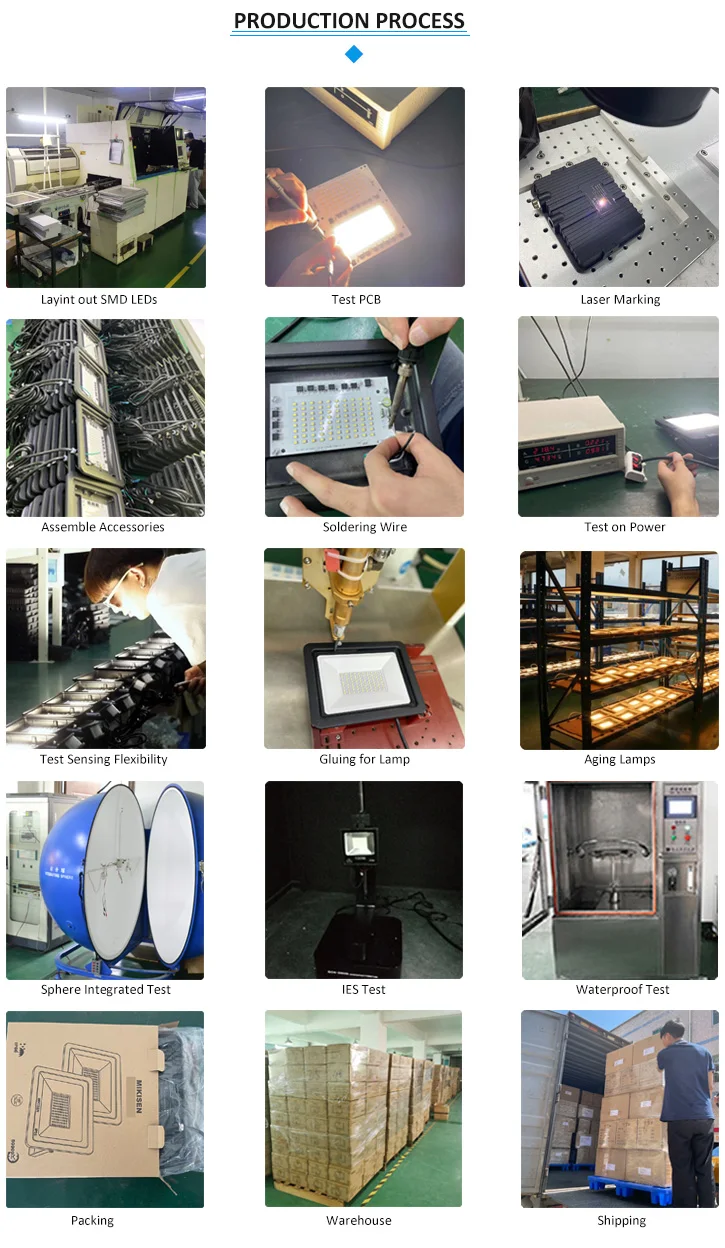

PRODUCTION PROCESS.jpg

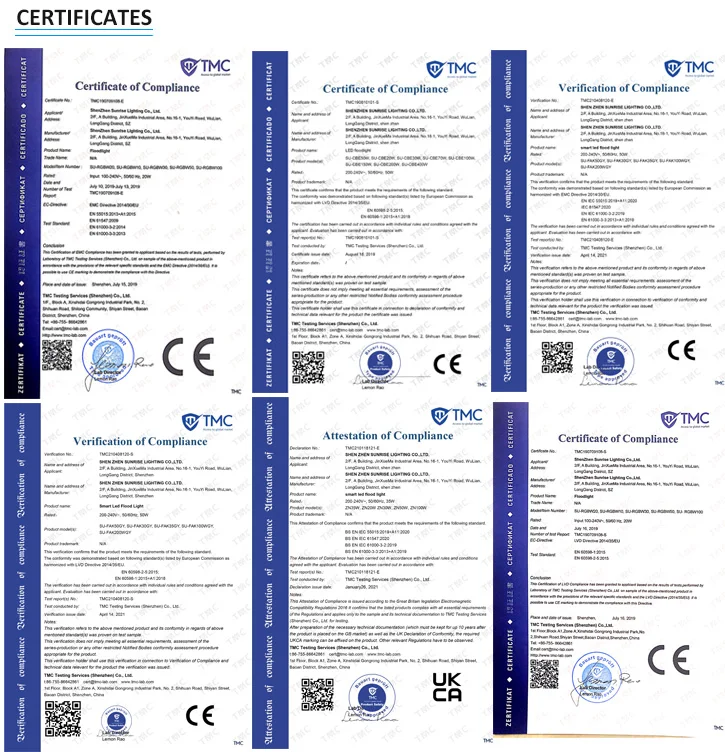

ABOUG US 3








Packaging & Shipping


package 150W.jpg










FAQ


 1. Are you a factory?


   Re: Yes, we are factory for more 13 years in Shen Zhen city. We manly produce outdoor LED flood lights, street lights, high bay lights, stadium lights etc.





2. What main products do you make?


   Re: We mainly produce LED flood lights, stadium lights, tunnels lights, street lights, high bay lights and smart lamps.





3. How to control the quality?


   Re: Firstly, all of raw materials must be tested before stocking. During producing, we will checik functions, circuit working, waterproof processing etc. Finally, all of the finished product must be checked and aged.





4. Can you give me a favourable discount?


   Re: Yes, bulk quantity can have a good discount. Please inquire us for details!





5. Can I have a sample order of the LED lights?


   Re: Sample order is welcome. Mixed samples are available.





6. Do you have to sign a confidential agreement?


   Re: We can sign if necessary for customer to have a confidential agreement.





7. What is the leadtime?


   Re: <10 pcs for 3 days. 100-500pcs for 5-8 days and >1000 pcs for 10-12 days.
