Price:US$140,000.00 - US$142,300.00

Quantity:


Product Overview

Description



Product Features


◆ Suitable for a variety of bending material (carbon steel, 304 stainless steel, 201 stainless steel, aluminum plate, coated sheet, etc.)
◆ Full servo control, low energy consumption. Servo-based torque feedback system.
◆ Muliti-axis linkage control, with a high degree of automation.
◆ Various feeding and discharging methods (Labour, Robotic arm, Gantry robot, Conveying platform, etc.)

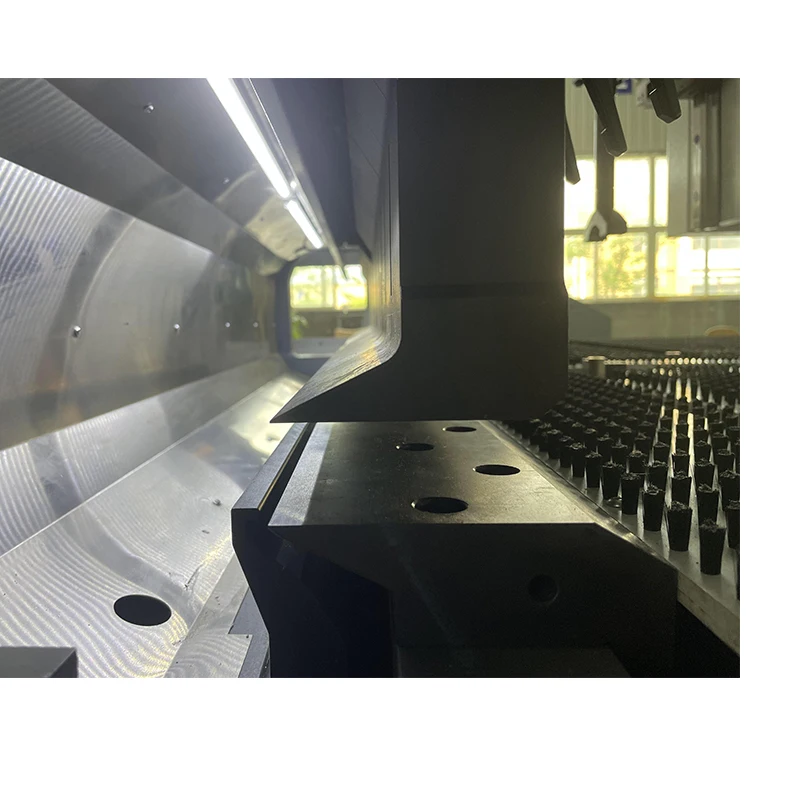

◆ C-type pressure arm, lead screw multi-link transmission mechanism, pressure adjustment system.

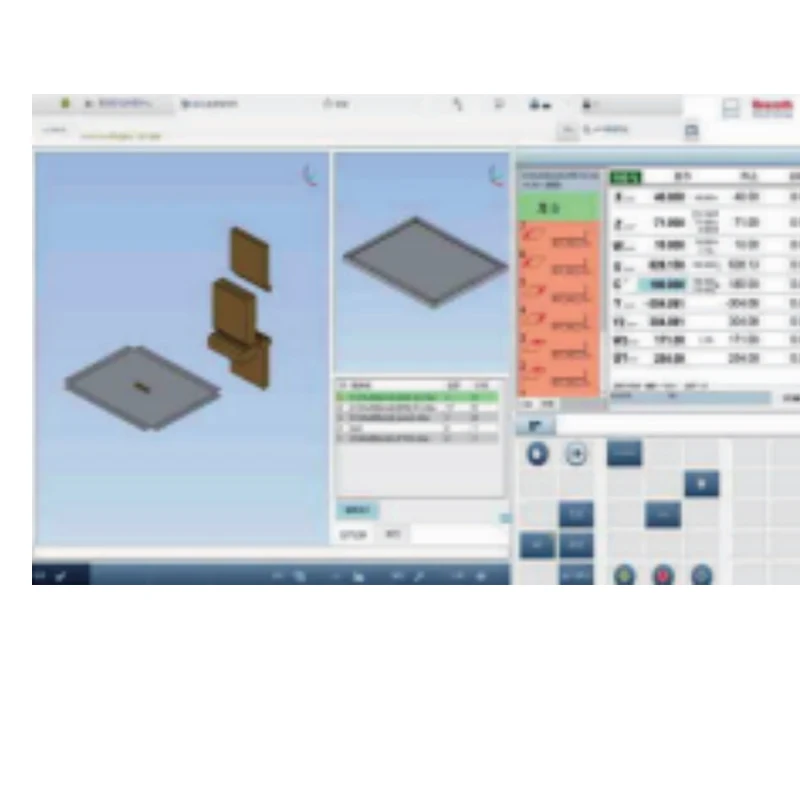

◆ Easy programming. Operator can customize the design and control of complex sheets according to their needs.
◆ Flatten hem instructions, press the edge up or down. Arc command, only need input the radius to realize the bending of the arc.
◆ Three-axis fully automatic positioning system.Multiple positioning.


Product Parameter


Model
BCP-2500-2.0
Feeding Structure
Pressure arm type
Max. Bending Length
2500mm
Max. Thickness
Stainless Steel（SS）
1.5mm
Carbon Steel (MS)
2.0mm
Aluminum（AL）
3.5mm
Max. Bending Height
170mm(Customized)
Min. Bending Height
8mm
Min. Inner Size of Four-side Bending
160*240mm
Min. Inner size of One-side Bending
160mm
Min. Arc Radius
2mm
Min. Continuous Bending Speed
0.5s
Bending Angle
-90°-90°, ＞1.5mm
0°-180°, ≤1.5mm
Axis
Standard 13 Axis
15 Axis Can be Customized
Maximum Feeding Speed
120m/min
Equipment Size
6100*3800*2320mm
Total Power
43KW
Average Power
5KW
Workbench Structure
Brush and universal ball
