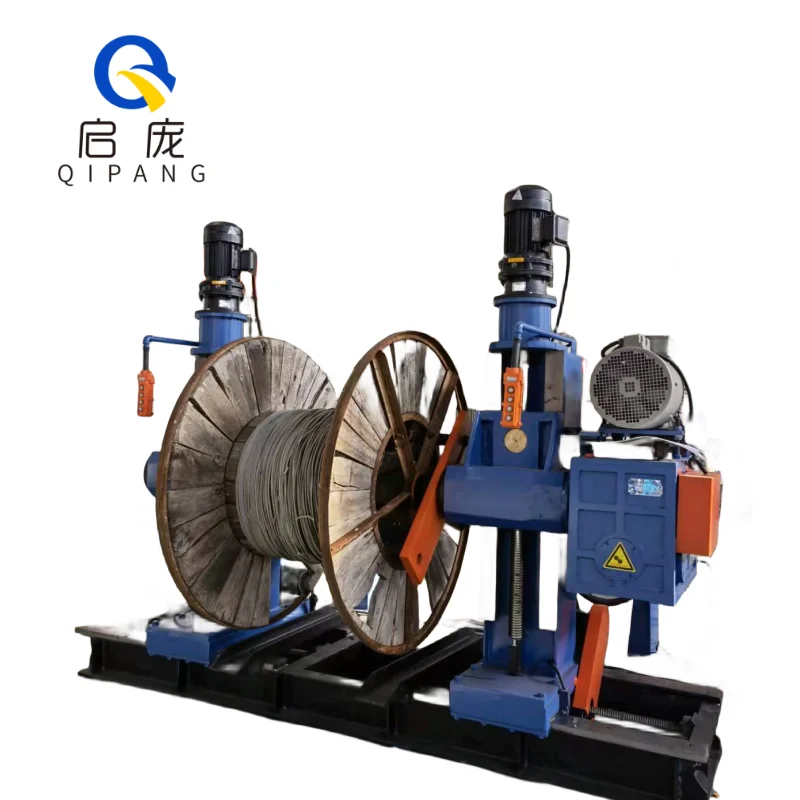

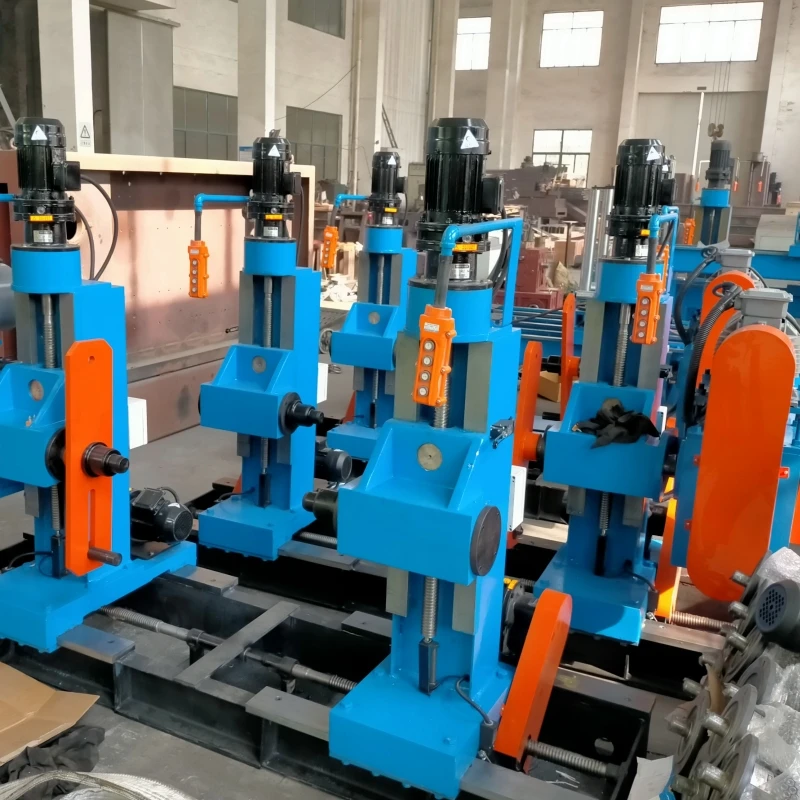

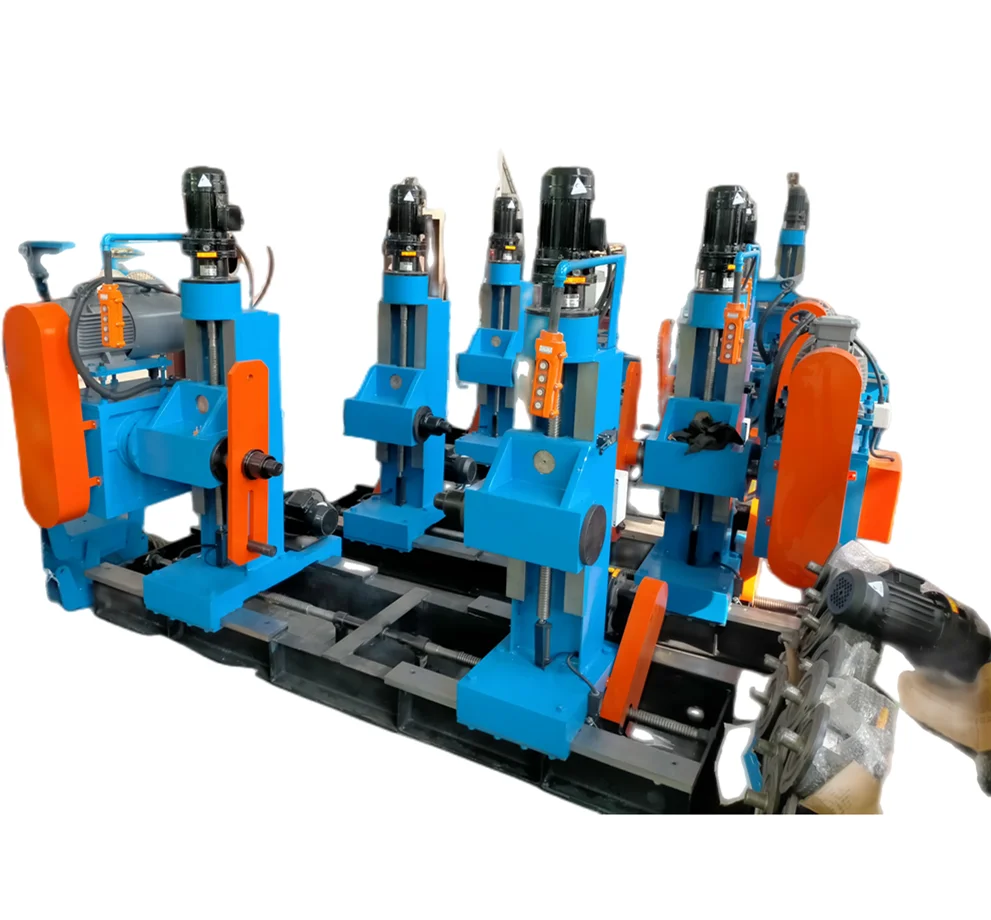

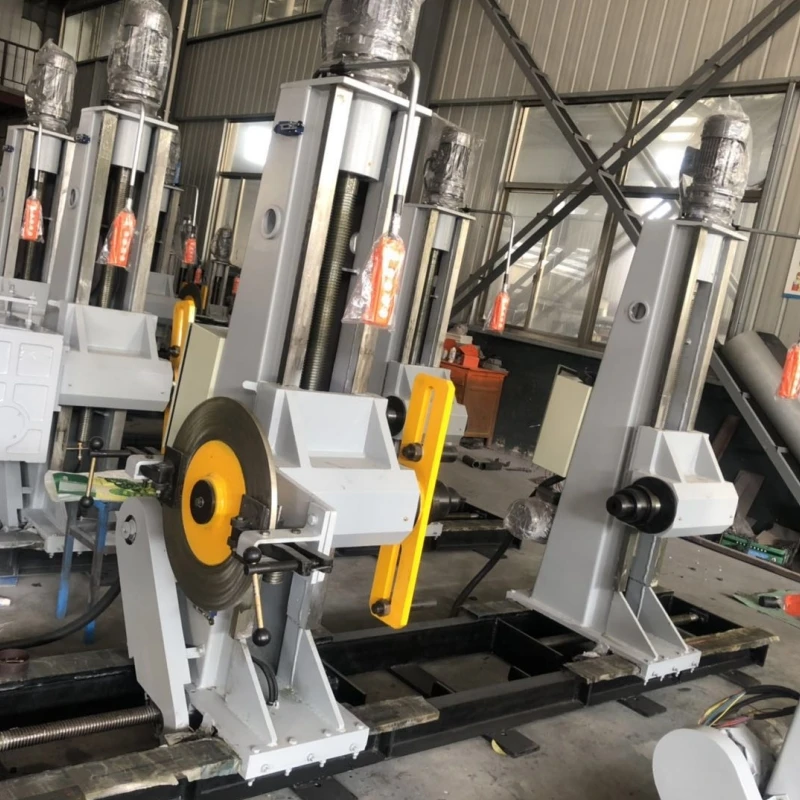

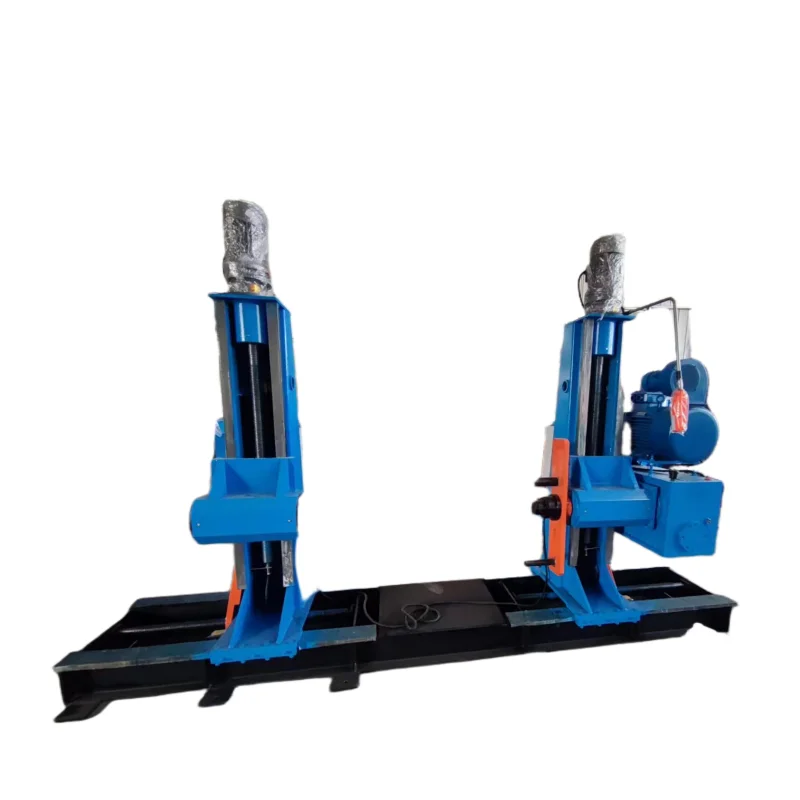

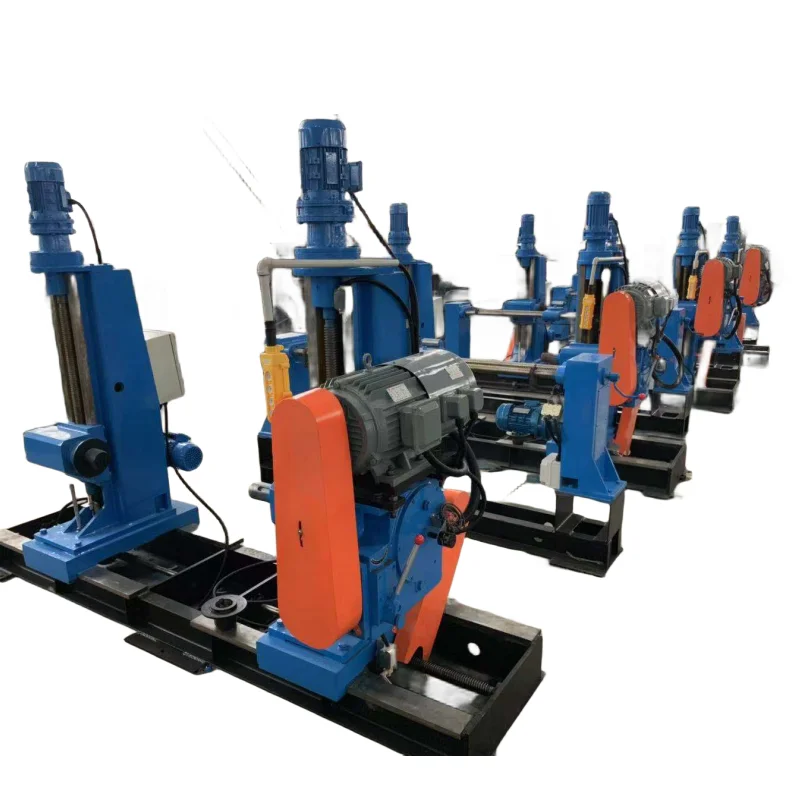

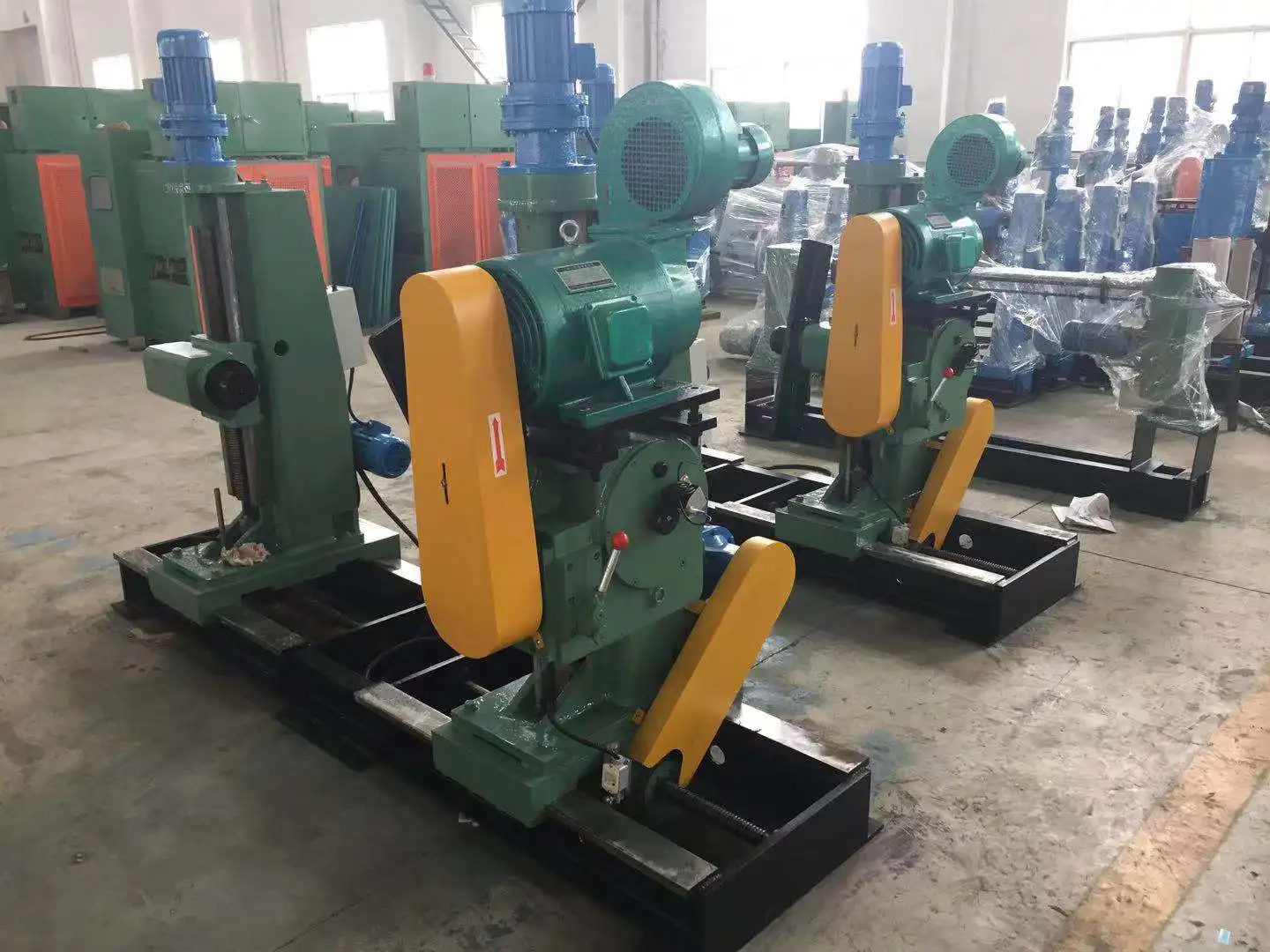

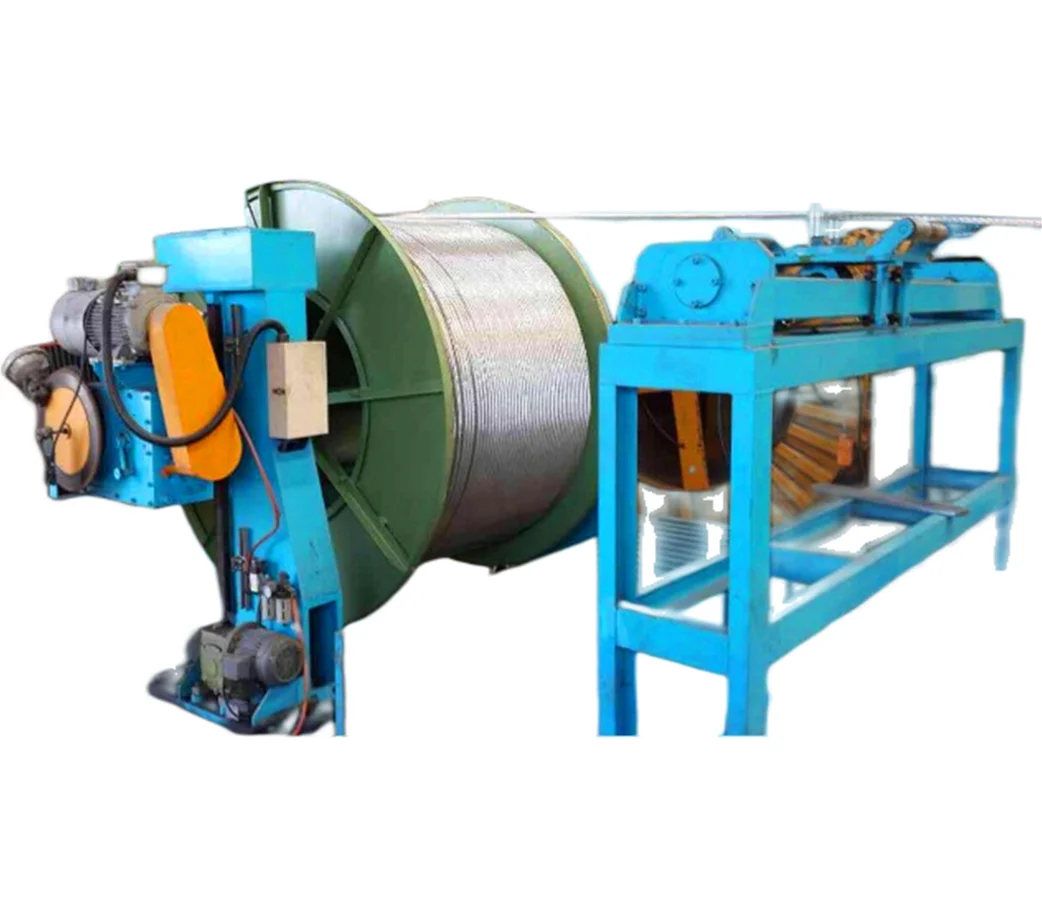

reel pay out machine motorized Payoff Stand wire pay off machine Magnetic particle shaftless wire pay-off machine


QP1000-2000 end shaft type winding frame
1.1. Technical parameters
Applicable reels: PN1000—PN2000 (GB4004-84, DIN46391, 46395)
Reel diameter range: Φ1000～Φ2000mm
Applicable spool width: 750～1500mm
Applicable cable diameter: Φ3-Φ80mm (max)
Main motor for take-up: JLJ160-80-6 torque motor (7.5kw AC variable frequency motor)
Take-up speed: 60m/min (max)
Lifting power: 1.5Kw AC motor + cycloid reducer (2 sets)
Clamping motor: 1.1kw /960rpm AC motor (2 sets) + cycloid reducer
Cable motor: 0.75kw/1500 rpm (AC motor) + cycloid reducer, screw cable
Load: 8T (max)


Product Description








Specification


Model
QP2000
Form
Shaftless/End Shaft
Applicable wire reel
Φ1250-Φ2000
Lifting speed
500mm/min
Step up speed
1047.2mm/min
main power
Three-phase AC 50HZ 380V
Total power of equipment
13.45KW（pay off machine motor ：5.2kw）


Other product




FAQ


1. who are we?
We are based in Shanghai, China, start from 2013,sell to Domestic Market(35.00%),Eastern Asia(10.00%),Western Europe(10.00%),North
America(5.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Mid
East(5.00%),Northern Europe(5.00%),South Asia(3.00%),Southern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

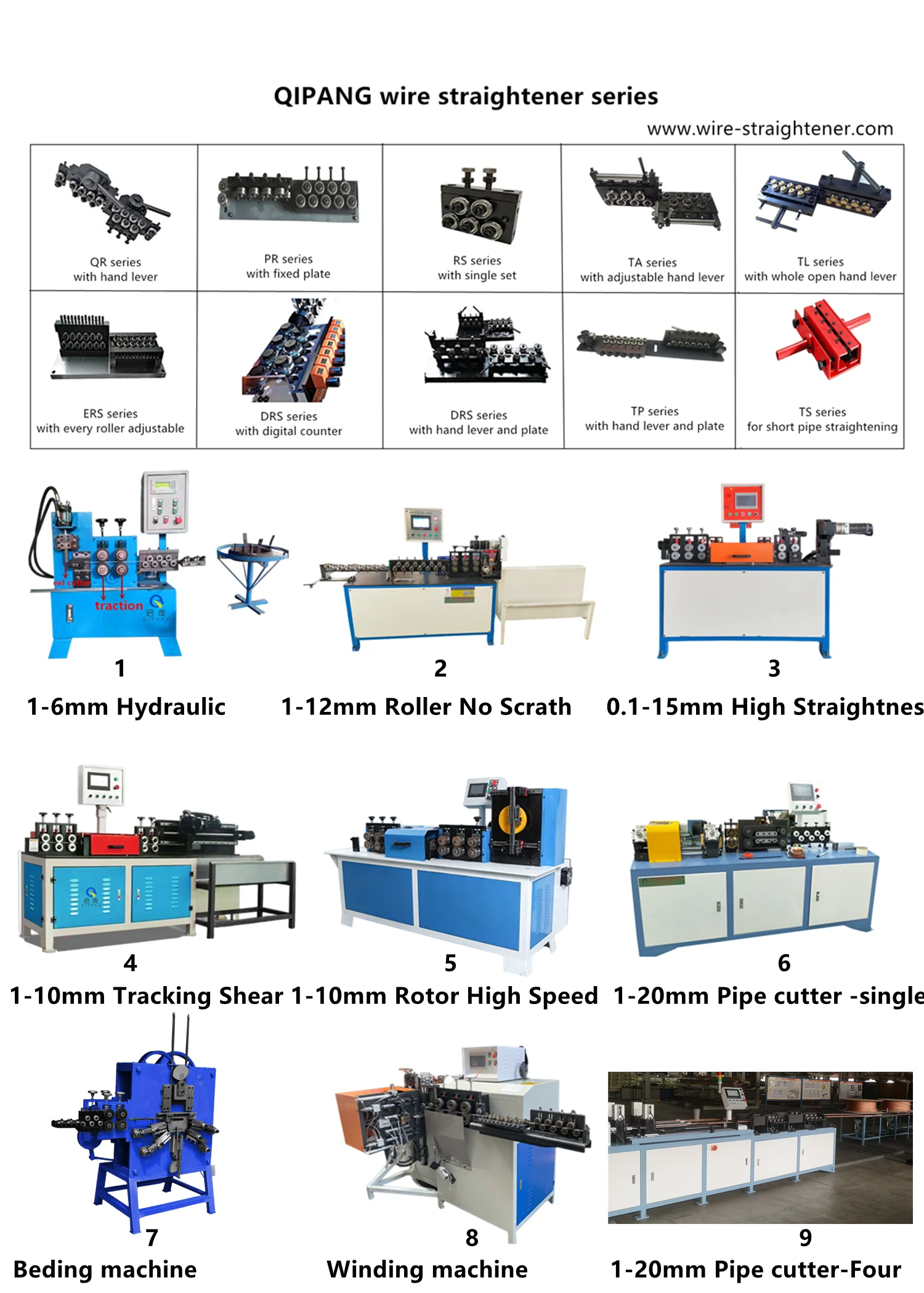

Winding Machine / Pay off Machine / Cable hauling Machine / Extruder Machine / Rolling Ring Drive / Measuring Instrument

4. why should you buy from us not from other suppliers?
Shanghai Qi Pang Industrial Co., LTD was established in 2013. Our company is a high-tech enterprise that develops and make the
series polished shaft rolling ring drive and wire straightener earliest in China. The company is located in the JiaDing, Anting.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese
