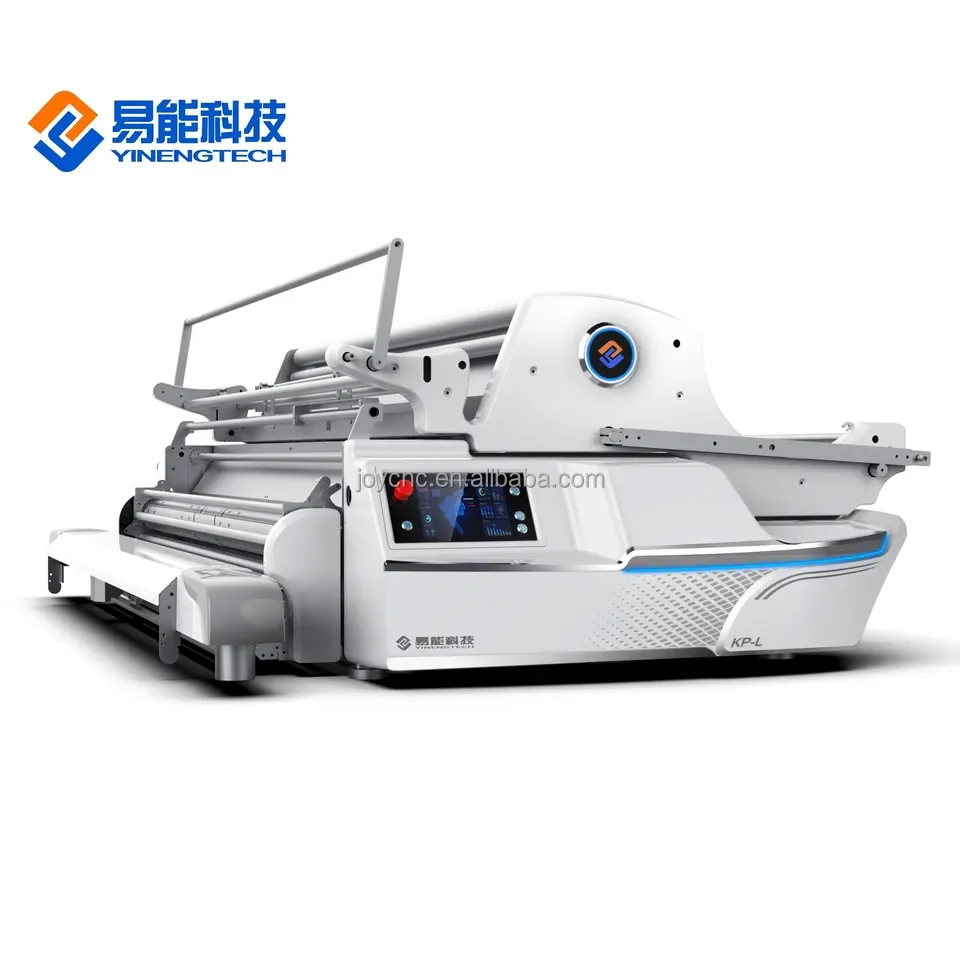

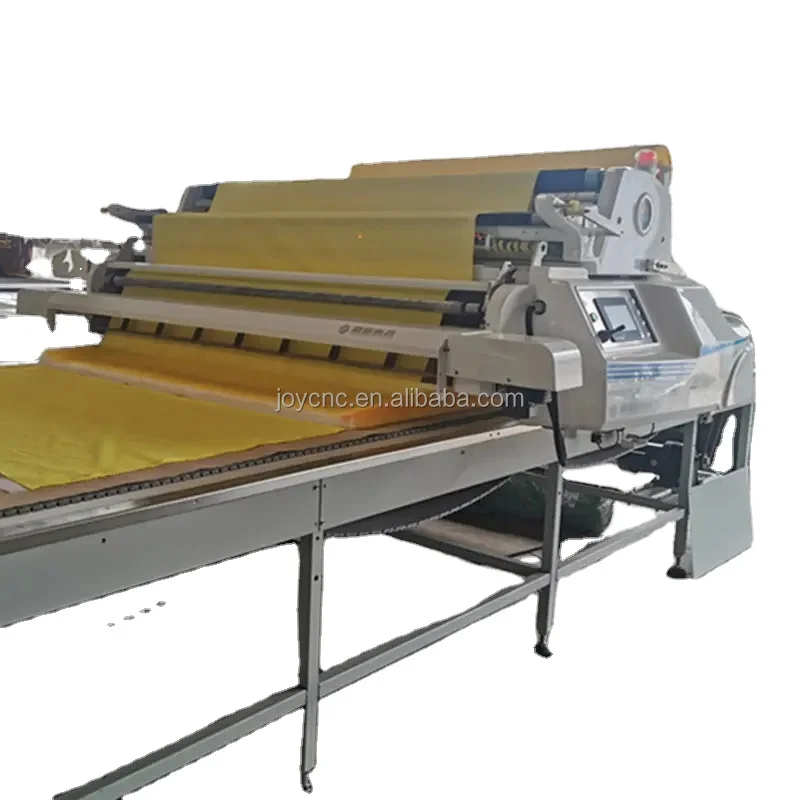

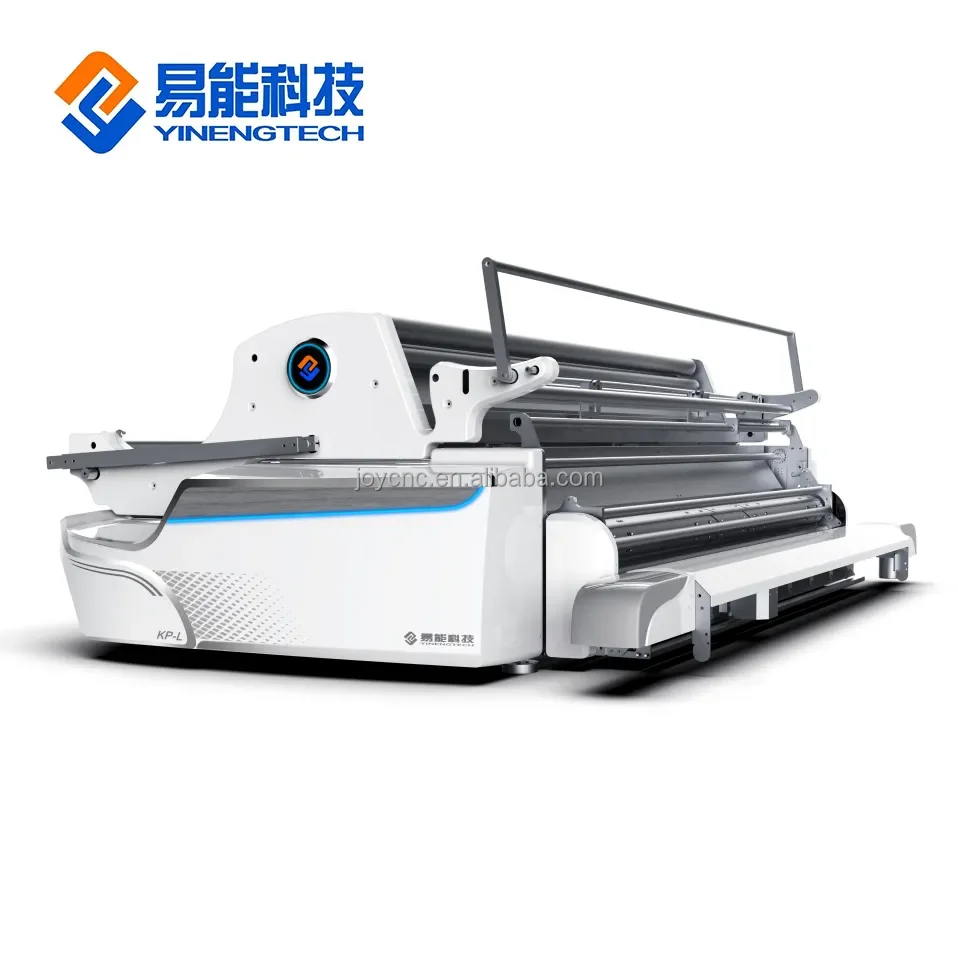

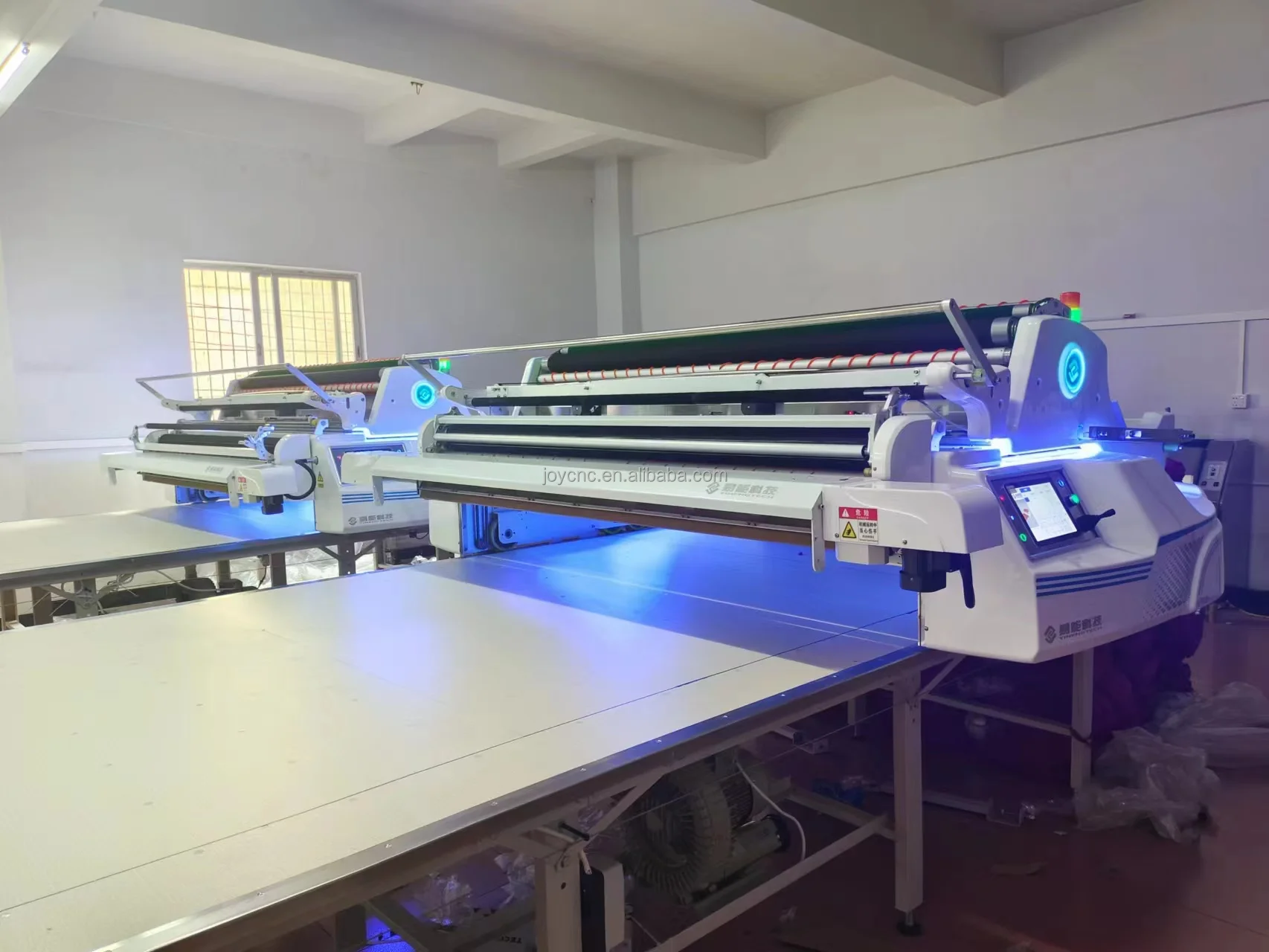

Automatic Fabric Spreading Machine Knitting Woven Denim machine textile machinery Cutting Spreader
- Category: >>>
- Supplier: Wuhan King Suntime CNC Equipment Co. Ltd.
Share on (1600911720535):
Product Overview
Description
Video Description
Product Description
Technical Paramenters
Model NO. | KP-LS160 | KP-LS190 | KP-LS210 |
Fabric width(mm) | 1600 | 1900 | 2100 |
Voltage | 220V/1P | 220V/1P | 220V/1P |
Motor Power | 6KW | 6KW | 6KW |
Working speed | 120m/min | 120m/min | 120m/min |
Single Pull Height | 25cm | 25cm | 25cm |
Double Pull Height | 23cm | 23cm | 23cm |
Fabric Weight | 200KG | 200KG | 200KG |
Diameter of Cloth | 80cm | 80cm | 80cm |
Spreading method | Single/Zigzag | Single/Zigzag | Single/Zigzag |
Machine Dimensions | 2370*1850*950mm | 2670*1850*950mm | 2870*1850*950mm |
Machine Weight | 400kg/460kg | 450kg/510kg | 500kg/560kg |
Package Size | 2516*2000*1250mm | 2800*2000*1250mm | 2950*2000*1250mm |
Machine details

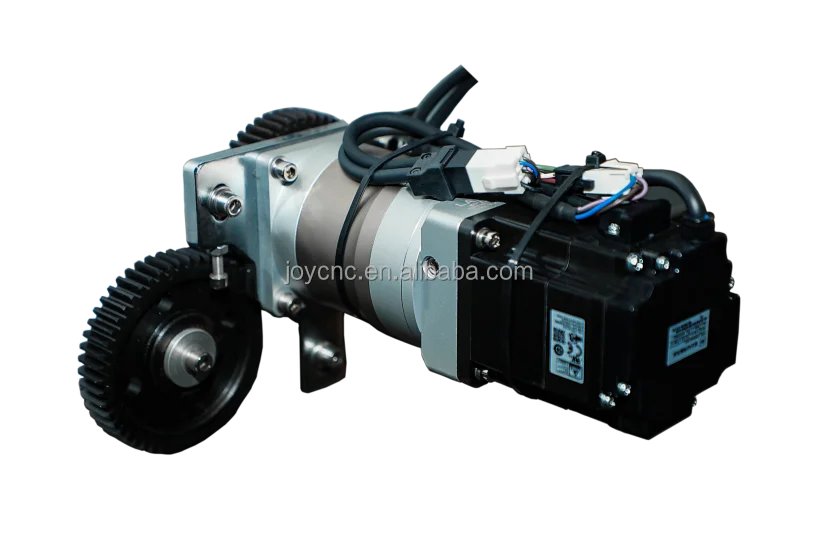

Initiate Dual Drive System
Initiatedual - drive servo travel motor, there is no error on the left and right,stronger power, and the highestrunning speed can reach 120 m/min.

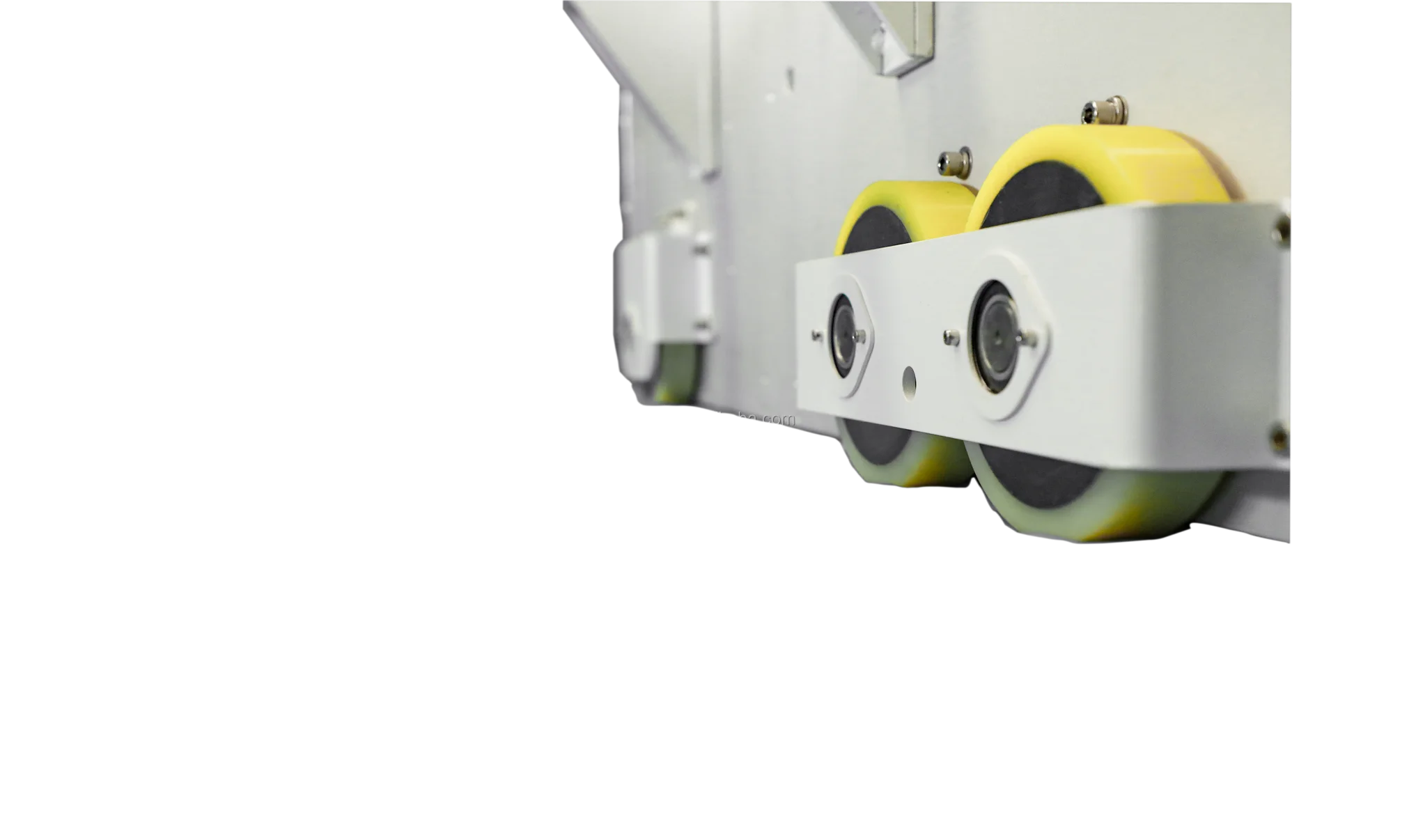

The big six wheels run independ ently
Dual-drive four-wheel walking, stable operation, more precise braking, and
the error can be controlled within 1mm.
the error can be controlled within 1mm.

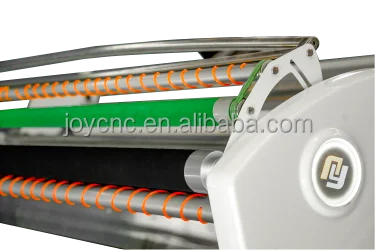

Multi-rod cloth releasing device
The cloth bucket i s equipped with multi-rod unwinding device makes the cloth tension-free, and truly realizes the replacement of
knitted and woven fabrics at anytime,and solves the problem of frequent adjustment of parameters due to slippage of the fabrics.
knitted and woven fabrics at anytime,and solves the problem of frequent adjustment of parameters due to slippage of the fabrics.

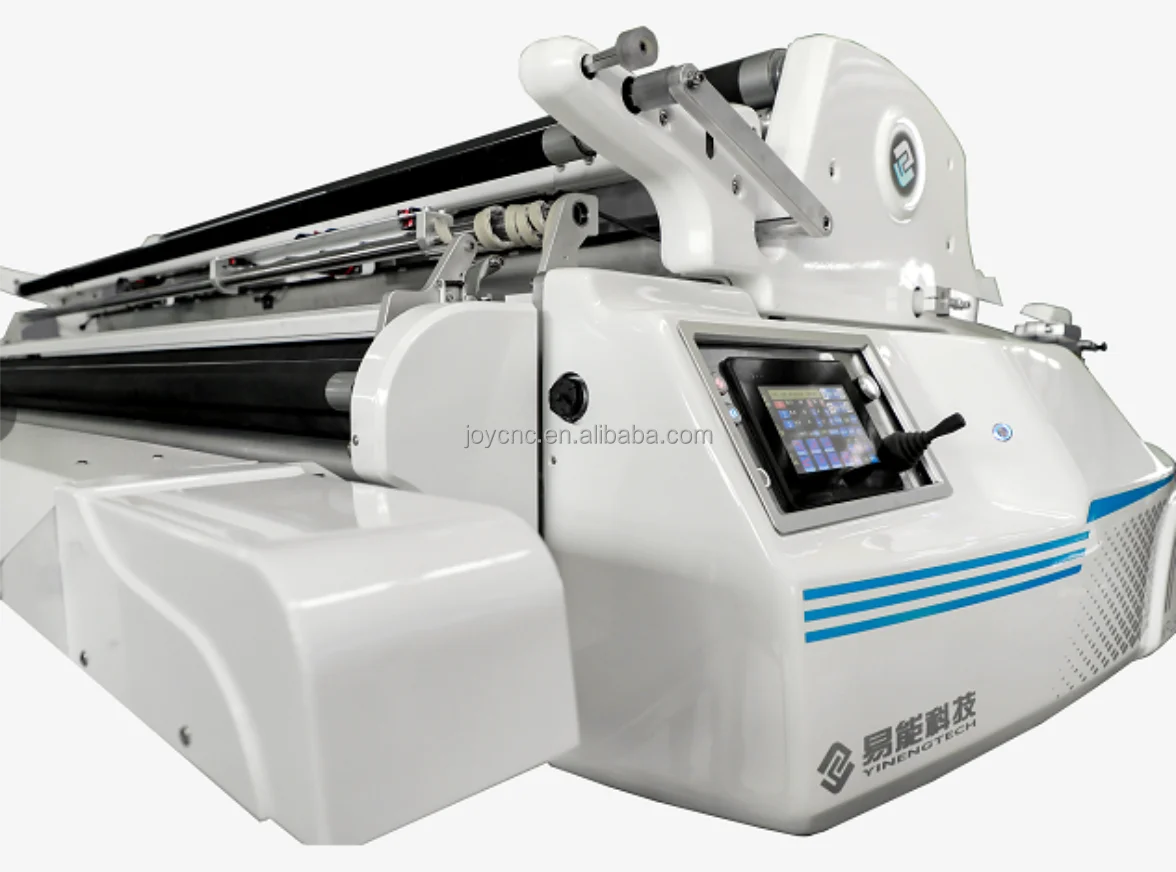

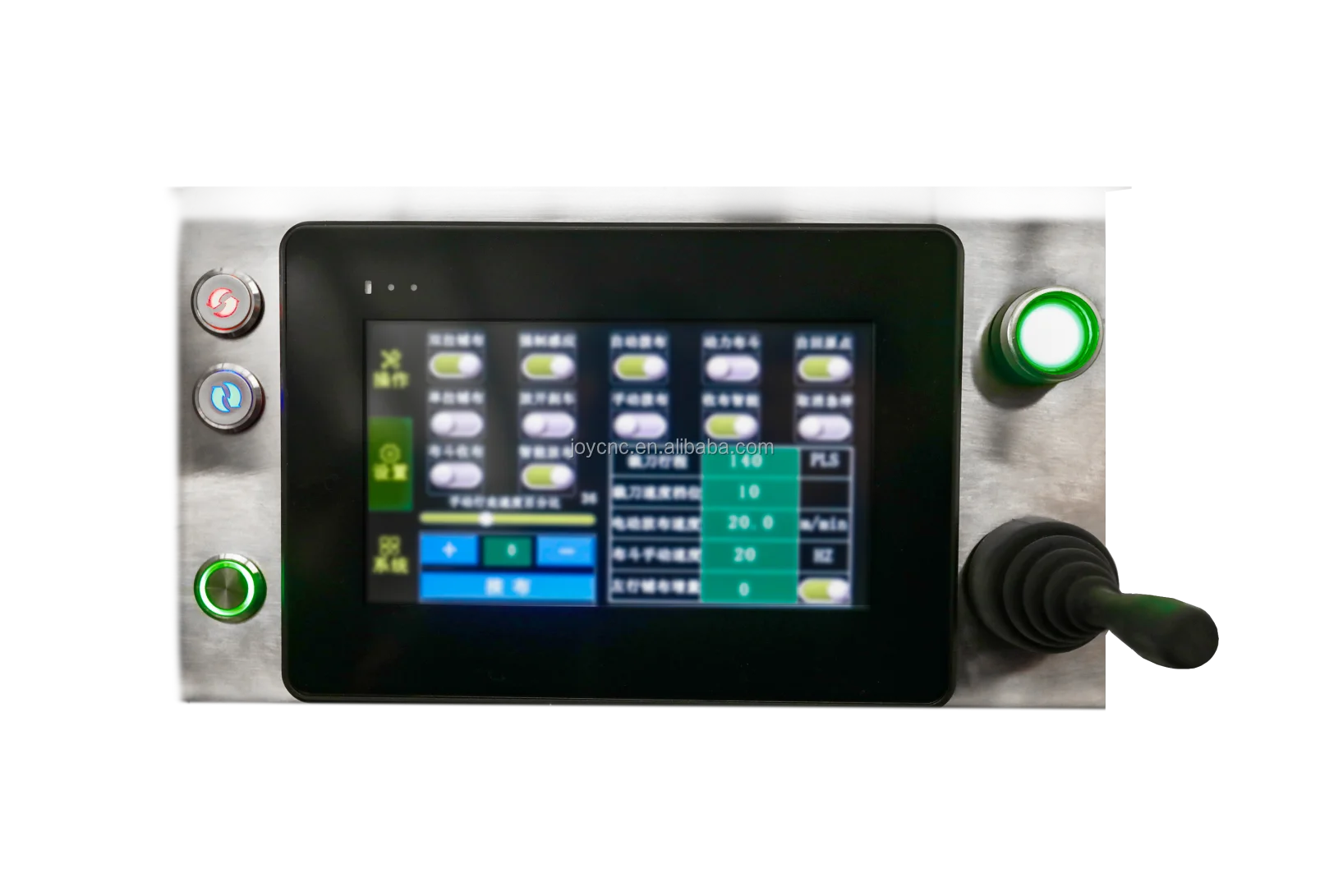

Autonomous control system
Independently developed control system , large expansible space, real-time connection to the data on IOT.
Intelligent identification system
Intelligent identification systems such as intelligent cloth placement, intelligent
cloth collection, intelligent knife lift, and intelligent cloth connection.
cloth collection, intelligent knife lift, and intelligent cloth connection.
Application
Product packaging
Packaging Details : Spreading Machine with water-proof film and standard wooden case
Port : Shanghai, Shenzhen
Lead Time : within 30 working days after deposit
Certifications
Company Profile

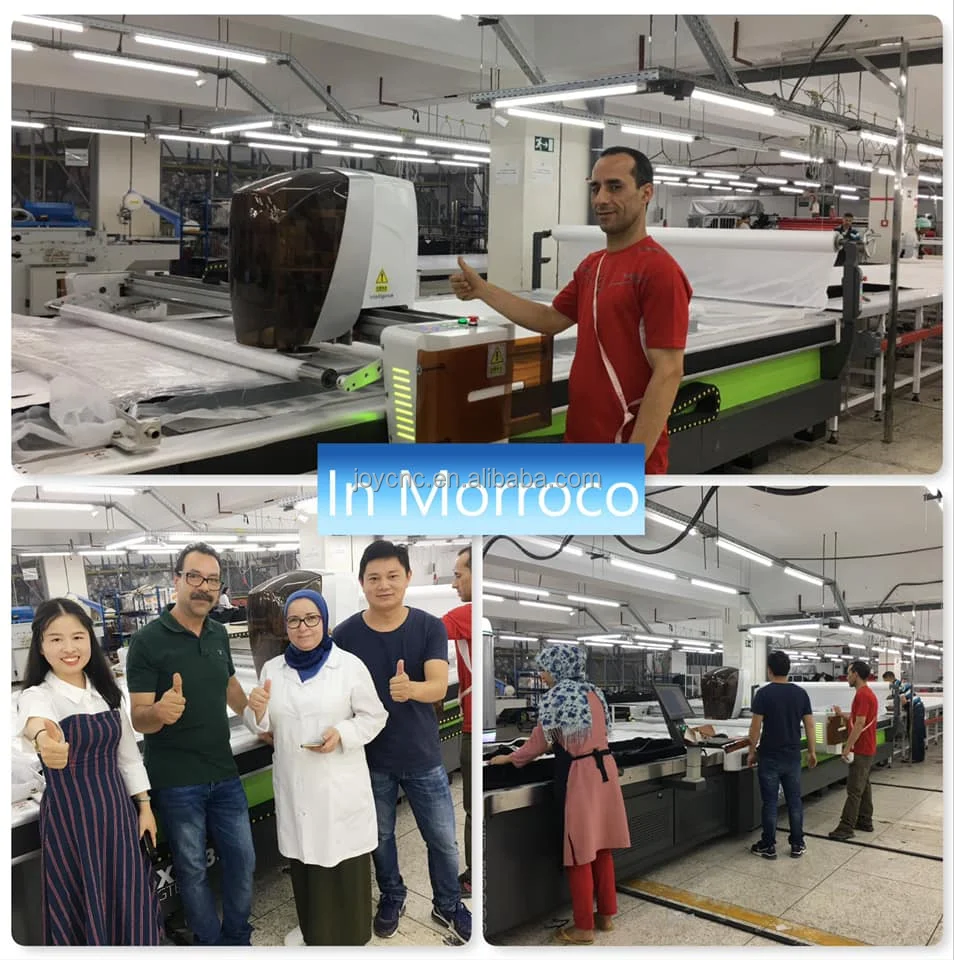

Yineng All over the world
Our service
1.）Guarantee for 3 years.2.）We will provide the consumable parts at an agency price.
3.）24 hours online service, free technical support.
4.）Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5.）We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
