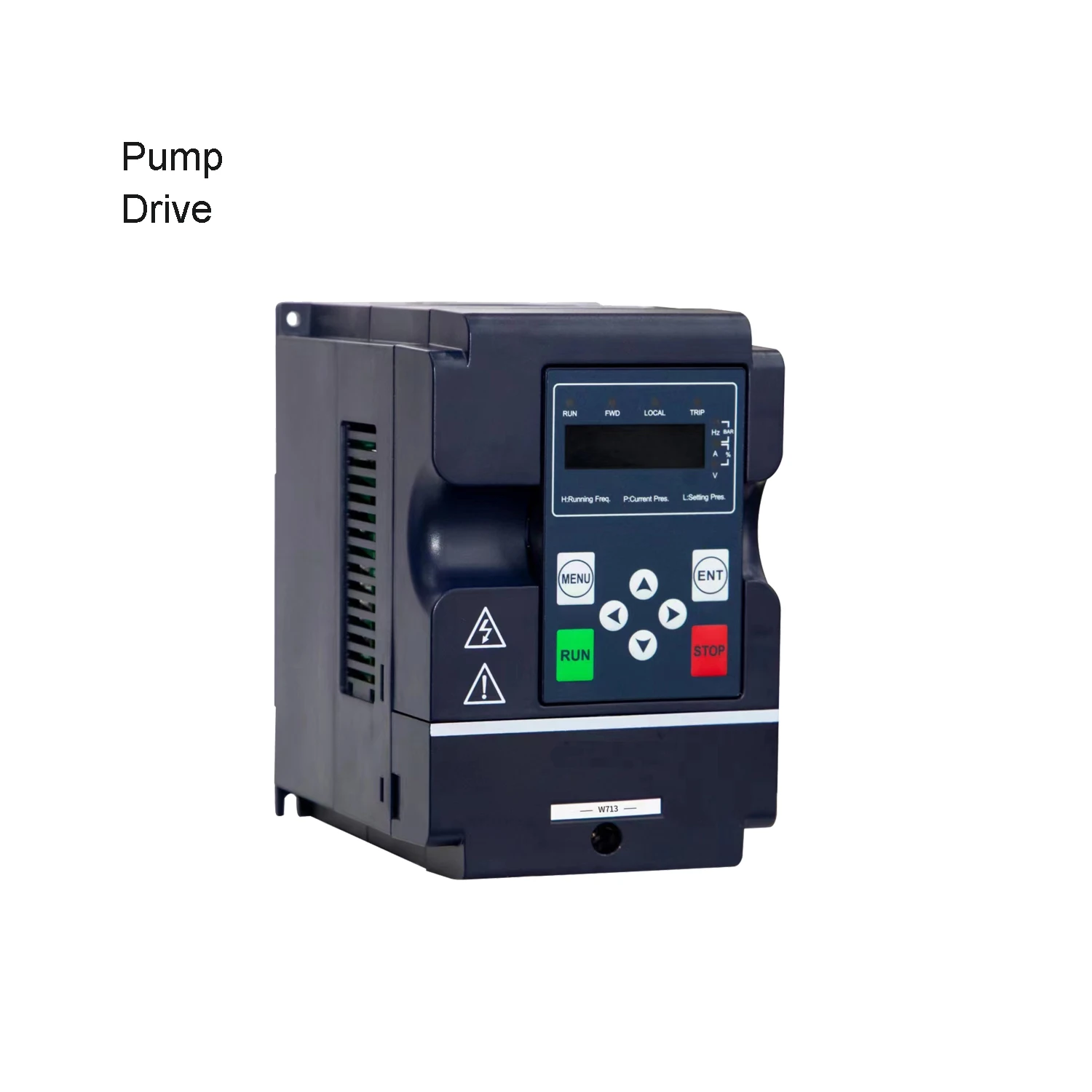

VFD One Duty One Standby Linkage VFD Inverter Single Phase Pump VFD

Product Overview

Description







 Main Features:
1. Multi-Pumps Linkage: Max.6 pump linkage water supply.
2. Function: Auto-sleep, Freeze-Proofing, Anti-clogging, Power On Restart...
3. Alternate Running: Balance every pump’s running time , prolong service life.
4. Control Mode: Constant pressure ,constant differential pressure ,manual.
5. Linkage Mode: Synchronize ,master-slave, big-small pump combination, one duty one standby
6. Extendibility: Can be connected to Liyuans HMI and other companies' HMI(MobBus RTU).

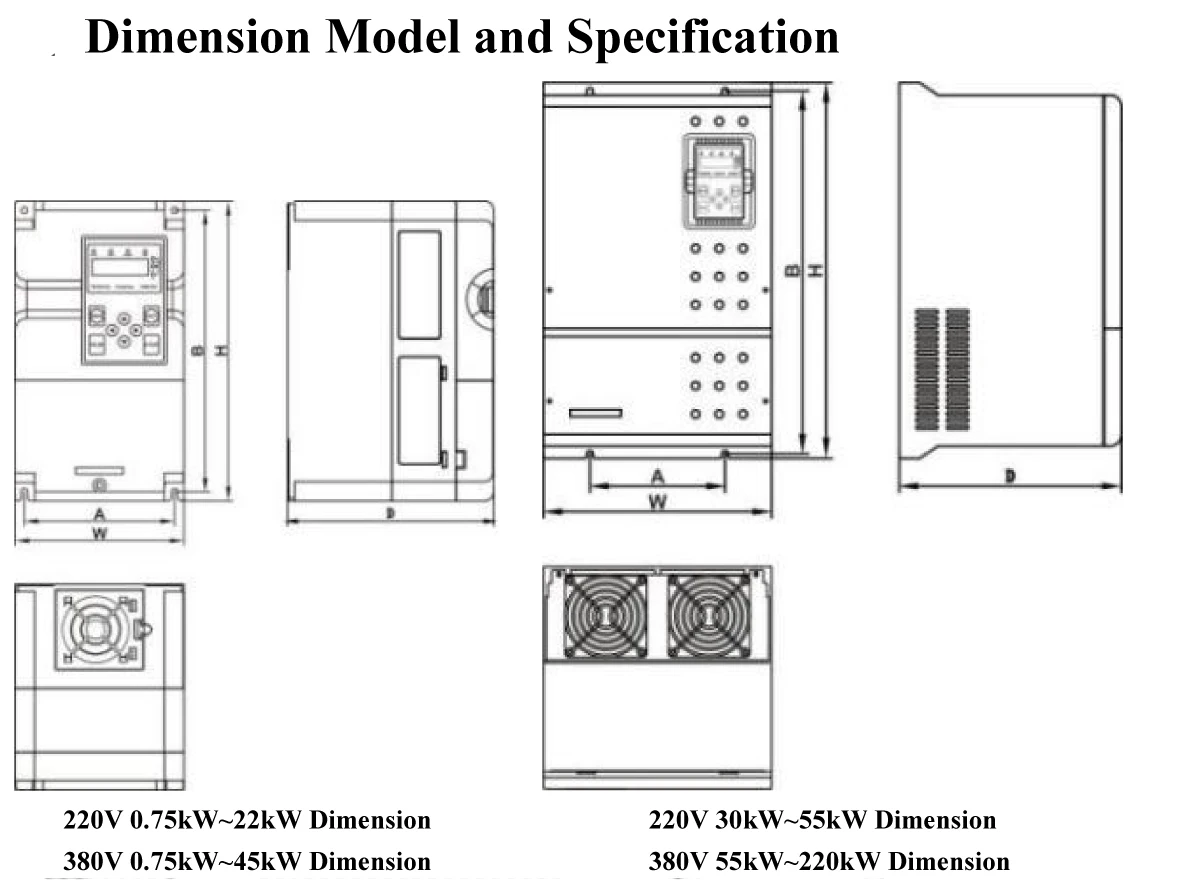

TYPE	Motor Power(Kw)	Rated Output Current(A)	Installation Dimension		External Dimension			Installation Hole(mm)
			A(mm)	B(mm)	H(mm)	W(mm)	D(mm)
Input: AC 1PH 220V, Output: AC 3PH 0~220V
W713-2001	0.75	4.5	114	174	186	126	163.8	5
W713-2002	1.5	7
W713-2003	2.2	10
Input: AC 3PH 220V, Output: AC 3PH 0~220V
W713-2005	3.7	17	114	174	186	126	185	5
W713-2007	5.5	25	129	242	258	145	176.5	5.5
W713-2010	7.5	32	146	301	313	161	210	6
W713-2015	11	45	185	330	342	200	200.5	6
W713-2020	15	60
W713-2025	18.5	75	233	381	400	251	213	6
W713-2030	22	91
W713-2040	30	112	199	534	554	336	327.5	9
W713-2050	37	150
W713-2060	45	176
W713-2075	55	210



Input: AC 3PH 380V, Output: AC 3PH 0~380V
W713-4001	0.75	2.1	114	174	186	126	163.8	5
W713-4002	1.5	3.8
W713-4003	2.2	5.1
W713-4005	4	9.5	114	174	186	126	185	5
W713-4007	5.5	14
W713-4010	7.5	18.5
W713-4015	11	25	129	242	258	145	176.5	5.5
W713-4020	15	32	146	301	313	161	210	6
W713-4025	18.5	38
W713-4030	22	45	185	330	342	200	200.5	6
W713-4040	30	60
W713-4050	37	75	233	381	400	251	213	6
W713-4060	45	92
W713-4075	55	115	199	534	554	336	327.5	9
W713-4100	75	152
W713-4120	90	180
W713-4150	110	215
W713-4180	132	260
W713-4215	160	305	360	848	870	503	362	11
W713-4250	185	340
W713-4270	200	380
W713-4300	220	426
