industrial exhaust fan cooler 180 mm dc 12/24 volt fans
- Category: >>>
- Supplier: Shenzhen Duo Li Technology Company Limited
Share on (1600911769147):
Product Overview
Description
Product details

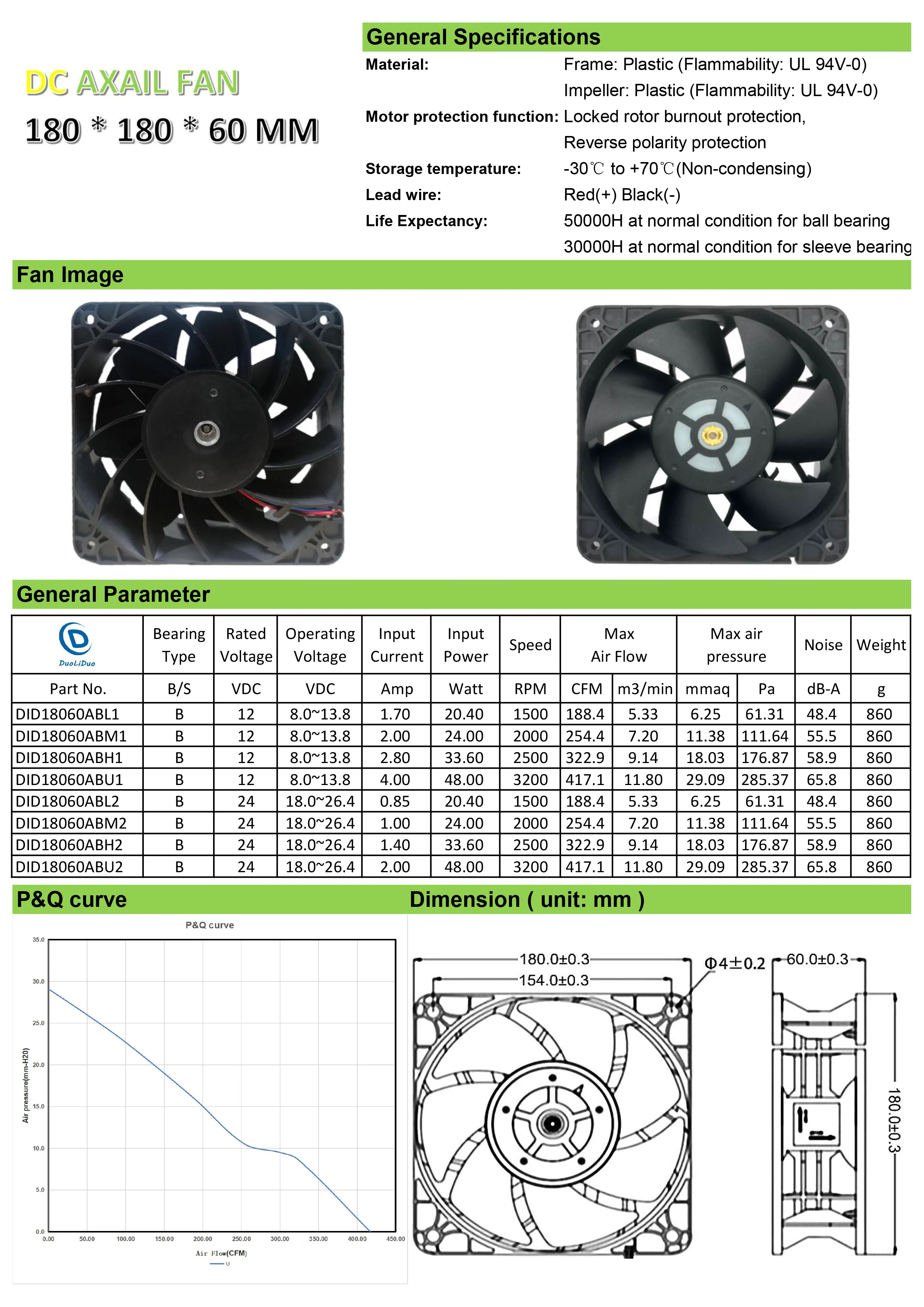

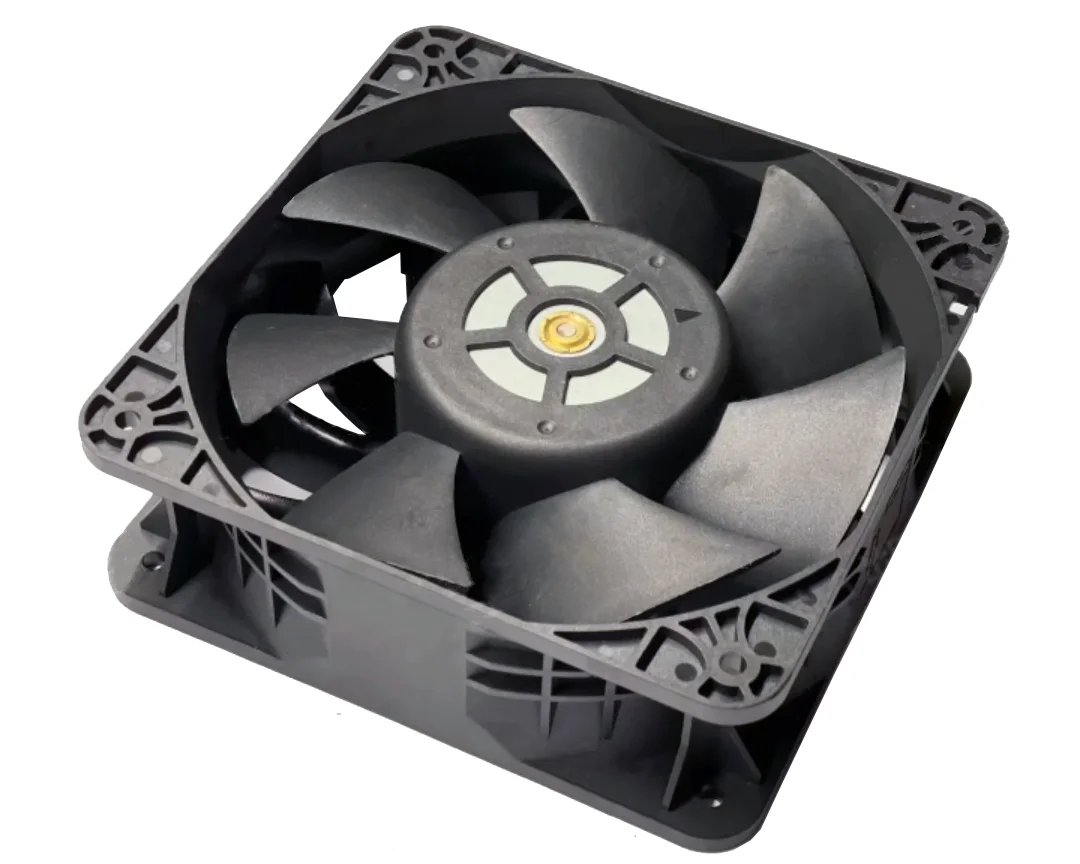

180mm 7 inch Double ball high air volume axial flow brushless cooling fan
Category | Axial flow fan |
Frame Size | 180x180x60mm, 180mm, 18cm, 180*180*60mm，7inch |
Frame Material | PBT Plastic, UL94V-0 |
Blade | 7 Blades, PBT Plastic, UL94V-0 |
Bearing Type | Dual-Ball Bearing/Sleeve Bearing/Hydraulic bearing |
Lead Wire | 300±10mm, AWG#26 UL1007 (+)Red (-)Black |
Motor | 4 Poles DC Brushless Motor |
Motor Protection | Impedance Protected, Reverse Polarity Protected, Thermal Protected (Auto Restart) |
Insulation Standard | Class A of 180 x 180 fan |
Waterproof Level | IP55, IP65, IP68 |
Insulation Resistance | Above 100MΩ, DC500V 60Hz one minute (Between Lead Wire and Frame) |
Operating Temperature | -10°C~70°C |
Storage Temperature | -40°C~70°C |
Life Expectancy | (Dual Ball Bearing) 50000hrs at 25 degree |
(Sleeve Bearing) 30000hrs at 25 degree | |
Available Functiont | FG, RD, PWM, Waterproof, Thermal Control, Auto-Restart |
Application: | 1. Home appliance 2. Kitchen 3. Car industry 4. Telecom 5. Medical Equipment 6. UPS Power 7. LED Lighting 8.Computer Case 9. CPU 10. Safty Equipment 11. Office Electrics 12. SUP Power 13. Communication 14. Printing Equipment. |
OEM Service | Acceptable |
Sample Service | Sample Can Be Free, but are Suggestsd Paying For Freight. |
Quality Assurance | 24 Months |
Item Condition | Brand Original New |

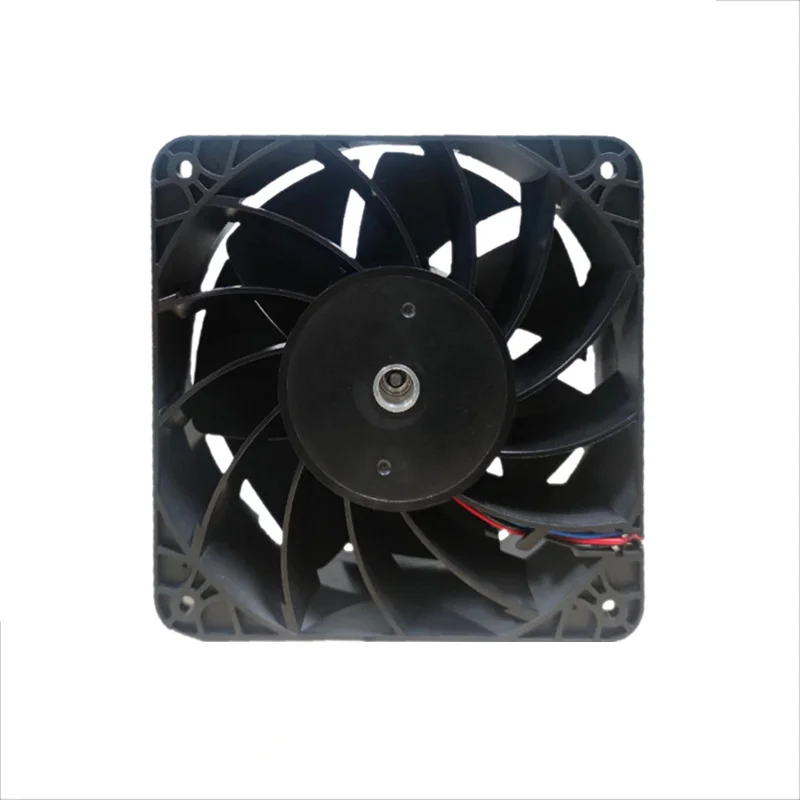

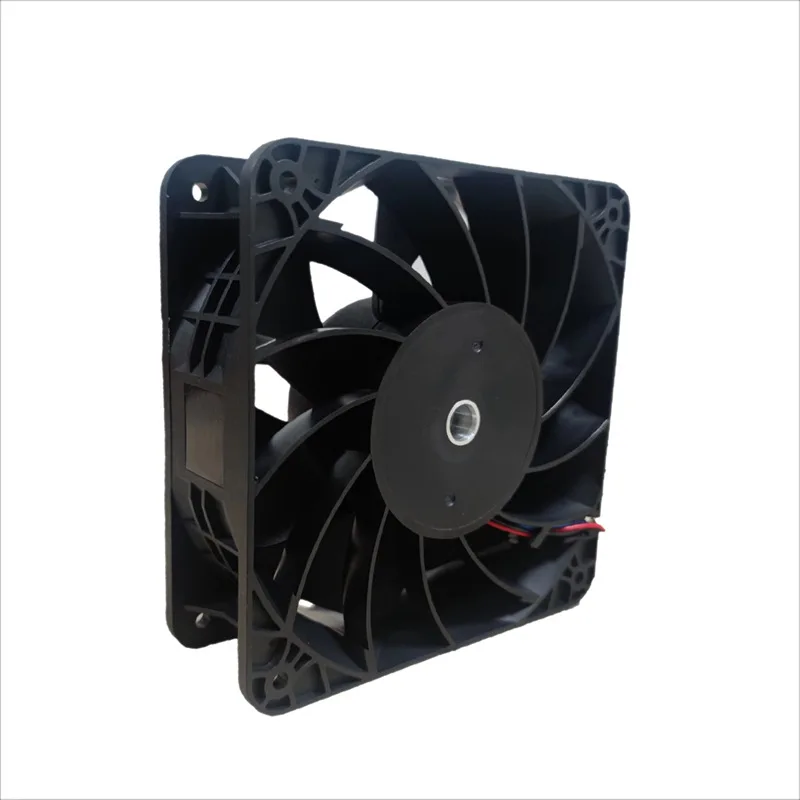

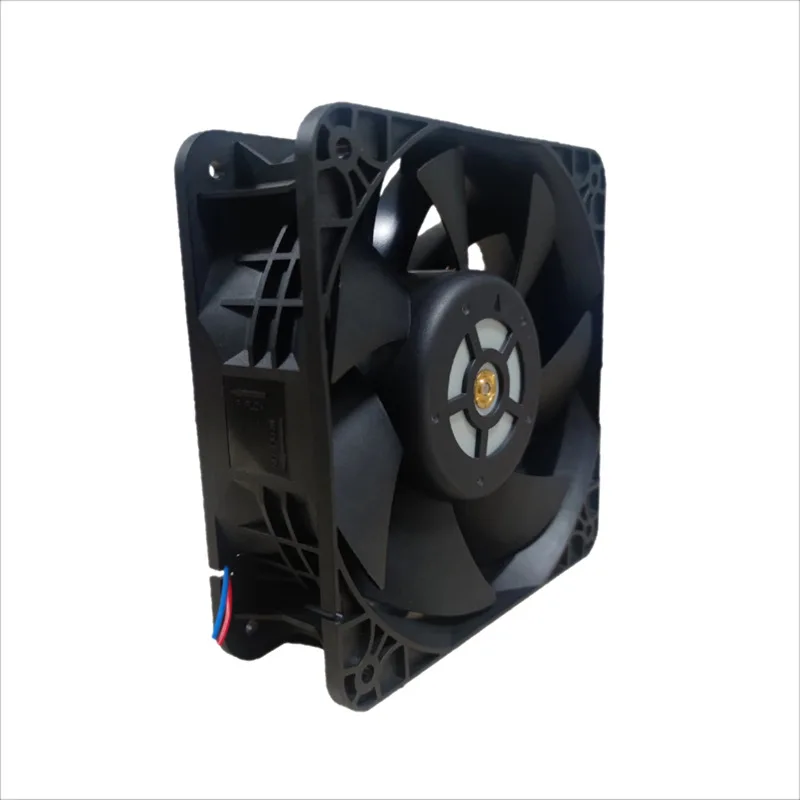

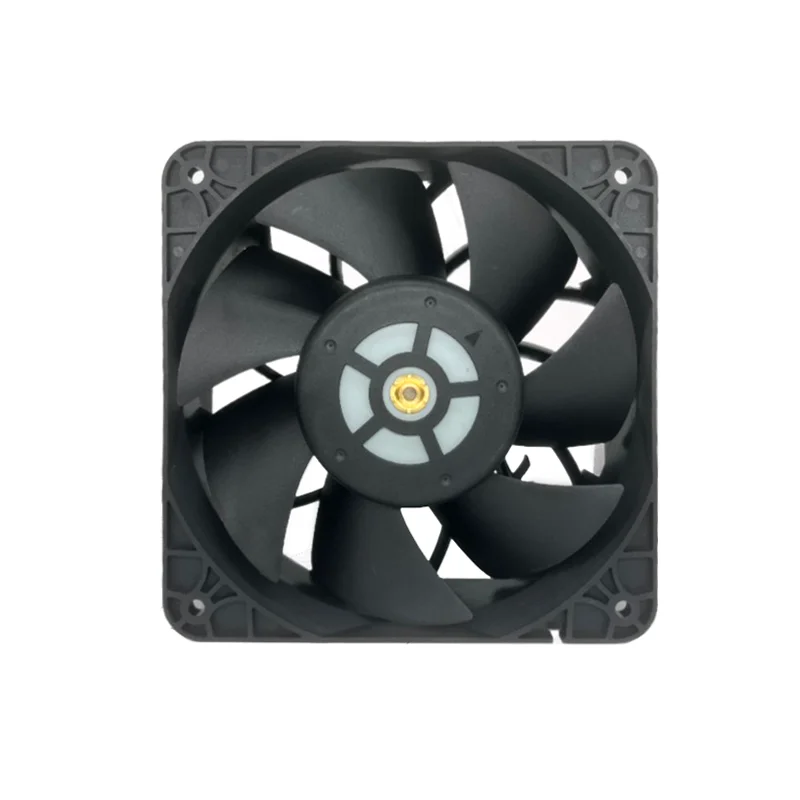

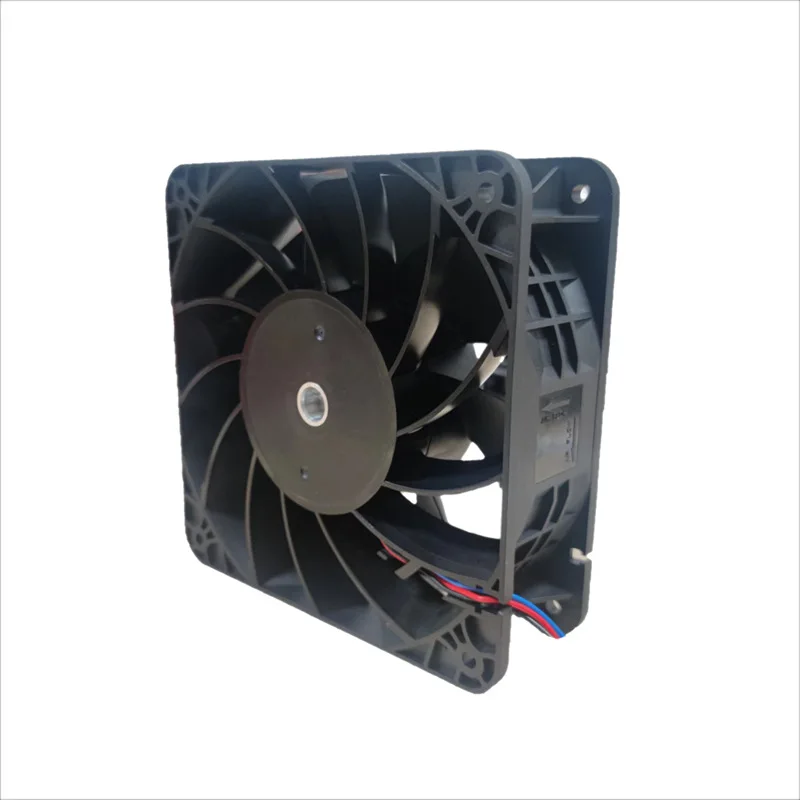

Product pictures
Product Application
This product is mainly used in Charging pile, power supply, case, cabinet, charger, desktop computer, display screen.
Company introduction
Shenzhen Duo Li Duo Technology Co., Ltd. (Didfan) specialized in producing DC compact brushless fans, like Dc axial flow fan, Dc blower fan, Dc centrifugal fan. we have developed a variety of low noise, strong air volume, high stability and long life products, which is widely used for industrial, medical, home appliances, consumer electronics, and other fields. such as industrial equipment, servers, new energy, communication equipment, medical equipment, instruments and meters, stage lights,cabinets, industrial power supply, ventilation and heat dissipation system, air purification, heating and cooling ventilation system, military and other products and other industries. We will always provide customers with reliable quality and stable performance of the fan, according to customer requirements to develop a variety of structure and performance of the cooling fan,and real-time technical communication with customers, respond to customer needs in short time, and help customers select the most suitable products in the shortest time. We will also collect relevant information and carry out forward-looking development according to the market situation and customer demand tendency. To expand product performance advantages and product series.
Product transportation
Certifications
