SOEC 15kwh 48V 300Ah LiFepo4 Battery Solar Home Energy Storage Battery Pack
- Category: >>>
- Supplier: Shenzhen Soec Energy Co. Ltd.
Share on (1600911822380):
Product Overview
Description
Recommend Products
Products Description
Model | 5kWh (100Ah) | 10kWh ( 200Ah) | 15kWh ( 300Ah) | 15kWh+5kw Inverter ( 300Ah) | |||||||||||
Nominal Voltage | 48V (15S) | 51.2V (16S) | 48V (15S) | 51.2V (16S) | 48V (15S) | 51.2V (16S) | 48V (15S) | 51.2V (16S) | |||||||
Energy | 4800Wh | 5120Wh | 9600Wh | 10210Wh | 14400Wh | 15360Wh | 14400Wh | 15360Wh | |||||||
Capacity | 100Ah@0.2C | 200Ah@0.2C | 300Ah@0.2C | 300Ah@0.2C | |||||||||||
Internal Resistance | 100≤mΩ | 30≤mΩ | 100≤mΩ | 30≤mΩ | 20≤mΩ | 20≤mΩ | 20≤mΩ | 20≤mΩ | |||||||
Cycle Life | >3500 Cycles @ 0.2C Charging/Discharging at100%DOD,Until 70% Capacity; >6000 Cycles @ 0.2C/25℃ Charging/Discharging at 50%DOD,Until70% Capacity. | ||||||||||||||
APP Control | - | - | Support | ||||||||||||
Bulit in Inverter | - | Yes | Yes | ||||||||||||
Modes | Wall-mounted ESS | 1. Wall-mounted ESS; 2. Mobile ESS; 3. Wall-mounted ESS + APP; 4. Mobile ESS + APP | |||||||||||||
Charging Voltage | 53.2-54V | 56.8-57.6V | 53.2-54V | 56.8-57.6V | 53.2-54V | 56.8-57.6V | 53.2-54V | 56.8-57.6V | |||||||
Charging Mode(CC/CV) | 48V: At 0℃~45℃, charged to 54.75V at a constant current of 0.2C5A, and then changed continuously with constant voltage of 54.75V until the current was not more than 0.02C5A. 51.2V: At 0℃~45℃ temperature, charged to57.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 57.6V until the current was not more than 0.02C. | ||||||||||||||
Charging Current | 20A | ||||||||||||||
Max.Charging Current | 100A | ||||||||||||||
Discharging Current | 20A | ||||||||||||||
Max. Continuous Current | 100A | ||||||||||||||
Max.Pulse Current | 150A(<30S） | ||||||||||||||
Discharging Cut-off Voltage(V) | 40.5~42V | 43.2~44.8V | 40.5~42V | 43.2~44.8V | 40.5~42.V | 43.2~44.8V | 40.5~42V | 43.2~44.8V | |||||||
Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||||||||||||||
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | ||||||||||||||
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | ||||||||||||||
Water Dust Resistance | IP22 | ||||||||||||||
Cell & Format | IFR N100,15S1P(48V); IFR N100,16S1P(51.2V) | ||||||||||||||
Casing | SPCC | ||||||||||||||

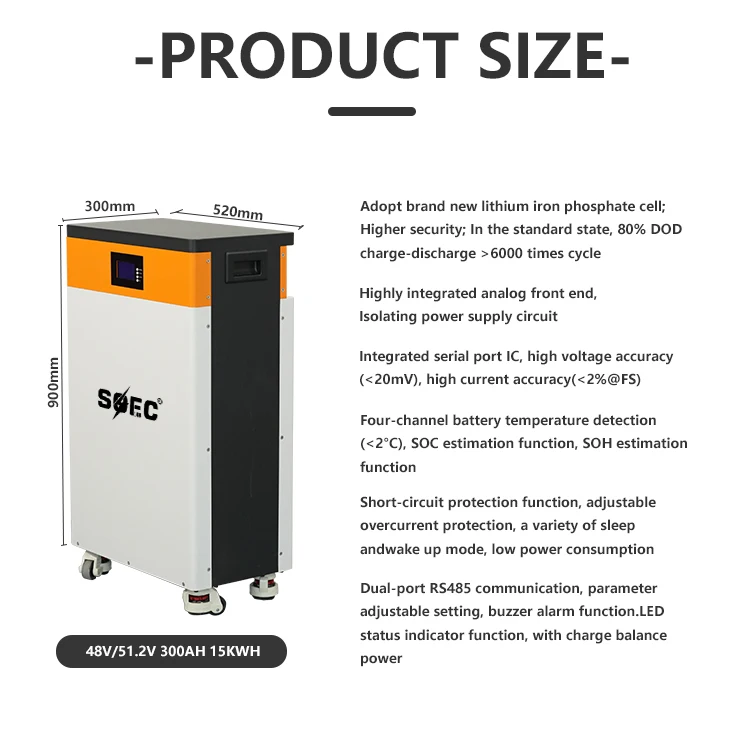

Dimension(L*W*H)(Unit: mm) | 540*380*220 | 540*380*250 | 660*400*235 | 700*420*235 | 880*520*300 | 800(905)*520*300 | 1050*510*290 | 1050*510*290 | |||||||
Weight | 55kg | 59kg | 88kg | 107kg | 136kg | 140kg | 145kg | 149kg | |||||||
Terminal | 120A Quick insertion and removal of self-locking plugs | ||||||||||||||
Communication | RS485/CAN/RS232 | ||||||||||||||
Support Inverter | Deye, Voltronic Power, Growatt, GOODWE, Victron energy, SRNE | ||||||||||||||
Customer Review
Company Profile
Certifications
Support Inverter
Packaging & Shipping
Ship to US/USA | ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+FEDEX Delivery(DDP,Tax free) |
ETA:35-40 days after delivery | |||
Ship to EU | ETD:3-7 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea/train+UPS(DDP,Tax free) |
ETA:35-45 days after delivery | |||
Ship to AU | ETD:7-10 days | The tracking will be update after pick up by local express.Usually it will take around 7-15 days after delivery. | By sea+Delivery(DDP, Tax free or DAP) |
ETA:35-45 days after delivery |
