Nadun hot selling 125 ton iron hole punch sheet metal punching machine 5.5 inches stroke 3 PH CE ISO approved
- Category: >>>
- Supplier: Nadun Machinery Manufacture Co. Ltd.
Share on (1600911834076):
Product Overview
Description
Nadun hot-selling 125 ton iron hole punch sheet metal punching machine 5.5 inches stroke 3 PH CE ISO approved
Product Description
The Nadun 125 ton iron hole punch is a heavy duty sheet metal punching machine suitable for punching holes in metal plates up to 5.5 inch thickness. This hot-selling model features a 125 ton punching force, 5.5 inch maximum stroke length, 3 phase power supply, and complies with CE ISO quality and safety standards. The sturdy iron construction ensures durability for punching holes accurately through rigid steel plates. Easy to operate and maintain, this Nadun punch machine delivers industrial strength hole punching capacity.
Model

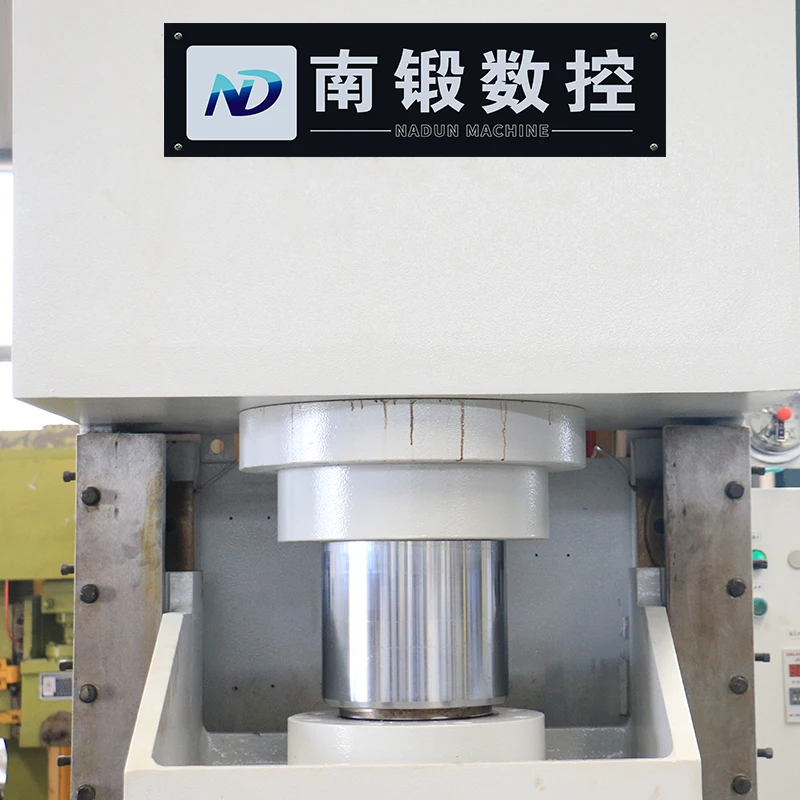

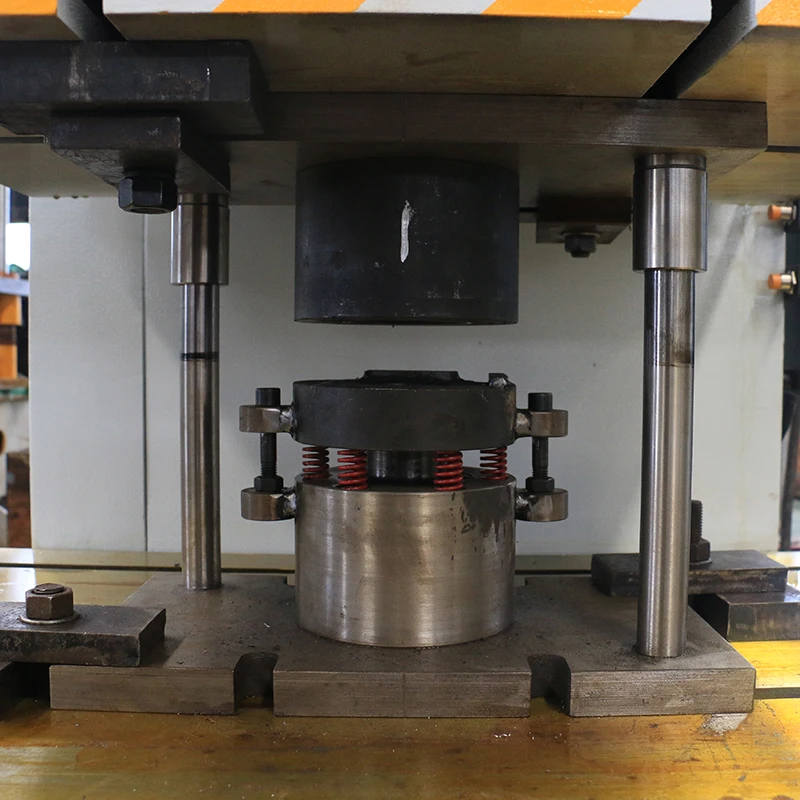

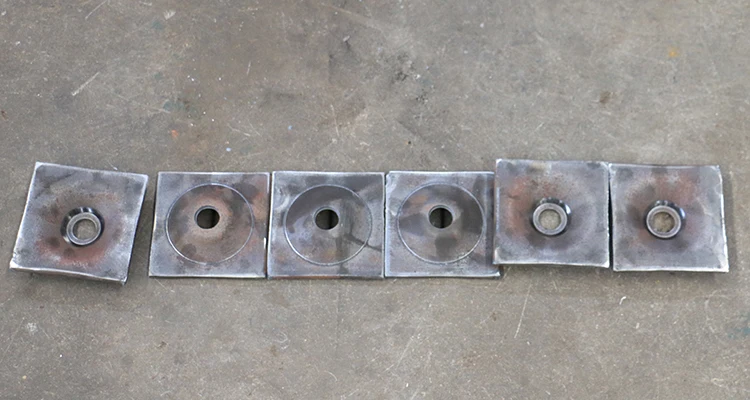

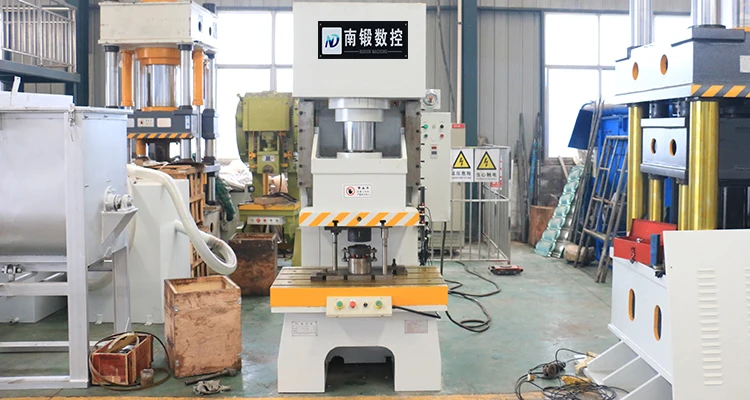

The picture above is a sample we made ourselves using our own manufacturing process.

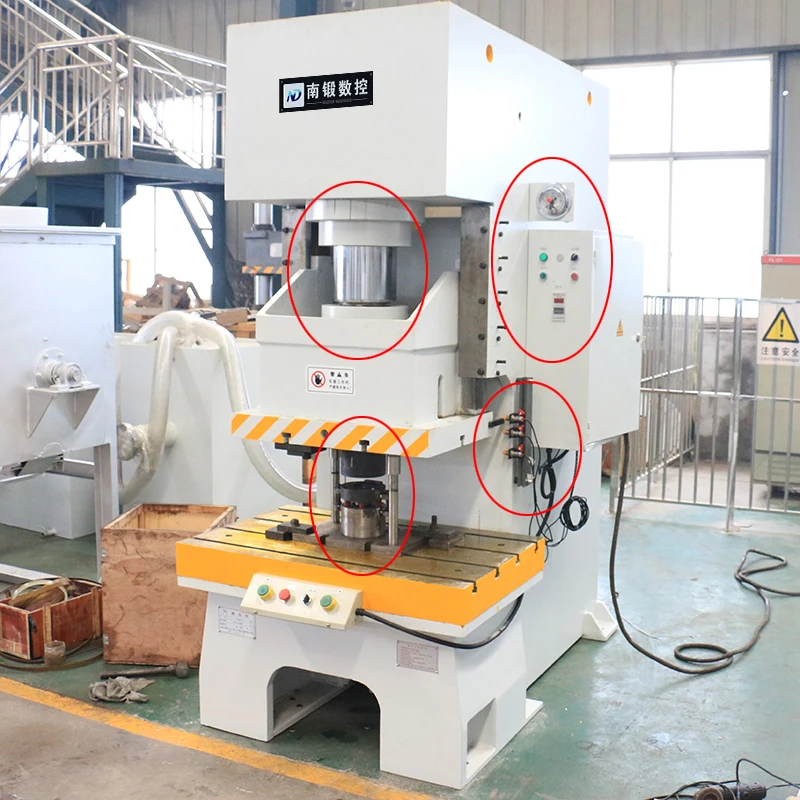

Product details
The whole machine is made up of 45# carbon steel.
The use of 45# carbon steel for the whole machine provides high strength, durability, and corrosion resistance, ensuring reliable and long-lasting performance. Additionally, its lightweight construction makes transportation and installation easier.
T-slots
They allow for easy and secure mounting of workpieces or fixtures, which helps to improve efficiency and accuracy during the punching process.

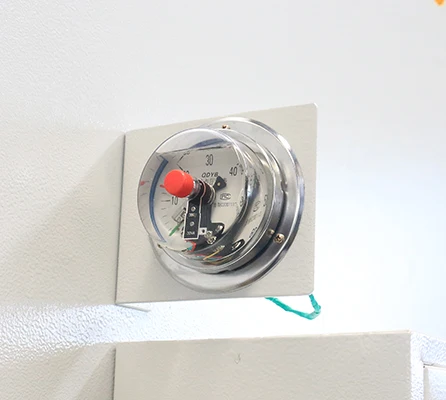

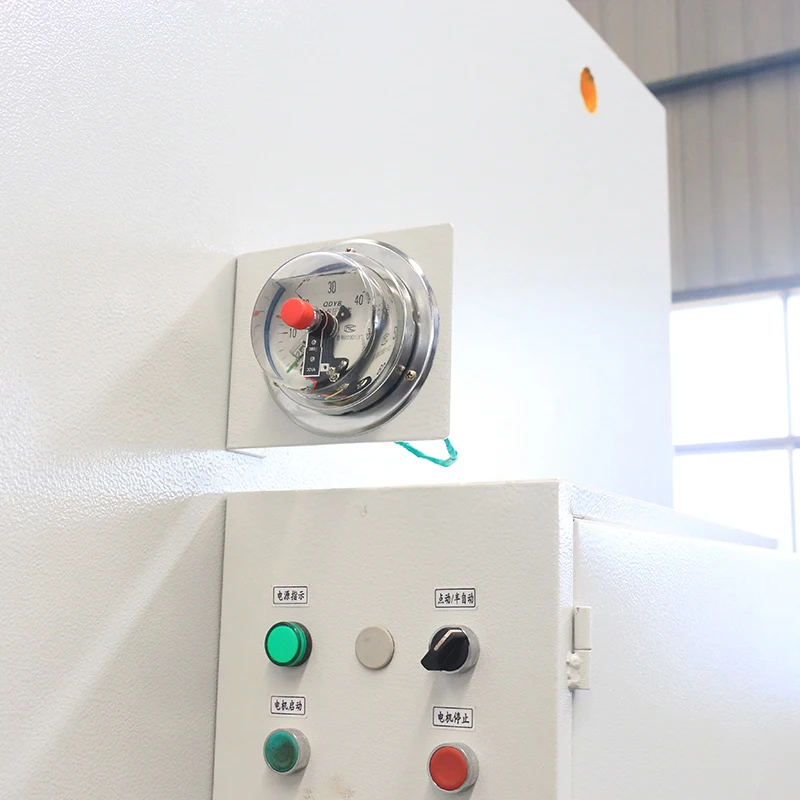

Hydraulic gauge
It provides high-precision pressure measurement to ensure the stability and reliability of the punching press during operation.Additionally, the hydraulic gauge monitors the working condition of the hydraulic system, promptly detecting and repairing any potential issues, thereby improving the performance and safety of the punching press.

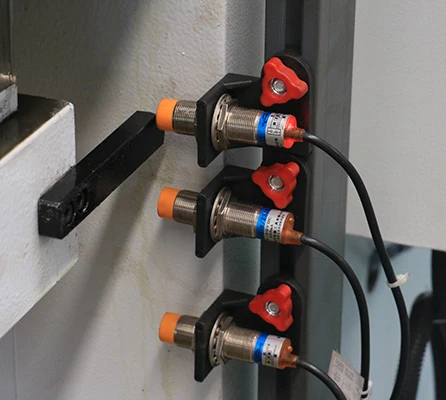

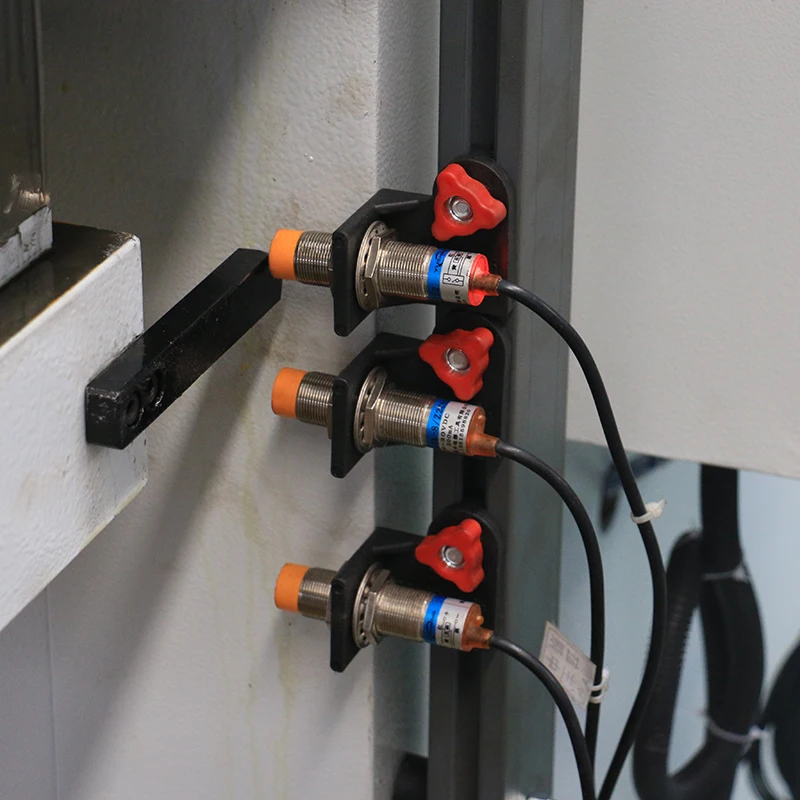

Stroke switch
It measures the stroke of the machine's moving parts, ensuring that the punching press stops or starts other operations at the correct position during operation.Additionally, the stroke switch monitors the motion status of the machine, promptly detecting and correcting any abnormal conditions, thereby improving the performance and safety of the punching press.
Features
Here are the key advantages of the Nadun hot-selling 125 ton iron hole punch sheet metal punching machine with 5.5 inches stroke, 3 PH, CE ISO approved:
1.Powerful 125 ton punching force for holes in thick metal up to 5.5 inches
2. Long 5.5 inch stroke length for versatile hole punching applications
3.Sturdy iron construction for durability in heavy duty use
4.Industrial 3 phase power supply for performance and efficiency
5.CE ISO certified for quality and safety assurance
6.Heavy duty capacity suitable for rigid steel hole punching
7.Easy to operate and maintain for convenient use
8.High accuracy hole punching in metal plates
9.Hot-selling model popular for metal fabrication shops
10.Suitable for high production demands and repetitive use
11.Cost effective hole punching solution
1.Powerful 125 ton punching force for holes in thick metal up to 5.5 inches
2. Long 5.5 inch stroke length for versatile hole punching applications
3.Sturdy iron construction for durability in heavy duty use
4.Industrial 3 phase power supply for performance and efficiency
5.CE ISO certified for quality and safety assurance
6.Heavy duty capacity suitable for rigid steel hole punching
7.Easy to operate and maintain for convenient use
8.High accuracy hole punching in metal plates
9.Hot-selling model popular for metal fabrication shops
10.Suitable for high production demands and repetitive use
11.Cost effective hole punching solution
Standard configuration
SPECIFICATION | Unit | YC21-100T | YC21-125T | YC21-160T | YC21-200T | YC21-315T |
Max system pressure | Mpa | 25 | 25 | 25 | 25 | 25 |
Max. Open height | mm | 320 | 320 | 350 | 400 | 500 |
Effective stroke | mm | 140 | 140 | 160 | 180 | 220 |
Table effective area(LRXFB) | mm | 1100×710 | 1200×720 | 1300×740 | 1400×760 | 1600 ×800 |
Throat depth | mm | 380 | 380 | 380 | 400 | 420 |
Slider stroke times per minute | times/min | 30 | 30 | 30 | 20 | 20 |
slider size | mm | 560x420 | 560×420 | 770×580 | 770×580 | 850×650 |
slider mould hole size | mm | 60 | 60 | 65 | 65 | 70 |
Blanking hole size of table | mm | 220 | 220 | 260 | 260 | 280 |
Distance between floor and table | mm | 870 | 870 | 870 | 900 | 920 |
Motor | kw | 7.5 | 11 | 15 | 18.5 | 30 |
Weight | T | 6 | 9 | 11 | 14.5 | 26 |
Oil tank capacity | L | 350 | 400 | 500 | 700 | 900 |

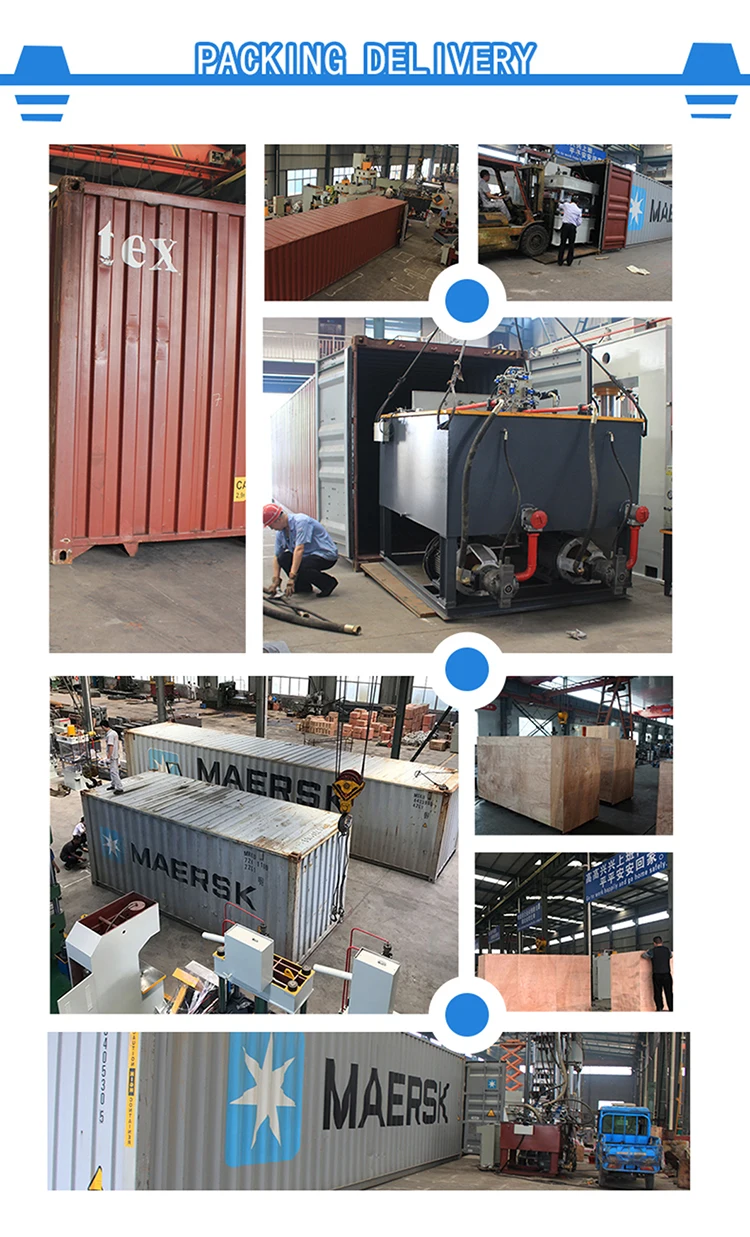

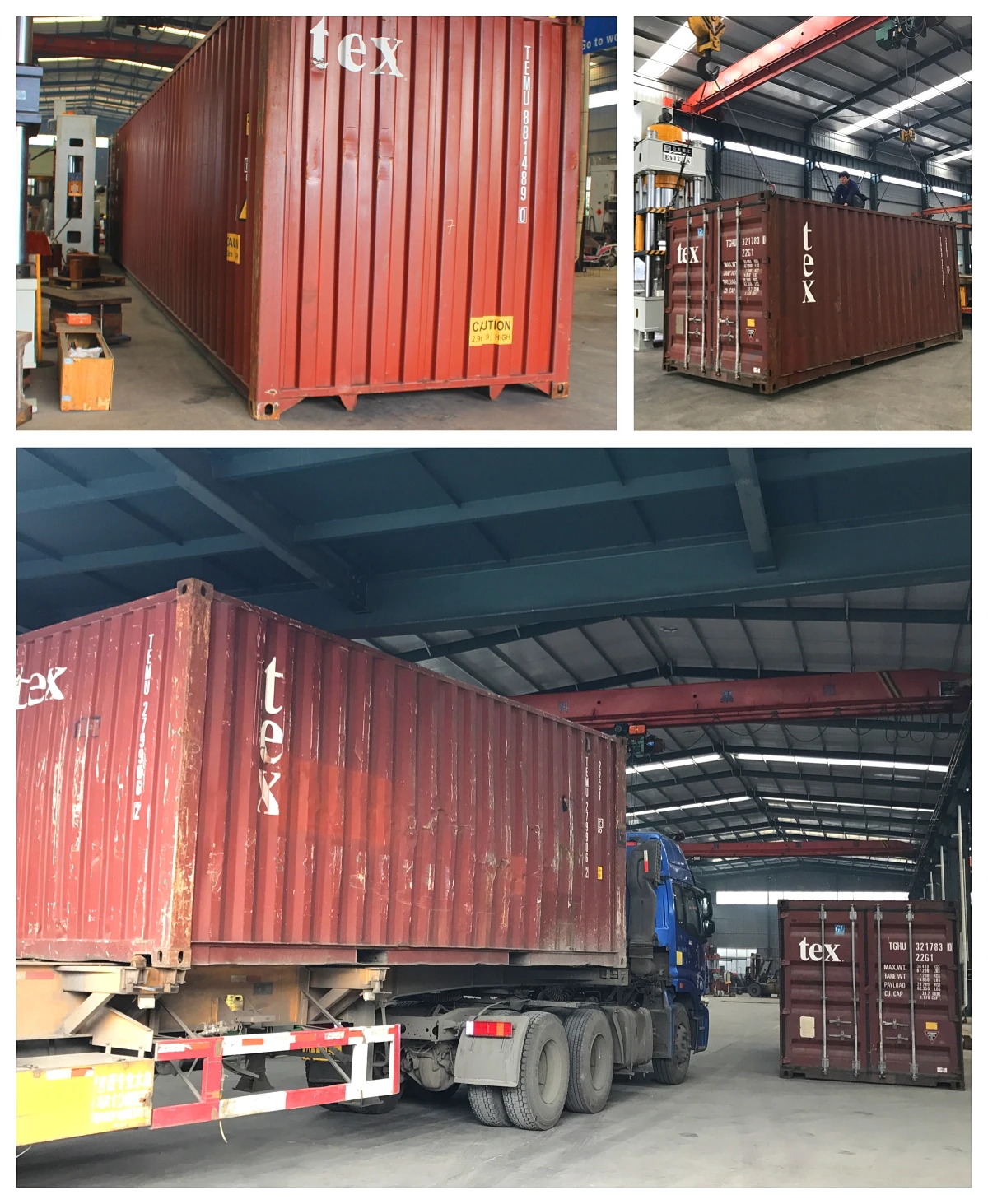

Packing & Delivery
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
External wooden packaging,
Exclusive container transport.
Company Profile
We are a strong company.
The company's processing equipment includes large-scale CNC floor-standing boring and milling machines, CNC gantry machining centers and other advanced equipment. Our company has passed the ISO,CE,SGS and other certification,has a number of product innovation patents and honorary certificates. Our main products include manual lathe,cnc lathe,saw machines,machine tool,Drill machine, Milling machine,Machining Center,CNC milling machine,grinder,etc. Each of our machine undergoes a multi-step superb machining process and rigorous measurement and assembly. Every producing step of the machine undergo quality inspection and mutual inspection,The company has complete testing methods and advanced inspection techniques.All the machines should be 100% qualified before sales.

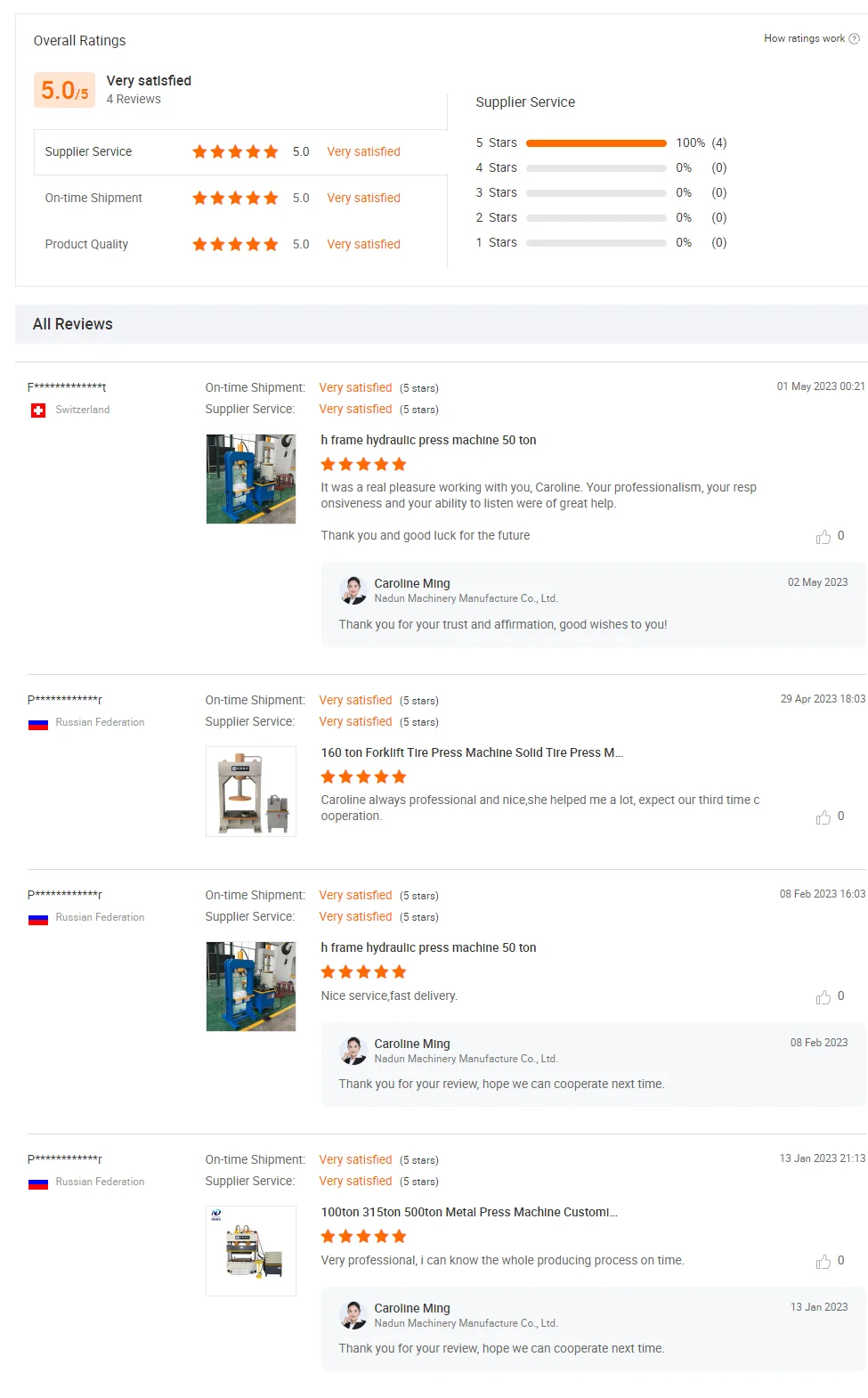

We have received multiple 5-star ratings.
